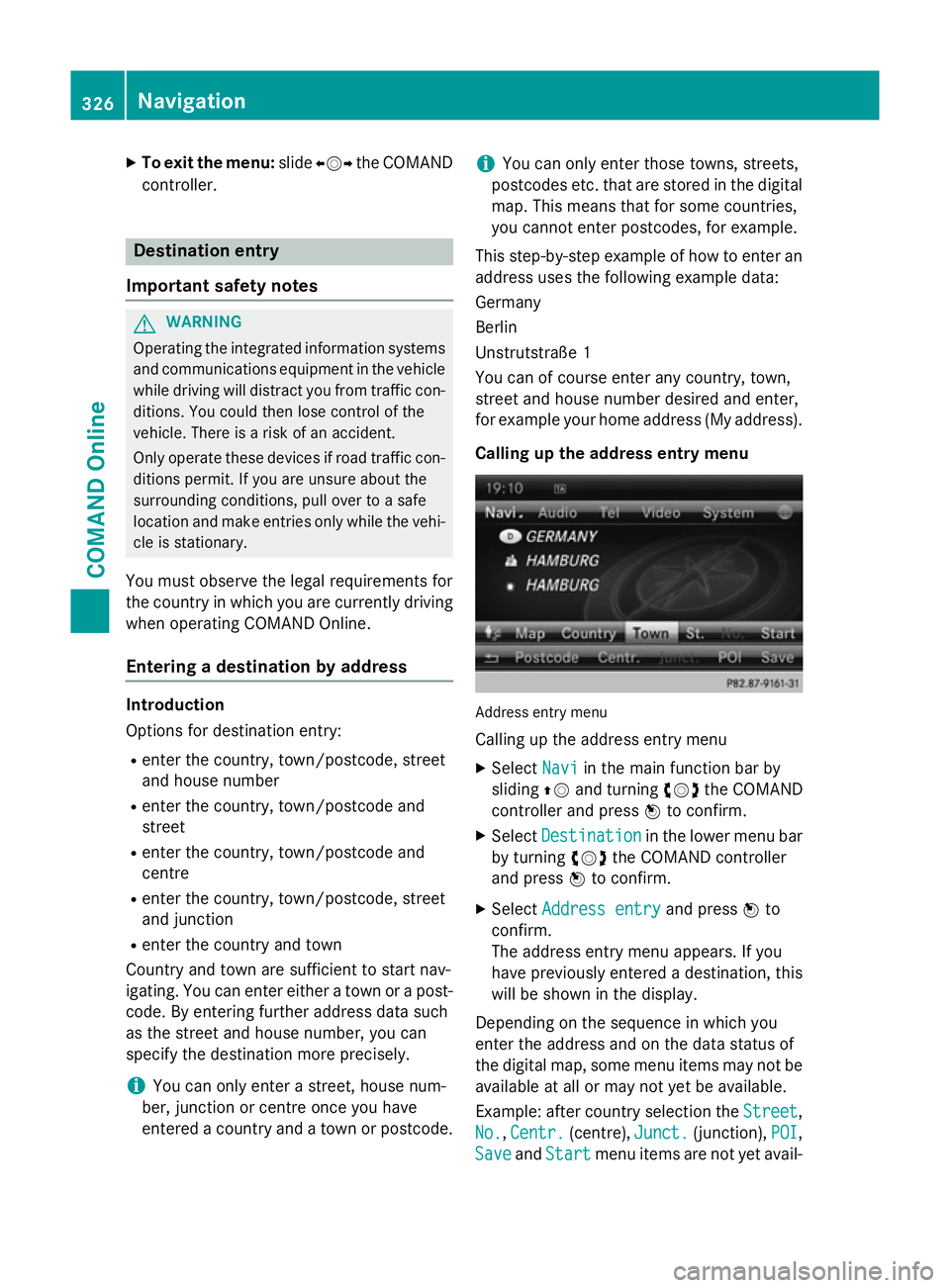

2012 MERCEDES-BENZ SL ROADSTER Owners Manual

X
To exit the menu: slideXVY the COMAND
controller. Destination entry
Important safety notes G
WARNING
Operating the integrated information systems and communications equipment in the vehicle
while driving will distract you from traffic con-
ditions. You could then lose control of the
vehicle. There is a risk of an accident.
Only operate these devices if road traffic con-
ditions permit. If you are unsure about the
surrounding conditions, pull over to a safe
location and make entries only while the vehi-
cle is stationary.
You must observe the legal requirements for
the country in which you are currently driving when operating COMAND Online.
Entering a destination by address Introduction
Options for destination entry:
R enter the country, town/postcode, street
and house number
R enter the country, town/postcode and
street
R enter the country, town/postcode and
centre
R enter the country, town/postcode, street
and junction
R enter the country and town
Country and town are sufficient to start nav-
igating. You can enter either a town or a post- code. By entering further address data such
as the street and house number, you can
specify the destination more precisely.
i You can only enter a street, house num-
ber, junction or centre once you have
entered a country and a town or postcode. i
You can only enter those towns, streets,
postcodes etc. that are stored in the digital map. This means that for some countries,
you cannot enter postcodes, for example.
This step-by-step example of how to enter an address uses the following example data:
Germany
Berlin
Unstrutstraße 1
You can of course enter any country, town,
street and house number desired and enter,
for example your home address (My address).
Calling up the address entry menu Address entry menu
Calling up the address entry menu
X Select Navi Naviin the main function bar by
sliding ZVand turning cVdthe COMAND
controller and press Wto confirm.
X Select Destination
Destination in the lower menu bar
by turning cVdthe COMAND controller
and press Wto confirm.
X Select Address entry
Address entry and pressWto
confirm.
The address entry menu appears. If you
have previously entered a destination, this
will be shown in the display.
Depending on the sequence in which you
enter the address and on the data status of
the digital map, some menu items may not be
available at all or may not yet be available.
Example: after country selection the Street Street,
No.
No. ,Centr.
Centr. (centre), Junct.
Junct.(junction), POI
POI,
Save
Save andStart
Start menu items are not yet avail- 326
NavigationCOMAND Online

able. The
Postcode
Postcode menu item will not be
available unless the digital map contains
postcodes.

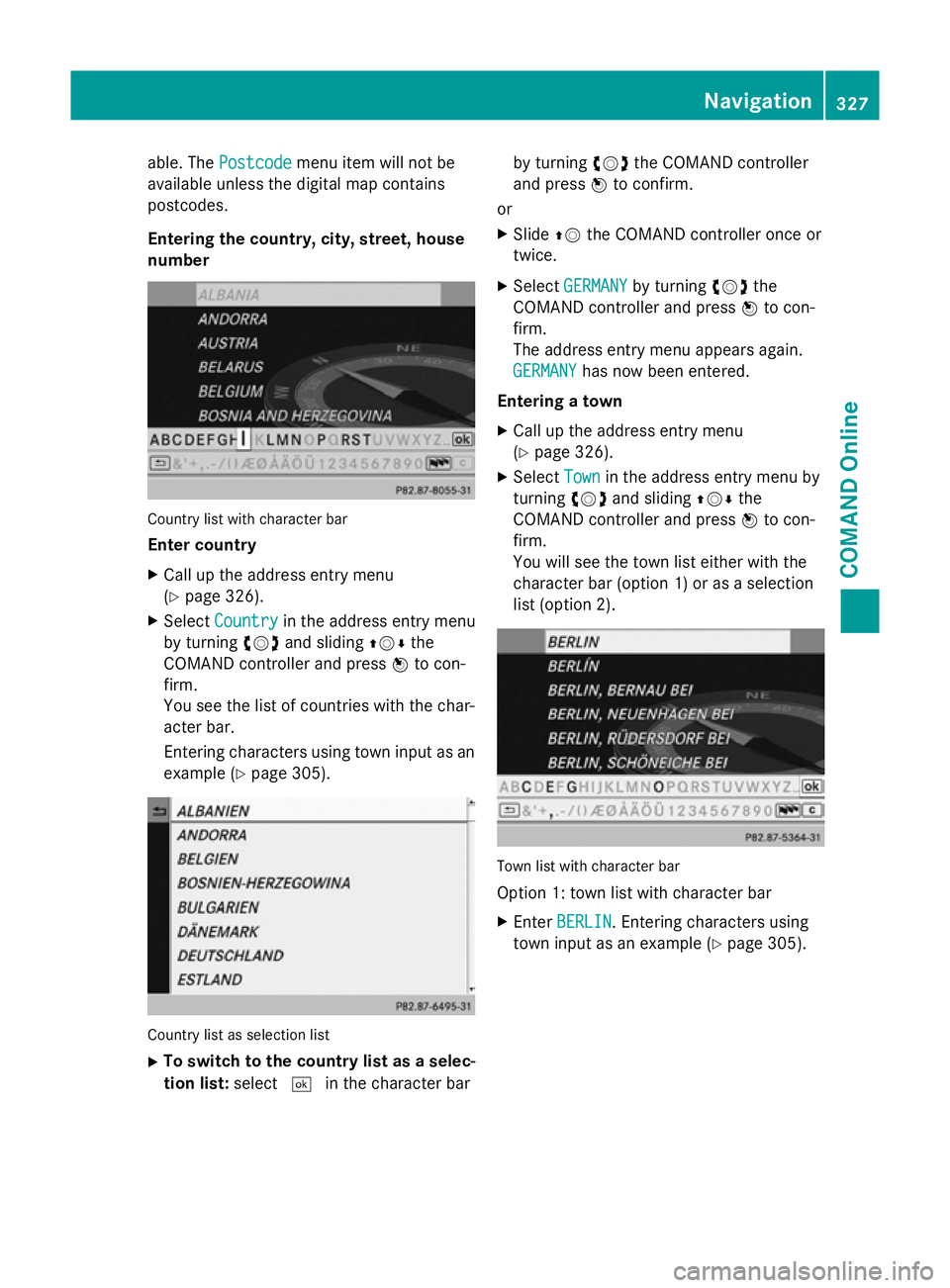

Entering the country, city, street, house
number Country list with character bar
Enter country
X Call up the address entry menu
(Y page 326).
X Select Country Country in the address entry menu
by turning cVdand sliding ZVÆthe
COMAND controller and press Wto con-
firm.
You see the list of countries with the char-
acter bar.
Entering characters using town input as an
example (Y page 305). Country list as selection list
X To switch to the country list as a selec-
tion list: select¬in the character bar by turning
cVdthe COMAND controller
and press Wto confirm.
or X Slide ZVthe COMAND controller once or
twice.
X Select GERMANY GERMANY by turning cVdthe
COMAND controller and press Wto con-
firm.
The address entry menu appears again.
GERMANY
GERMANY has now been entered.
Entering a town X Call up the address entry menu
(Y page 326).
X Select Town Townin the address entry menu by
turning cVdand sliding ZVÆthe
COMAND controller and press Wto con-
firm.
You will see the town list either with the
character bar (option 1) or as a selection
list (option 2). Town list with character bar
Option 1: town list with character bar
X Enter BERLIN BERLIN . Entering characters using
town input as an example (Y page 305). Navigation
327COMAND Online Z

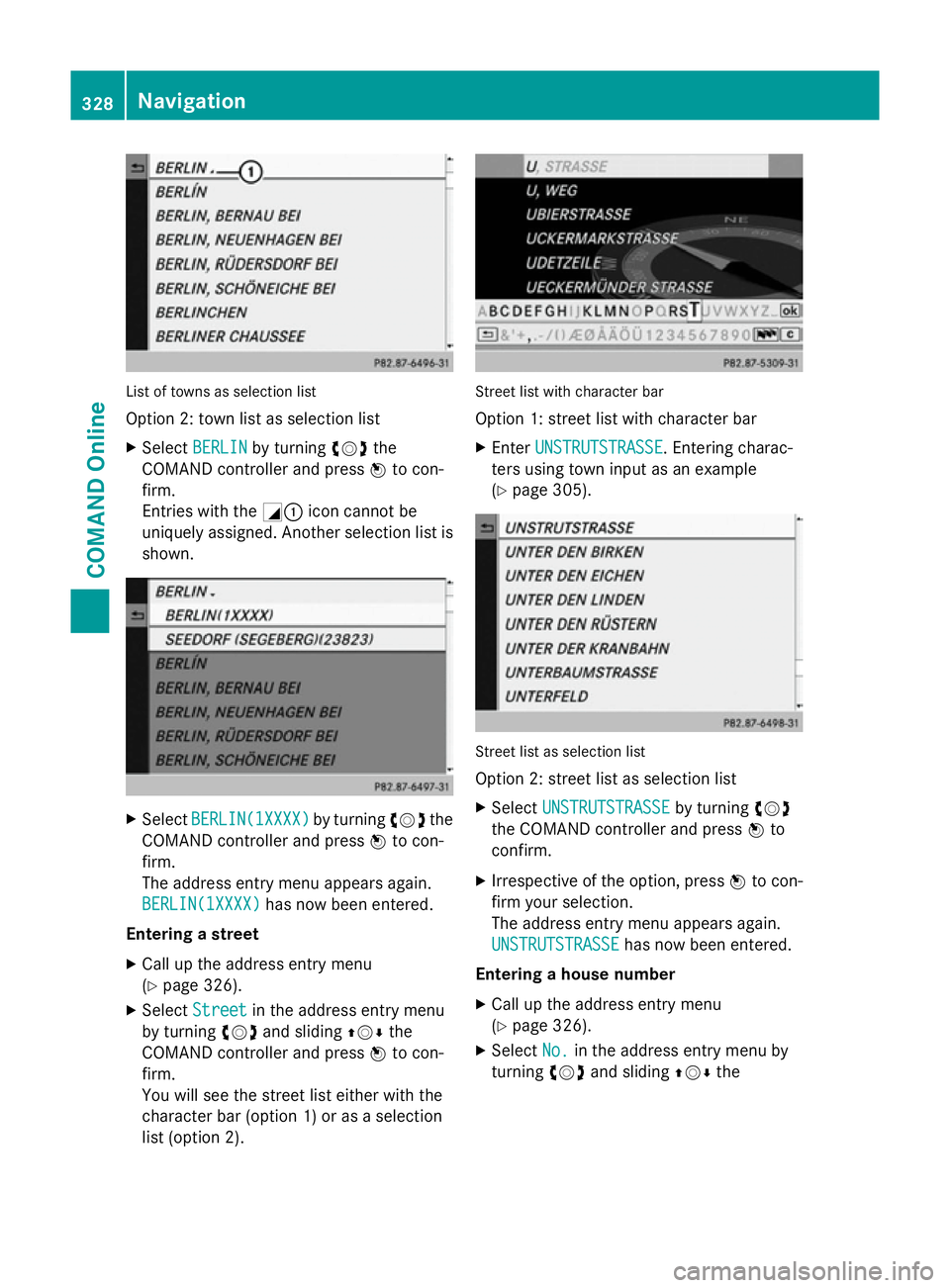

List of towns as selection list
Option 2: town list as selection list
X Select BERLIN
BERLIN by turning cVdthe
COMAND controller and press Wto con-
firm.
Entries with the G:icon cannot be
uniquely assigned. Another selection list is shown. X
Select BERLIN(1XXXX)
BERLIN(1XXXX) by turningcVdthe
COMAND controller and press Wto con-
firm.
The address entry menu appears again.
BERLIN(1XXXX) BERLIN(1XXXX) has now been entered.
Entering a street X Call up the address entry menu
(Y page 326).
X Select Street Street in the address entry menu
by turning cVdand sliding ZVÆthe
COMAND controller and press Wto con-
firm.
You will see the street list either with the
character bar (option 1) or as a selection
list (option 2). Street list with character bar
Option 1: street list with character bar
X Enter UNSTRUTSTRASSE UNSTRUTSTRASSE. Entering charac-
ters using town input as an example
(Y page 305). Street list as selection list
Option 2: street list as selection list
X Select UNSTRUTSTRASSE UNSTRUTSTRASSE by turningcVd
the COMAND controller and press Wto
confirm.
X Irrespective of the option, press Wto con-
firm your selection.
The address entry menu appears again.
UNSTRUTSTRASSE UNSTRUTSTRASSE has now been entered.
Entering a house number X Call up the address entry menu
(Y page 326).
X Select No. No.in the address entry menu by
turning cVdand sliding ZVÆthe 328
NavigationCOMAND Online

COMAND controller and press
Wto con-
firm.
You will see the house number list either
with the character bar (option 1) or as a
selection list (option 2). House number list with character bar
Option 1: house number list with character
bar
X Enter 1 1. Entering characters using town
input as an example (Y page 305).House number list as selection list
Option 2: house number list as selection list
X Select 1
1 by turning cVdthe COMAND con-
troller and press Wto confirm.
X Irrespective of the option, press Wto con-
firm your selection.
The address entry menu appears again. 1
1
has now been entered. Starting route calculation
Address entry menu with destination address
:
Destination address
; To start route calculation
You can now have COMAND Online calculate a route to the destination address you have
entered, or you can save it.
X Call up the address entry menu
(Y page 326).
X In the address entry menu, confirm Start Start
by pressing W.
If no other route has been calculated, route
calculation starts immediately (option 1). If
another route has already been calculated
(route guidance is active), a prompt
appears (option 2).
Option 1 – no route guidance active: route
calculation starts. While route calculation is in
progress, an arrow will indicate the direction
to your destination. Below this, you will see a
message, e.g. Calculating fast Calculating fast
route...
route....
Once the route has been calculated, route
guidance begins. If the vehicle is travelling on a non-digitised road, the system displays the
linear distance to the destination, the direc-
tion of the destination and the Off road Off road
message. In this case, the display will be
greyed out.
Option 2 – route guidance is already
active: if route guidance is already active, a
prompt will appear asking whether you wish
to terminate the currently active route guid-
ance. Navigation
329COMAND Online Z

X
Select Yes
YesorNo
No and press Wto confirm.
If you select Yes
Yes, COMAND Online will stop
route guidance and start route calculation
for the new destination.
If you select No No, COMAND Online will con-
tinue with the active route guidance.

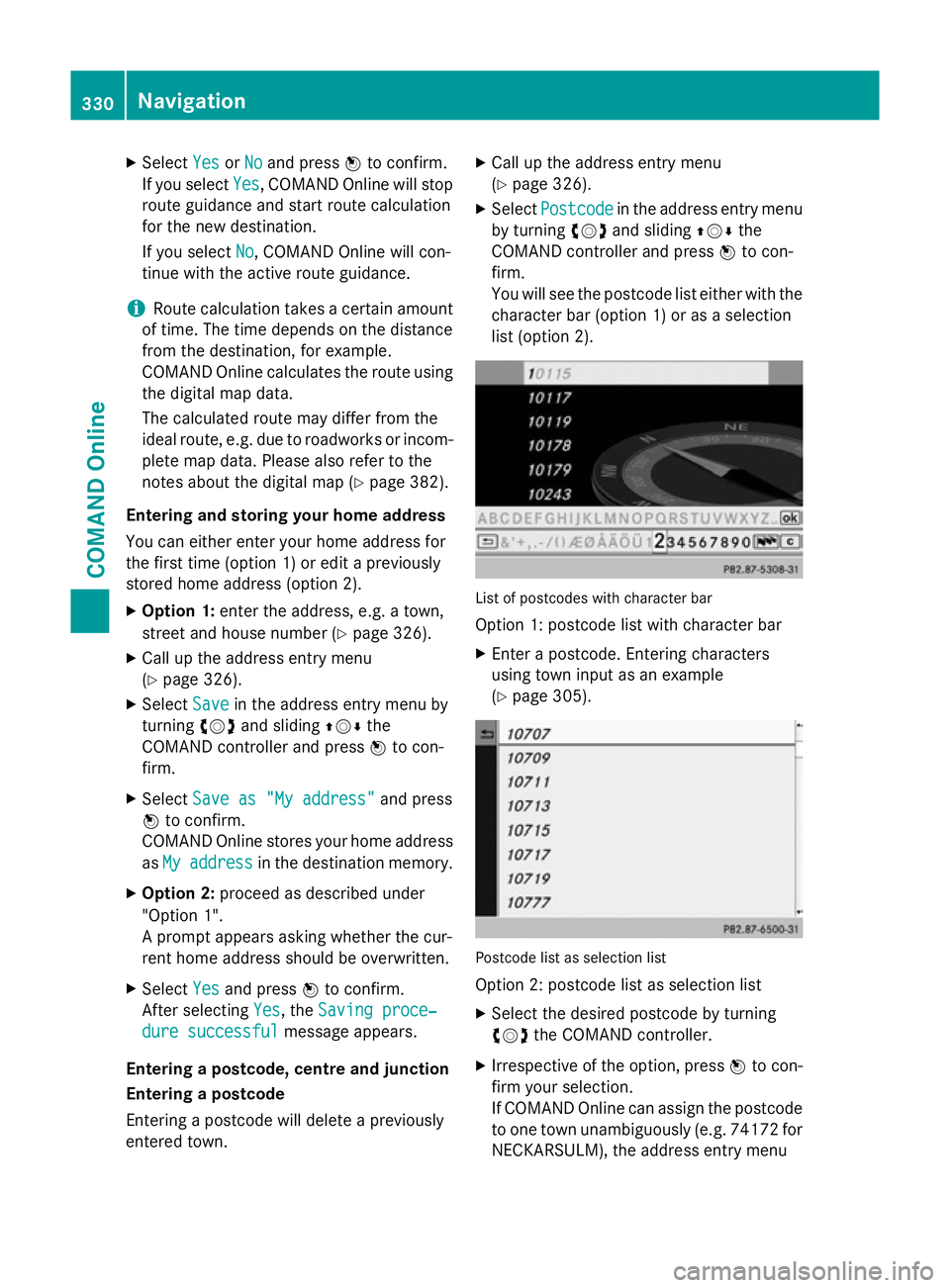

i Route calculation takes a certain amount
of time. The time depends on the distance
from the destination, for example.
COMAND Online calculates the route using the digital map data.
The calculated route may differ from the
ideal route, e.g. due to roadworks or incom-
plete map data. Please also refer to the
notes about the digital map (Y page 382).
Entering and storing your home address
You can either enter your home address for
the first time (option 1) or edit a previously
stored home address (option 2).
X Option 1: enter the address, e.g. a town,
street and house number (Y page 326).
X Call up the address entry menu
(Y page 326).
X Select Save
Save in the address entry menu by
turning cVdand sliding ZVÆthe
COMAND controller and press Wto con-
firm.
X Select Save as "My address" Save as "My address" and press
W to confirm.
COMAND Online stores your home address
as My
My address
address in the destination memory.
X Option 2: proceed as described under
"Option 1".
A prompt appears asking whether the cur-
rent home address should be overwritten.
X Select Yes Yesand press Wto confirm.
After selecting Yes
Yes, the Saving proce‐
Saving proce‐
dure successful
dure successful message appears.
Entering a postcode, centre and junction
Entering a postcode
Entering a postcode will delete a previously
entered town. X
Call up the address entry menu
(Y page 326).
X Select Postcode Postcode in the address entry menu
by turning cVdand sliding ZVÆthe
COMAND controller and press Wto con-
firm.
You will see the postcode list either with the
character bar (option 1) or as a selection
list (option 2). List of postcodes with character bar
Option 1: postcode list with character bar
X Enter a postcode. Entering characters
using town input as an example
(Y page 305). Postcode list as selection list
Option 2: postcode list as selection list
X Select the desired postcode by turning
cVd the COMAND controller.
X Irrespective of the option, press Wto con-
firm your selection.
If COMAND Online can assign the postcode to one town unambiguously (e.g. 74172 for
NECKARSULM), the address entry menu 330
NavigationCOMAND Online

appears again. You can now complete the
address, e.g. by entering a street.
If COMAND Online cannot assign the post-
code unambiguously to a specific address,
the address entry menu also appears again.
The postcode is automatically entered. You can now enter the street for a more precise location. Only streets in the area covered
by the entered postcode are available.
X Start route calculation (Y page 329).
Entering a town centre
Entering a centre will, for example, delete a
previously entered street.
X Call up the address entry menu
(Y page 326).
X Select Centr.
Centr. (centre) in the address entry
menu by turning cVdand sliding ZVÆthe
COMAND controller and press Wto con-
firm.
You will see the centre list either with the
character bar (option 1) or as a selection
list (option 2). Town centre list with character bar
Option 1: centre list with character bar
X Enter a centre. Entering characters using
town input as an example (Y page 305).
i In big cities, you can also enter the cen-
tres of districts. Centre list as selection list
Option 2: centre list as a selection list
X Select a centre by turning cVdthe
COMAND controller.
For options 1 and 2:
X Confirm your selection by pressing W.
The address entry menu appears again. The
centre selected has been entered.
X Start route calculation (Y page 329).
Entering a junction
Entering a junction will delete a previously
entered house number.
X Call up the address entry menu
(Y page 326).
X Select Junct.
Junct. (junction) in the address
entry menu by turning cVdand sliding
ZVÆ the COMAND controller and press W
to confirm.
You will see the junction list either with the
character bar (option 1) or as a selection
list (option 2). Junction list with character bar Navigation
331COMAND Online Z

Option 1: junction list with character bar
X Enter a junction. Entering characters using
town input as an example (Y page 305).Junction list as selection list
Option 2: junction list as selection list
X Select a junction by turning cVdthe
COMAND controller and press Wto con-
firm.
Entries with the G:icon cannot be
uniquely assigned. Another selection list is shown.
X Select an entry by turning cVdthe
COMAND controller and press Wto con-
firm.
The address entry menu appears again. The
junction selected has been entered.
X Start route calculation (Y page 329).
Selecting a destination from the desti-
nation memory An entry named "My address" can always be
found at the top of the destination memory.
You may wish to assign your home address to this entry, for example, and select it for routeguidance. Further information on entering a
home address (Y page 330).
X To switch to navigation mode: press the
Ø button.
X To show the menu: pressWthe COMAND
controller.
X Select Destination
Destination in the navigation sys-
tem menu bar by turning cVdthe COMAND controller and press
Wto con-
firm.
X Select From memory
From memory and pressWto con-
firm.
You will see the destination memory list
either with the character bar (option 1) or
as a selection list (option 2). Destination memory list with character bar
Option 1: destination memory list with char-
acter bar
X Enter a destination, e.g. "My address".
Enter characters (Y page 305). Destination memory list as selection list
Option 2: destination memory list as a selec-
tion list
X Select My address My address by turningcVdthe
COMAND controller.
X Irrespective of the option, press Wto con-
firm your selection.
The address entry menu appears again.
"My address" has been entered. 332
NavigationCOMAND Online

:
Starting route calculation
X To start route calculation: selectStart Start
and press Wto confirm.
Entering a destination from the list of
last destinations Last destinations
X To switch to navigation mode: press the
Ø button.
X To show the menu: pressWthe COMAND
controller.
X Select Destination
Destination in the navigation sys-
tem menu bar by turning cVdthe
COMAND controller and press Wto con-
firm.
X Select From last destinations
From last destinations and
press Wto confirm.
X Select the desired destination by turning
cVd the COMAND controller and press W
to confirm.
The address entry menu appears again. The
destination address selected has been
entered. X
To start route calculation: selectStart
Start
and press Wto confirm.
Once the route has been calculated, route
guidance begins (Y page 329).
i Further information on the "Last destina-
tions" memory (Y page 371).
Entering a destination using the map Calling up the map
Map with crosshair
:
Current vehicle position
; Crosshair
= Details of the crosshair position
? Map scale selected
X To switch to navigation mode: press the
Ø button.
X To show the menu: pressWthe COMAND
controller.
X Select Destination
Destination in the navigation sys-
tem menu bar by turning cVdthe
COMAND controller and press Wto con-
firm.
X Select Using Using map
mapand press Wto confirm.
The map with crosshair is shown.
Display =depends on the settings selected
in "Map information in the display"
(Y page 375). If the digital map contains the
necessary data, the current road is shown. If
the geo-coordinates display is switched on,
the geo-coordinates of the crosshair are
shown. Navigation
333COMAND Online Z
