2012 Hyundai H-100 Truck Owner's Manual

1
FEATURES OF YOUR HYUNDAI
37
Switch position
0 1
Loading condition
Driver only Driver + PermissibleRR axle load

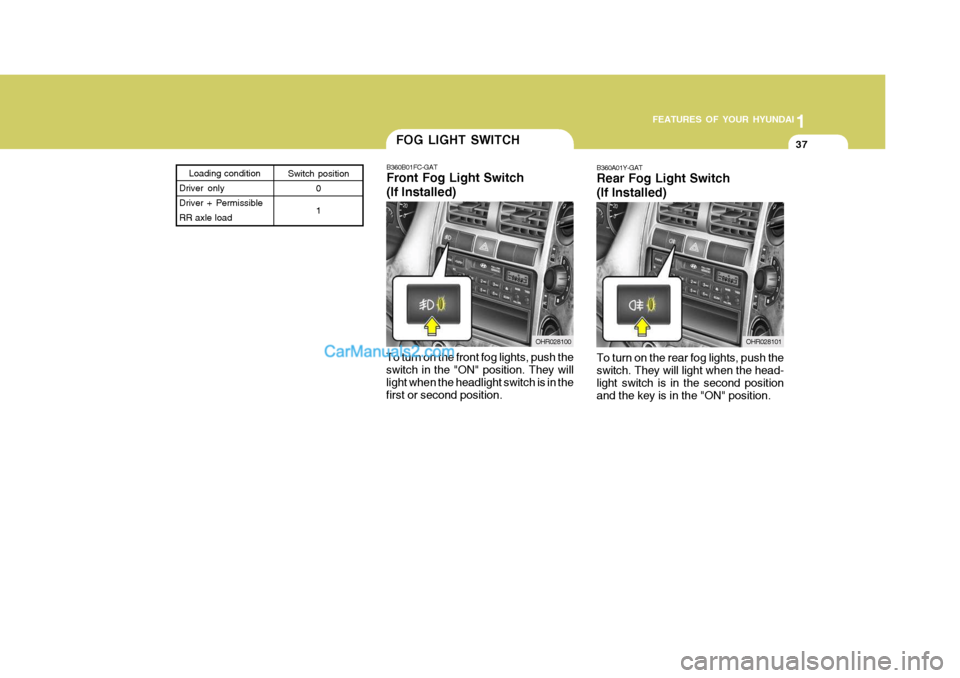

FOG LIGHT SWITCH
OHR028100
B360B01FC-GAT Front Fog Light Switch (If Installed)
To turn on the front fog lights, push the switch in the "ON" position. They willlight when the headlight switch is in the first or second position.
B360A01Y-GAT Rear Fog Light Switch (If Installed)
To turn on the rear fog lights, push the switch. They will light when the head- light switch is in the second position and the key is in the "ON" position. OHR028101

1FEATURES OF YOUR HYUNDAI
38REAR WINDOW DEFROSTER SWITCH
CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits from theinner surface of the glass as this may cause damage to the defroster ele- ments. NOTE: The engine must be running for the rear window defroster to operate.
!
B380A02HR-GAT (If Installed)
The rear window defroster is turned on by pushing in the switch. To turn the defroster off, push the switch a second time. The rear window defroster auto-matically turns itself off after about 20 minutes. To restart the defroster cycle, push in the switch again after it hasturned itself off. OHR028103
HAZARD WARNING SYSTEM
B370A01A-AAT The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make such an emer-gency stop, always pull off the road as far as possible. The hazard warning lights are turnedon by pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights willoperate even though the key is not in the ignition. To turn the hazard warning lights off,push the switch a second time. OHR028102

1
FEATURES OF YOUR HYUNDAI

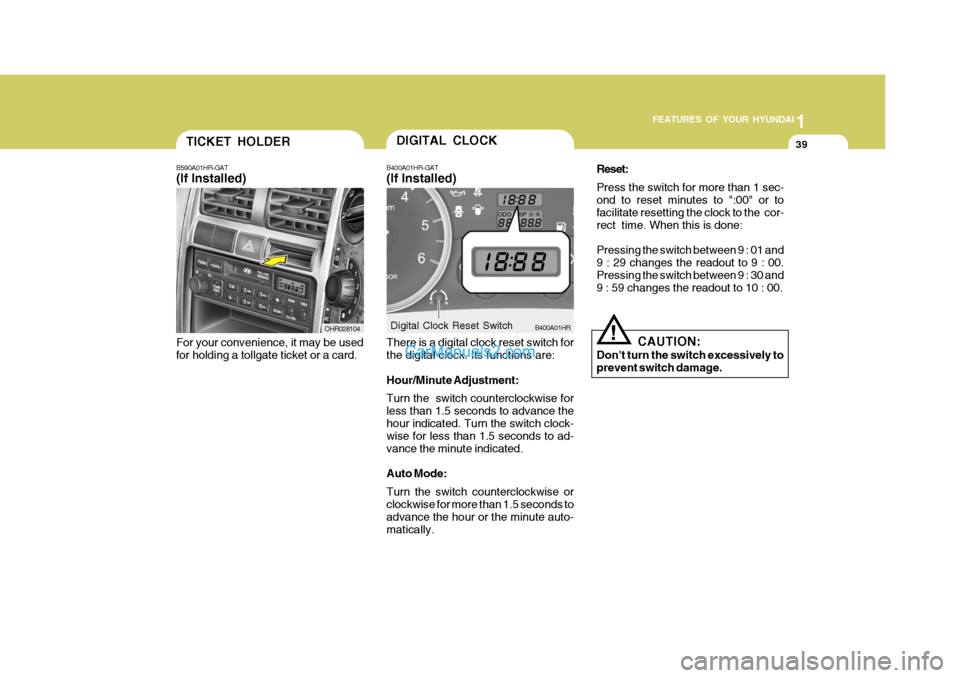

39TICKET HOLDER
B590A01HR-GAT (If Installed)
For your convenience, it may be used for holding a tollgate ticket or a card. OHR028104DIGITAL CLOCK
B400A01HR-GAT (If Installed) There is a digital clock reset switch for the digital clock. Its functions are: Hour/Minute Adjustment: Turn the switch counterclockwise for less than 1.5 seconds to advance thehour indicated. Turn the switch clock- wise for less than 1.5 seconds to ad- vance the minute indicated. Auto Mode: Turn the switch counterclockwise or clockwise for more than 1.5 seconds to advance the hour or the minute auto-matically. B400A01HR
Digital Clock Reset Switch Reset: Press the switch for more than 1 sec- ond to reset minutes to ":00" or to facilitate resetting the clock to the cor-rect time. When this is done: Pressing the switch between 9 : 01 and 9 : 29 changes the readout to 9 : 00. Pressing the switch between 9 : 30 and 9 : 59 changes the readout to 10 : 00.
!
CAUTION:
Don't turn the switch excessively to prevent switch damage.

1FEATURES OF YOUR HYUNDAI

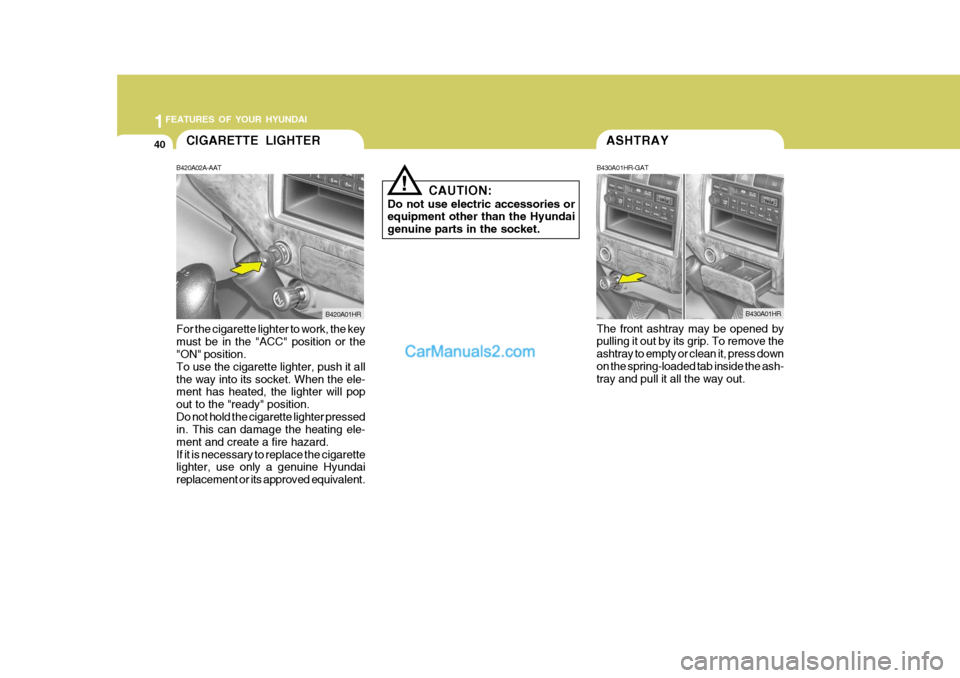

40ASHTRAY
B430A01HR-GAT The front ashtray may be opened by pulling it out by its grip. To remove the ashtray to empty or clean it, press downon the spring-loaded tab inside the ash- tray and pull it all the way out. B430A01HR
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.!
CIGARETTE LIGHTER
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it allthe way into its socket. When the ele- ment has heated, the lighter will pop out to the "ready" position.Do not hold the cigarette lighter pressed in. This can damage the heating ele- ment and create a fire hazard.If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent. B420A01HR

1
FEATURES OF YOUR HYUNDAI

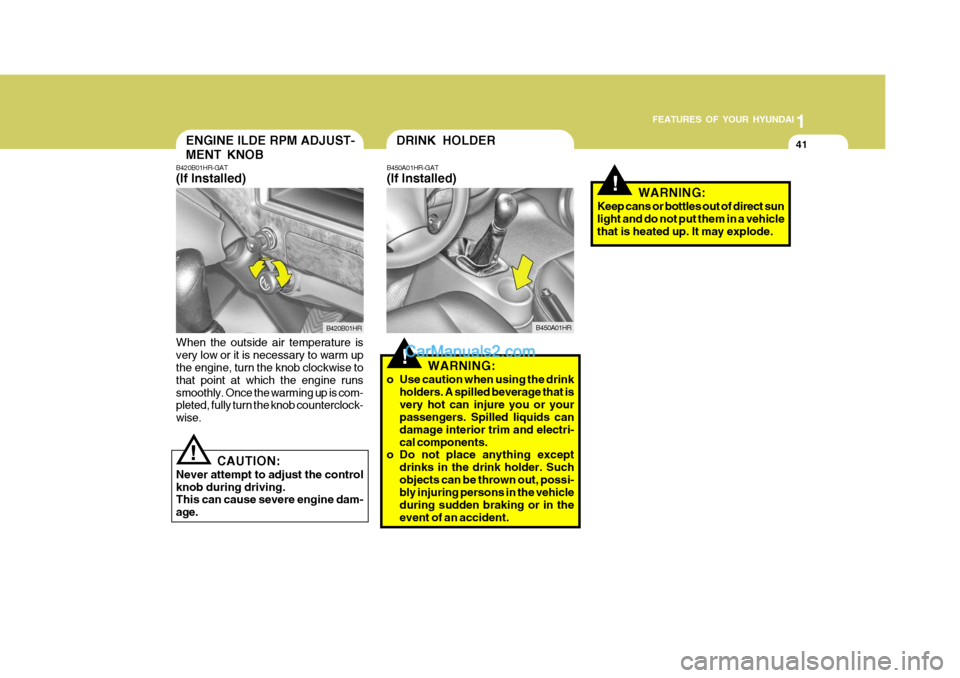

41ENGINE ILDE RPM ADJUST- MENT KNOB
B420B01HR-GAT (If Installed) When the outside air temperature is very low or it is necessary to warm up the engine, turn the knob clockwise to that point at which the engine runssmoothly. Once the warming up is com- pleted, fully turn the knob counterclock- wise. B420B01HR
CAUTION:
Never attempt to adjust the controlknob during driving. This can cause severe engine dam- age.
!
DRINK HOLDER
!
B450A01HR-GAT (If Installed)
WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids can damage interior trim and electri-cal components.
o Do not place anything except
drinks in the drink holder. Suchobjects can be thrown out, possi- bly injuring persons in the vehicle during sudden braking or in theevent of an accident. B450A01HR
!WARNING:
Keep cans or bottles out of direct sun light and do not put them in a vehicle that is heated up. It may explode.

1FEATURES OF YOUR HYUNDAI
42

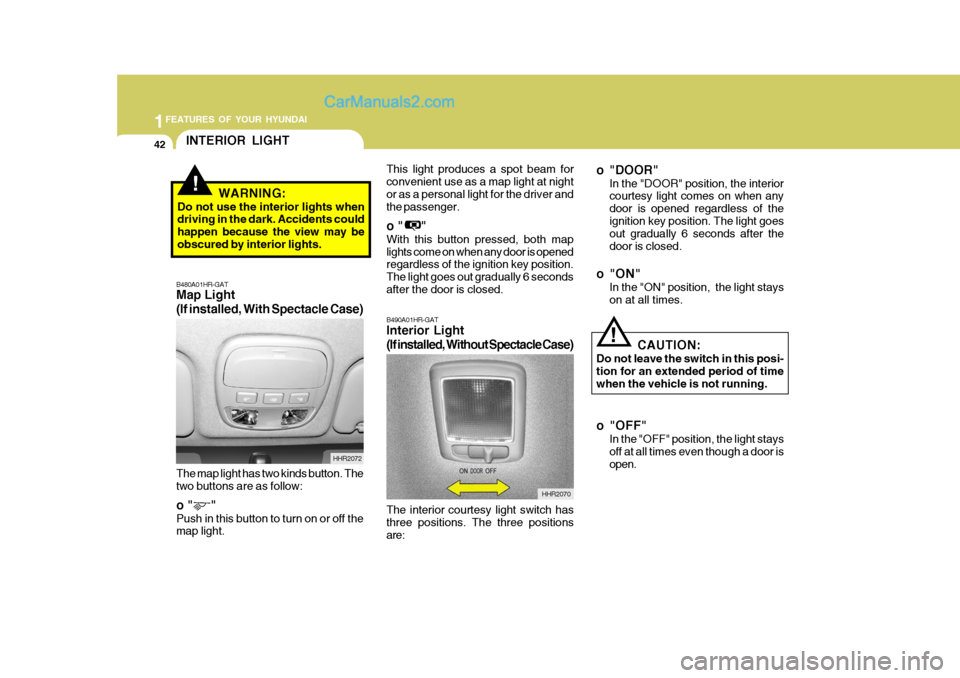

The interior courtesy light switch has three positions. The three positionsare:
B490A01HR-GAT Interior Light
(If installed, Without Spectacle Case)
HHR2070 o "DOOR"
In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of theignition key position. The light goes out gradually 6 seconds after the door is closed.
o"ON" In the "ON" position, the light stayson at all times.
CAUTION:
Do not leave the switch in this posi-tion for an extended period of timewhen the vehicle is not running.
o "OFF"
In the "OFF" position, the light stays off at all times even though a door isopen.
!
INTERIOR LIGHT
B480A01HR-GAT Map Light (If installed, With Spectacle Case) The map light has two kinds button. The two buttons are as follow: o " " Push in this button to turn on or off the map light. HHR2072
!WARNING:
Do not use the interior lights when driving in the dark. Accidents could happen because the view may beobscured by interior lights. This light produces a spot beam forconvenient use as a map light at nightor as a personal light for the driver and the passenger. o " " With this button pressed, both map lights come on when any door is opened regardless of the ignition key position. The light goes out gradually 6 secondsafter the door is closed.

1
FEATURES OF YOUR HYUNDAI

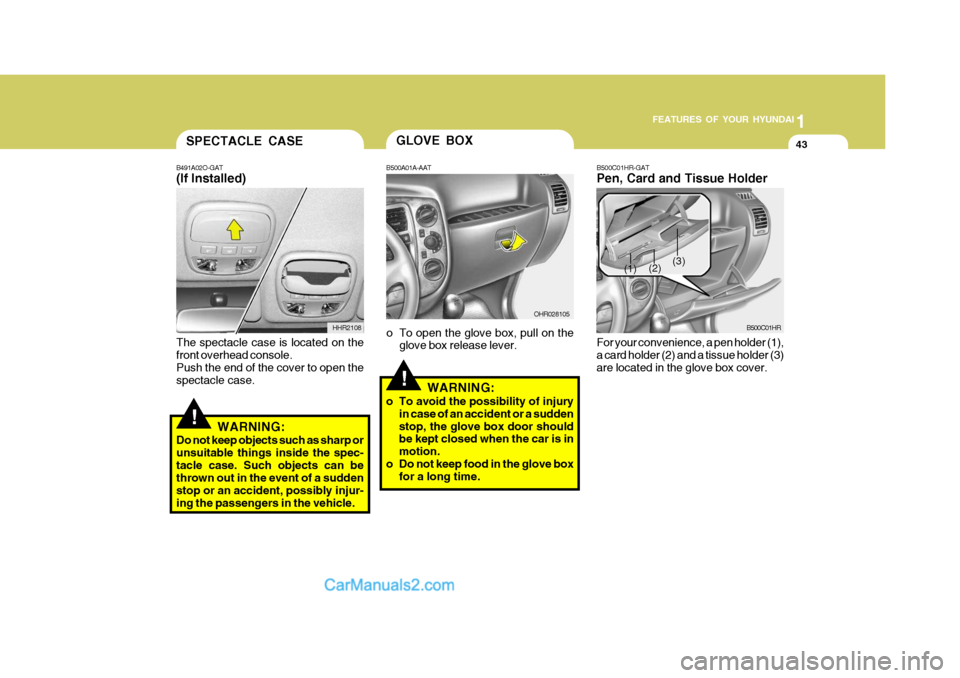

43SPECTACLE CASE
B491A02O-GAT (If Installed)
HHR2108
!
The spectacle case is located on the front overhead console. Push the end of the cover to open the spectacle case.WARNING:
Do not keep objects such as sharp orunsuitable things inside the spec-tacle case. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injur-ing the passengers in the vehicle.
!
GLOVE BOX
WARNING:
o To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in motion.
o Do not keep food in the glove box for a long time.
B500A01A-AAT
OHR028105
B500C01HR-GAT Pen, Card and Tissue Holder For your convenience, a pen holder (1), a card holder (2) and a tissue holder (3) are located in the glove box cover. B500C01HR
(1)
(2)
(3)
o To open the glove box, pull on the glove box release lever.

1FEATURES OF YOUR HYUNDAI

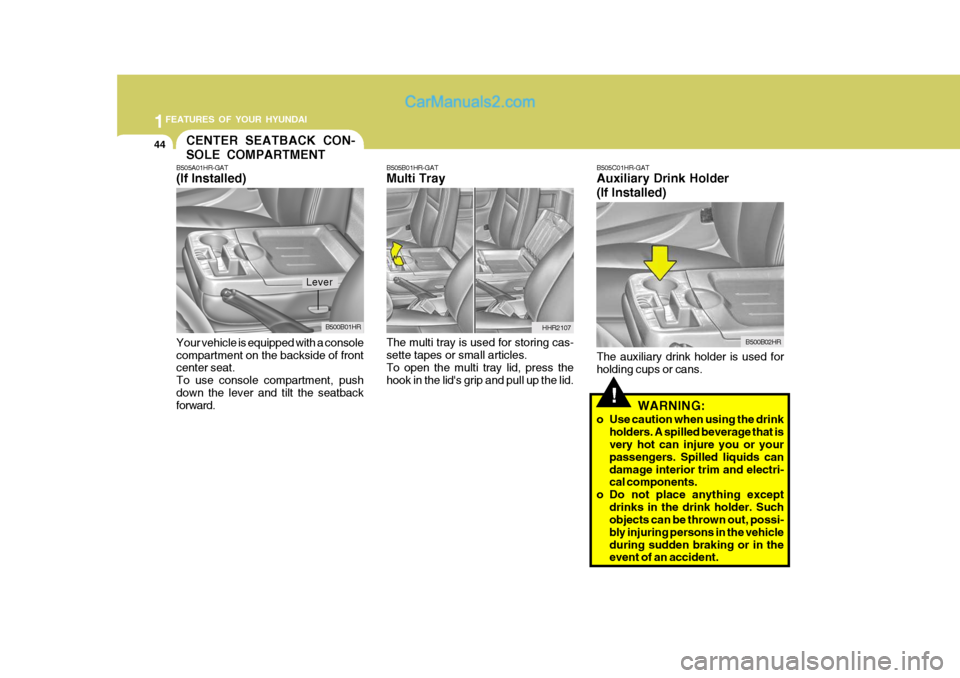

44CENTER SEATBACK CON- SOLE COMPARTMENT
WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place anything except drinks in the drink holder. Suchobjects can be thrown out, possi- bly injuring persons in the vehicleduring sudden braking or in the event of an accident.!
B505A01HR-GAT (If Installed) Your vehicle is equipped with a console compartment on the backside of front center seat. To use console compartment, pushdown the lever and tilt the seatback forward. B500B01HRB505B01HR-GAT Multi Tray The multi tray is used for storing cas- sette tapes or small articles. To open the multi tray lid, press the hook in the lid's grip and pull up the lid.
HHR2107
B505C01HR-GAT Auxiliary Drink Holder (If Installed) The auxiliary drink holder is used for holding cups or cans.
B500B02HR
Lever
