2012 Hyundai H-100 Truck Owner's Manual

1

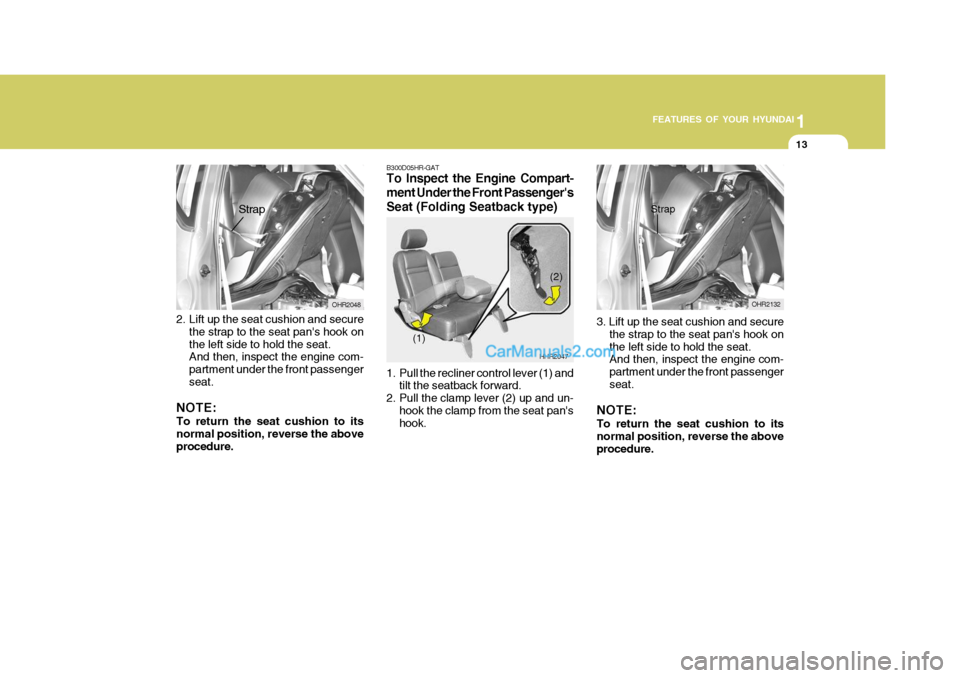

FEATURES OF YOUR HYUNDAI
13
2. Lift up the seat cushion and secure
the strap to the seat pan's hook on the left side to hold the seat. And then, inspect the engine com- partment under the front passengerseat.
NOTE: To return the seat cushion to its normal position, reverse the aboveprocedure. OHR2048
Strap
B300D05HR-GAT
To Inspect the Engine Compart- ment Under the Front Passenger's
Seat (Folding Seatback type)
HHR2047
(1) (2)
1. Pull the recliner control lever (1) and tilt the seatback forward.
2. Pull the clamp lever (2) up and un- hook the clamp from the seat pan's hook.
OHR2132
3. Lift up the seat cushion and secure the strap to the seat pan's hook on the left side to hold the seat. And then, inspect the engine com- partment under the front passengerseat.
NOTE: To return the seat cushion to its normal position, reverse the aboveprocedure.
Strap

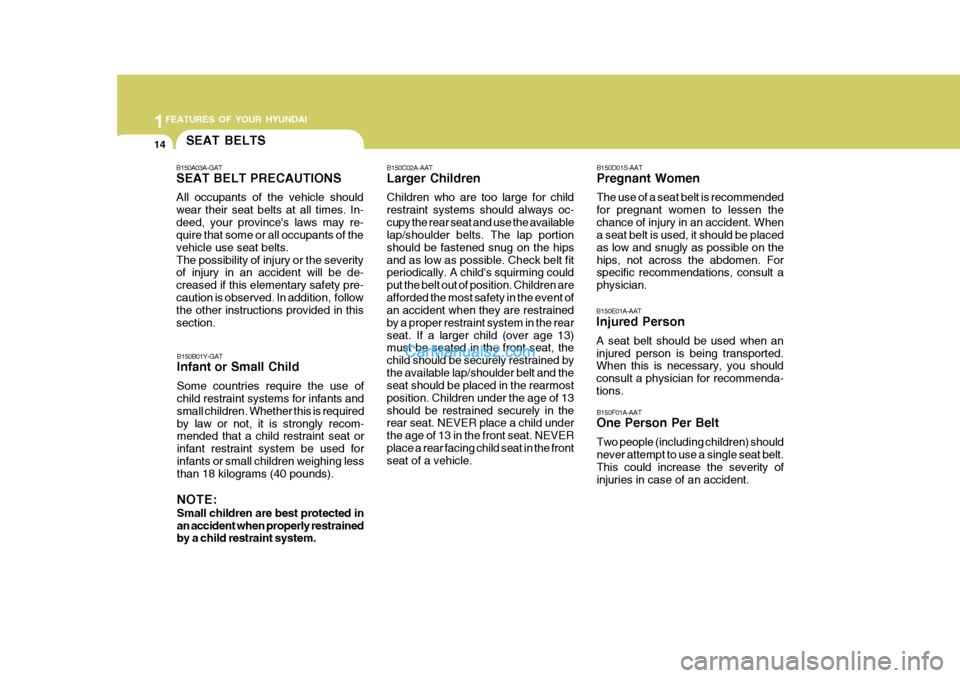

1FEATURES OF YOUR HYUNDAI
14
B150C02A-AAT Larger Children Children who are too large for child restraint systems should always oc-cupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hipsand as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Children areafforded the most safety in the event of an accident when they are restrained by a proper restraint system in the rearseat. If a larger child (over age 13) must be seated in the front seat, the child should be securely restrained bythe available lap/shoulder belt and the seat should be placed in the rearmost position. Children under the age of 13should be restrained securely in the rear seat. NEVER place a child under the age of 13 in the front seat. NEVERplace a rear facing child seat in the front seat of a vehicle.SEAT BELTS
B150A03A-GAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. In-deed, your province's laws may re- quire that some or all occupants of the vehicle use seat belts.The possibility of injury or the severity of injury in an accident will be de- creased if this elementary safety pre-caution is observed. In addition, follow the other instructions provided in this section.
B150B01Y-GAT Infant or Small Child Some countries require the use of child restraint systems for infants and small children. Whether this is requiredby law or not, it is strongly recom- mended that a child restraint seat or infant restraint system be used forinfants or small children weighing less than 18 kilograms (40 pounds). NOTE: Small children are best protected in an accident when properly restrained by a child restraint system. B150D01S-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen thechance of injury in an accident. When a seat belt is used, it should be placed as low and snugly as possible on thehips, not across the abdomen. For specific recommendations, consult a physician.
B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommenda-tions. B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity ofinjuries in case of an accident.

1

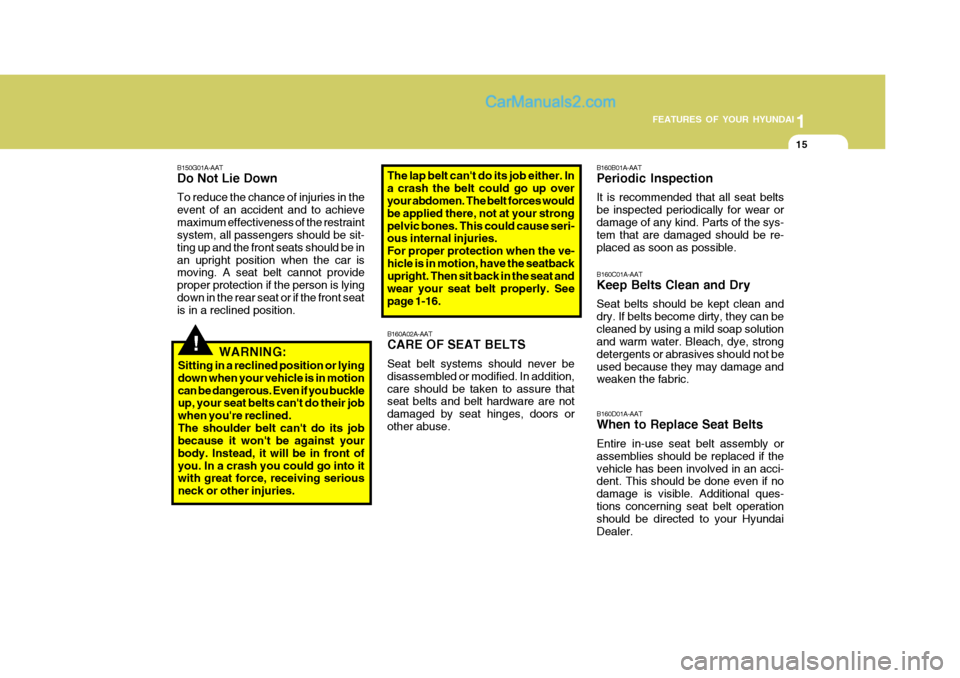

FEATURES OF YOUR HYUNDAI
15
B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident and to achievemaximum effectiveness of the restraint system, all passengers should be sit- ting up and the front seats should be inan upright position when the car is moving. A seat belt cannot provide proper protection if the person is lyingdown in the rear seat or if the front seat is in a reclined position.
!WARNING:
Sitting in a reclined position or lying down when your vehicle is in motioncan be dangerous. Even if you buckle up, your seat belts can't do their job when you're reclined.The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front ofyou. In a crash you could go into it with great force, receiving serious neck or other injuries. The lap belt can't do its job either. Ina crash the belt could go up over your abdomen. The belt forces would be applied there, not at your strongpelvic bones. This could cause seri- ous internal injuries. For proper protection when the ve-hicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly. Seepage 1-16. B160A02A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition,care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors orother abuse.
B160B01A-AAT Periodic Inspection It is recommended that all seat belts be inspected periodically for wear ordamage of any kind. Parts of the sys- tem that are damaged should be re- placed as soon as possible. B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if thevehicle has been involved in an acci- dent. This should be done even if no damage is visible. Additional ques-tions concerning seat belt operation should be directed to your Hyundai Dealer.
B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not beused because they may damage and weaken the fabric.

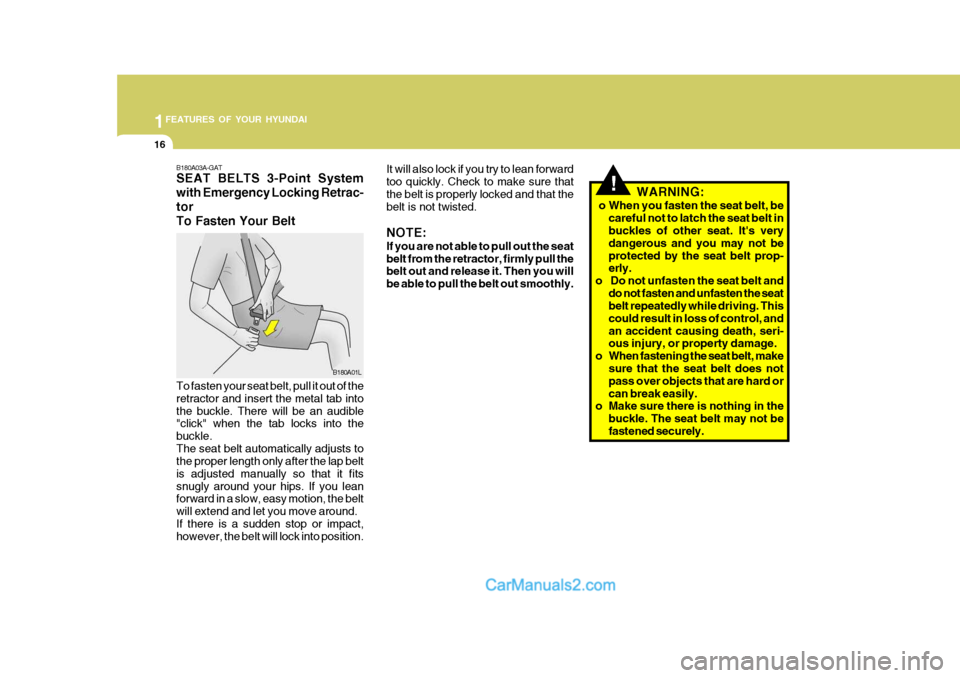

1FEATURES OF YOUR HYUNDAI
16
B180A03A-GAT SEAT BELTS 3-Point System with Emergency Locking Retrac-torTo Fasten Your Belt To fasten your seat belt, pull it out of the retractor and insert the metal tab intothe buckle. There will be an audible "click" when the tab locks into the buckle.The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fitssnugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around.If there is a sudden stop or impact, however, the belt will lock into position. B180A01LIt will also lock if you try to lean forward too quickly. Check to make sure thatthe belt is properly locked and that the belt is not twisted. NOTE: If you are not able to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.
!WARNING:
o When you fasten the seat belt, be careful not to latch the seat belt in buckles of other seat. It's very dangerous and you may not beprotected by the seat belt prop- erly.
o Do not unfasten the seat belt and
do not fasten and unfasten the seatbelt repeatedly while driving. This could result in loss of control, andan accident causing death, seri- ous injury, or property damage.
o When fastening the seat belt, make sure that the seat belt does not pass over objects that are hard orcan break easily.
o Make sure there is nothing in the
buckle. The seat belt may not befastened securely.

1

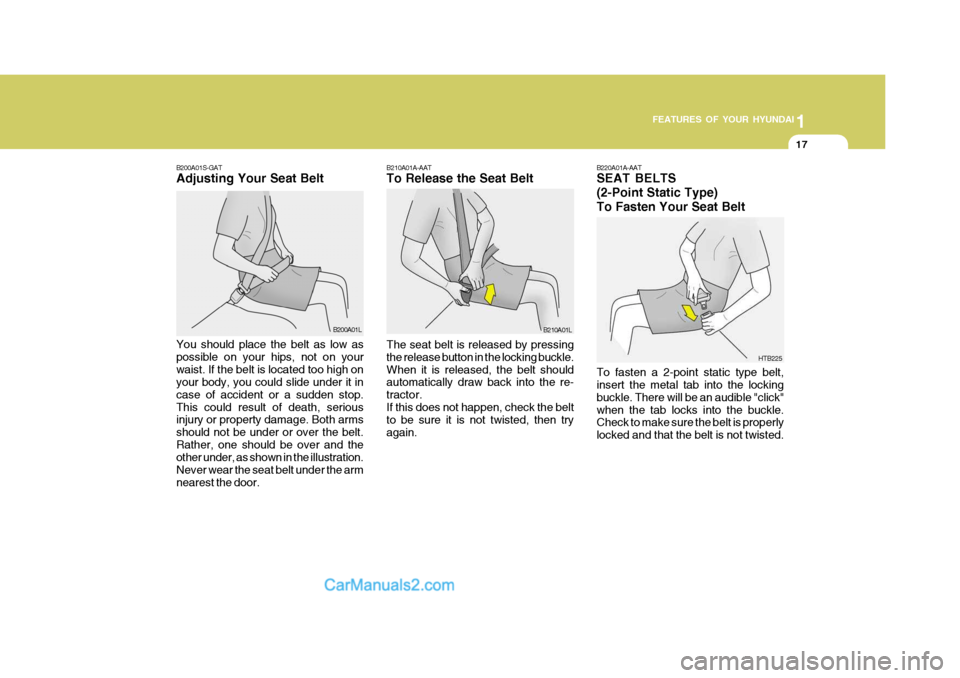

FEATURES OF YOUR HYUNDAI
17
B200A01S-GAT Adjusting Your Seat Belt You should place the belt as low as possible on your hips, not on yourwaist. If the belt is located too high on your body, you could slide under it in case of accident or a sudden stop.This could result of death, serious injury or property damage. Both arms should not be under or over the belt.Rather, one should be over and the other under, as shown in the illustration. Never wear the seat belt under the armnearest the door. B200A01LB210A01A-AAT To Release the Seat Belt The seat belt is released by pressing the release button in the locking buckle.When it is released, the belt should automatically draw back into the re- tractor.If this does not happen, check the belt to be sure it is not twisted, then try again.
B210A01LB220A01A-AAT SEAT BELTS (2-Point Static Type)To Fasten Your Seat Belt To fasten a 2-point static type belt, insert the metal tab into the locking buckle. There will be an audible "click"when the tab locks into the buckle. Check to make sure the belt is properly locked and that the belt is not twisted.
HTB225

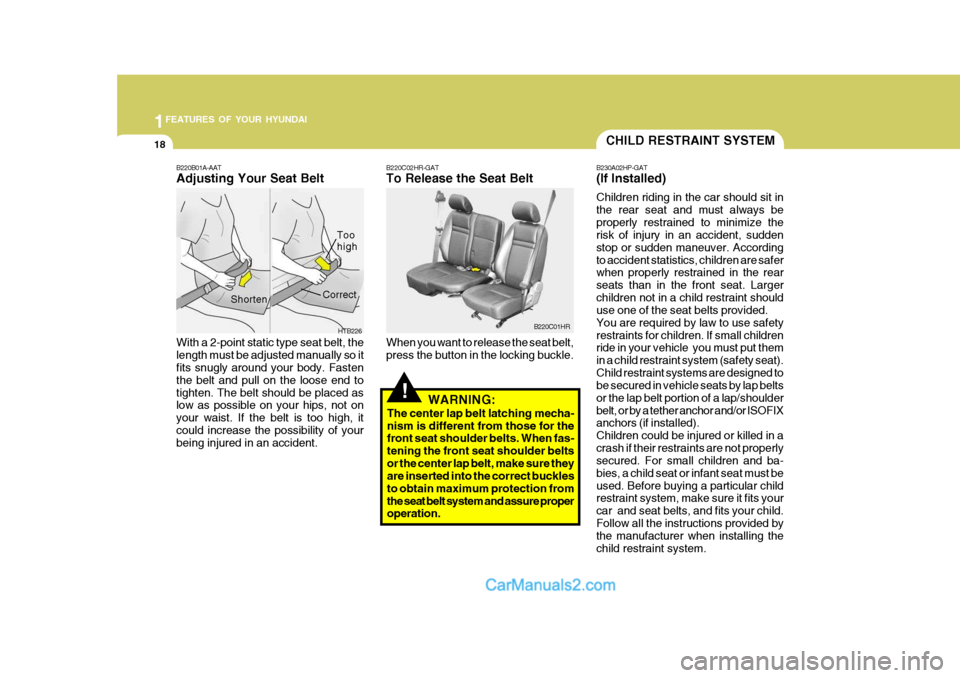

1FEATURES OF YOUR HYUNDAI
18CHILD RESTRAINT SYSTEM
B230A02HP-GAT (If Installed) Children riding in the car should sit in the rear seat and must always beproperly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. Accordingto accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Largerchildren not in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Child restraint systems are designed to be secured in vehicle seats by lap belts or the lap belt portion of a lap/shoulderbelt, or by a tether anchor and/or ISOFIX anchors (if installed). Children could be injured or killed in acrash if their restraints are not properly secured. For small children and ba- bies, a child seat or infant seat must beused. Before buying a particular child restraint system, make sure it fits your car and seat belts, and fits your child.Follow all the instructions provided by the manufacturer when installing the child restraint system.
!
B220C02HR-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle. B220C01HR
WARNING:
The center lap belt latching mecha-nism is different from those for the front seat shoulder belts. When fas- tening the front seat shoulder beltsor the center lap belt, make sure they are inserted into the correct buckles to obtain maximum protection fromthe seat belt system and assure proper operation.B220B01A-AAT Adjusting Your Seat Belt With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fasten the belt and pull on the loose end totighten. The belt should be placed as low as possible on your hips, not on your waist. If the belt is too high, itcould increase the possibility of your being injured in an accident. HTB226
Correct
Shorten Too high

1

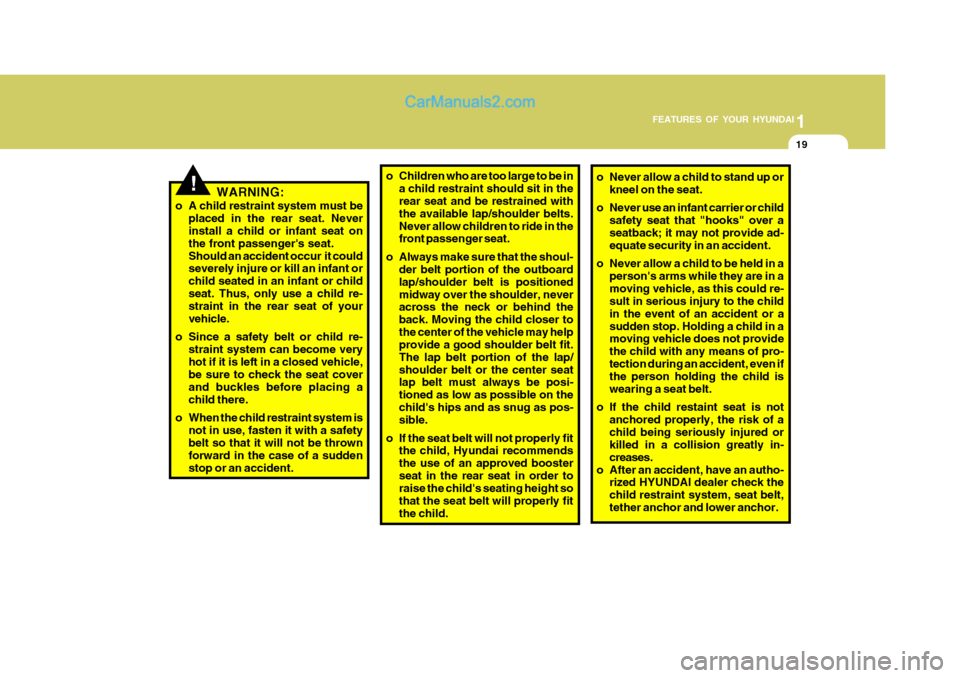

FEATURES OF YOUR HYUNDAI
19
WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur it could severely injure or kill an infant or child seated in an infant or childseat. Thus, only use a child re- straint in the rear seat of your vehicle.
o Since a safety belt or child re- straint system can become veryhot if it is left in a closed vehicle, be sure to check the seat cover and buckles before placing achild there.
o When the child restraint system is not in use, fasten it with a safety belt so that it will not be thrown forward in the case of a suddenstop or an accident.!o Children who are too large to be ina child restraint should sit in the rear seat and be restrained with the available lap/shoulder belts.Never allow children to ride in the front passenger seat.
o Always make sure that the shoul- der belt portion of the outboard lap/shoulder belt is positionedmidway over the shoulder, never across the neck or behind the back. Moving the child closer tothe center of the vehicle may help provide a good shoulder belt fit. The lap belt portion of the lap/shoulder belt or the center seat lap belt must always be posi- tioned as low as possible on thechild's hips and as snug as pos- sible.
o If the seat belt will not properly fit the child, Hyundai recommends the use of an approved boosterseat in the rear seat in order to raise the child's seating height so that the seat belt will properly fitthe child.o Never allow a child to stand up or
kneel on the seat.
o Never use an infant carrier or child safety seat that "hooks" over a seatback; it may not provide ad- equate security in an accident.
o Never allow a child to be held in a person's arms while they are in amoving vehicle, as this could re- sult in serious injury to the child in the event of an accident or asudden stop. Holding a child in a moving vehicle does not provide the child with any means of pro-tection during an accident, even if the person holding the child is wearing a seat belt.
o If the child restaint seat is not anchored properly, the risk of achild being seriously injured or killed in a collision greatly in- creases.
o After an accident, have an autho- rized HYUNDAI dealer check thechild restraint system, seat belt,tether anchor and lower anchor.

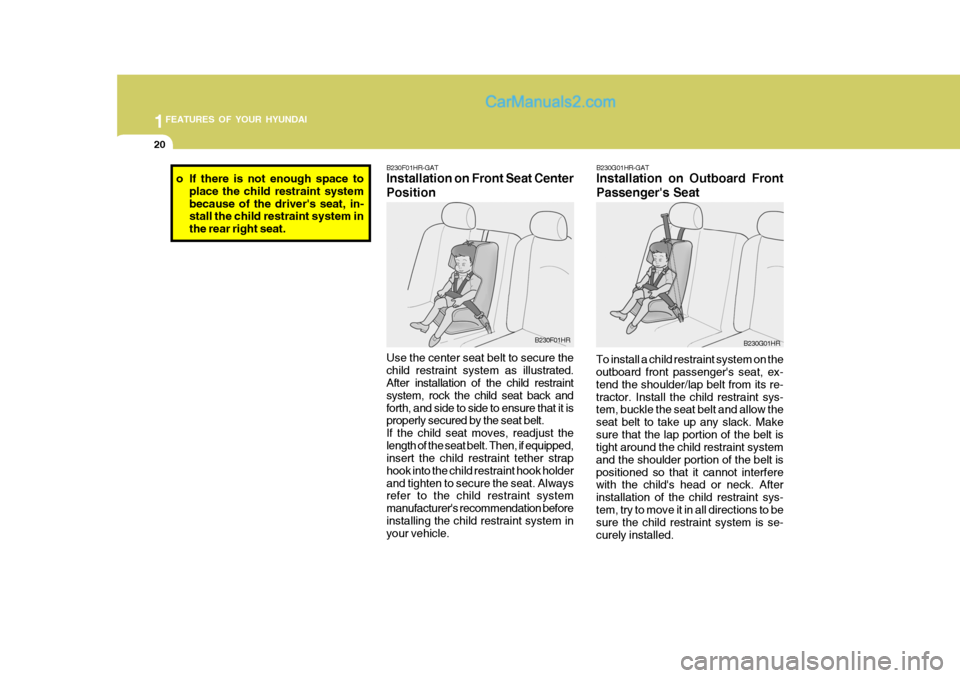

1FEATURES OF YOUR HYUNDAI
20
To install a child restraint system on the outboard front passenger's seat, ex- tend the shoulder/lap belt from its re-tractor. Install the child restraint sys- tem, buckle the seat belt and allow the seat belt to take up any slack. Makesure that the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt ispositioned so that it cannot interfere with the child's head or neck. After installation of the child restraint sys-tem, try to move it in all directions to be sure the child restraint system is se- curely installed.B230G01HR-GAT Installation on Outboard Front Passenger's Seat
B230G01HR
B230F01HR-GAT Installation on Front Seat Center Position Use the center seat belt to secure the child restraint system as illust rated.
After installation of the child restraintsystem, rock the child seat back andforth, and side to side to ensure that it is properly secured by the seat belt. If the child seat moves, readjust thelength of the seat belt. Then, if equipped, insert the child restraint tether strap hook into the child restraint hook holderand tighten to secure the seat. Always refer to the child restraint system manufacturer's recommendation beforeinstalling the child restraint system in your vehicle. B230F01HR
o If there is not enough space to
place the child restraint system because of the driver's seat, in- stall the child restraint system in the rear right seat.
