2012 Hyundai H-100 Truck Owner's Manual

1

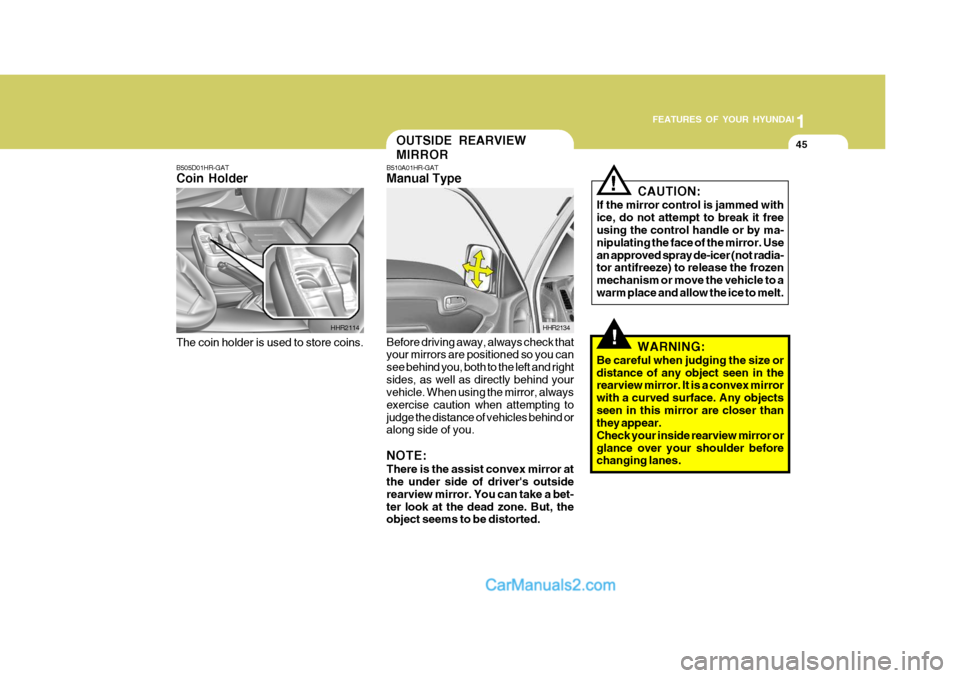

FEATURES OF YOUR HYUNDAI
45
B510A01HR-GAT Manual Type
Before driving away, always check that your mirrors are positioned so you can see behind you, both to the left and rightsides, as well as directly behind your vehicle. When using the mirror, always exercise caution when attempting tojudge the distance of vehicles behind or along side of you. NOTE: There is the assist convex mirror at the under side of driver's outside rearview mirror. You can take a bet-ter look at the dead zone. But, the object seems to be distorted. HHR2134
OUTSIDE REARVIEW MIRROR
CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma- nipulating the face of the mirror. Usean approved spray de-icer (not radia- tor antifreeze) to release the frozen mechanism or move the vehicle to awarm place and allow the ice to melt.
!
!WARNING:
Be careful when judging the size or distance of any object seen in the rearview mirror. It is a convex mirror with a curved surface. Any objectsseen in this mirror are closer than they appear. Check your inside rearview mirror orglance over your shoulder before changing lanes.
B505D01HR-GAT Coin Holder The coin holder is used to store coins.
HHR2114

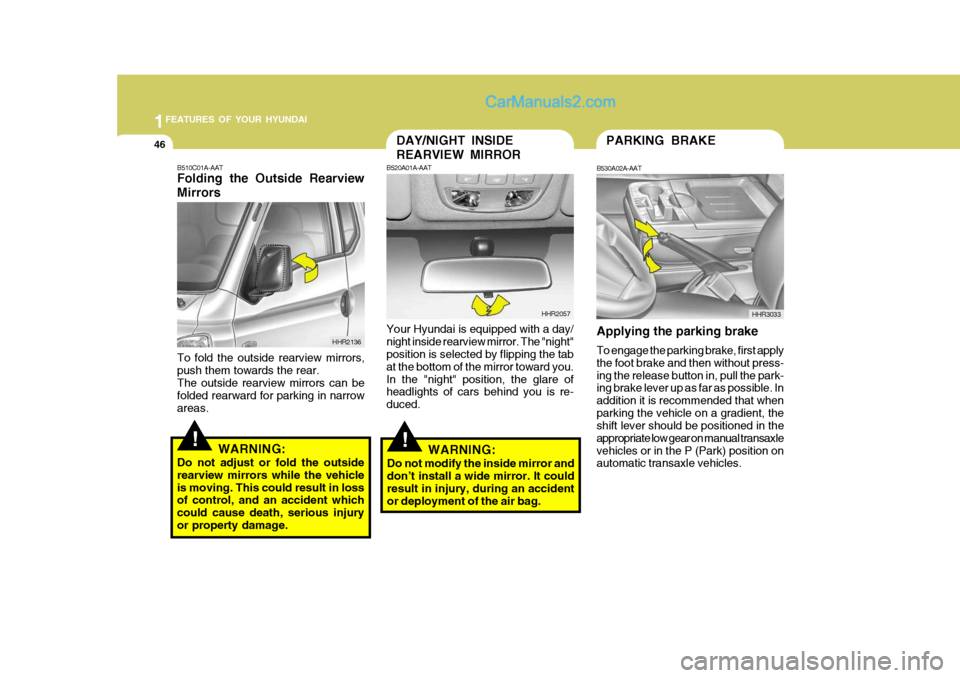

1FEATURES OF YOUR HYUNDAI
46PARKING BRAKE
HHR3033DAY/NIGHT INSIDE REARVIEW MIRROR
B520A01A-AAT
Your Hyundai is equipped with a day/ night inside rearview mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you.In the "night" position, the glare of headlights of cars behind you is re- duced. HHR2057
!
B510C01A-AAT Folding the Outside Rearview Mirrors To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can be folded rearward for parking in narrowareas.
WARNING:
Do not adjust or fold the outsiderearview mirrors while the vehicleis moving. This could result in loss of control, and an accident which could cause death, serious injuryor property damage. HHR2136
B530A02A-AAT Applying the parking brake To engage the parking brake, first apply the foot brake and then without press-ing the release button in, pull the park- ing brake lever up as far as possible. In addition it is recommended that whenparking the vehicle on a gradient, the shift lever should be positioned in the appropriate low gear on manual transaxlevehicles or in the P (Park) position on automatic transaxle vehicles.
!WARNING:
Do not modify the inside mirror and don’t install a wide mirror. It could result in injury, during an accidentor deployment of the air bag.

1
FEATURES OF YOUR HYUNDAI
47HOOD RELEASE
B570A01HR-GAT
1. Pull the release knob to unlatch the hood. B570B01HR
B570A01HR
Releasing the parking brake To release the parking brake, first apply the foot brake and pull the parking brake lever slightly. Secondly, depress therelease button and lower the parking brake lever while holding the button. CAUTION:
o Driving with the parking brake ap- plied will cause excessive brake pad (or lining) and brake rotor wear.
o Do not operate the parking brake while the vehicle is moving exceptin an emergency situation. It could damage the vehicle system andmake endanger driving safety.
!
!WARNING:
Open the hood after turning off the engine on a flat surface, shifting theshift lever to the 1st(First) gear or R(Reverse) for manual transaxle, and setting the parking brake. 2. Push the secondary latch lever to
the left and lower the hood.
To close the hood, lift up it and hit thecenter of the hood with your hand. Makesure that it locks into place. NOTE: If the hood will not open because ice has formed around it, tap lightly orpush on the hood to break the ice and release the hood. Do not pry on the hood. If necessary, spray aroundthe hood with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm placeand allow the ice to melt.

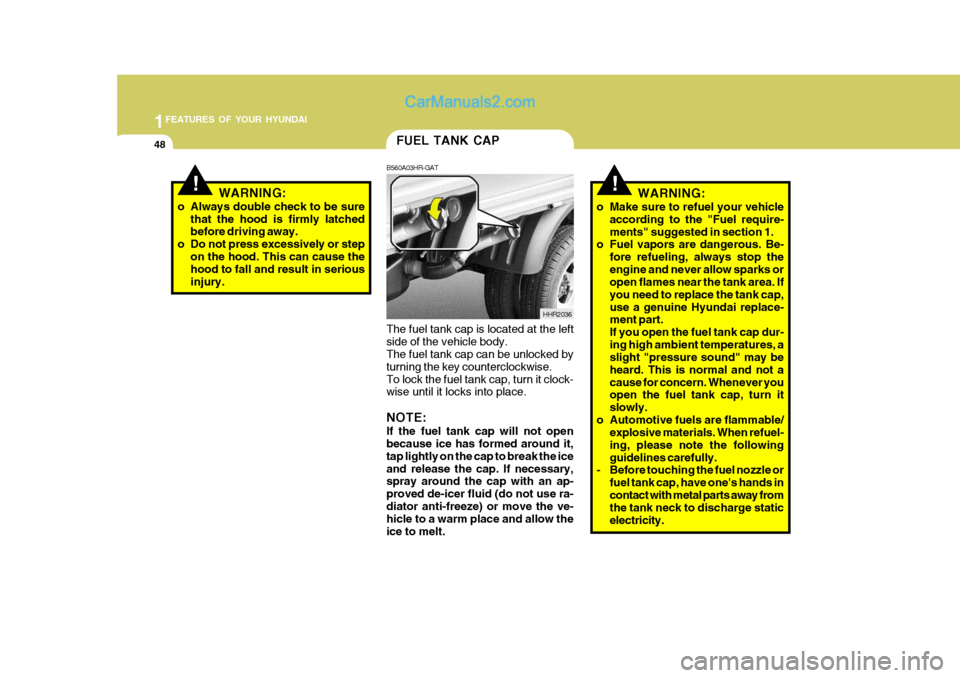

1FEATURES OF YOUR HYUNDAI
48
!WARNING:
o Make sure to refuel your vehicle according to the "Fuel require- ments" suggested in section 1.
o Fuel vapors are dangerous. Be-
fore refueling, always stop theengine and never allow sparks or open flames near the tank area. If you need to replace the tank cap,use a genuine Hyundai replace- ment part. If you open the fuel tank cap dur-ing high ambient temperatures, a slight "pressure sound" may be heard. This is normal and not acause for concern. Whenever you open the fuel tank cap, turn it slowly.
o Automotive fuels are flammable/ explosive materials. When refuel-ing, please note the followingguidelines carefully.
- Before touching the fuel nozzle or
fuel tank cap, have one's hands incontact with metal parts away from the tank neck to discharge static electricity.
FUEL TANK CAP
B560A03HR-GAT
The fuel tank cap is located at the left side of the vehicle body. The fuel tank cap can be unlocked by turning the key counterclockwise.To lock the fuel tank cap, turn it clock- wise until it locks into place. NOTE: If the fuel tank cap will not open because ice has formed around it, tap lightly on the cap to break the iceand release the cap. If necessary, spray around the cap with an ap- proved de-icer fluid (do not use ra-diator anti-freeze) or move the ve- hicle to a warm place and allow the ice to melt. HHR2036
!WARNING:
o Always double check to be sure that the hood is firmly latched before driving away.
o Do not press excessively or step on the hood. This can cause thehood to fall and result in serious injury.

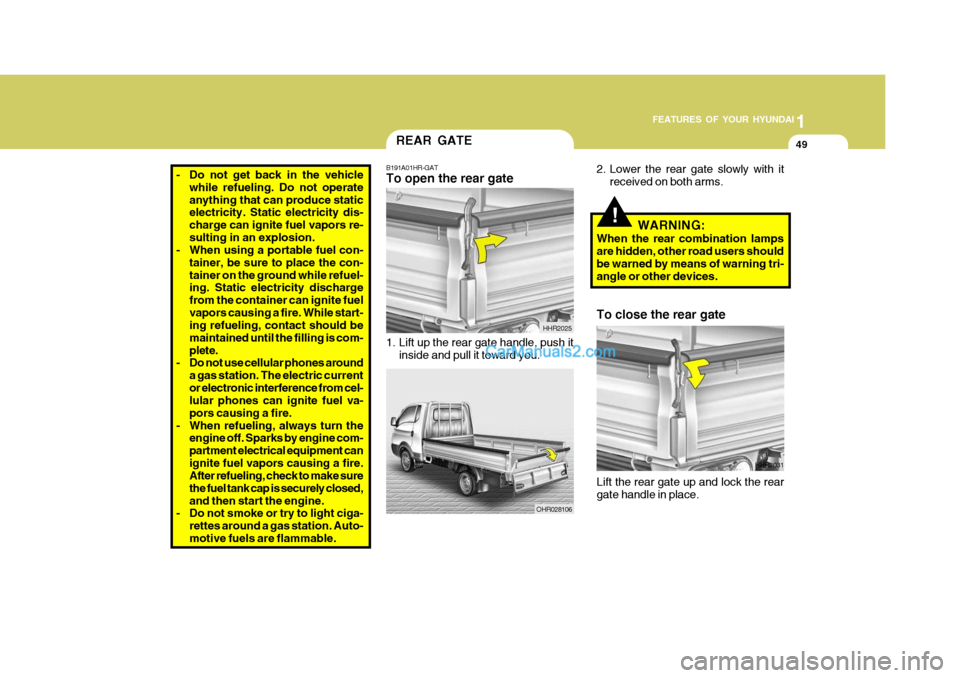

1
FEATURES OF YOUR HYUNDAI
49
!WARNING:
When the rear combination lamps are hidden, other road users shouldbe warned by means of warning tri- angle or other devices. To close the rear gate
Lift the rear gate up and lock the rear gate handle in place. HHR2031
2. Lower the rear gate slowly with it
received on both arms.
REAR GATE
B191A01HR-GAT To open the rear gate
HHR2025
1. Lift up the rear gate handle, push it inside and pull it toward you.
OHR028106
- Do not get back in the vehiclewhile refueling. Do not operate anything that can produce static electricity. Static electricity dis- charge can ignite fuel vapors re-sulting in an explosion.
- When using a portable fuel con-
tainer, be sure to place the con-tainer on the ground while refuel- ing. Static electricity discharge from the container can ignite fuelvapors causing a fire. While start- ing refueling, contact should be maintained until the filling is com-plete.
- Do not use cellular phones around
a gas station. The electric currentor electronic interference from cel- lular phones can ignite fuel va- pors causing a fire.
- When refueling, always turn the engine off. Sparks by engine com-partment electrical equipment canignite fuel vapors causing a fire. After refueling, check to make sure the fuel tank cap is securely closed,and then start the engine.
- Do not smoke or try to light ciga-
rettes around a gas station. Auto-motive fuels are flammable.

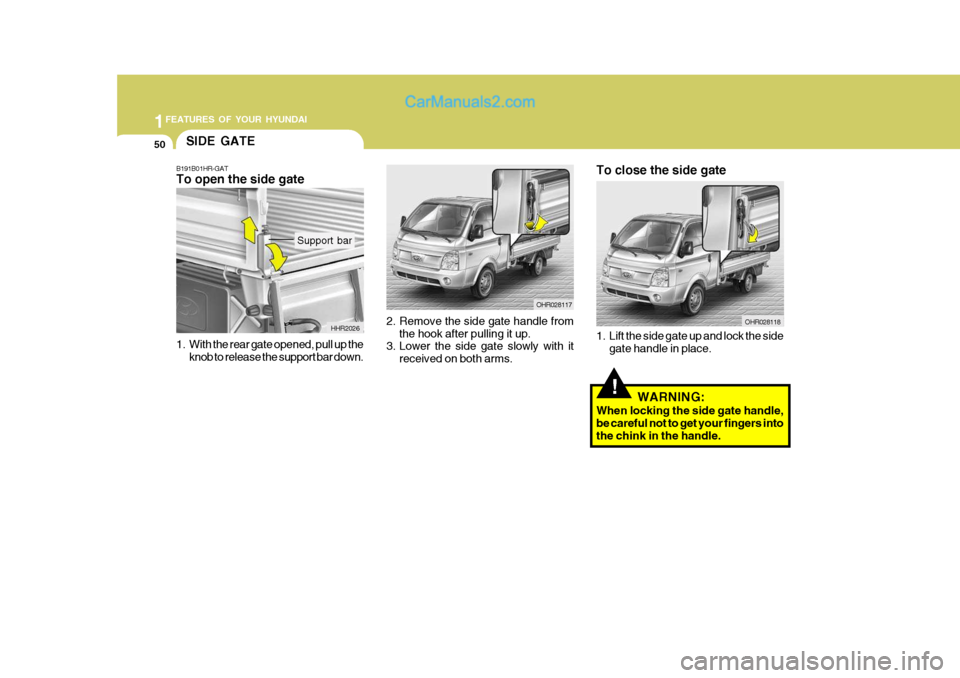

1FEATURES OF YOUR HYUNDAI
50
2. Remove the side gate handle from
the hook after pulling it up.
3. Lower the side gate slowly with it
received on both arms. OHR028117
OHR028118
To close the side gate
1. Lift the side gate up and lock the side
gate handle in place.
!WARNING:
When locking the side gate handle, be careful not to get your fingers intothe chink in the handle.
SIDE GATE
B191B01HR-GAT To open the side gate
1. With the rear gate opened, pull up the knob to release the support bar down. HHR2026
Support bar

1
FEATURES OF YOUR HYUNDAI

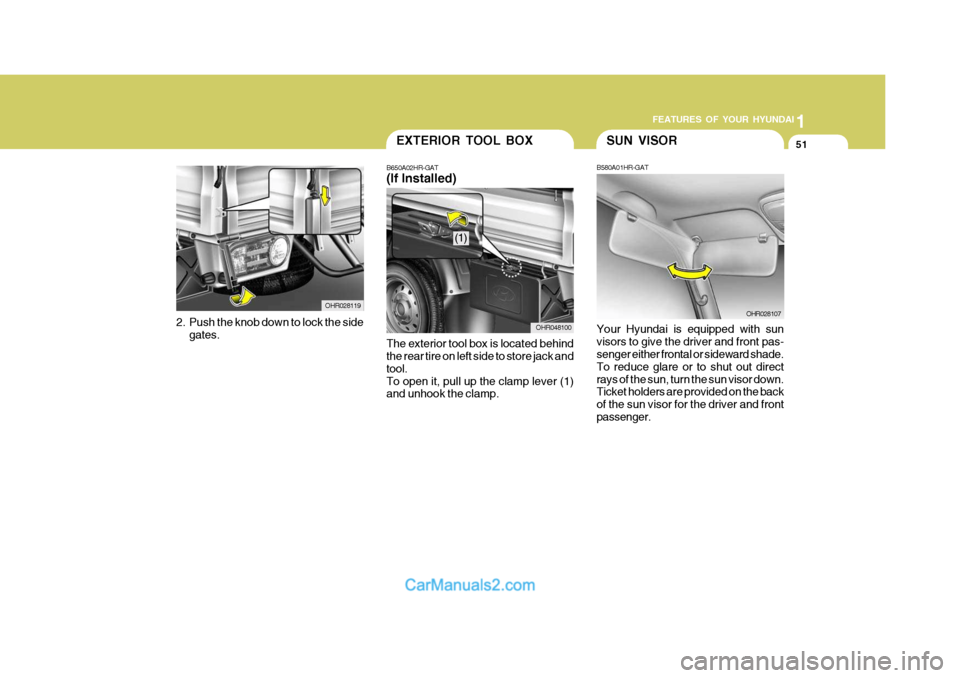

51EXTERIOR TOOL BOX
B650A02HR-GAT (If Installed)
The exterior tool box is located behind the rear tire on left side to store jack and tool.To open it, pull up the clamp lever (1) and unhook the clamp. OHR048100
(1)
OHR028119
2. Push the knob down to lock the side gates.
SUN VISOR
Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade. To reduce glare or to shut out directrays of the sun, turn the sun visor down. Ticket holders are provided on the back of the sun visor for the driver and frontpassenger.
B580A01HR-GAT
OHR028107

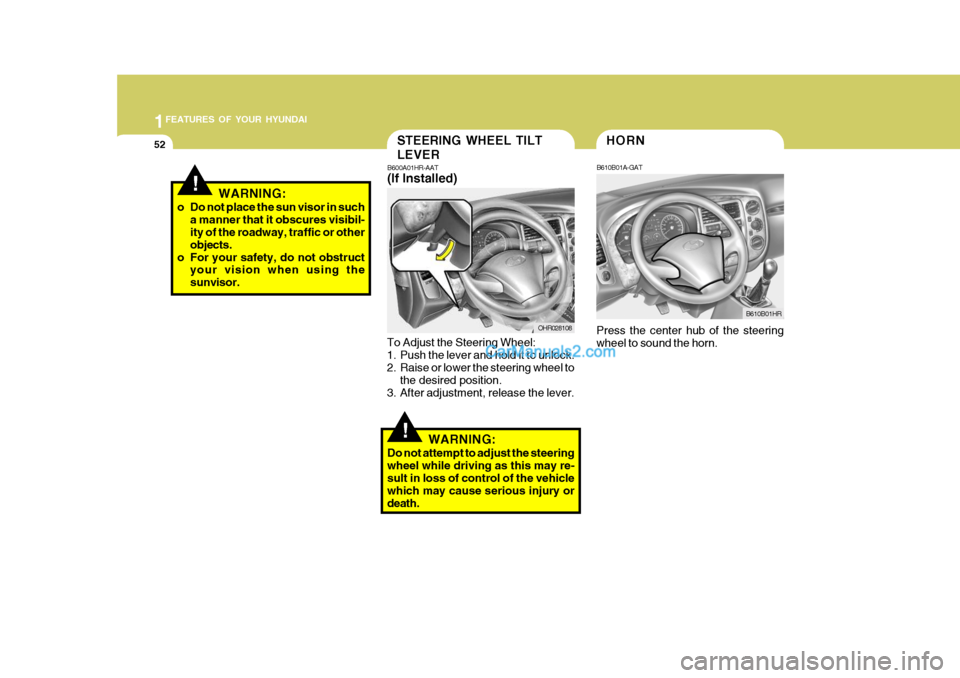

1FEATURES OF YOUR HYUNDAI
52HORN
B610B01A-GAT
Press the center hub of the steering wheel to sound the horn. B610B01HR
!
STEERING WHEEL TILT LEVER
B600A01HR-AAT (If Installed)
To Adjust the Steering Wheel:
1. Push the lever and hold it to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, release the lever.
WARNING:
Do not attempt to adjust the steering wheel while driving as this may re-sult in loss of control of the vehicle which may cause serious injury or death. OHR028108
!WARNING:
o Do not place the sun visor in such a manner that it obscures visibil- ity of the roadway, traffic or other objects.
o For your safety, do not obstruct your vision when using thesunvisor.
