FEATURES OF YOUR HYUNDAI
5
B030D01HR-GAT Use of key
1. Ignition Switch
2. Front Door (Driver's Door)
3. Front Door (Passenger's Door)
(if installed)
4. Fuel Tank Cap B030D01HR
1
2
3
4
!

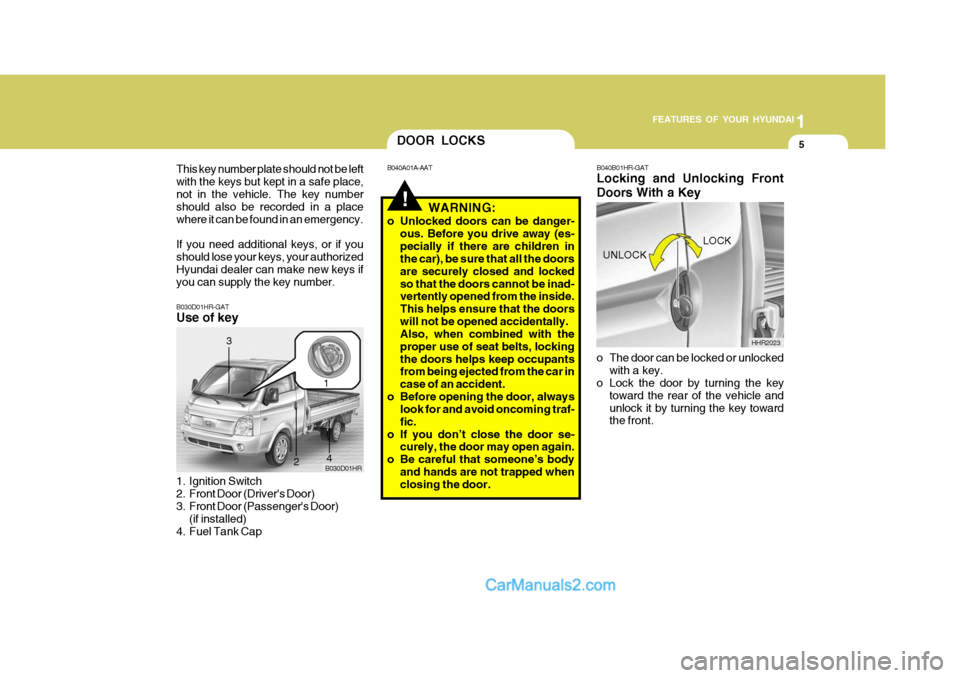

DOOR LOCKS
B040A01A-AAT
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doors are securely closed and lockedso that the doors cannot be inad- vertently opened from the inside. This helps ensure that the doorswill not be opened accidentally. Also, when combined with the proper use of seat belts, lockingthe doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic.
o If you don’t close the door se- curely, the door may open again.
o Be careful that someone’s body and hands are not trapped when closing the door.
UNLOCK
HHR2023
LOCK
B040B01HR-GAT Locking and Unlocking Front Doors With a Key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the rear of the vehicle and unlock it by turning the key toward the front.
This key number plate should not be left with the keys but kept in a safe place,not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number.

1FEATURES OF YOUR HYUNDAI
6
B040G02HR-GAT Central Door Lock (If Installed)
B040D01FC-GATLocking From the Inside To lock the doors from the inside, sim- ply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor theinside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible and the character "LOCK" on the switch is visible.
HHR2023A
UNLOCK
B040C01HR
The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle. If the passenger or rear doors are openwhen the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward the rear, all doors will unlock. When pushing the switch towardthe front, all doors will lock.
o When the door is unlocked, the
red mark on the switch is visibleand the character "LOCK" on the switch is not visible. UNLOCK
LOCK
LOCK
UNLOCK
B040C01S-AAT Locking From the Outside The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is notvisible, then close the door. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in the vehicle.
o To protect against theft, always
remove the ignition key, close allwindows, and lock all doors when leaving your vehicle unattended. B040C01HR
LOCK

1
FEATURES OF YOUR HYUNDAI
7
o The central door locking is oper- ated by turning the key (driver's door only) toward the front or rear of the vehicle.
CAUTION:
If the door is locked/unlocked mul-tiple times in rapid succession with either the vehicle key or door lockswitch, the system may stop operat- ing temporarily in order to protect the circuit and prevent damage tosystem components.
!
!
WINDOW GLASS

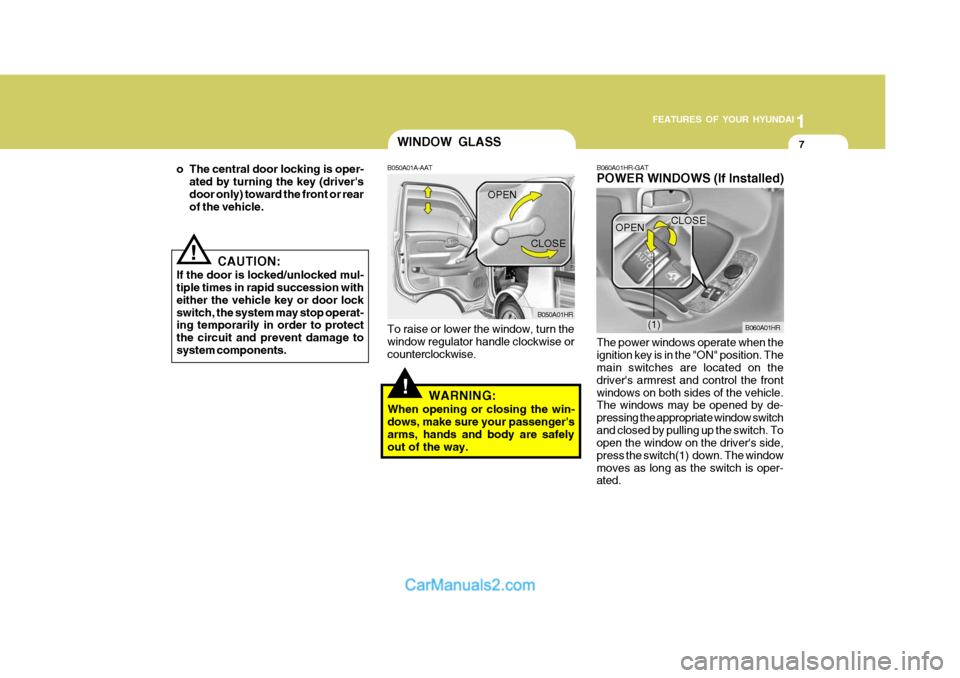

B050A01A-AAT To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.
WARNING:
When opening or closing the win- dows, make sure your passenger'sarms, hands and body are safely out of the way. B050A01HR
OPEN
CLOSE
B060A01HR-GAT POWER WINDOWS (If Installed) The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the frontwindows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switchand closed by pulling up the switch. To open the window on the driver's side, press the switch(1) down. The windowmoves as long as the switch is oper- ated. B060A01HR
(1)
OPEN
CLOSE

1FEATURES OF YOUR HYUNDAI
8
!

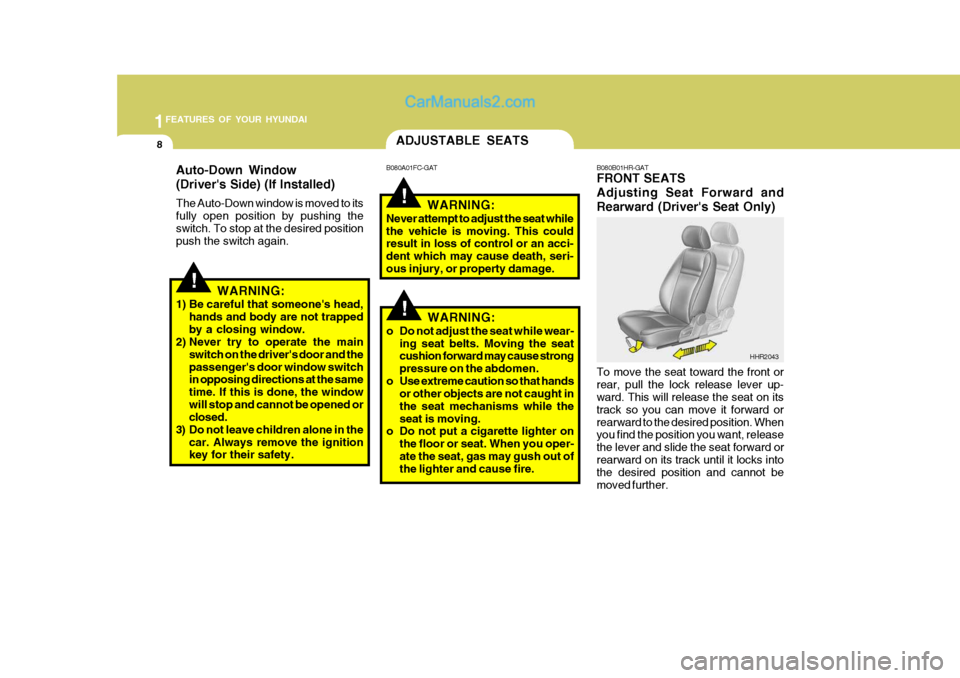

ADJUSTABLE SEATS
To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on its track so you can move it forward orrearward to the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.
B080A01FC-GAT
B080B01HR-GAT
FRONT SEATS Adjusting Seat Forward andRearward (Driver's Seat Only)
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an acci- dent which may cause death, seri-ous injury, or property damage.
HHR2043
!
Auto-Down Window (Driver's Side) (If Installed) The Auto-Down window is moved to its fully open position by pushing theswitch. To stop at the desired position push the switch again.WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door and thepassenger's door window switch in opposing directions at the same time. If this is done, the windowwill stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety.
!WARNING:
o Do not adjust the seat while wear- ing seat belts. Moving the seat cushion forward may cause strong pressure on the abdomen.
o Use extreme caution so that hands or other objects are not caught inthe seat mechanisms while theseat is moving.
o Do not put a cigarette lighter on
the floor or seat. When you oper-ate the seat, gas may gush out of the lighter and cause fire.

1
FEATURES OF YOUR HYUNDAI
9
!

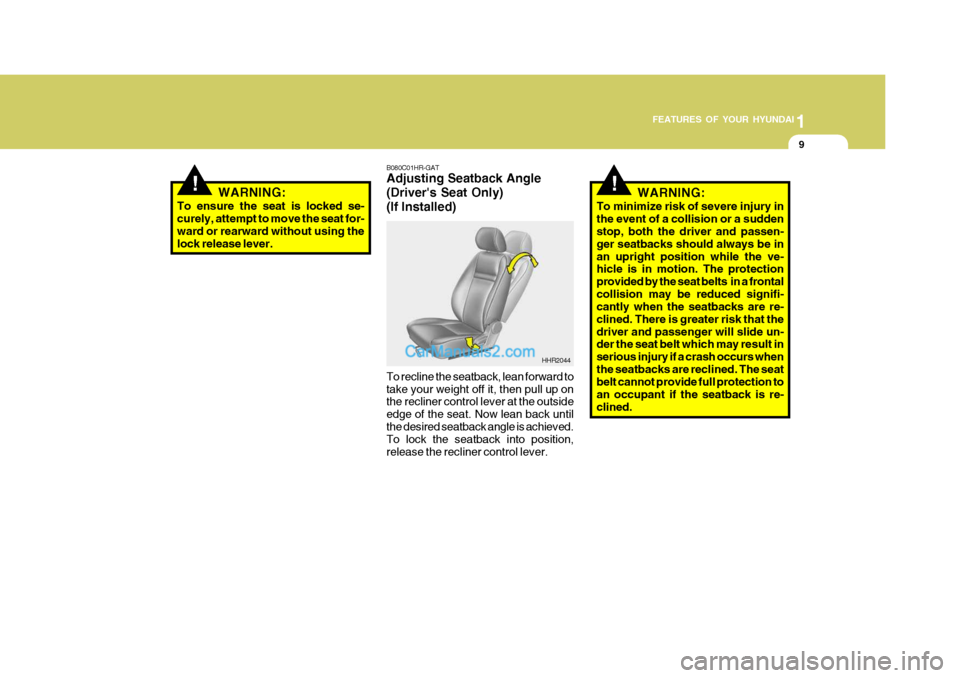

B080C01HR-GAT Adjusting Seatback Angle (Driver's Seat Only)(If Installed)
HHR2044
WARNING:
To ensure the seat is locked se- curely, attempt to move the seat for- ward or rearward without using thelock release lever.
!WARNING:
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passen- ger seatbacks should always be inan upright position while the ve- hicle is in motion. The protection provided by the seat belts in a frontalcollision may be reduced signifi- cantly when the seatbacks are re- clined. There is greater risk that thedriver and passenger will slide un- der the seat belt which may result in serious injury if a crash occurs whenthe seatbacks are reclined. The seat belt cannot provide full protection to an occupant if the seatback is re-clined.
To recline the seatback, lean forward totake your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back untilthe desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever.

1FEATURES OF YOUR HYUNDAI
10
B080E02O-AAT Lumbar Support Control
(Driver's Seat Only) (If Installed) To adjust the lumbar support, turn the handle on the inboard side of the seat. To increase the amount of lumbar sup- port, pull the lever forward. To decreaseit, push the lever toward the rear.
1. Minimum support
2. Maximum support HHR2045
1
2
!

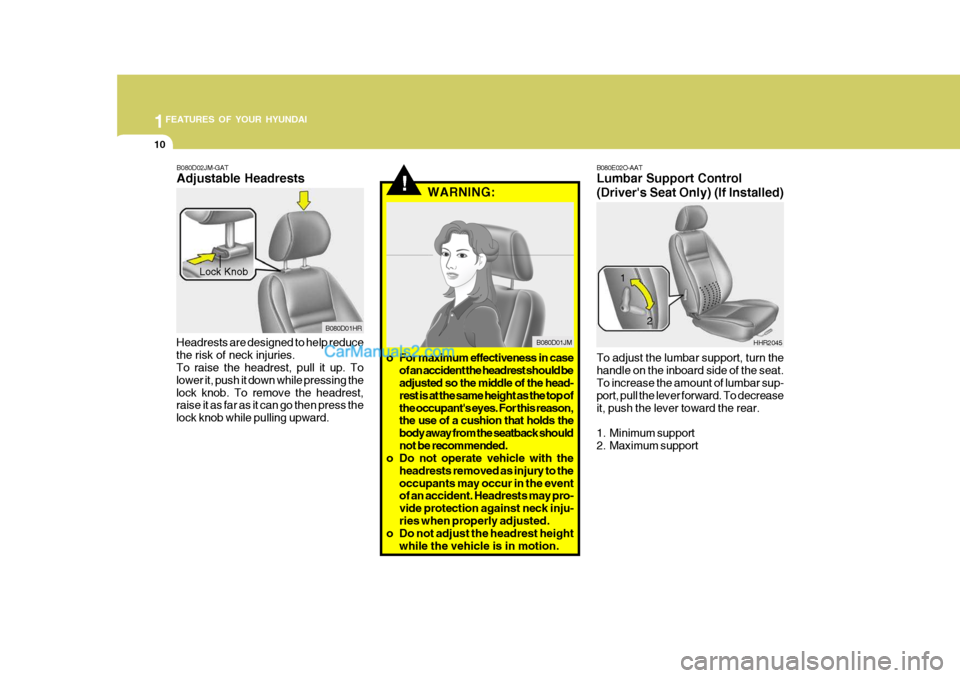

B080D02JM-GAT Adjustable Headrests
Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing thelock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling upward. WARNING:
B080D01HR
Lock Knob
B080D01JM
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the head- rest is at the same height as the top ofthe occupant's eyes. For this reason, the use of a cushion that holds the body away from the seatback shouldnot be recommended.
o Do not operate vehicle with the
headrests removed as injury to theoccupants may occur in the event of an accident. Headrests may pro- vide protection against neck inju-ries when properly adjusted.
o Do not adjust the headrest height
while the vehicle is in motion.

1
FEATURES OF YOUR HYUNDAI
11

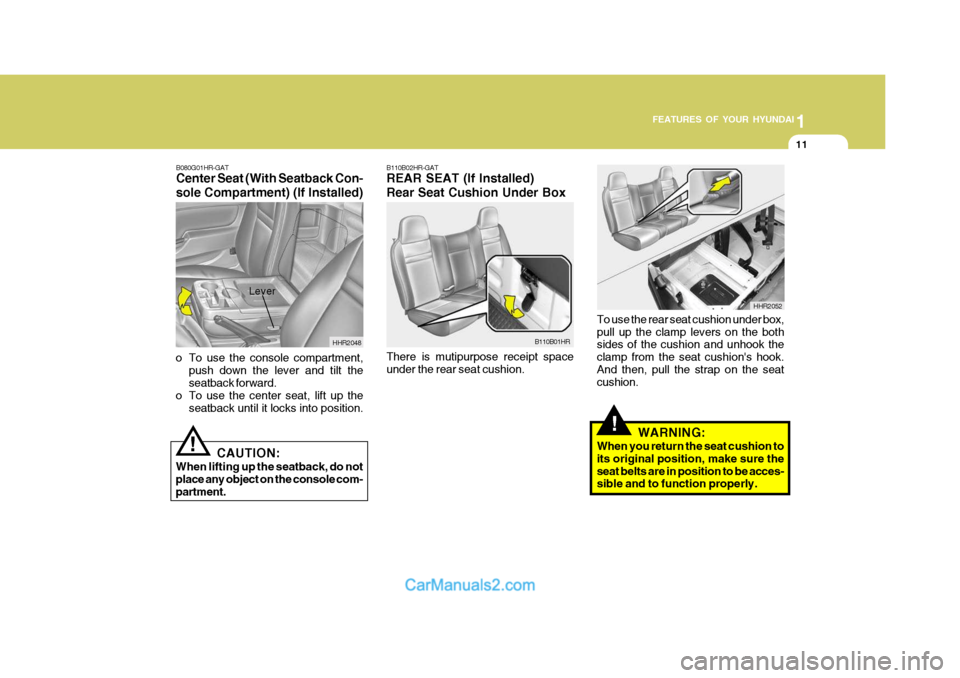

B080G01HR-GAT Center Seat (With Seatback Con- sole Compartment) (If Installed)
HHR2048
o To use the console compartment, push down the lever and tilt the seatback forward.
o To use the center seat, lift up the seatback until it locks into position.
CAUTION:
When lifting up the seatback, do not place any object on the console com-partment.
!
Lever
B110B02HR-GAT REAR SEAT (If Installed) Rear Seat Cushion Under Box There is mutipurpose receipt space under the rear seat cushion. B110B01HR
HHR2052
!
To use the rear seat cushion under box, pull up the clamp levers on the both sides of the cushion and unhook the clamp from the seat cushion's hook.And then, pull the strap on the seat cushion.
WARNING:
When you return the seat cushion to its original position, make sure theseat belts are in position to be acces- sible and to function properly.

1FEATURES OF YOUR HYUNDAI
12
1. Pull the clamp lever up and unhook
the clamp from the seat pan's hook. HHR2047A
B300C05HR-GAT
To Inspect the Engine Compart- ment Under the Front Passenger's
Seat (Fixed Seatback type)
B300B02HR
2. Pull the recliner control lever and tilt the seatback forward.
3. After lifting up the mat, open the access hole cover by removing the nut with a spanner. B300B03HR

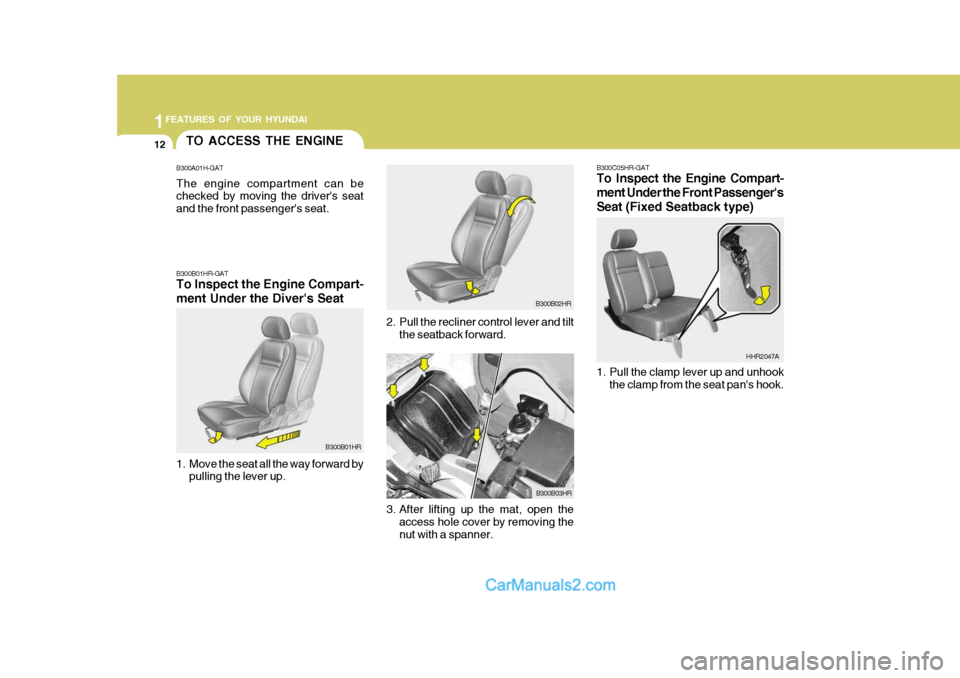

TO ACCESS THE ENGINE
B300B01HR-GAT To Inspect the Engine Compart- ment Under the Diver's Seat
1. Move the seat all the way forward by
pulling the lever up. B300B01HR
B300A01H-GAT The engine compartment can be checked by moving the driver's seat and the front passenger's seat.
