2012 HONDA CIVIC SEDAN Owner's Manual (in English)

328
Information

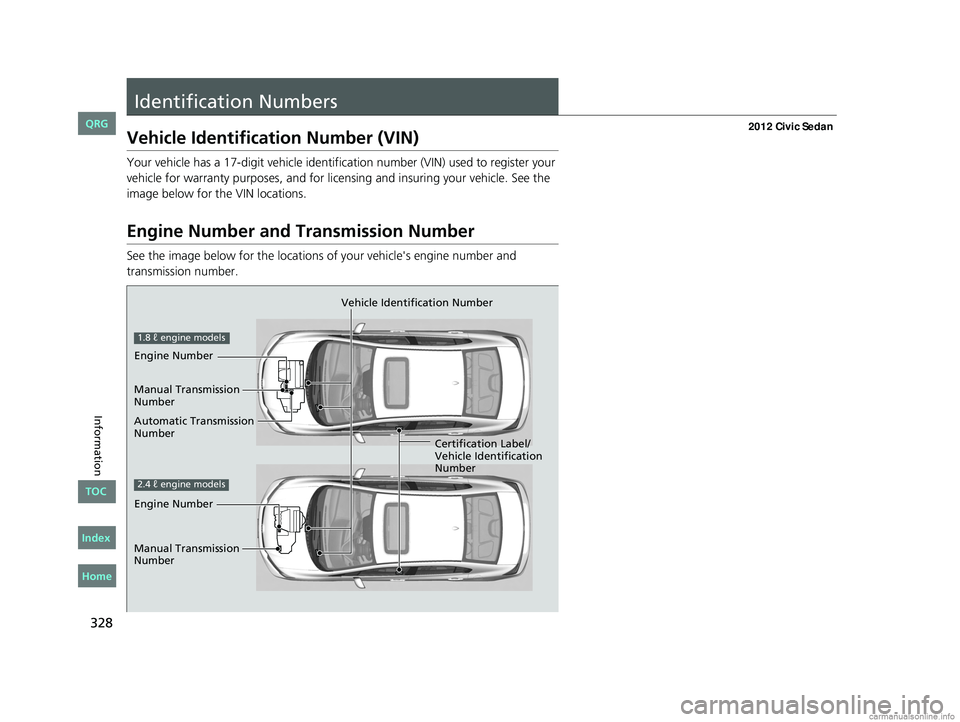

Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licen sing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number
Automatic Transmission
Number
2.4 ℓ engine models
1.8 ℓ engine models
Engine Number
Manual Transmission
Number
CIVIC 4D-31TR3600.book 328 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

329
Information

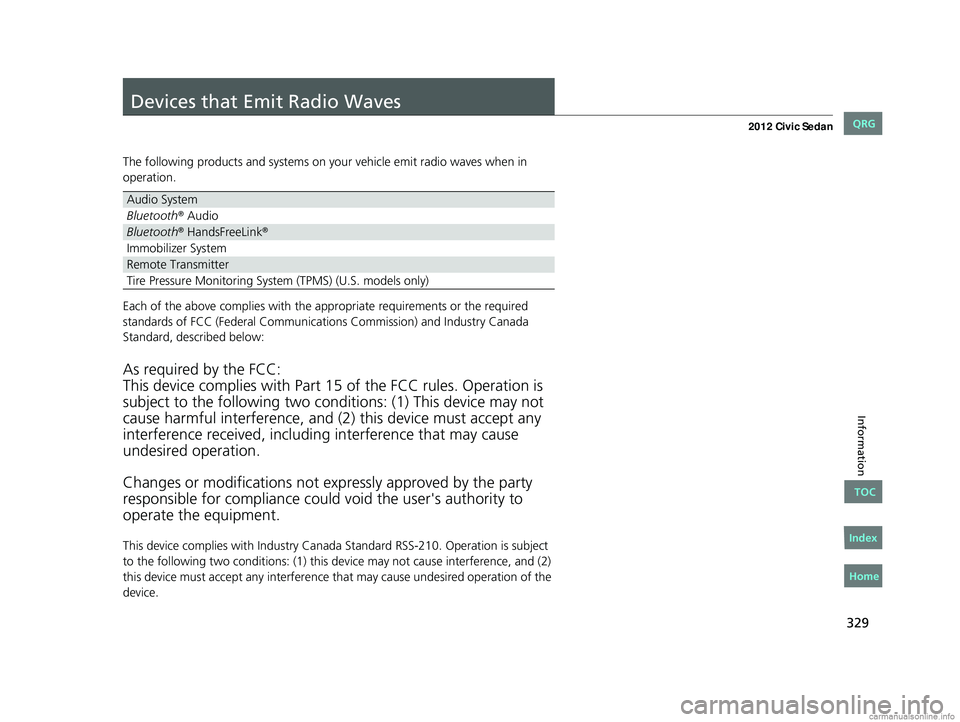

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-210. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference that may cause undesired operation of the
device.
Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
Immobilizer System
Remote Transmitter
Tire Pressure Monitoring System (TPMS) (U.S. models only)
CIVIC 4D-31TR3600.book 329 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

330
Information

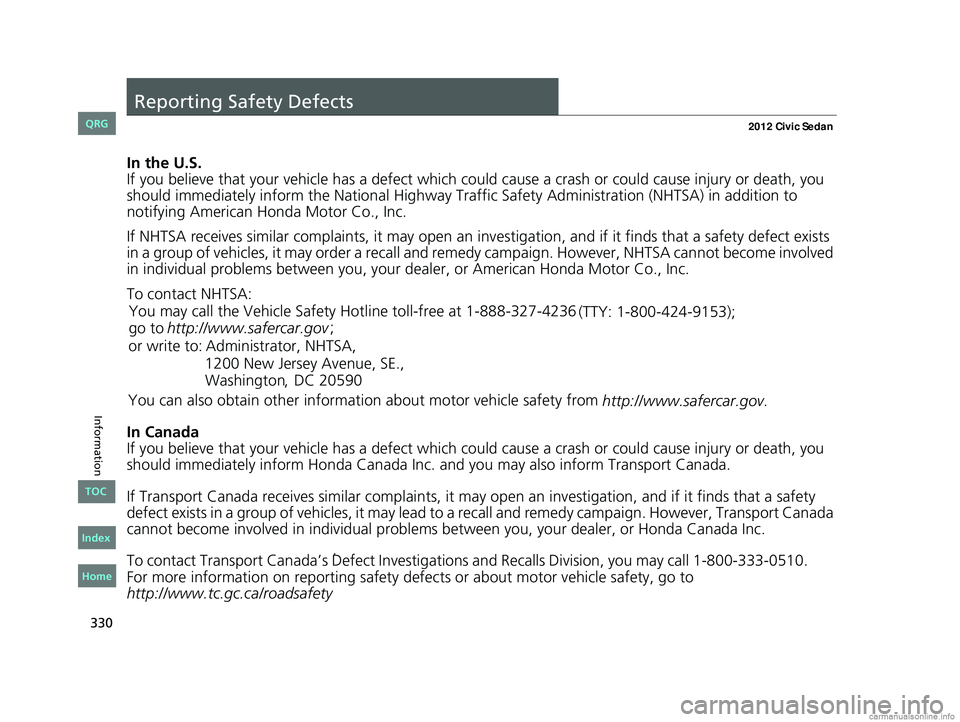

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA:
You may call the Vehicle Safety Hotline toll-free at 1-888-327-4236
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE., W ash ington, DC 20590
You can also obtain other information about motor vehicle safety from .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. .
CIVIC 4D-31TR3600.book 330 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
http://www.safercar.gov
http://www.tc.gc.ca/r oad sa fe ty
For more
information on re porting s a fe ty d efe cts o r a b o ut m otor vehicle safety, go to
(TTY: 1-800-424-9
153 );
g o t o

331Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle uses "readiness codes," as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle's emissions
components are working properly.
The codes may not be read if you go thro ugh the testing just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (automatic transmission) or (N (manual transmission).
Increase the engine speed to 2,000 rpm, and hold it there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
CIVIC 4D-31TR3600.book 331 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

332
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (automatic) or 5th (manual). Do not use cruise control. When traffic allows,
drive for 90 seconds without moving the accelerator pedal. (Vehicle speed may
vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
CIVIC 4D-31TR3600.book 332 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

333Continued
Information

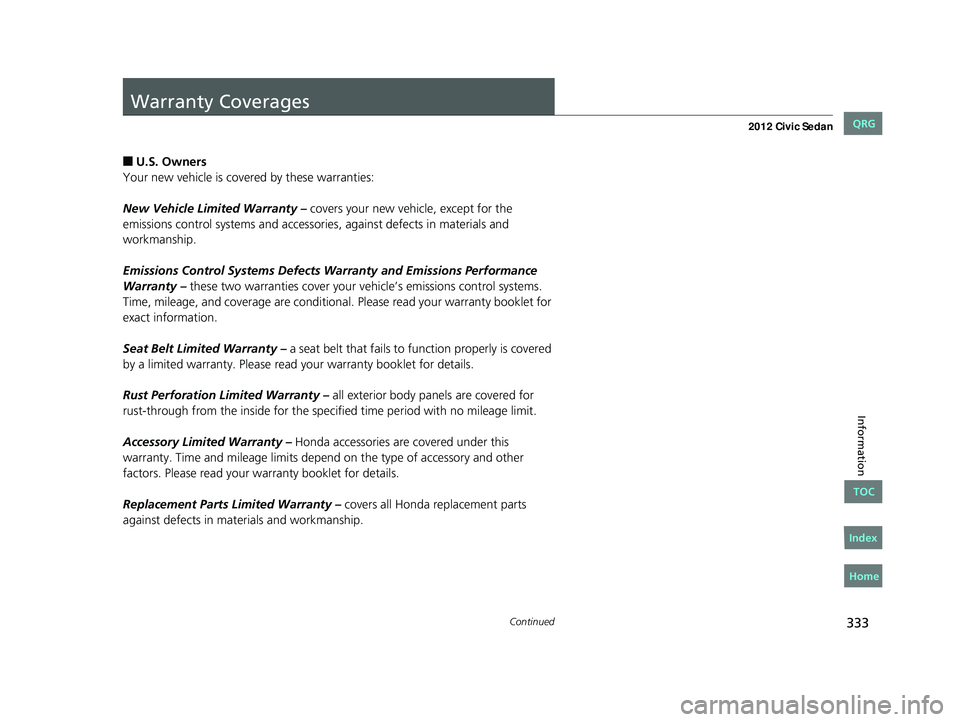

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
CIVIC 4D-31TR3600.book 333 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

334
uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all th ese warranties. Please read the 2012 Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the 2012 warranty manual that came with your vehicle.
CIVIC 4D-31TR3600.book 334 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

335
Information

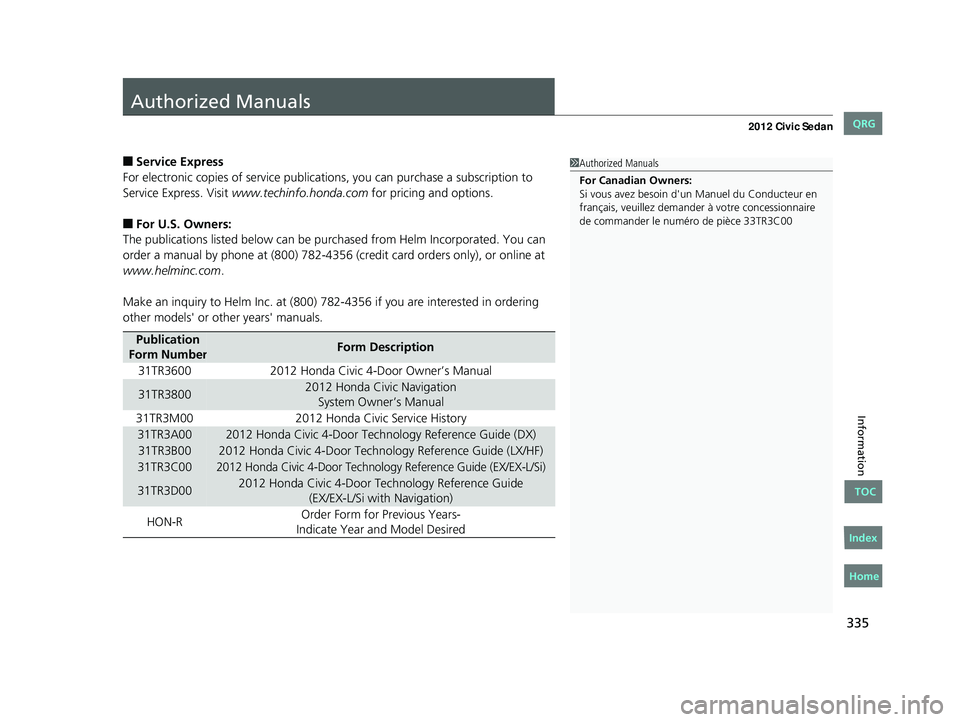

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners:
The publications listed below can be purchased from Helm Incorporated. You can
order a manual by phone at (800) 782-4356 (credit card orders only), or online at
www.helminc.com .
Make an inquiry to Helm Inc. at (800) 7 82-4356 if you are interested in ordering
other models' or other years' manuals.
Publication
Form NumberForm Description
31TR36002012 Honda Civic 4-Door Owner’s Manual
31TR38002012 Honda Civic Navigation
System Owner’s Manual
31TR3M002012 Honda Civic Service History
31TR3A002012 Honda Civic 4-Door Technology Reference Guide (DX)
31TR3B002012 Honda Civic 4-Door Technology Reference Guide (LX/HF)
31TR3C002012 Honda Civic 4-Door Technology Reference Guide (EX/EX-L/Si)
31TR3D002012 Honda Civic 4-Door Technology Reference Guide (EX/EX-L/Si with Navigation)
HON-R Order Form for Previous Years-
Indicate Year and Model Desired
1 Authorized Manuals
For Canadian Owners:
Si vous avez besoin d' un Manuel du Conducteur en
français, veuillez demande r à votre concessionnaire
de commander le numéro de pièce 33TR3C00
CIVIC 4D-31TR3600.book 335 ページ ２０１１年２月１４日　月曜日　午後２時５１分
