uuReplacing Light Bulbs uFog Light Bulbs*
Maintenance
Fog Light Bulbs*
When replacing, use the following bulbs.
1.Remove the screw using a Phillips-head
screwdriver and carefu lly pull the fog light
assembly out of the bumper.
2. Remove the coupler.
u It can be removed by pushing the tab.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the fog light
assembly and turn it to the right.
5. Insert the coupler into the connector of the
bulb.
Fog Light: 55 W (H11)
1Fog Light Bulbs
NOTICE
Halogen bulbs get very hot wh en lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.
The fog lights ar e halogen bulbs.
When replacing a bulb, handl e it by its plastic case,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Screw
Bulb Coupler
Tab
* Not available on all models
CIVIC 4D-31TR3600.book 272 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

273
uuReplacing Light Bulbs uFront Turn Signal/Parking/Side Marker Light Bulbs
Continued
Maintenance

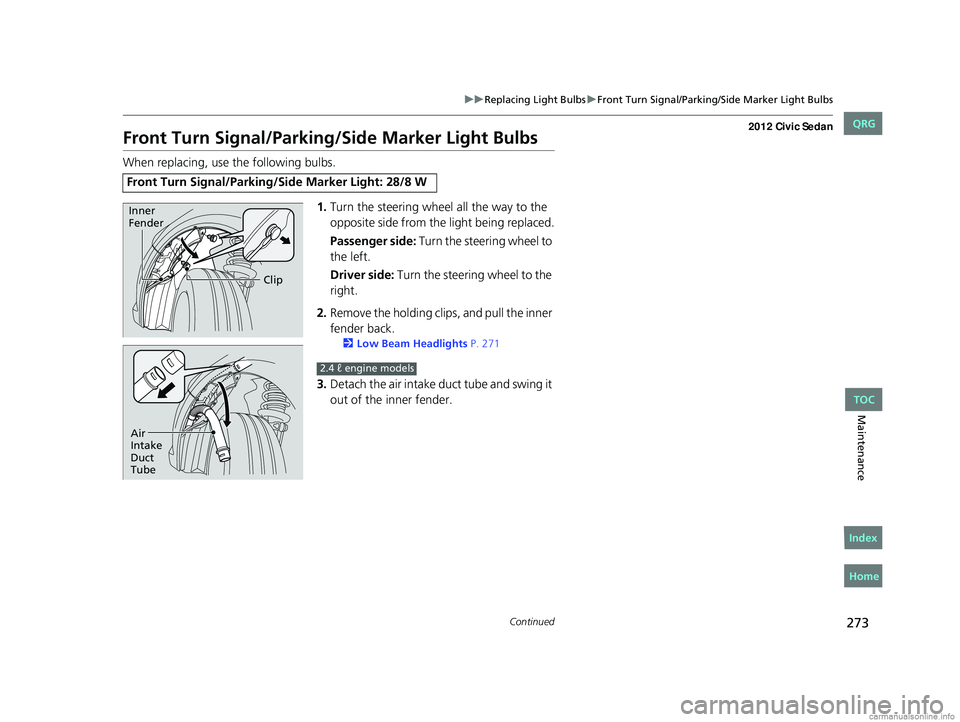

Front Turn Signal/Parking/Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel to
the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips, and pull the inner
fender back.
2 Low Beam Headlights P. 271
3.Detach the air intake duct tube and swing it
out of the inner fender.
Front Turn Signal/Parking/Side Marker Light: 28/8 W
Clip
Inner
Fender
Air
Intake
Duct
Tube
2.4 ℓ engine models
CIVIC 4D-31TR3600.book 273 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

274

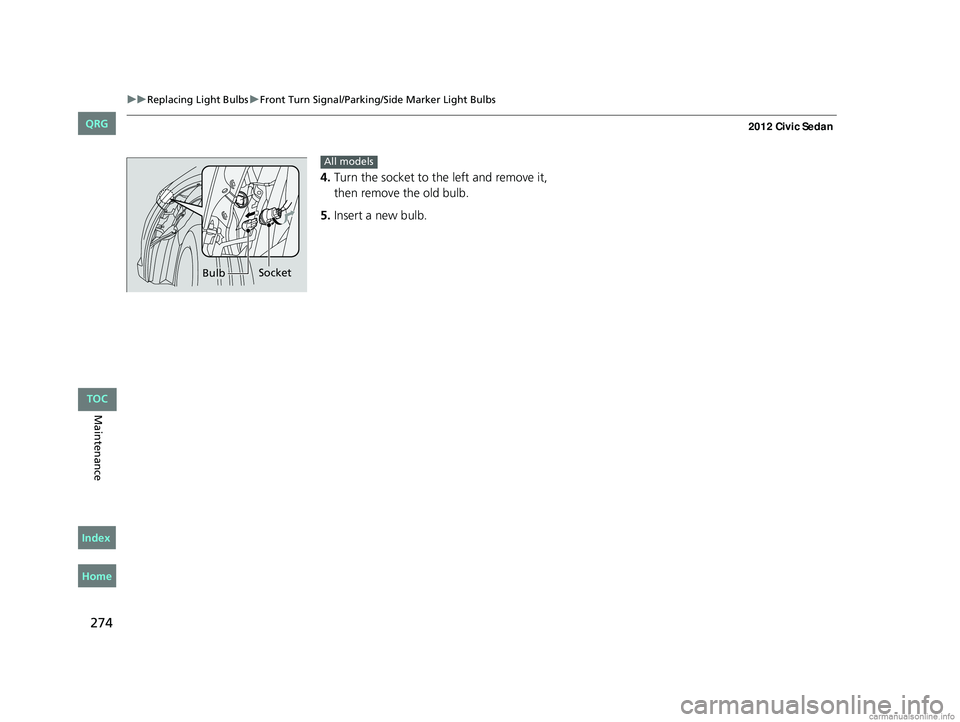

uuReplacing Light Bulbs uFront Turn Signal/Parking/Side Marker Light Bulbs
Maintenance
4. Turn the socket to the left and remove it,
then remove the old bulb.
5. Insert a new bulb.
Bulb Socket
All models
CIVIC 4D-31TR3600.book 274 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

275
uuReplacing Light Bulbs uBrake Light, Taillight, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance

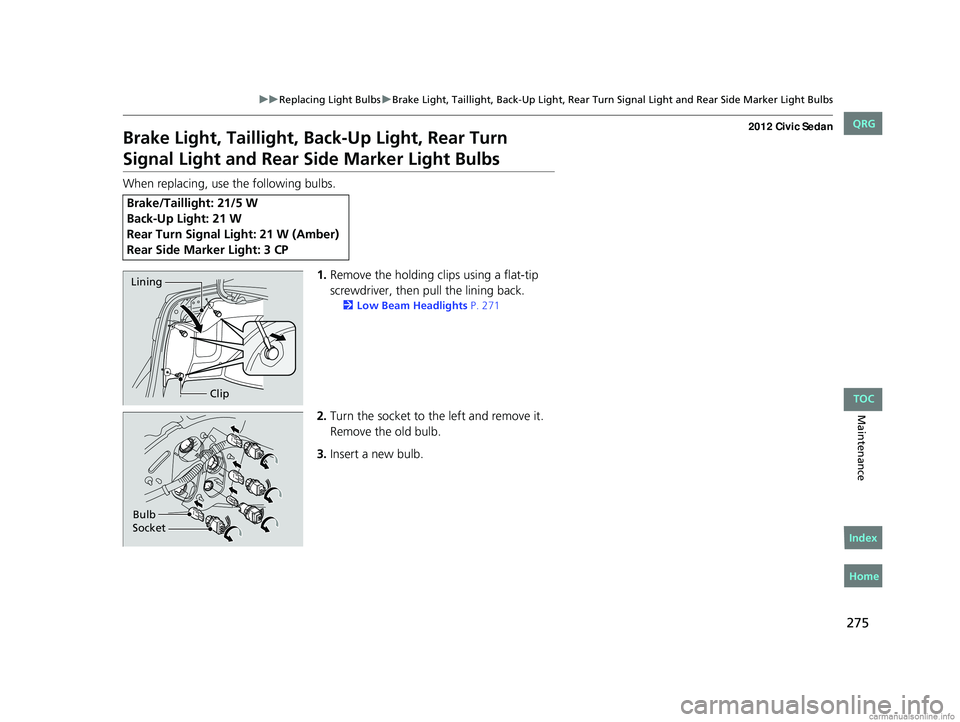

Brake Light, Taillight, Back-Up Light, Rear Turn
Signal Light and Rear Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
2Low Beam Headlights P. 271
2.Turn the socket to th e left and remove it.
Remove the old bulb.
3. Insert a new bulb.
Brake/Taillight: 21/5 W
Back-Up Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Marker Light: 3 CP
Lining
Clip
Bulb
Socket
CIVIC 4D-31TR3600.book 275 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

276
uuReplacing Light Bulbs uRear License Plate Light Bulb
Maintenance

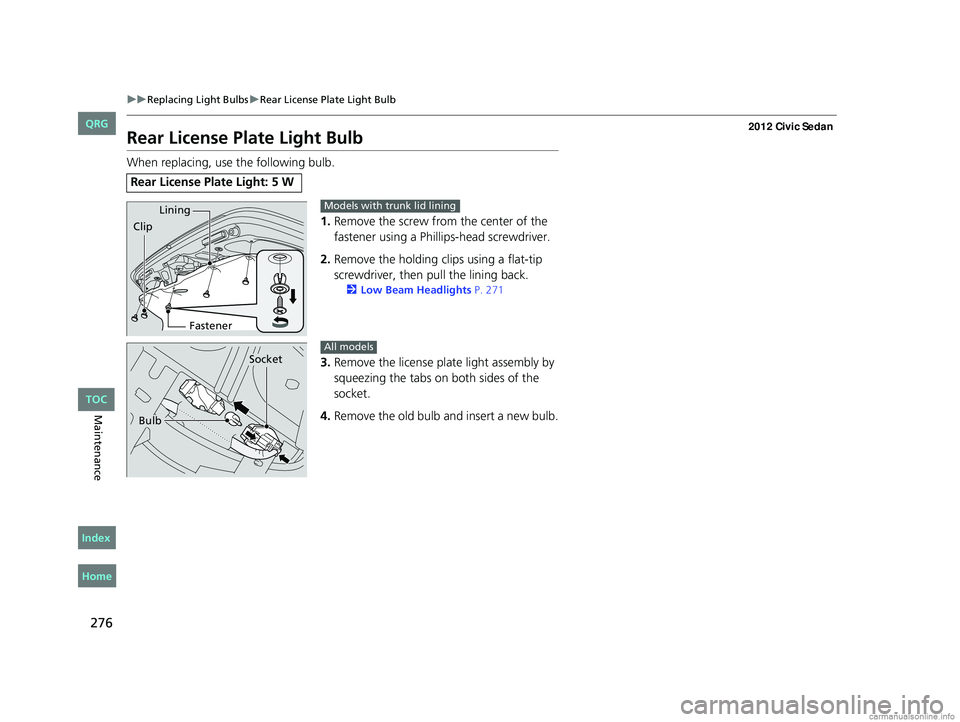

Rear License Plate Light Bulb
When replacing, use the following bulb.
1.Remove the screw from the center of the
fastener using a Phillips-head screwdriver.
2. Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2Low Beam Headlights P. 271
3.Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
4. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Lining
Clip
FastenerModels with trunk lid lining
Bulb
SocketAll models
CIVIC 4D-31TR3600.book 276 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

277
uuReplacing Light Bulbs uHigh-Mount Brake Light Bulb
Maintenance

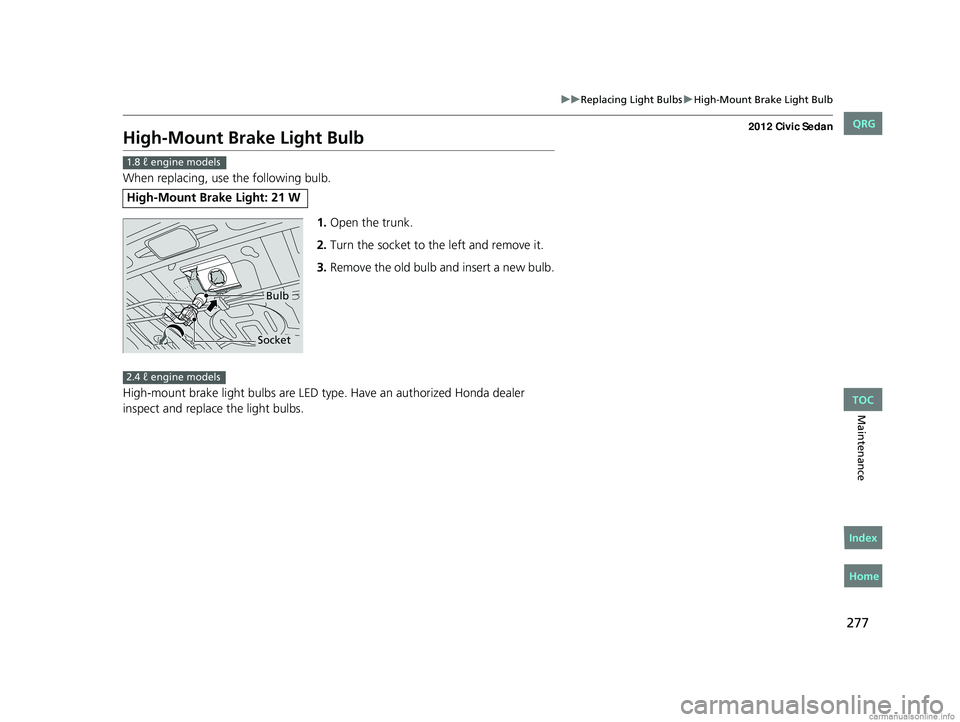

High-Mount Bra ke Light Bulb
When replacing, use the following bulb.
1.Open the trunk.
2. Turn the socket to the left and remove it.
3. Remove the old bulb and insert a new bulb.
High-mount brake light bulbs are LED type . Have an authorized Honda dealer
inspect and replace the light bulbs.
High-Mount Brake Light: 21 W
1.8 ℓ engine models
Bulb
Socket
2.4 ℓ engine models
CIVIC 4D-31TR3600.book 277 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

278
Maintenance

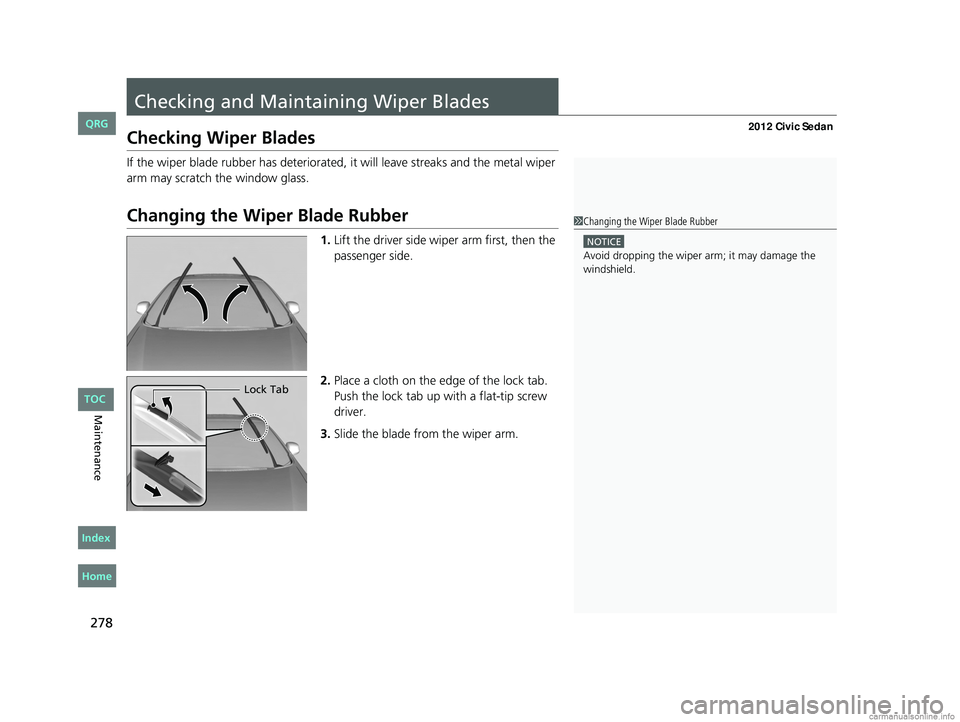

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.
Changing the Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Place a cloth on the edge of the lock tab.
Push the lock tab up with a flat-tip screw
driver.
3. Slide the blade from the wiper arm.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
CIVIC 4D-31TR3600.book 278 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

279

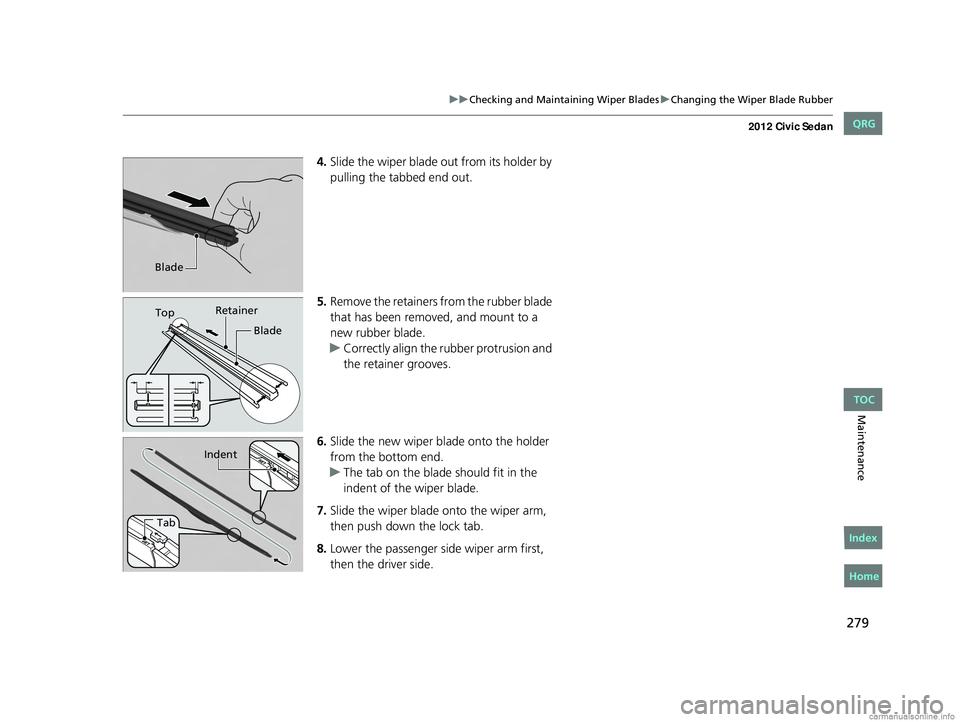

uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
4. Slide the wiper blade out from its holder by
pulling the tabbed end out.
5. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
u Correctly align the rubber protrusion and
the retainer grooves.
6. Slide the new wiper bl ade onto the holder
from the bottom end.
u The tab on the blade should fit in the
indent of the wiper blade.
7. Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8. Lower the passenger side wiper arm first,
then the driver side.
Blade
Top Retainer
Blade
Tab Indent
CIVIC 4D-31TR3600.book 279 ページ ２０１１年２月１４日　月曜日　午後２時５１分
