2012 HONDA CIVIC SEDAN Owner's Manual (in English)

320
uuFusesuInspecting and Changing Fuses
Handling the Unexpected

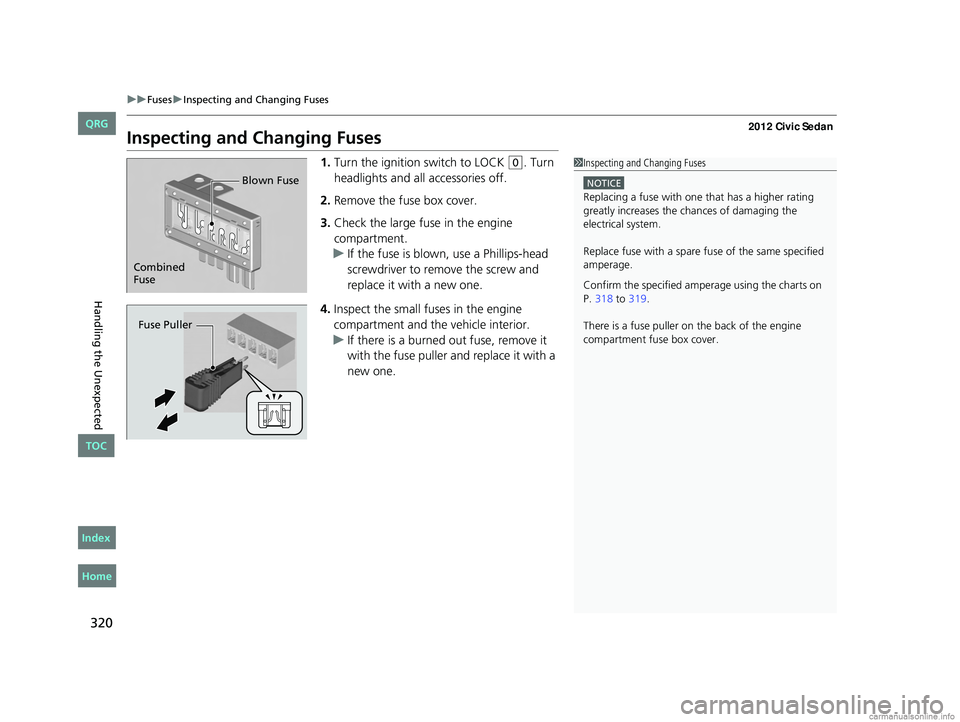

Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0. Turn
headlights and all accessories off.
2.Remove the fuse box cover.
3.Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4.Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P.318 to 319.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse
Blown Fuse
Fuse Puller
CIVIC 4D-31TR3600.book 320 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

321
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
CIVIC 4D-31TR3600.book 321 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

322
CIVIC 4D-31TR3600.book 322 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Handling the UnexpectedCivic
TOC
Home
QRG
Index2012 Sedan

323

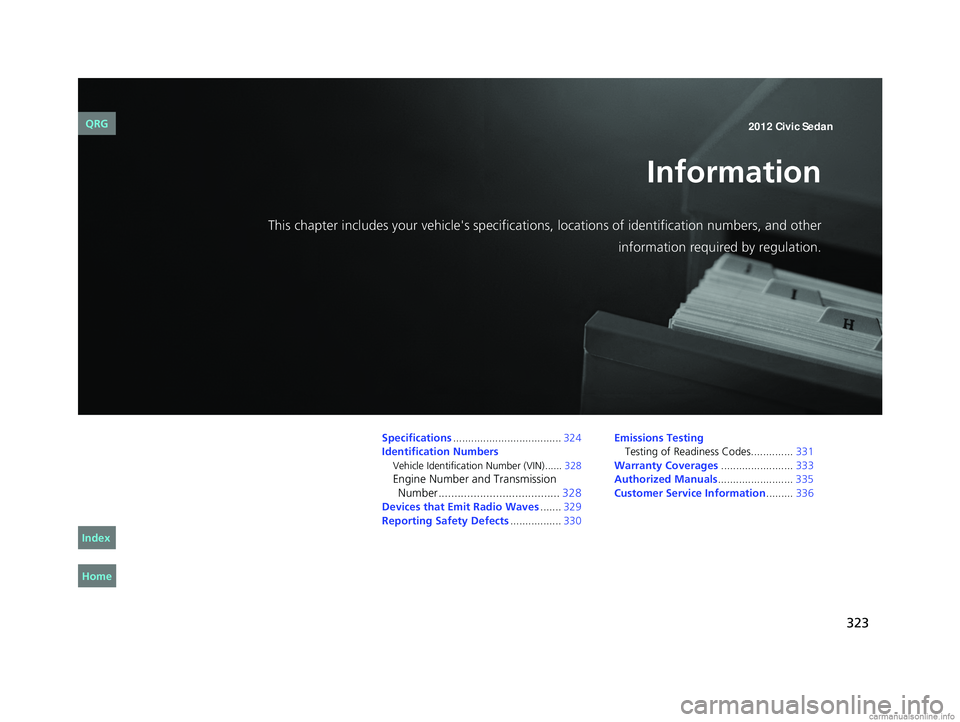

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 324
Identification Numbers
Vehicle Identification Number (VIN)...... 328
Engine Number and Transmission
Number...................................... 328
Devices that Emit Radio Waves .......329
Reporting Safety Defects .................330Emissions Testing
Testing of Readiness Codes.............. 331
Warranty Coverages ........................333
Authorized Manuals .........................335
Customer Service Information .........336
CIVIC 4D-31TR3600.book 323 ページ ２０１１年２月１４日　月曜日　午後２時５１分
Home
QRG
Index2012 Civic Sedan

324
Information
Specifications
■Vehicle Specifications
*1: DX, LX and HF models
*2: EX and EX-L models
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,660 lbs (1,660 kg)*1
Canada: 1,660 kg*1
U.S.: 3,792 lbs (1,720 kg)*2
Canada: 1,720 kg*2
Gross Axle Weight
Rating (Front)U.S.: 1,985 lbs (900 kg)*1
Canada: 900 kg*1
U.S.: 2,029 lbs (920 kg)*2
Canada: 920 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 1,742 lbs (790 kg)*1
Canada: 790 kg*1
U.S.: 1,786 lbs (810 kg)*2
Canada: 810 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
1.8 ℓ engine models■Engine Specifications
■ Fuel
■ Battery
■ Washer Fluid
Displacement110 cu-in (1,798 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Capacity/Type36AH(5)/45AH(20)
36AH(5)/47AH(20)
38AH(5)/47AH(20)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*3: Not available on all models
Headlights (Low Beam)51W (HB4)
Headlights (High Beam) 60W (HB3)
Front Turn Signal/Parking/Side
Marker Lights28/8W
Brake/Taillights 21/5W
Back-Up Lights21W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights3CP
High-Mount Brake Light 21W
Rear License Plate Light5W
Trunk Light 5W
Interior LightsMap Lights*38WCeiling Light8W
CIVIC 4D-31TR3600.book 324 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

325
uuSpecifications u
Continued
Information

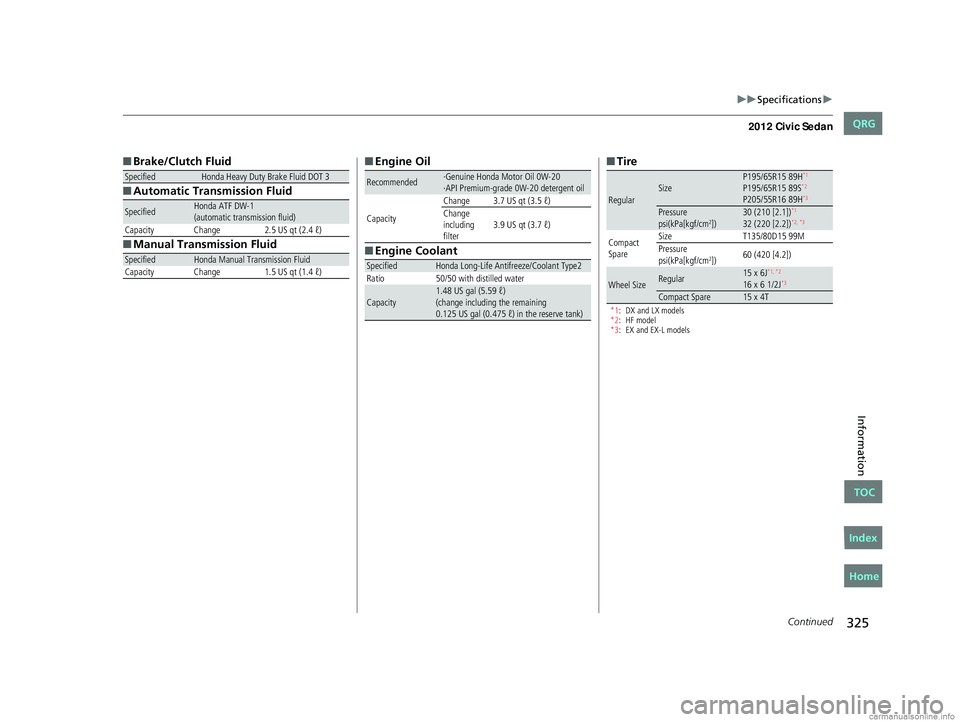

■Brake/Clutch Fluid
■ Automatic Transmission Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.5 US qt (2.4 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■Tire
*1: DX and LX models
*2: HF model
*3: EX and EX-L models
RegularSizeP195/65R15 89H*1
P195/65R15 89S*2
P205/55R16 89H*3
Pressure
psi(kPa[kgf/cm2])30 (210 [2.1])*1
32 (220 [2.2])*2, *3
Compact
Spare Size
T135/80D15 99M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular15 x 6J*1, *2
16 x 6 1/2J*3
Compact Spare15 x 4T
CIVIC 4D-31TR3600.book 325 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

326
uuSpecifications u
Information

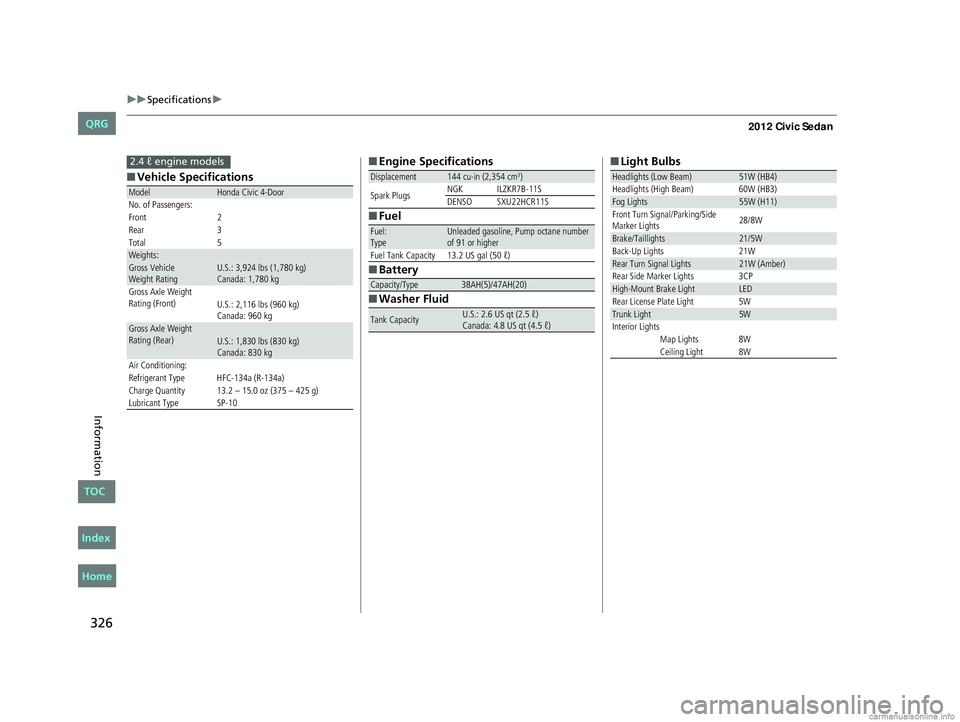

■Vehicle Specifications
ModelHonda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,924 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)U.S.: 2,116 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models■ Engine Specifications
■ Fuel
■ Battery
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Capacity/Type38AH(5)/47AH(20)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights21/5W
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights 3CP
High-Mount Brake LightLED
Rear License Plate Light 5W
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
CIVIC 4D-31TR3600.book 326 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

327
uuSpecifications u
Information
■Brake/Clutch Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■Tire
*1: Optional for U.S. models (summer tires)
RegularSizeP215/45R17 87V
215/45ZR17 91W*1
Pressure
psi(kPa[kgf/cm2])32 (220 [2.2])
Compact
Spare Size
T135/80D16 101M
Pressure
psi(kPa[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7JCompact Spare16 x 4T
CIVIC 4D-31TR3600.book 327 ページ ２０１１年２月１４日　月曜日　午後２時５１分
