2012 HONDA CIVIC SEDAN Owner's Manual (in English)

88

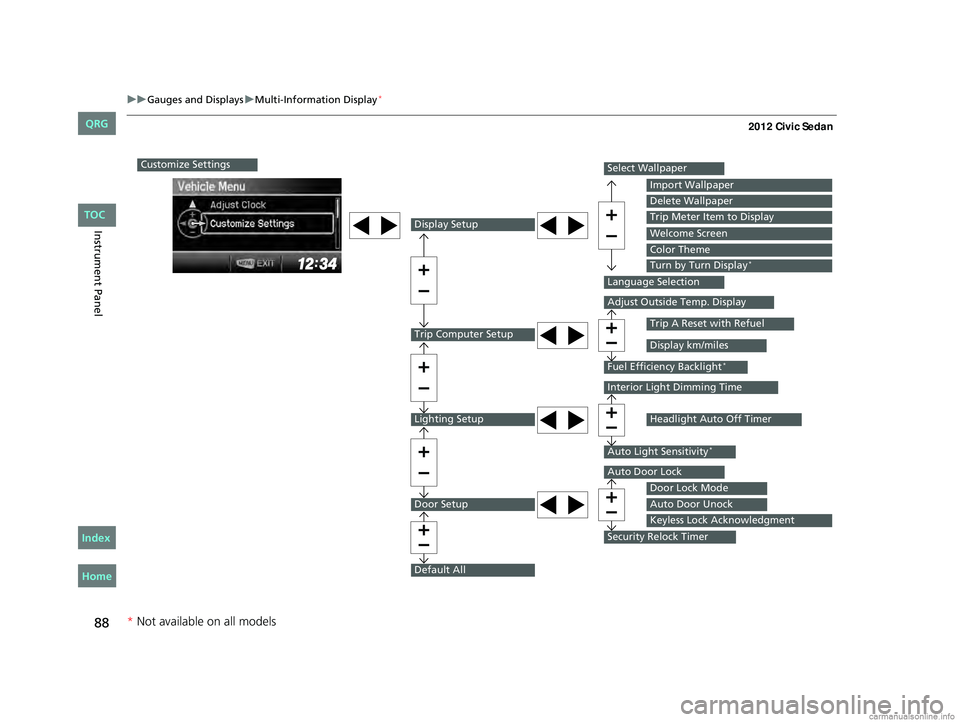

uuGauges and Displays uMulti-Information Display*
Instrument Panel
Customize Settings
Display Setup
Trip Computer Setup
Lighting Setup
Door Setup
Default All
Select Wallpaper
Language Selection
Adjust Outside Temp. Display
Fuel Efficiency Backlight*
Interior Light Dimming Time
Auto Light Sensitivity*
Auto Door Lock
Security Relock Timer
Import Wallpaper
Delete Wallpaper
Trip Meter Item to Display
Welcome Screen
Color Theme
Turn by Turn Display*
Trip A Reset with Refuel
Display km/miles
Headlight Auto Off Timer
Door Lock Mode
Auto Door Unock
Keyless Lock Acknowledgment
* Not available on all models
CIVIC 4D-31TR3600.book 88 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index

89
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizable Features
DescriptionSelectable settings
Vehicle
InformationMaintenance infoReset the Maintenance MinderTM.No/Yes
Odometer/
Trip Meter Trip Meter Reset
Reset the trip meter. Trip A/Trip B
Select Trip/Odometer Switch between odometer, trip meter A, and trip
meter B. ODO
*1/Trip A/Trip B
Adjust ClockSets time display 12 hour or 24 hour and adjust the time.12 h*1/24 h
CIVIC 4D-31TR3600.book 89 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
*
Not av ailable on all mo dels

90
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1: Not available on all models
*2: Default Setting
*3: Default Setting for 1.8 ℓ engine models
*4: Default Setting for 2.4 ℓ engine models
*5: Refer to the navigation system manual for complete details.Setup Group Customizable Features
DescriptionSelectable settings
Customize
Settings Display
SetupSelect
Wallpaper
Select the full-size analogue clock or the wallpaper. Clock
*2/Image 1/Image 2/
Image 3
Import
Wallpaper Import an image file for a new wallpaper. Three images can be stored.
2
Importing Wallpapers
from USB P. 93
Delete
Wallpaper Delete an image file for a wallpaper.
Image 1/Image 2/Image 3
Trip Meter
Item to
Display Select an item to be displayed along with average
fuel economy.
Range
*2/Elapsed time/
Average speed
Select an item to be displayed along with the instant
fuel economy. Average Fuel
*2/Range/
Elapsed time/Average speed
Welcome
Screen Select whether the welcome screen comes on or not
when you turn the ignition switch to ON
(w.
On*2/Off
Color Theme Changes the co lor of the screen. Blue
*3/Red*4/Amber/Gray
Turn by Turn
Display
*1, *5Select whether the turn-by-tu rn display comes on or
not during the route guidance. On*2/Off
Language
Selection Changes the displayed language.
English
*2/French/Spanish
1.8 ℓ engine models
2.4 ℓ engine models
CIVIC 4D-31TR3600.book 90 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
* Not av ailable on all mo dels

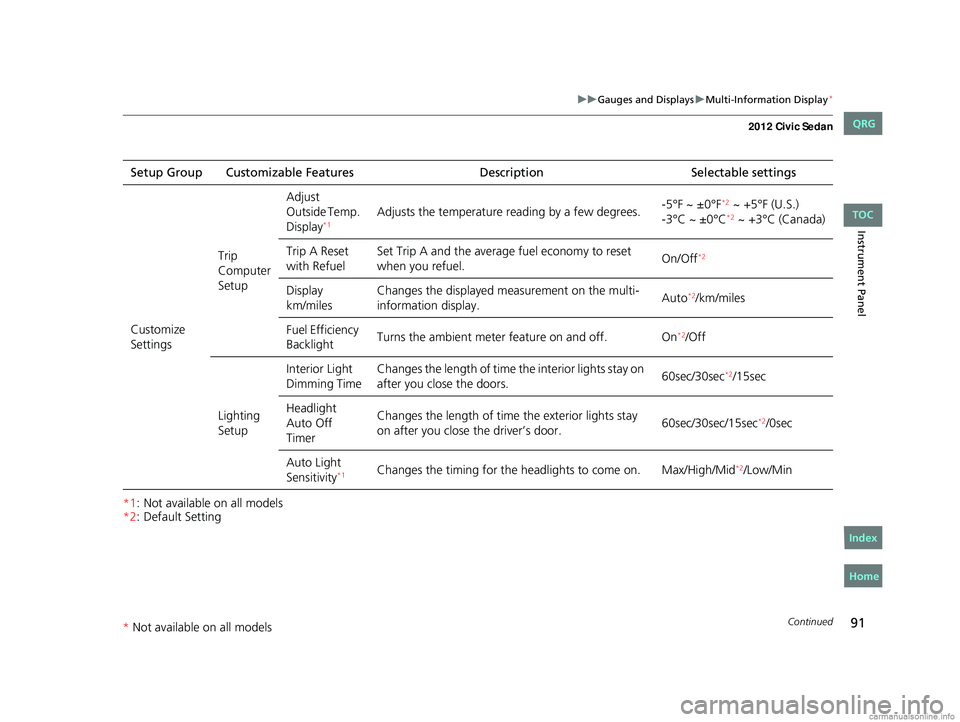

91
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1: Not available on all models
*2: Default SettingSetup Group Customizable Features
DescriptionSelectable settings
Customize
Settings Trip
Computer
SetupAdjust
Outside Temp.
Display
*1Adjusts the temperature r
eading by a few degrees. -5°F ~ ±0°F*2 ~ +5°F (U.S.)
-3°C ~ ±0°C*2 ~ +3°C (Canada)
Trip A Reset
with Refuel Set Trip A and the average fuel economy to reset
when you refuel.
On/Off
*2
Display
km/milesChanges the displayed m
easurement on the multi-
information display. Auto*2/km/miles
Fuel Efficiency
Backlight Turns the ambient meter feature on and off. On
*2/Off
Lighting
Setup Interior Light
Dimming Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec/30sec
*2/15sec
Headlight
Auto Off
Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec/30sec/15sec
*2/0sec
Auto Light
Sensitivity
*1Changes the timing for the head lights to come on. Max/High/Mid*2/Low/Min
CIVIC 4D-31TR3600.book 91 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
* Not av ailable on all mo dels

92
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default Setting
*2:Default Setting for automatic transmission
*3:Default Setting for manual transmissionSetup Group Customizable Features
DescriptionSelectable settings
Customize
Settings Door
SetupAuto Door
Lock
Changes the setting for
the automatic locking
feature. Off/With Vehicle Speed
*1/
Shift from
(P
Door Lock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or ignition key.
Driver Door*1/All Doors
Auto Door
Unlock Changes the setting for
when the doors unlock
automatically. Off/
Driver Door with Shift to
(P*2/
All Doors with Shift to
(P/
Driver Door with IGN Off*3/
All Doors with IGN Off
Keyless Lock
AcknowledgmentLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds. On*1/Off
Security
Relock Timer Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.
90sec/60sec/30sec
*1
Default
AllCancels/Resets all the customized settings as
default. Cancel
Reset All Defaults
CIVIC 4D-31TR3600.book 92 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
*
Not availabl eon allmo dels

Continued93
uuGauges and Displays uMulti-Information Display*
Instrument Panel
■Example for customizing wallpapers
You can customize the display from clock to wallpaper.
Importing Wallpapers from USB
You can import up to three images, one at a time for wallpaper from a USB flash
drive.
Select Import Wallpaper from Customize Settings and properly connect a USB
flash drive to store an image. 1.Connect the USB flash drive to the adapter
cable.
2 USB Adapter Cable P. 145
2.Press the Menu button.
3. Select Customize Settings with the /
button, then pres s the SOURCE button.
4. Select Display Setup with the /
button, then press the SOURCE button.
1 Customize Features
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 2 MB.
•The maximum image size is 1,920 x 936 pixels. If
the image size was less than 480 x 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•The number of files that can be selected is up
•Up to 64 characters can be displayed in the
+
–
+–
CIVIC 4D-31TR3600.book 93 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
Home
QRG
Index
to 255.
file name.
* Not availabl eon allmo dels

94
uuGauges and Displays uMulti-Information Display*
Instrument Panel
5. Select Import Wallpaper with the /
button, then press the SOURCE button.
u The file names are displayed on the
screen.
6. Press the button unt il the file name you
want to store appears on the center of the
display, then press the SOURCE button.
7. The preview of the imported data is
displayed. Press the SO URCE button if it is
OK.
8. Press the SOURCE button to save the image
file.+–
–
Save
CIVIC 4D-31TR3600.book 94 ページ ２０１１年２月１４日　月曜日　午後２時５１分
TOC
*Not availabl eon allmo dels
Home
QRG
Index

95
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

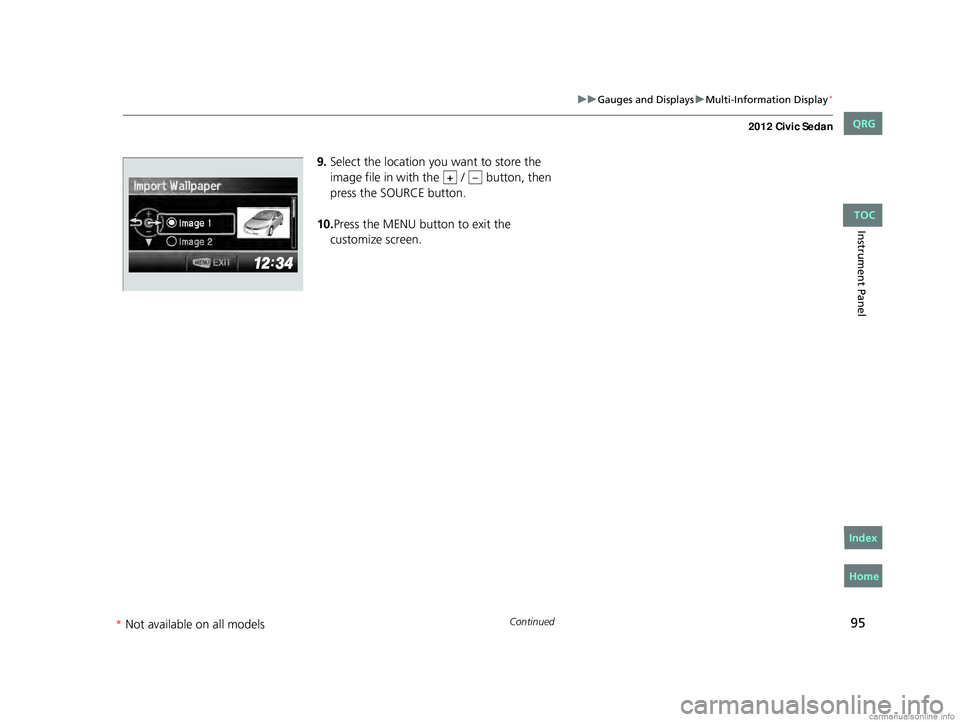

9. Select the location you want to store the
image file in with the / button, then
press the SOURCE button.
10. Press the MENU button to exit the
customize screen.
+–
