2012 HONDA CIVIC SEDAN Owner's Manual (in English)

184
uuBluetooth® HandsFreeLink®*uHFL Menus
Features

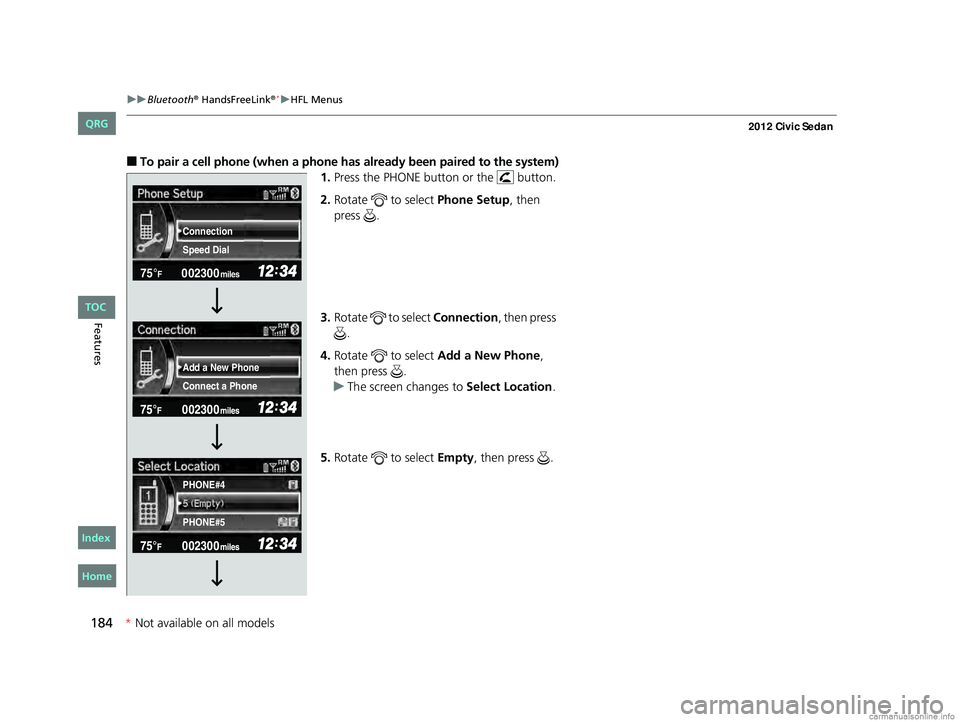

■To pair a cell phone (when a phone has al ready been paired to the system)
1. Press the PHONE button or the button.
2. Rotate to select Phone Setup, then
press .
3. Rotate to select Connection, then press
.
4. Rotate to select Add a New Phone,
then press .
u The screen changes to Select Location.
5. Rotate to select Empty, then press .
002300
75°F miles
Connect a Phone Add a New Phone Speed Dial Connection
PHONE#4
PHONE#5
CIVIC 4D-31TR3600.book 184 ページ ２０１１年２月１４日　月曜日　午後２時５１分
*Not available on all models
TOC
Home
QRG
Index

185
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features

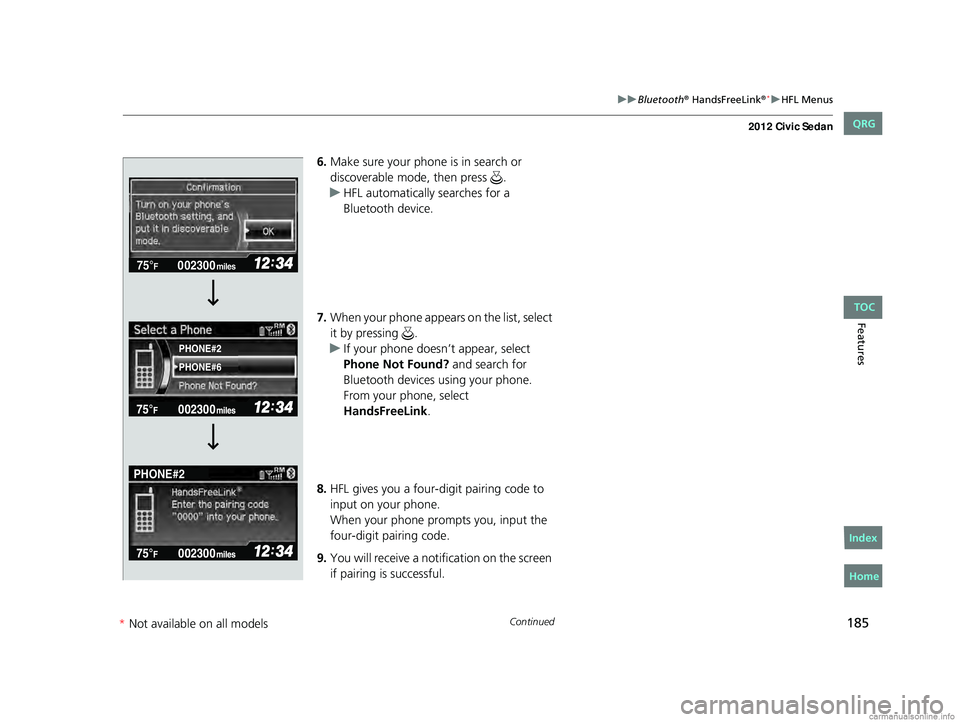

6. Make sure your phone is in search or
discoverable mode, then press .
u HFL automatically searches for a
Bluetooth device.
7. When your phone appears on the list, select
it by pressing .
u If your phone doesn’t appear, select
Phone Not Found? and search for
Bluetooth devices using your phone.
From your phone, select
HandsFreeLink .
8. HFL gives you a four-digit pairing code to
input on your phone.
When your phone prompts you, input the
four-digit pairing code.
9. You will receive a notification on the screen
if pairing is successful.
002300
75°F miles
PHONE#6
PHONE#2
PHONE#2
CIVIC 4D-31TR3600.book 185 ページ ２０１１年２月１４日　月曜日　午後２時５１分
*Not available on all models
TOC
Home
QRG
Index

uuBluetooth® HandsFreeLink®*uHFL Menus
186
Features

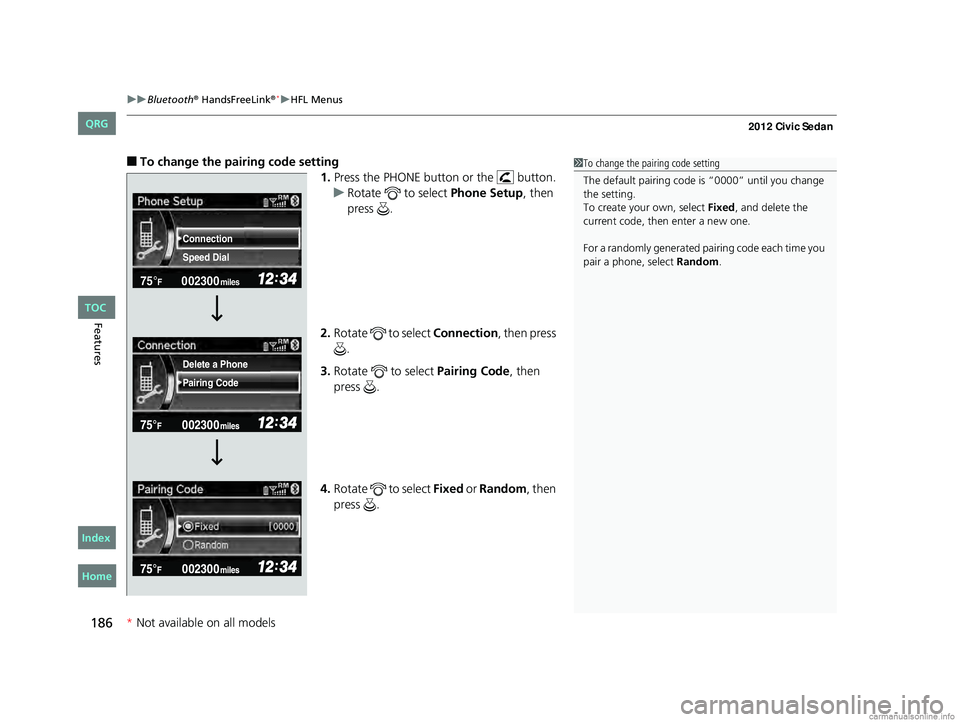

■To change the pairing code setting
1.Press the PHONE button or the button.
u Rotate to select Phone Setup, then
press .
2. Rotate to select Connection, then press
.
3. Rotate to select Pairing Code, then
press .
4. Rotate to select Fixed or Random , then
press .1 To change the pairing code setting
The default pairing code is “0000” until you change
the setting.
To create your own, select Fixed, and delete the
current code, then enter a new one.
For a randomly generated pa iring code each time you
pair a phone, select Random.
002300
75°F miles
Speed Dial Connection
Pairing Code Delete a Phone
CIVIC 4D-31TR3600.book 186 ページ ２０１１年２月１４日　月曜日　午後２時５１分
*Not available on all models
TOC
Home
QRG
Index

187
uuBluetooth® HandsFreeLink®*uHFL Menus
Continued
Features

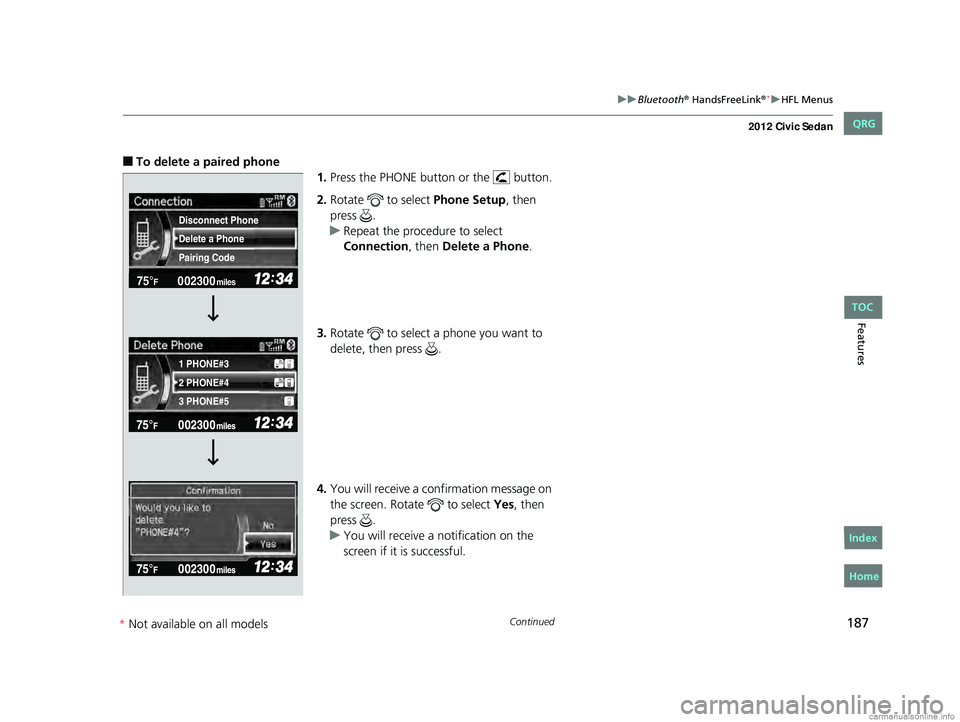

■To delete a paired phone
1.Press the PHONE button or the button.
2. Rotate to select Phone Setup, then
press .
u Repeat the procedure to select
Connection , then Delete a Phone .
3. Rotate to select a phone you want to
delete, then press .
4. You will receive a confirmation message on
the screen. Rotate to select Yes, then
press .
u You will receive a notification on the
screen if it is successful.
002300
75°F miles
2 PHONE#4 1 PHONE#3
3 PHONE#5 Pairing Code Delete a Phone
Disconnect Phone
CIVIC 4D-31TR3600.book 187 ページ ２０１１年２月１４日　月曜日　午後２時５１分
*Not available on all models
TOC
Home
QRG
Index

uuBluetooth® HandsFreeLink®*uHFL Menus
188
Features

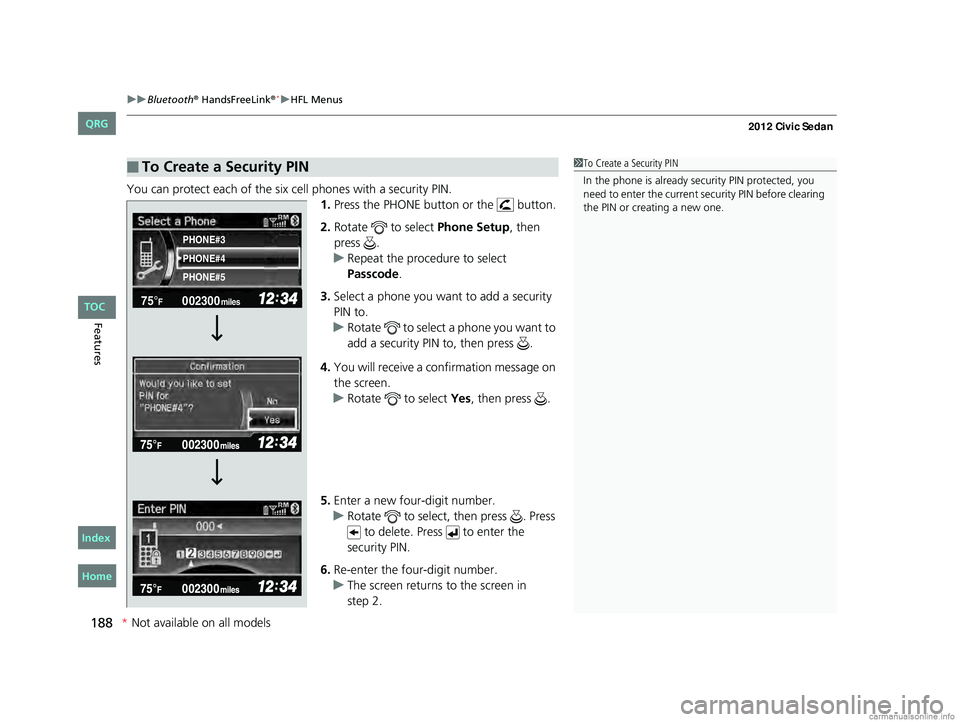

You can protect each of the six cell phones with a security PIN.
1.Press the PHONE button or the button.
2. Rotate to select Phone Setup, then
press .
u Repeat the procedure to select
Passcode .
3. Select a phone you want to add a security
PIN to.
u Rotate to select a phone you want to
add a security PIN to, then press .
4. You will receive a confirmation message on
the screen.
u Rotate to select Yes, then press .
5. Enter a new four-digit number.
u Rotate to select, then press . Press
to delete. Press to enter the
security PIN.
6. Re-enter the four-digit number.
u The screen returns to the screen in
■To Create a Security PIN1To Create a Security PIN
In the phone is already security PIN protected, you
need to enter the current security PIN before clearing
the PIN or creating a new one.
002300
75°F miles
PHONE#4 PHONE#3
PHONE#5
CIVIC 4D-31TR3600.book 188 ページ ２０１１年２月１４日　月曜日　午後２時５１分
*Not available on all models
TOC
Home
QRG
Index
step 2.

Continued189
uuBluetooth® HandsFreeLink®*uHFL Menus
Features

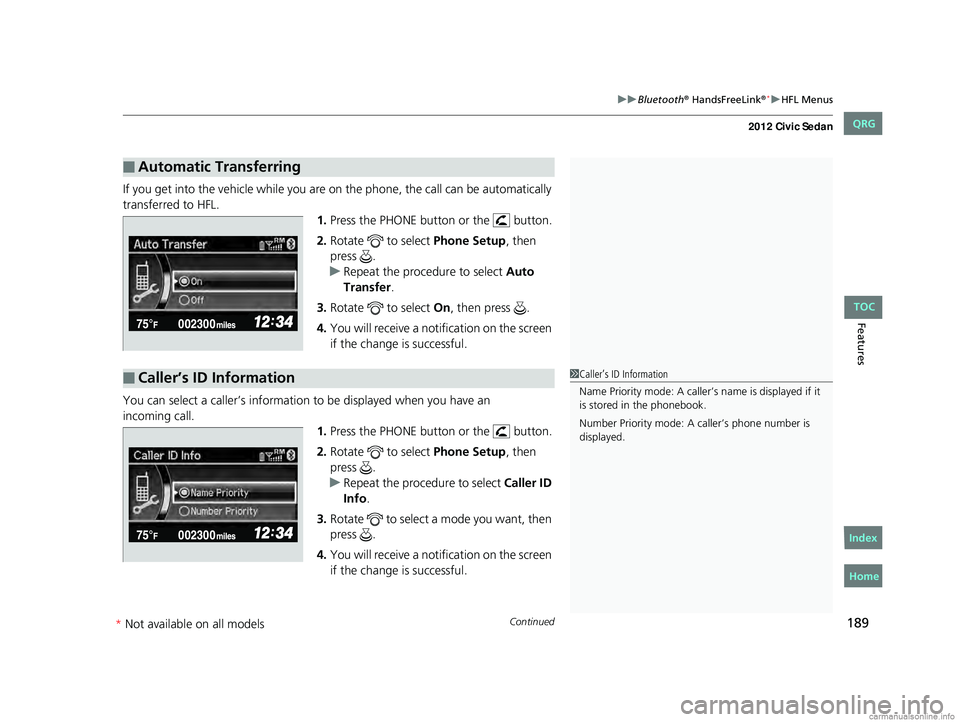

If you get into the vehicle while you are on the phone, the call can be automatically
transferred to HFL.
1.Press the PHONE button or the button.
2. Rotate to select Phone Setup, then
press .
u Repeat the procedure to select Auto
Transfer .
3. Rotate to select On, then press .
4. You will receive a notification on the screen
if the change is successful.
You can select a caller’s information to be displayed when you have an 1.Press the PHONE button or the button.
2. Rotate to select Phone Setup, then
press .
u Repeat the procedure to select Caller ID
Info .
3. Rotate to select a mode you want, then
press .
4. You will receive a notification on the screen
if the change is successful.
■Automatic Transferring
■Caller’s ID Information1Caller’s ID Information
Name Priority mode: A caller’s name is displayed if it
is stored in the phonebook.
Number Priority mode: A caller’s phone number is
displayed.
CIVIC 4D-31TR3600.book 189 ページ ２０１１年２月１４日　月曜日　午後２時５１分
* Not available on all models
TOC
Home
QRG
Index
incoming c all .

190
uuBluetooth® HandsFreeLink®*uHFL Menus
Features

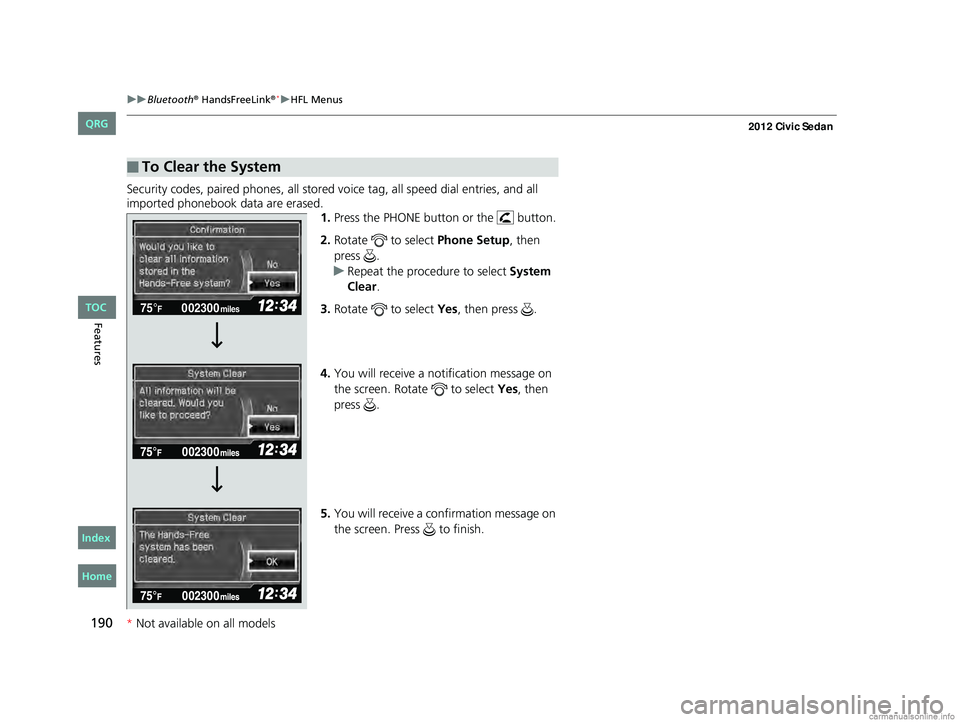

Security codes, paired phones, all stored vo ice tag, all speed dial entries, and all
imported phonebook data are erased. 1.Press the PHONE button or the button.
2. Rotate to select Phone Setup, then
press .
u Repeat the procedure to select System
Clear .
3. Rotate to select Yes, then press .
4. You will receive a notification message on
the screen. Rotate to select Yes, then
press .
5. You will receive a confirmation message on
the screen. Press to finish.
■To Clear the System
002300
75°F miles
CIVIC 4D-31TR3600.book 190 ページ ２０１１年２月１４日　月曜日　午後２時５１分
*Not available on all models
TOC
Home
QRG
Index

Continued191
uuBluetooth® HandsFreeLink®*uHFL Menus
Features

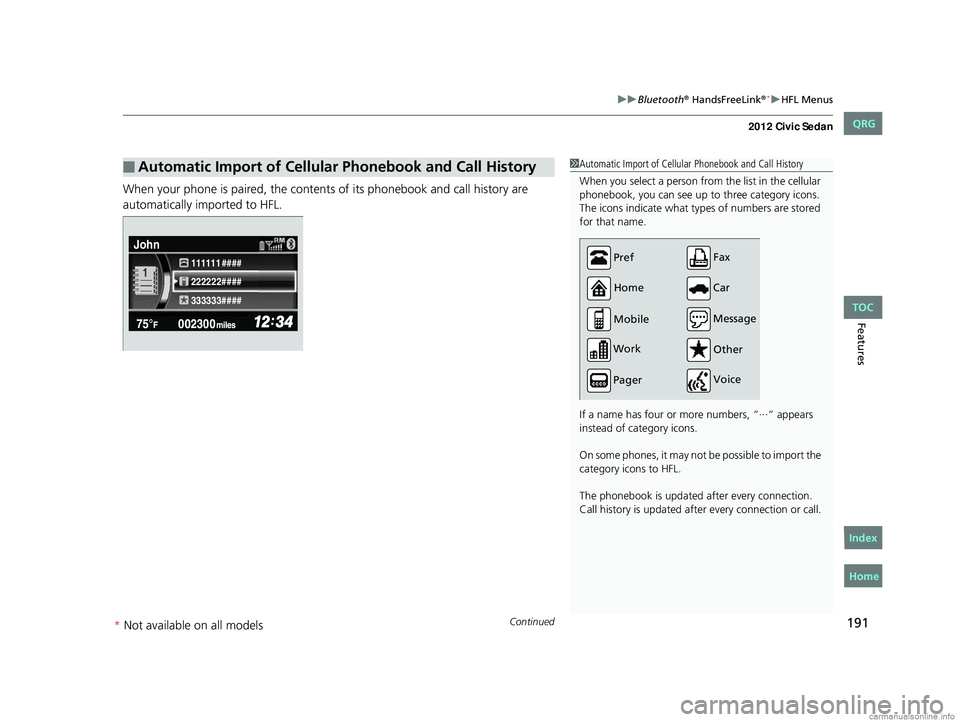

When your phone is paired, the contents of its phonebook and call history are
automatically imported to HFL.
■Automatic Import of Cellular Phonebook and Call History1Automatic Import of Cellular Phonebook and Call History
When you select a person from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
If a name has four or more numbers, “∙∙∙“ appears
instead of category icons.
On some phones, it may not be possible to import the
category icons to HFL.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Pref
Home
Mobile
Work
Pager Car
Fax
Message Other
Voice
222222#### 111111 ####
333333####
John
CIVIC 4D-31TR3600.book 191 ページ ２０１１年２月１４日　月曜日　午後２時５１分
