2012 FORD FOCUS Owners Manual

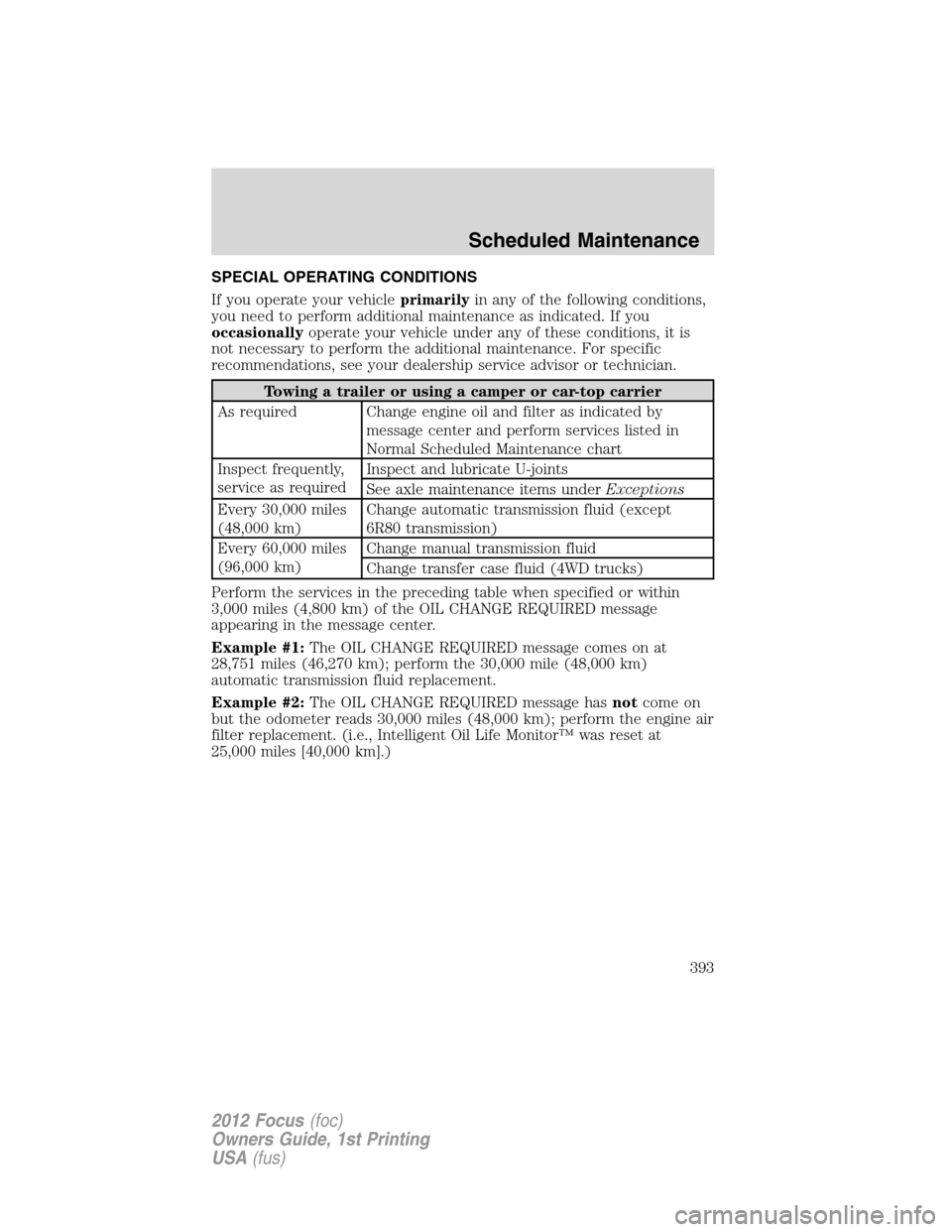

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 transmission)
Every 60,000 miles
(96,000 km)Change manual transmission fluid
Change transfer case fluid (4WD trucks)
Perform the services in the preceding table when specified or within
3,000 miles (4,800 km) of the OIL CHANGE REQUIRED message
appearing in the message center.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance
393
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart (except
Fiesta)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 300 hours of
engine operation*Change engine oil and filter (Fiesta)
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Fiesta and 6R80 transmissions)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD trucks)
Replace spark plugs
* Engine hour meter installation is recommended for these conditions
Perform the services in the preceding table when specified or within
3,000 miles (4,800 km) of the OIL CHANGE REQUIRED message
appearing in the message center.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance
394
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Fiesta and 6R80 transmissions)
Every 50,000 miles
(80,000 km)Change manual transmission fluid
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD trucks)
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change If ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
395
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

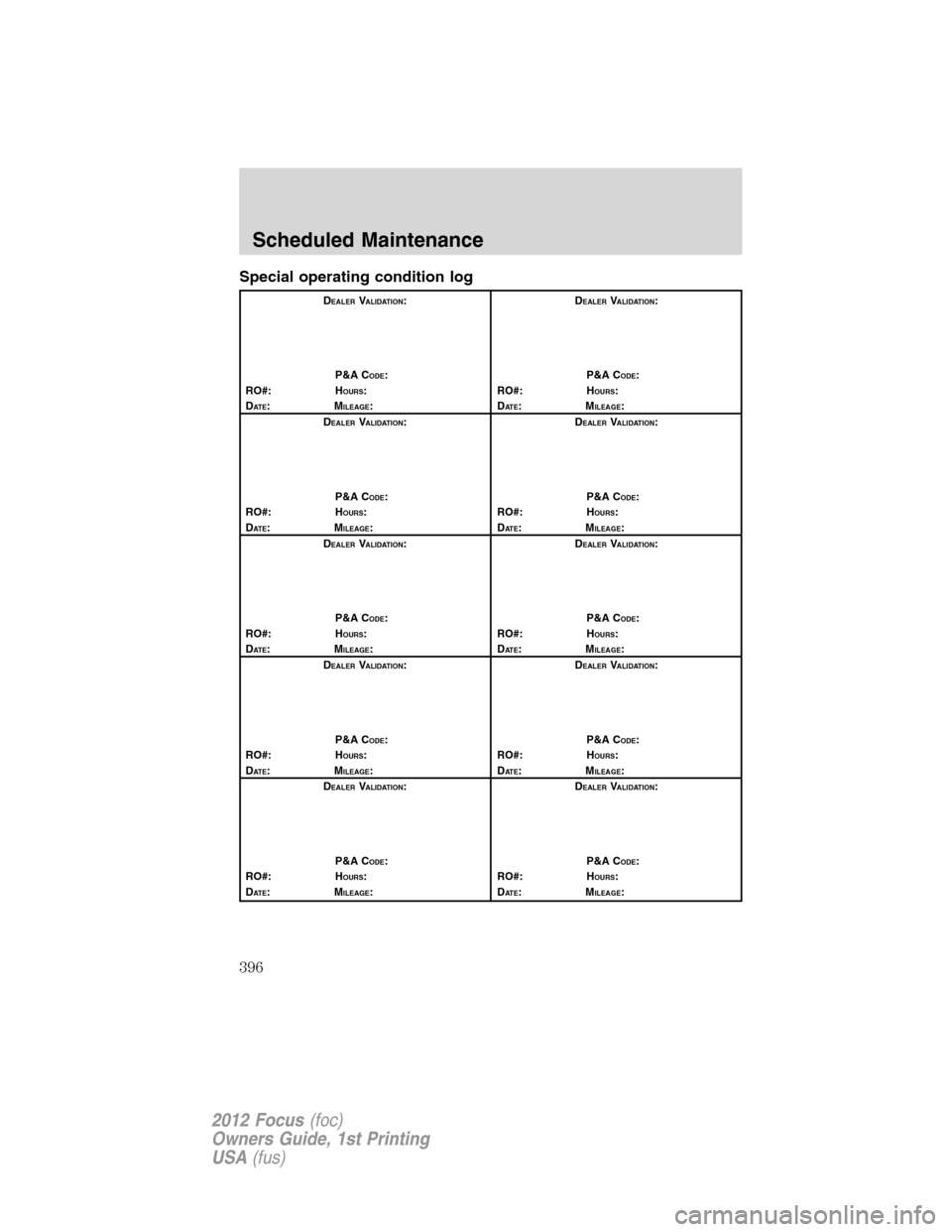

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
396
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

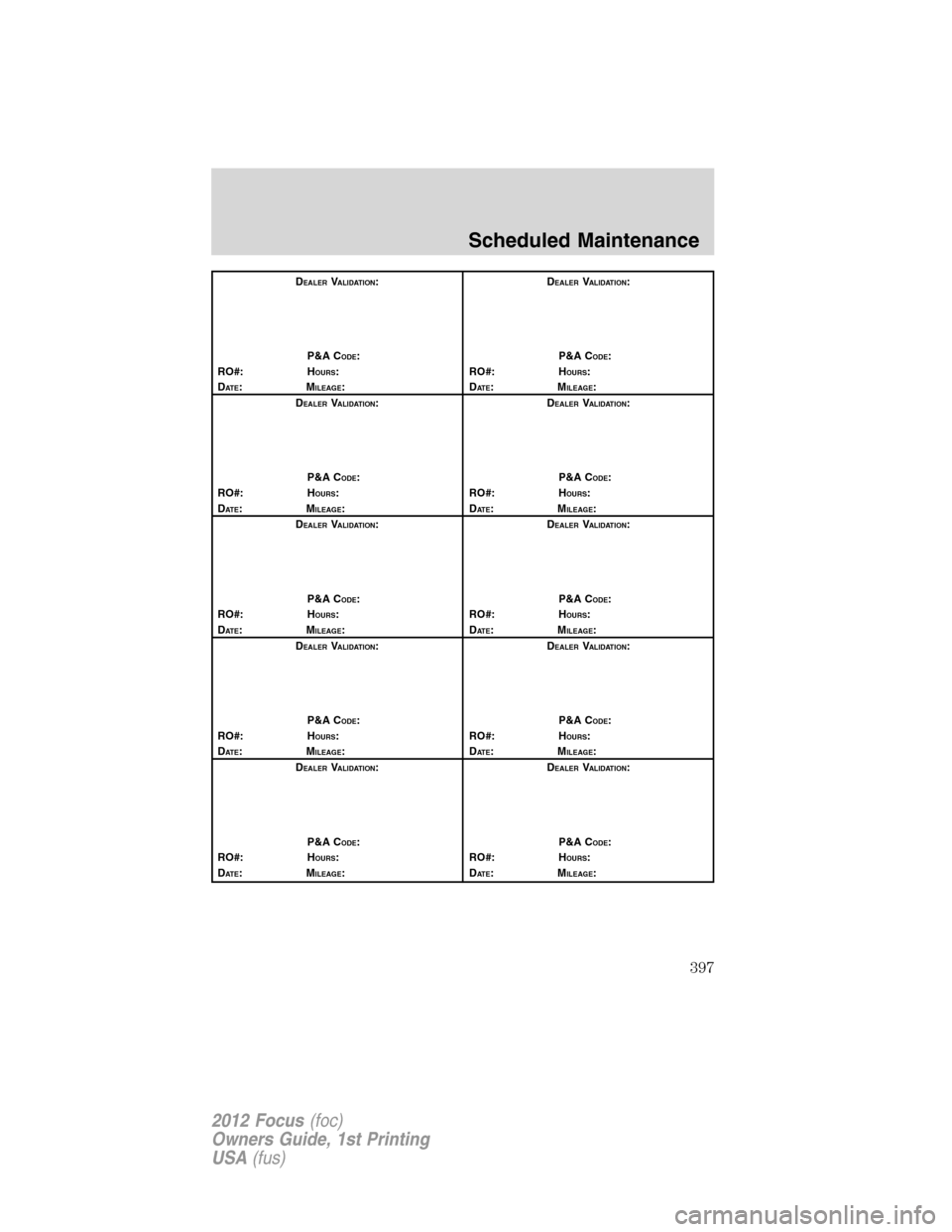

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
397
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Scheduled Maintenance
398
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

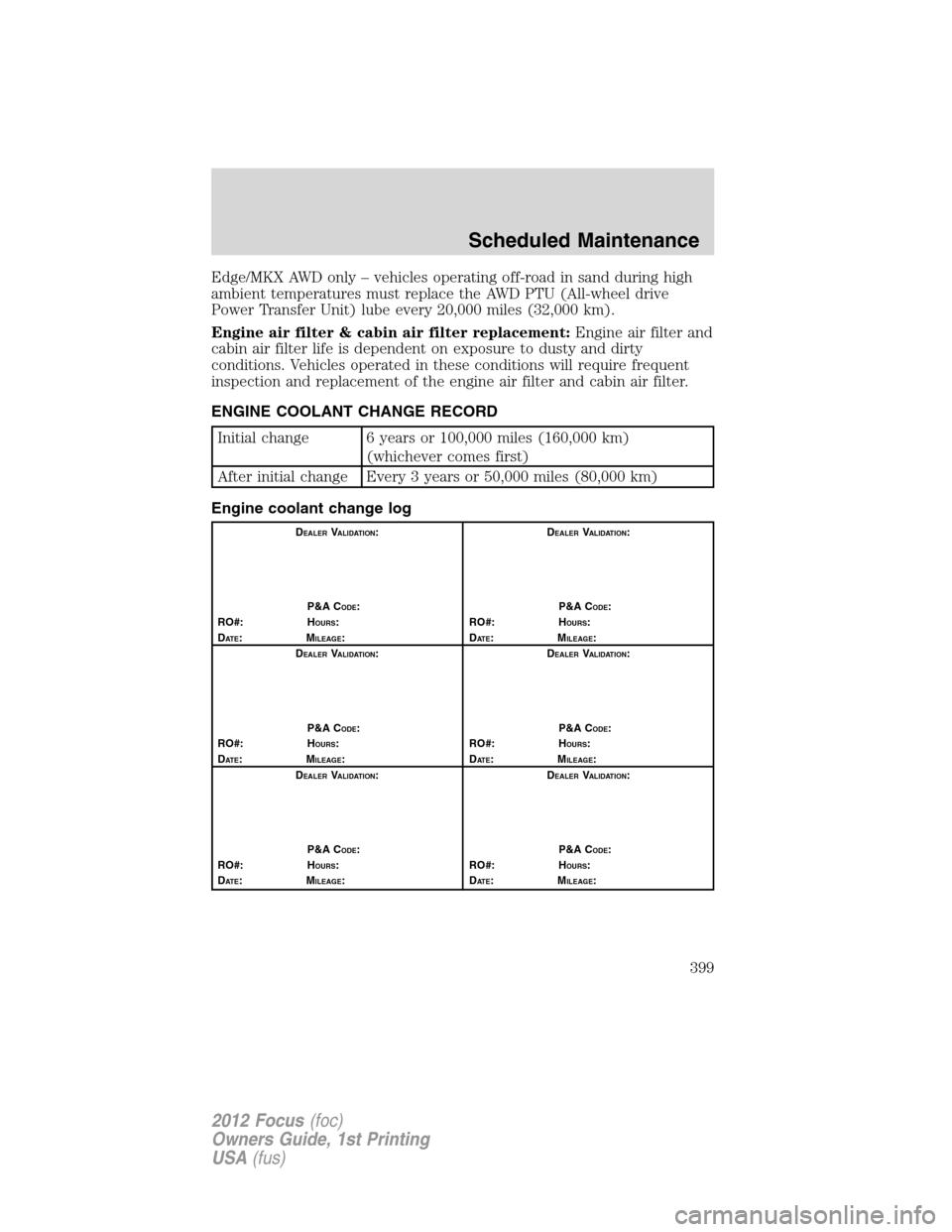

Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
399
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

911 Assist™ ................................83
A
Accessing call history/phone
book during active call ...............68
Accessing your media menu
features ........................................93
Accessing your phone menu
features ........................................71
Accessory delay ........................139
Active call menu options ...........68
Active Park Assist .....................289
Advanced menu options .......79, 98
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ................................79
AdvanceTrac ..............................268
Airbag supplemental restraint
system ........................195, 204, 206
and child safety seats ............197
description ..............195, 204, 206
disposal ....................................209
driver airbag ............197, 205, 207
indicator light .................203, 209
operation .................197, 205, 207
passenger airbag .....197, 205, 207
side airbag ...............................204
Air cleaner filter ...............365, 368
Air conditioning ................115, 118
manual heating and air
conditioning system ...............115
Ambient mood/lighting .............128
Antifreeze
(see Engine coolant) ................345Anti-lock brake system
(see Brakes) ..............................266
Anti-theft system ..............168, 171
arming the system ..........169, 171
disarming a triggered
system .....................................172
triggering .................................172
Audio system
(see Radio) ......................37, 40, 45
Automatic transmission ............274
driving an automatic
overdrive .................................274
fluid, adding ............................364
fluid, checking ........................364
fluid, refill capacities ..............369
fluid, specification ..................369
Selectshift (SST) ....................276
Auxiliary input jack (Line in) ....50
Auxiliary power point ...............136
Axle
refill capacities ........................369
B
Battery .......................................343
acid, treating emergencies .....343
jumping a disabled battery ....314
maintenance-free ....................343
replacement, specifications ...368
servicing ..................................343
Belt-Minder.............................191
Blind spot mirror ......................293
Booster seats .............................224
Brakes ........................................266
anti-lock ...................................266
anti-lock brake system (ABS)
warning light ...........................267
fluid, checking and adding ....364
fluid, refill capacities ..............369
Index
400
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
