2012 FORD FOCUS Owners Manual

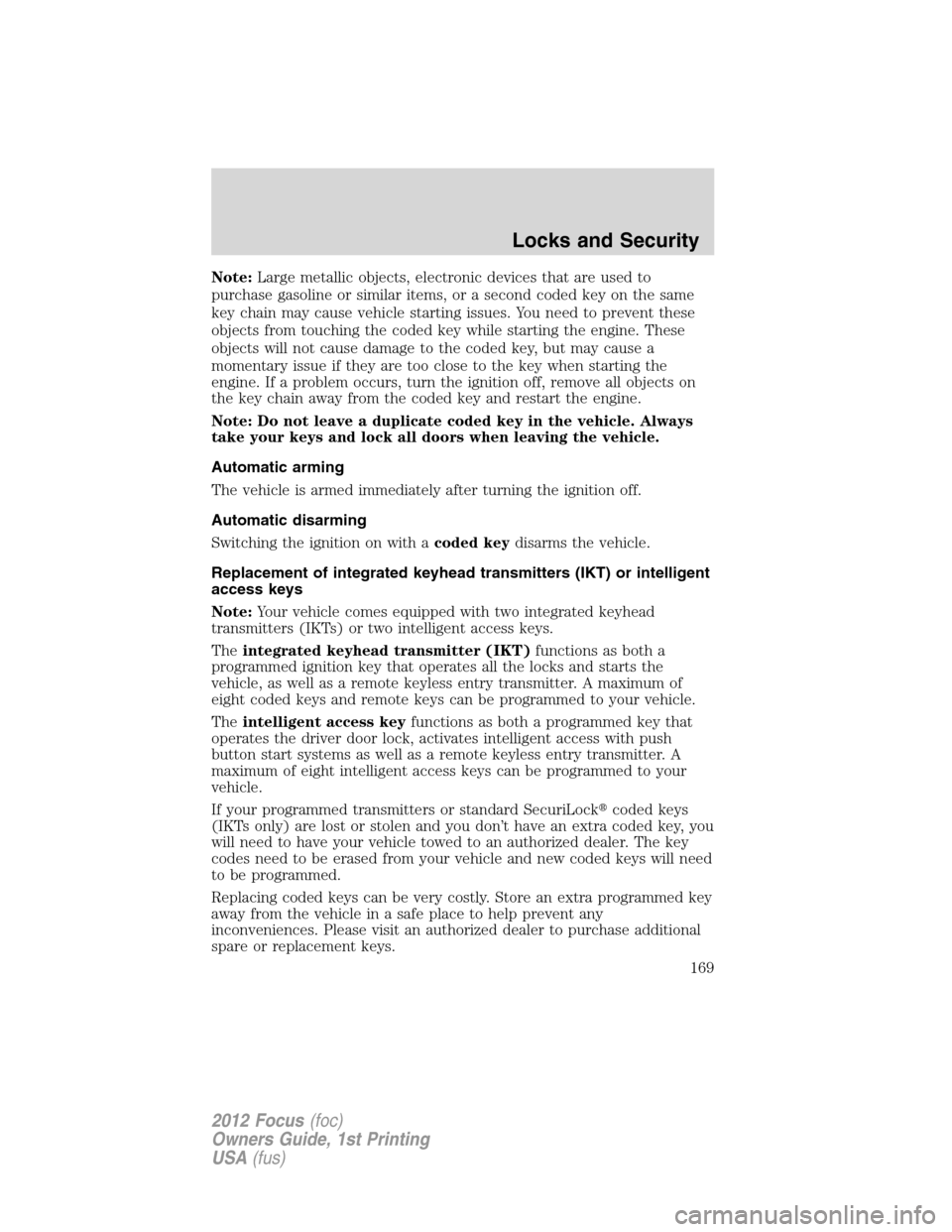

Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Automatic arming
The vehicle is armed immediately after turning the ignition off.
Automatic disarming
Switching the ignition on with acoded keydisarms the vehicle.
Replacement of integrated keyhead transmitters (IKT) or intelligent
access keys
Note:Your vehicle comes equipped with two integrated keyhead
transmitters (IKTs) or two intelligent access keys.
Theintegrated keyhead transmitter (IKT)functions as both a
programmed ignition key that operates all the locks and starts the
vehicle, as well as a remote keyless entry transmitter. A maximum of
eight coded keys and remote keys can be programmed to your vehicle.
Theintelligent access keyfunctions as both a programmed key that
operates the driver door lock, activates intelligent access with push
button start systems as well as a remote keyless entry transmitter. A
maximum of eight intelligent access keys can be programmed to your
vehicle.
If your programmed transmitters or standard SecuriLockcoded keys
(IKTs only) are lost or stolen and you don’t have an extra coded key, you
will need to have your vehicle towed to an authorized dealer. The key
codes need to be erased from your vehicle and new coded keys will need
to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Locks and Security
169
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

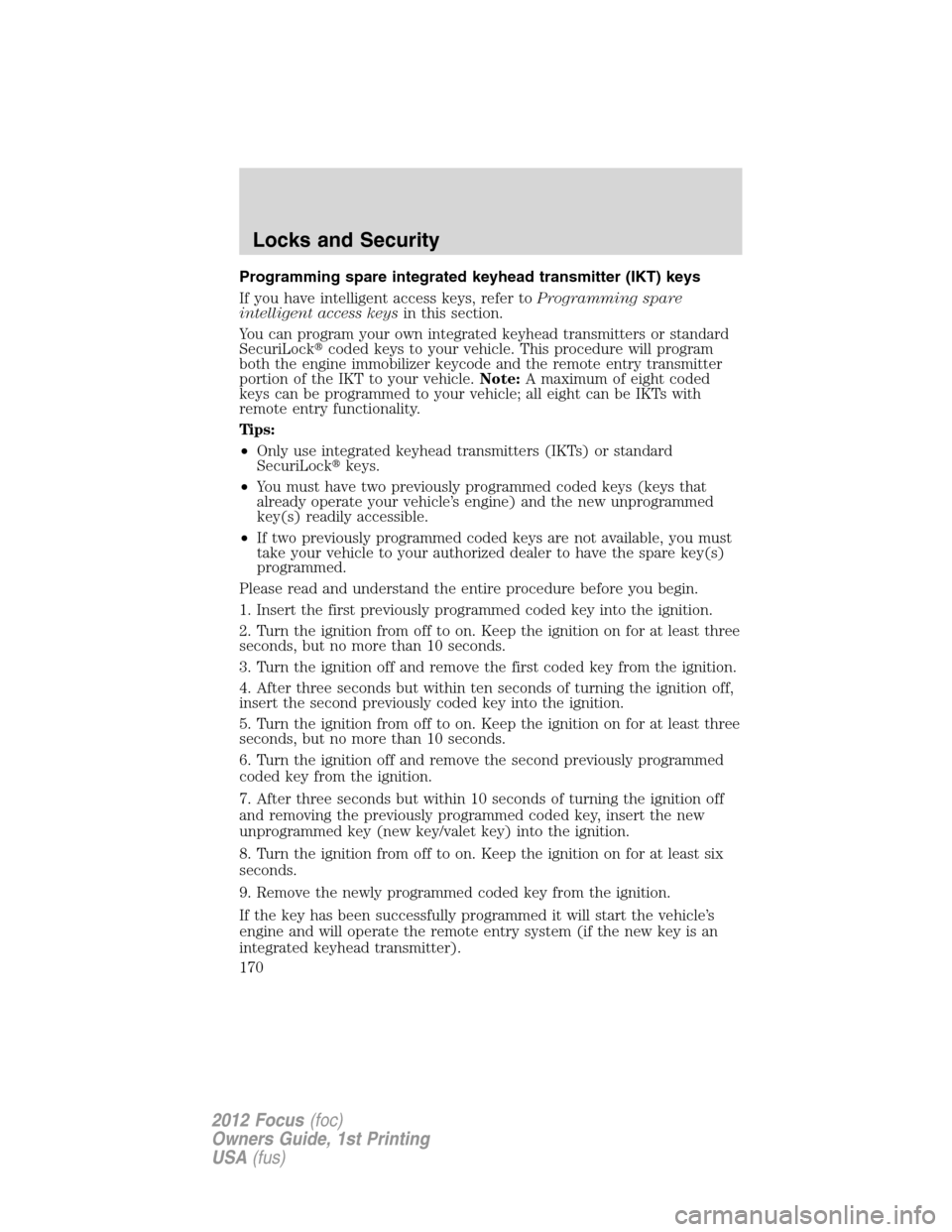

Programming spare integrated keyhead transmitter (IKT) keys
If you have intelligent access keys, refer toProgramming spare
intelligent access keysin this section.
You can program your own integrated keyhead transmitters or standard
SecuriLockcoded keys to your vehicle. This procedure will program
both the engine immobilizer keycode and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; all eight can be IKTs with
remote entry functionality.
Tips:
•Only use integrated keyhead transmitters (IKTs) or standard
SecuriLockkeys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the entire procedure before you begin.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within ten seconds of turning the ignition off,
insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off
and removing the previously programmed coded key, insert the new
unprogrammed key (new key/valet key) into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmed coded key from the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and will operate the remote entry system (if the new key is an
integrated keyhead transmitter).
Locks and Security
170
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
message center will display: NO KEY DETECTED. Wait 10 seconds and
you may repeat Steps 1 through 8. If failure repeats, bring your vehicle
to your authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
Programming spare intelligent access keys (if equipped)
If you have integrated keyhead transmitters (IKT) or standard
SecuriLockcoded keys, refer toProgramming spare integrated
keyhead transmitter (IKT) keysin this section.
If you would like to have additional intelligent access keys programmed
to your vehicle, please contact your authorized dealer.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
•Press the lock control on the remote entry transmitter.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
Locks and Security
171
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Turn the ignition on or start the vehicle.
•If using a key in the driver’s door to unlock the vehicle, a chime will
sound when you open the door and you will have 12 seconds to
disarm the alarm system using any of the actions above, otherwise the
alarm will trigger.
Pressing the power door unlock control within the 11 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door, trunk or the hood is
opened without using the key or the remote entry transmitter.
Locks and Security
172
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

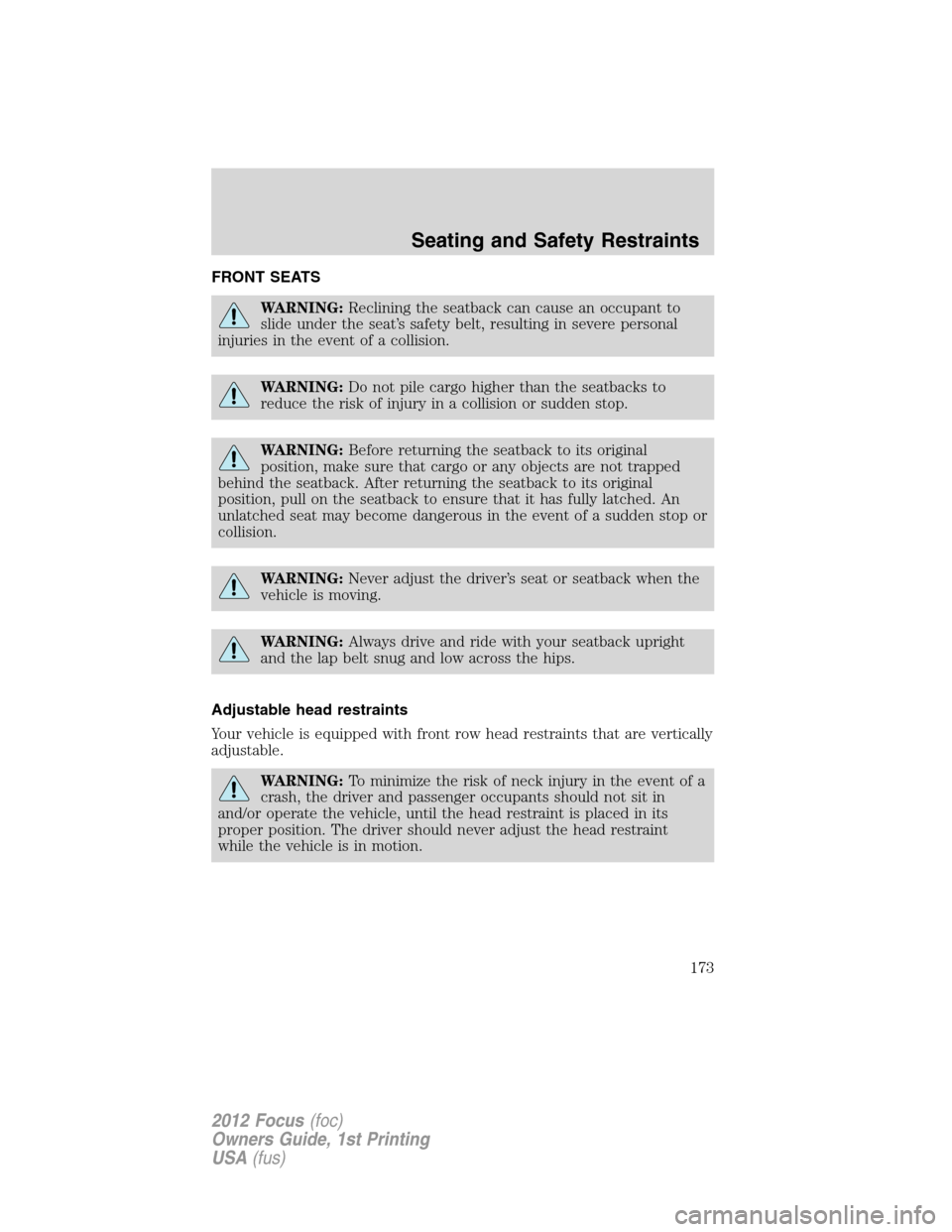

FRONT SEATS
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
Adjustable head restraints
Your vehicle is equipped with front row head restraints that are vertically
adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
Seating and Safety Restraints
173
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

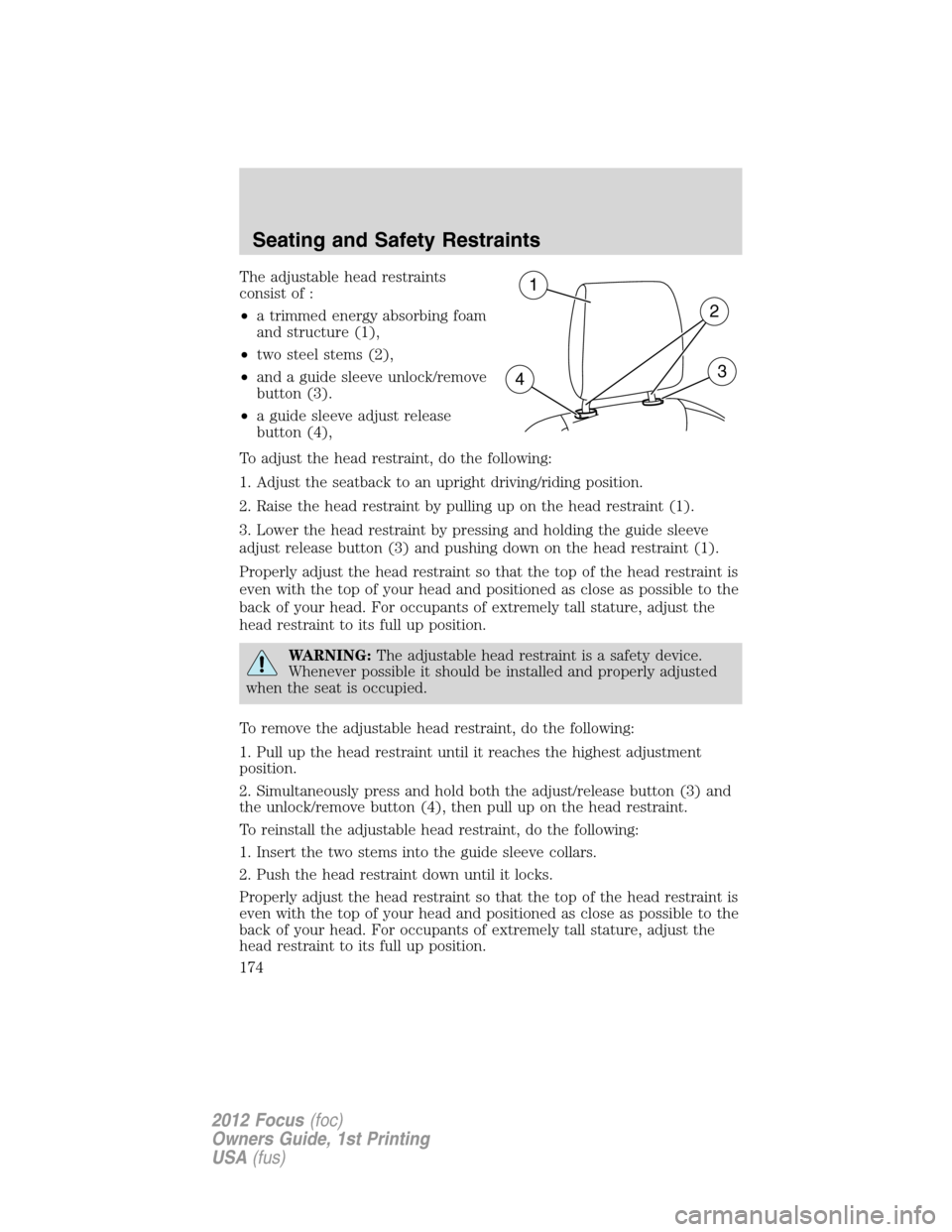

The adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•and a guide sleeve unlock/remove
button (3).
•a guide sleeve adjust release
button (4),
To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by pulling up on the head restraint (1).
3. Lower the head restraint by pressing and holding the guide sleeve
adjust release button (3) and pushing down on the head restraint (1).
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it reaches the highest adjustment
position.
2. Simultaneously press and hold both the adjust/release button (3) and
the unlock/remove button (4), then pull up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the guide sleeve collars.
2. Push the head restraint down until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
2
1
43
Seating and Safety Restraints
174
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

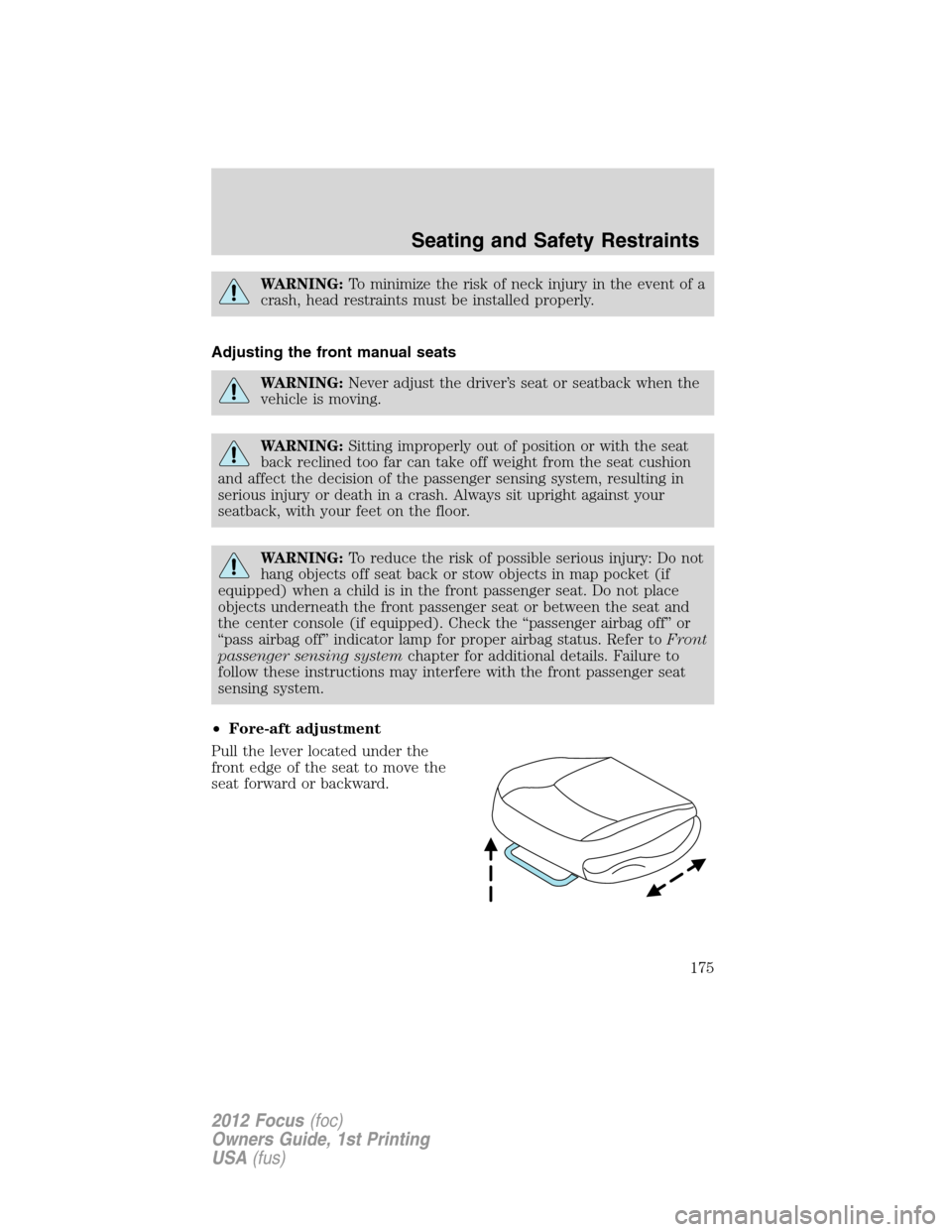

WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Adjusting the front manual seats
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your
seatback, with your feet on the floor.
WARNING:To reduce the risk of possible serious injury: Do not
hang objects off seat back or stow objects in map pocket (if
equipped) when a child is in the front passenger seat. Do not place
objects underneath the front passenger seat or between the seat and
the center console (if equipped). Check the “passenger airbag off” or
“pass airbag off” indicator lamp for proper airbag status. Refer toFront
passenger sensing systemchapter for additional details. Failure to
follow these instructions may interfere with the front passenger seat
sensing system.
•Fore-aft adjustment
Pull the lever located under the
front edge of the seat to move the
seat forward or backward.
Seating and Safety Restraints
175
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

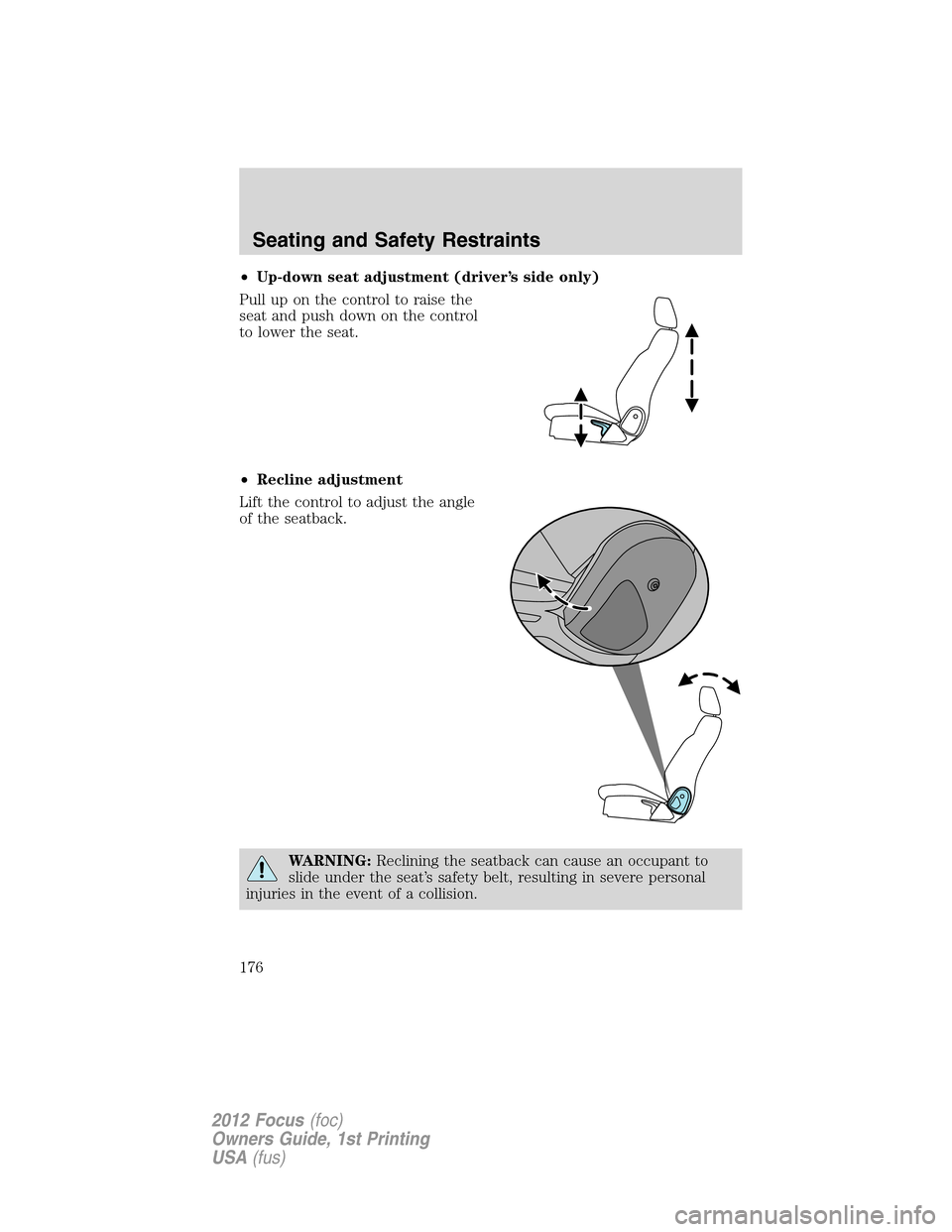

•Up-down seat adjustment (driver’s side only)
Pull up on the control to raise the
seat and push down on the control
to lower the seat.
•Recline adjustment
Lift the control to adjust the angle
of the seatback.
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
Seating and Safety Restraints
176
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
