2012 FORD FOCUS Owners Manual

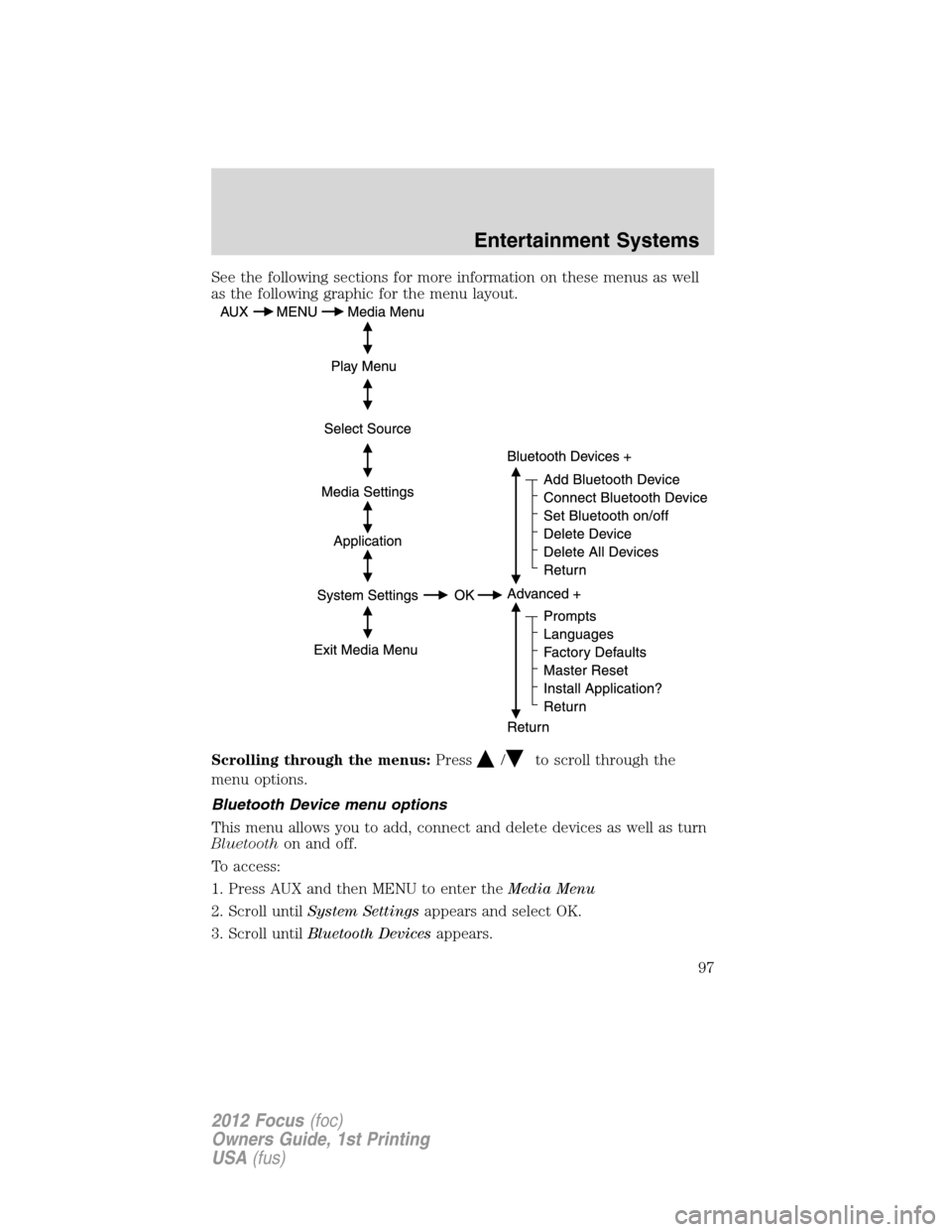

See the following sections for more information on these menus as well
as the following graphic for the menu layout.
Scrolling through the menus:Press
/to scroll through the
menu options.
Bluetooth Device menu options
This menu allows you to add, connect and delete devices as well as turn
Bluetoothon and off.
To access:
1. Press AUX and then MENU to enter theMedia Menu
2. Scroll untilSystem Settingsappears and select OK.
3. Scroll untilBluetooth Devicesappears.
Entertainment Systems
97
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

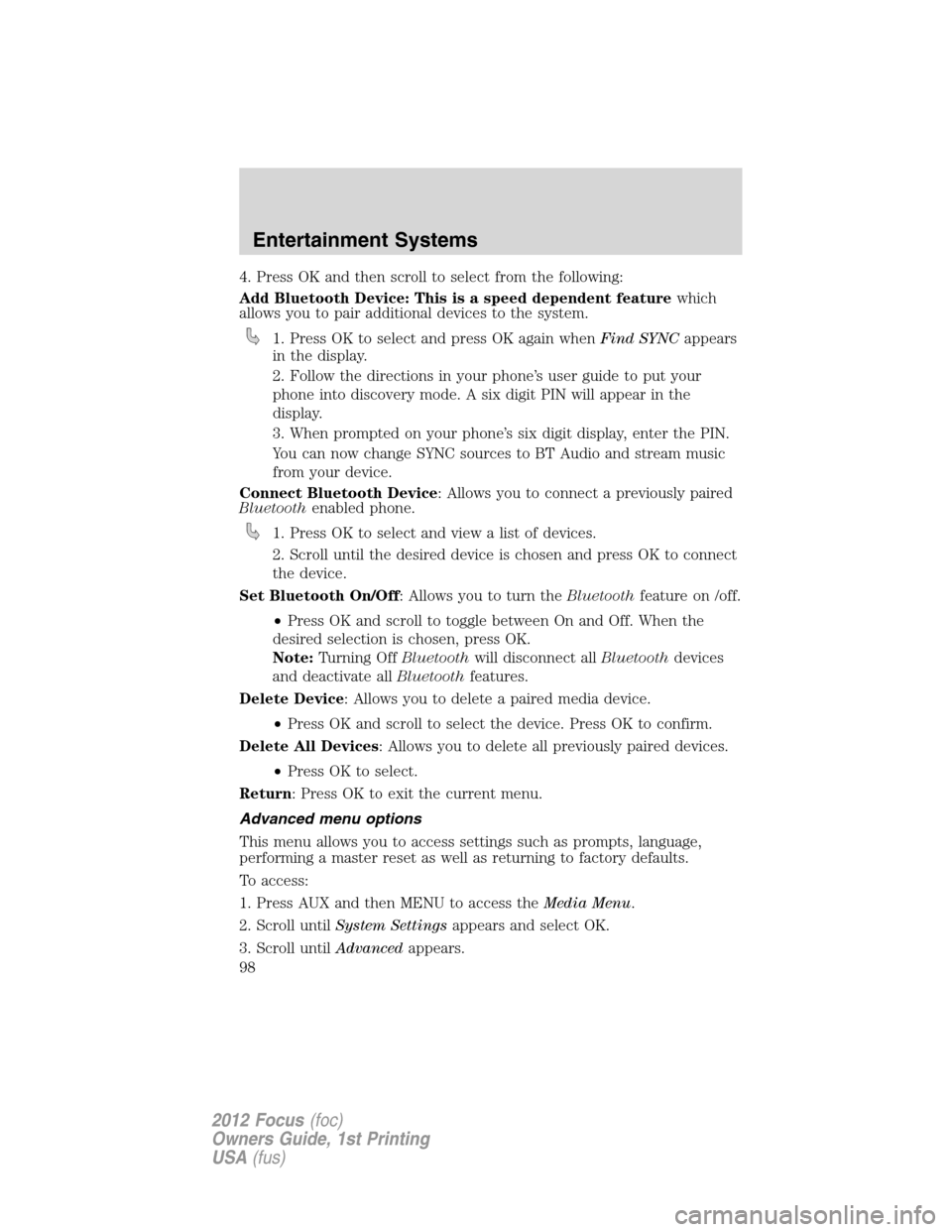

4. Press OK and then scroll to select from the following:
Add Bluetooth Device: This is a speed dependent featurewhich
allows you to pair additional devices to the system.
1. Press OK to select and press OK again whenFind SYNCappears
in the display.
2. Follow the directions in your phone’s user guide to put your
phone into discovery mode. A six digit PIN will appear in the
display.
3. When prompted on your phone’s six digit display, enter the PIN.
You can now change SYNC sources to BT Audio and stream music
from your device.
Connect Bluetooth Device: Allows you to connect a previously paired
Bluetoothenabled phone.
1. Press OK to select and view a list of devices.
2. Scroll until the desired device is chosen and press OK to connect
the device.
Set Bluetooth On/Off: Allows you to turn theBluetoothfeature on /off.
•Press OK and scroll to toggle between On and Off. When the
desired selection is chosen, press OK.
Note:Turning OffBluetoothwill disconnect allBluetoothdevices
and deactivate allBluetoothfeatures.
Delete Device: Allows you to delete a paired media device.
•Press OK and scroll to select the device. Press OK to confirm.
Delete All Devices: Allows you to delete all previously paired devices.
•Press OK to select.
Return: Press OK to exit the current menu.
Advanced menu options
This menu allows you to access settings such as prompts, language,
performing a master reset as well as returning to factory defaults.
To access:
1. Press AUX and then MENU to access theMedia Menu.
2. Scroll untilSystem Settingsappears and select OK.
3. Scroll untilAdvancedappears.
Entertainment Systems
98
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

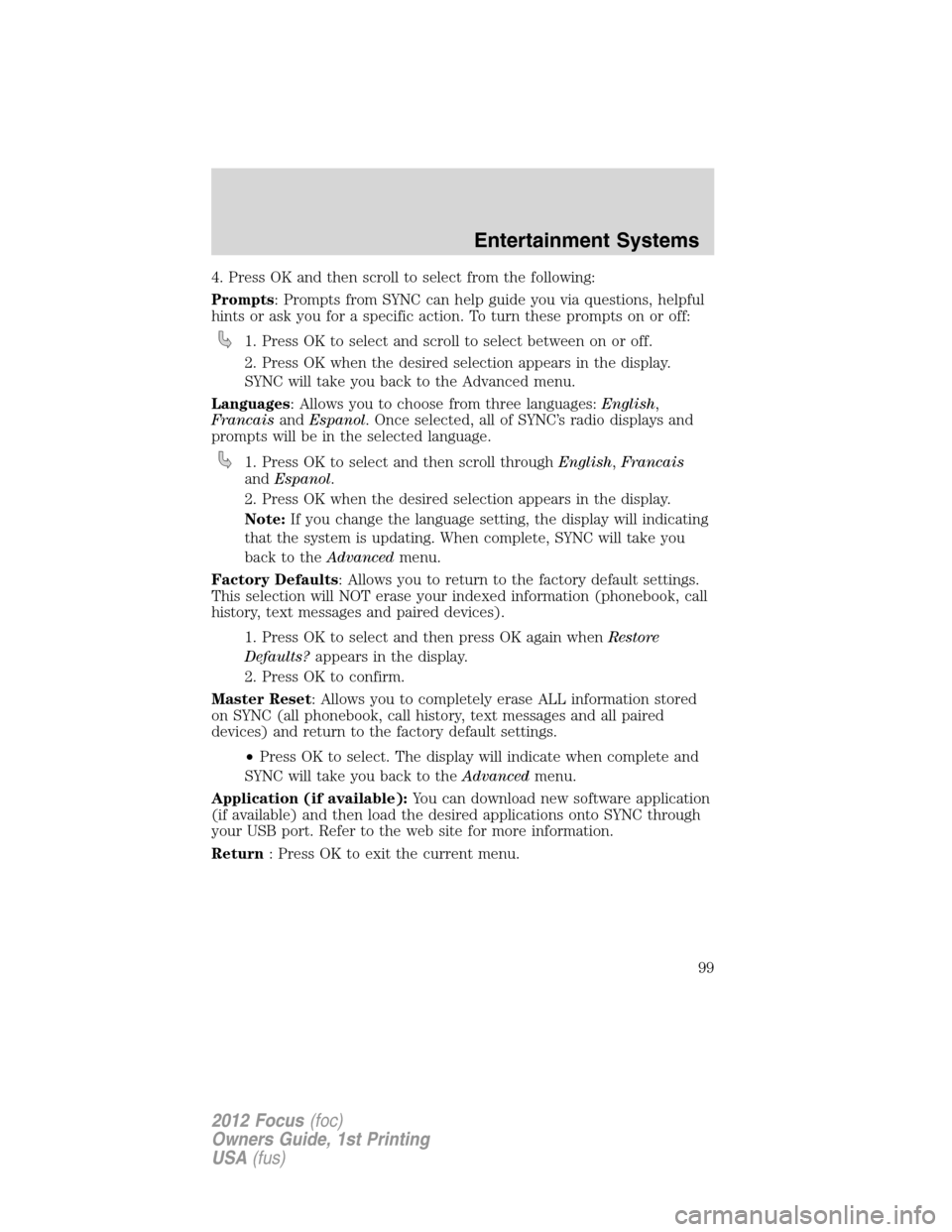

4. Press OK and then scroll to select from the following:
Prompts: Prompts from SYNC can help guide you via questions, helpful
hints or ask you for a specific action. To turn these prompts on or off:
1. Press OK to select and scroll to select between on or off.
2. Press OK when the desired selection appears in the display.
SYNC will take you back to the Advanced menu.
Languages: Allows you to choose from three languages:English,
FrancaisandEspanol. Once selected, all of SYNC’s radio displays and
prompts will be in the selected language.
1. Press OK to select and then scroll throughEnglish,Francais
andEspanol.
2. Press OK when the desired selection appears in the display.
Note:If you change the language setting, the display will indicating
that the system is updating. When complete, SYNC will take you
back to theAdvancedmenu.
Factory Defaults: Allows you to return to the factory default settings.
This selection will NOT erase your indexed information (phonebook, call
history, text messages and paired devices).
1. Press OK to select and then press OK again whenRestore
Defaults?appears in the display.
2. Press OK to confirm.
Master Reset: Allows you to completely erase ALL information stored
on SYNC (all phonebook, call history, text messages and all paired
devices) and return to the factory default settings.
•Press OK to select. The display will indicate when complete and
SYNC will take you back to theAdvancedmenu.
Application (if available):You can download new software application
(if available) and then load the desired applications onto SYNC through
your USB port. Refer to the web site for more information.
Return: Press OK to exit the current menu.
Entertainment Systems
99
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

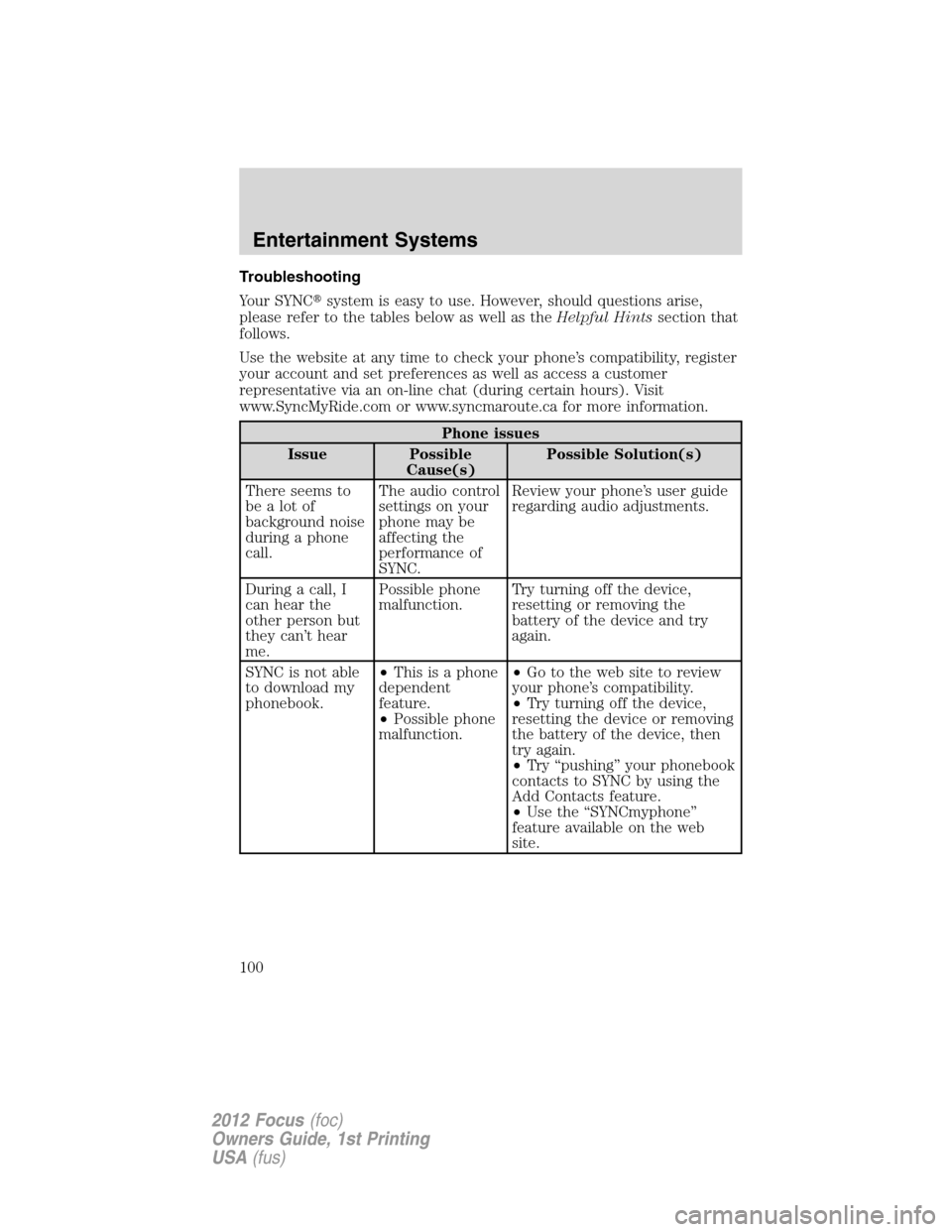

Troubleshooting
Your SYNCsystem is easy to use. However, should questions arise,
please refer to the tables below as well as theHelpful Hintssection that
follows.
Use the website at any time to check your phone’s compatibility, register
your account and set preferences as well as access a customer
representative via an on-line chat (during certain hours). Visit
www.SyncMyRide.com or www.syncmaroute.ca for more information.
Phone issues
Issue Possible
Cause(s)Possible Solution(s)
There seems to
be a lot of
background noise
during a phone
call.The audio control
settings on your
phone may be
affecting the
performance of
SYNC.Review your phone’s user guide
regarding audio adjustments.
During a call, I
can hear the
other person but
they can’t hear
me.Possible phone
malfunction.Try turning off the device,
resetting or removing the
battery of the device and try
again.
SYNC is not able
to download my
phonebook.•This is a phone
dependent
feature.
•Possible phone
malfunction.•Go to the web site to review
your phone’s compatibility.
•Try turning off the device,
resetting the device or removing
the battery of the device, then
try again.
•Try “pushing” your phonebook
contacts to SYNC by using the
Add Contacts feature.
•Use the “SYNCmyphone”
feature available on the web
site.
Entertainment Systems
100
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

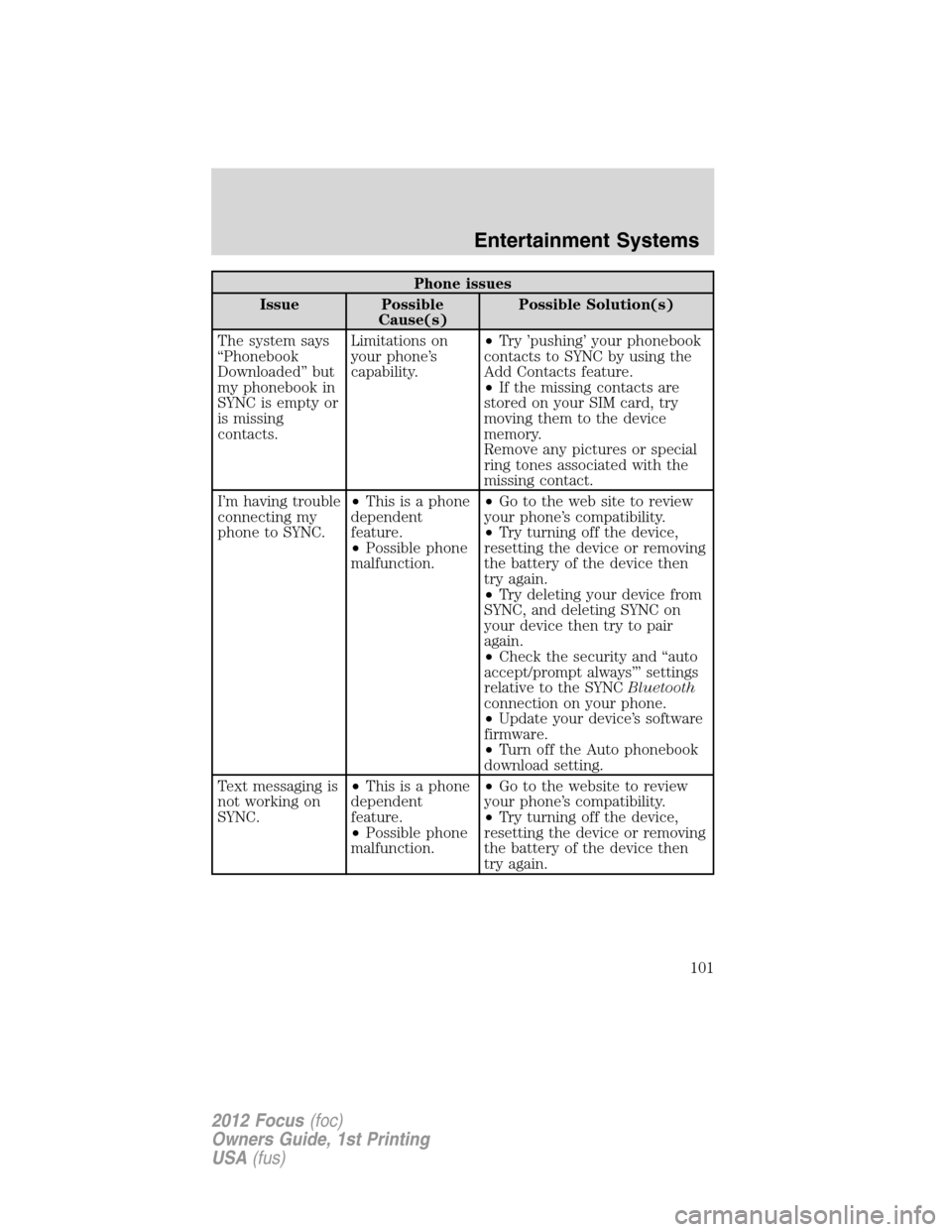

Phone issues
Issue Possible
Cause(s)Possible Solution(s)
The system says
“Phonebook
Downloaded” but
my phonebook in
SYNC is empty or
is missing
contacts.Limitations on
your phone’s
capability.•Try ’pushing’ your phonebook
contacts to SYNC by using the
Add Contacts feature.
•If the missing contacts are
stored on your SIM card, try
moving them to the device
memory.
Remove any pictures or special
ring tones associated with the
missing contact.
I’m having trouble
connecting my
phone to SYNC.•This is a phone
dependent
feature.
•Possible phone
malfunction.•Go to the web site to review
your phone’s compatibility.
•Try turning off the device,
resetting the device or removing
the battery of the device then
try again.
•Try deleting your device from
SYNC, and deleting SYNC on
your device then try to pair
again.
•Check the security and “auto
accept/prompt always”’ settings
relative to the SYNCBluetooth
connection on your phone.
•Update your device’s software
firmware.
•Turn off the Auto phonebook
download setting.
Text messaging is
not working on
SYNC.•This is a phone
dependent
feature.
•Possible phone
malfunction.•Go to the website to review
your phone’s compatibility.
•Try turning off the device,
resetting the device or removing
the battery of the device then
try again.
Entertainment Systems
101
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

USB/Media issues
Issue Possible
Cause(s)Possible Solution(s)
I’m having trouble
connecting my
device.Possible device
malfunction.•Try turning off the device,
resetting the device or removing
the battery of the device and try
to connect your device again.
•Ensure that you are using the
manufacturer’s cable.
•Ensure that the USB cable is
properly inserted into your
device and the USB port in the
vehicle.
•Ensure that your device does
not have an auto—install
program or active security
settings.
SYNC does not
recognize my
device when I
turn on the car.This is a device
limitation.Ensure that you are not leaving
your device in your vehicle
during very hot or cold
temperatures.
Bluetoothaudio
won’t stream.•This is a phone
dependent
feature.
•The device is
not connected.•Ensure that the device is
connected to SYNC and that you
have pressed play on your
device.
SYNC doesn’t
recognize music
that is on my
device.•Your music files
may not contain
the proper artist,
song title, album
or genre
information.
The file may be
corrupted.
The song may
have copyright
protection which
does not allow it
to play.•Ensure that all song details
are populated.
•Some devices require you to
change the USB settings from
mass storage to MTP class.
Entertainment Systems
102
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

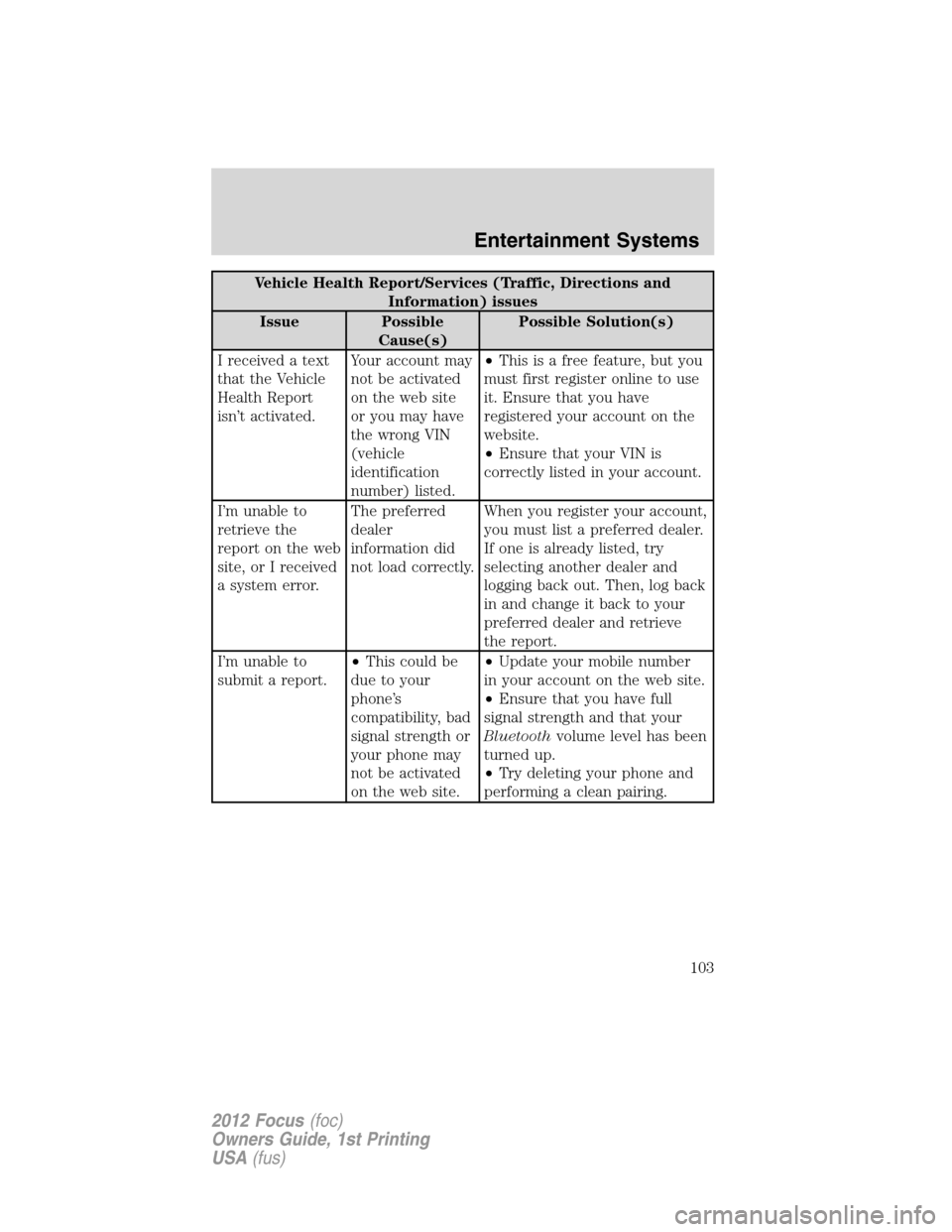

Vehicle Health Report/Services (Traffic, Directions and
Information) issues
Issue Possible
Cause(s)Possible Solution(s)
I received a text
that the Vehicle
Health Report
isn’t activated.Your account may
not be activated
on the web site
or you may have
the wrong VIN
(vehicle
identification
number) listed.•This is a free feature, but you
must first register online to use
it. Ensure that you have
registered your account on the
website.
•Ensure that your VIN is
correctly listed in your account.
I’m unable to
retrieve the
report on the web
site, or I received
a system error.The preferred
dealer
information did
not load correctly.When you register your account,
you must list a preferred dealer.
If one is already listed, try
selecting another dealer and
logging back out. Then, log back
in and change it back to your
preferred dealer and retrieve
the report.
I’m unable to
submit a report.•This could be
due to your
phone’s
compatibility, bad
signal strength or
your phone may
not be activated
on the web site.•Update your mobile number
in your account on the web site.
•Ensure that you have full
signal strength and that your
Bluetoothvolume level has been
turned up.
•Try deleting your phone and
performing a clean pairing.
Entertainment Systems
103
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

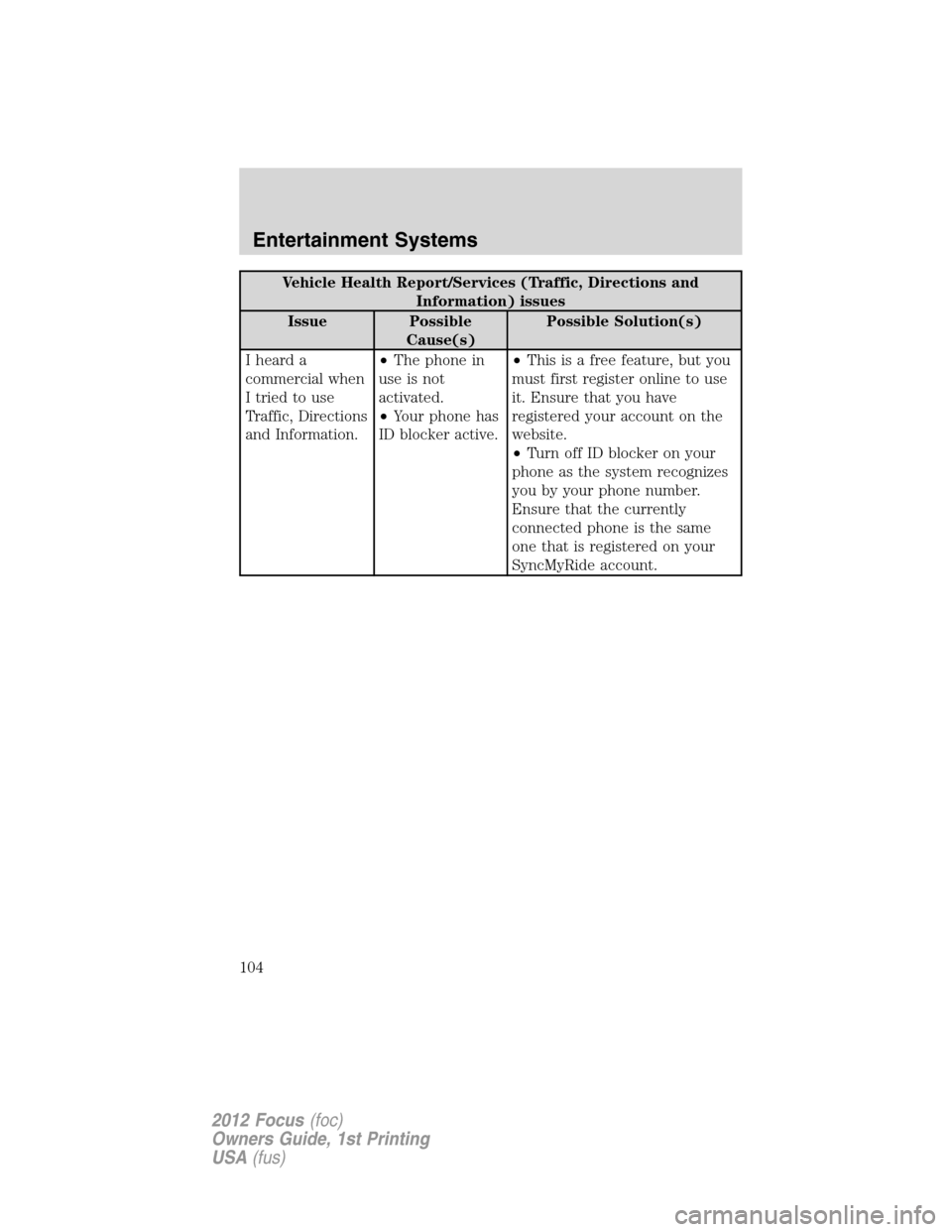

Vehicle Health Report/Services (Traffic, Directions and
Information) issues
Issue Possible
Cause(s)Possible Solution(s)
I heard a
commercial when
I tried to use
Traffic, Directions
and Information.•The phone in
use is not
activated.
•Your phone has
ID blocker active.•This is a free feature, but you
must first register online to use
it. Ensure that you have
registered your account on the
website.
•Turn off ID blocker on your
phone as the system recognizes
you by your phone number.
Ensure that the currently
connected phone is the same
one that is registered on your
SyncMyRide account.
Entertainment Systems
104
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
