2012 FORD FOCUS Owners Manual

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Brake fluid (and clutch
fluid–if equipped)Between MIN
and MAX on
reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch,
trunk latch, seat
tracks.—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent
/
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid1.9 quarts
(1.8L)
1
MotorcraftDual Clutch
Transmission Fluid
2
XT-11-QDC
Manual transmission
fluid1.9 quarts
(1.8L)
1
MotorcraftFull
Synthetic Manual
Transmission FluidBOT350-M3 /
WSS-M2C200-D2
Maintenance and Specifications
369
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine oil 4.5 quarts (4.3L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)
3
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
Engine coolant 5.3 quarts (5.0L)MotorcraftSpecialty
Orange Engine Coolant
4
VC-3-B (US)
CVC-3-B (Canada) /
WSS-M97B44-D
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Maintenance and Specifications
370
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Fuel tank12.4 gallons
(46.9L)——
1The manual transmission and automatic transmission service refill capacity is determined by filling
the transmission to the bottom of the filler hole with the vehicle on a level surface.2Automatic transmissions that require Motorcraft Dual Clutch Transmission Fluid should only use
Motorcraft Dual Clutch Transmission Fluid. Refer toscheduled maintenanceto determine the
correct service interval. Use of any fluid other than the recommended fluid may cause transmission
damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle.
Maintenance and Specifications
371
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 2.0L GDI engine
Cubic inches 121
Required fuel Minimum 87 octane or E85
Firing order 1–3–4–2
Ignition system C.O.P
Compression ratio 12.0:1
Spark plug gap .035 +/ - .001 inch
(0.9 +/- .05 mm)
Maintenance and Specifications
372
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
373
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
374
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (DPS6) W
Five-speed manual (MTX75 ) Z
Maintenance and Specifications
375
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

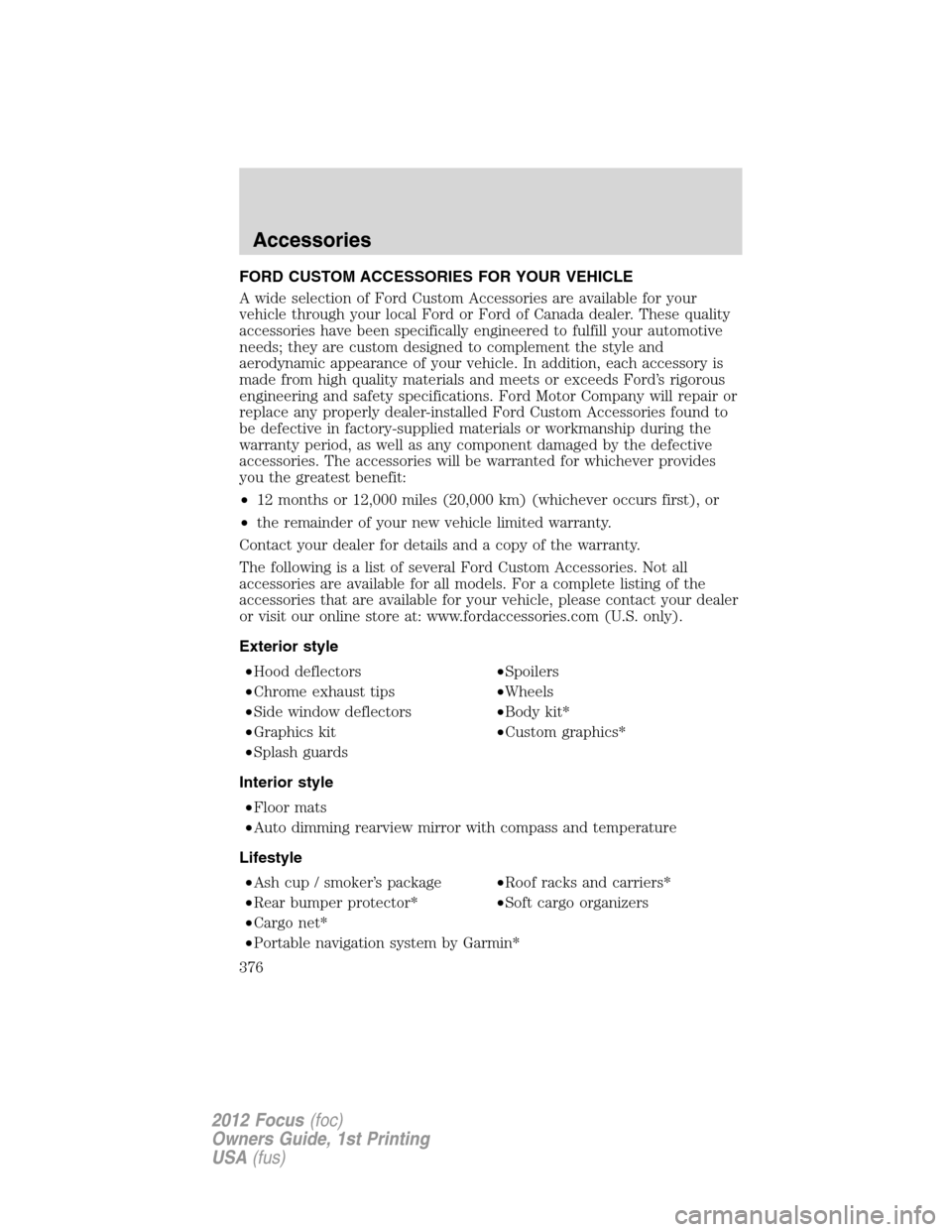

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com (U.S. only).
Exterior style
•Hood deflectors•Spoilers
•Chrome exhaust tips•Wheels
•Side window deflectors•Body kit*
•Graphics kit•Custom graphics*
•Splash guards
Interior style
•Floor mats
•Auto dimming rearview mirror with compass and temperature
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Rear bumper protector*•Soft cargo organizers
•Cargo net*
•Portable navigation system by Garmin*
Accessories
376
2012 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
