2012 FORD F650 Owners Manual

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Windshield washer
Washer fluid WSB-M8B16-A2 — MotorcraftPremium
Windshield Washer
Concentrate / ZC-32-A
(US) or CXC-37-(A, B,
D, and F) (Canada)
Transmission
Six-speed automatic
(6R140)— — MotorcraftMERCON
LV ATF / XT-10–QLV
Eaton-Fuller Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 75W:
Below 10°F (–12°C)—
SAE 80W–90:
Above 10°F (–12°C)—
Synthetic oil: Eaton,
Roadrangersynthetic
CD-50 transmission
fluidCD SAE 50W:
All temperatures—
Maintenance and Specifications
249
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

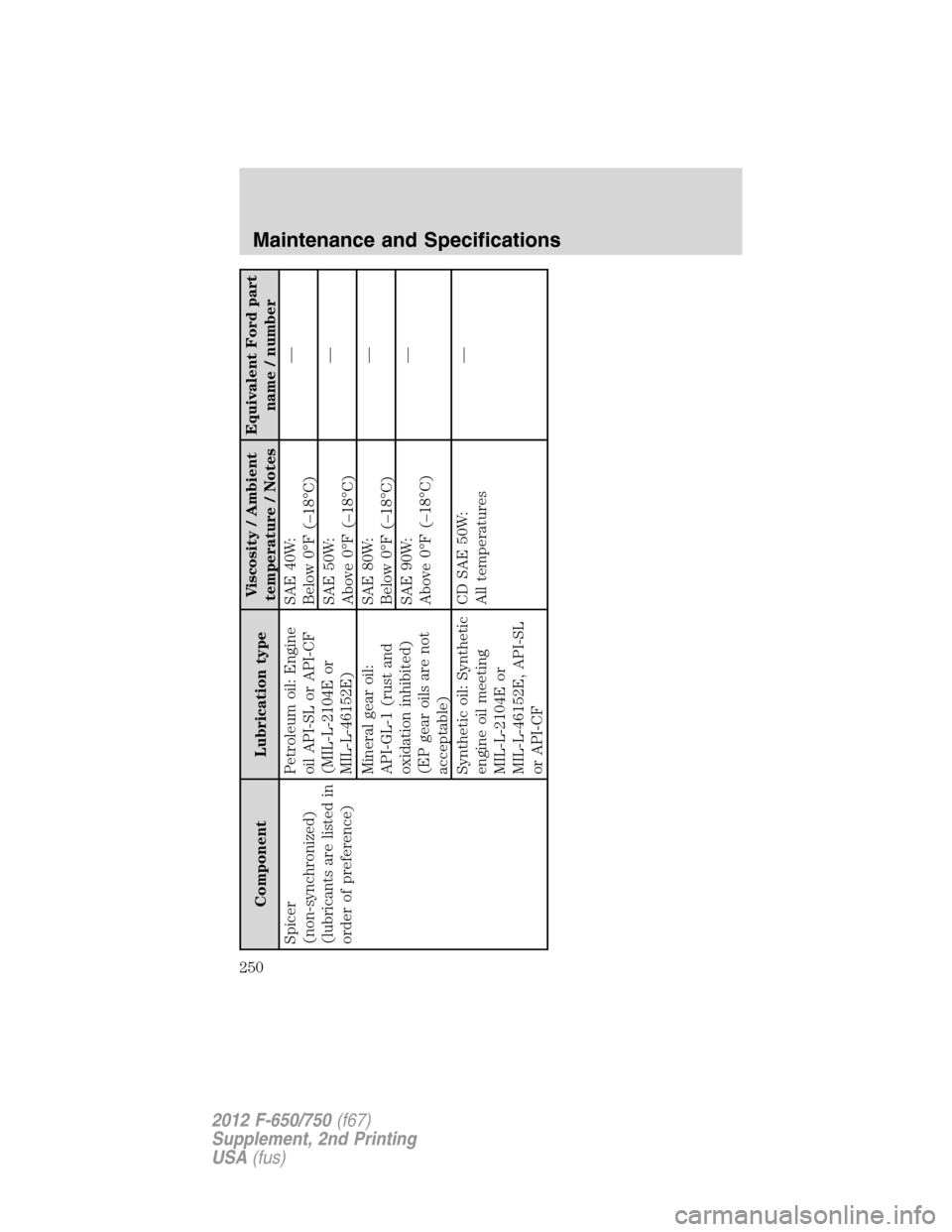

Spicer
(non-synchronized)
(lubricants are listed in
order of preference)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 0°F (–18°C)—
SAE 50W:
Above 0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)
(EP gear oils are not
acceptable)SAE 80W:
Below 0°F (–18°C)—
SAE 90W:
Above 0°F (–18°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFCD SAE 50W:
All temperatures—
Maintenance and Specifications
250
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

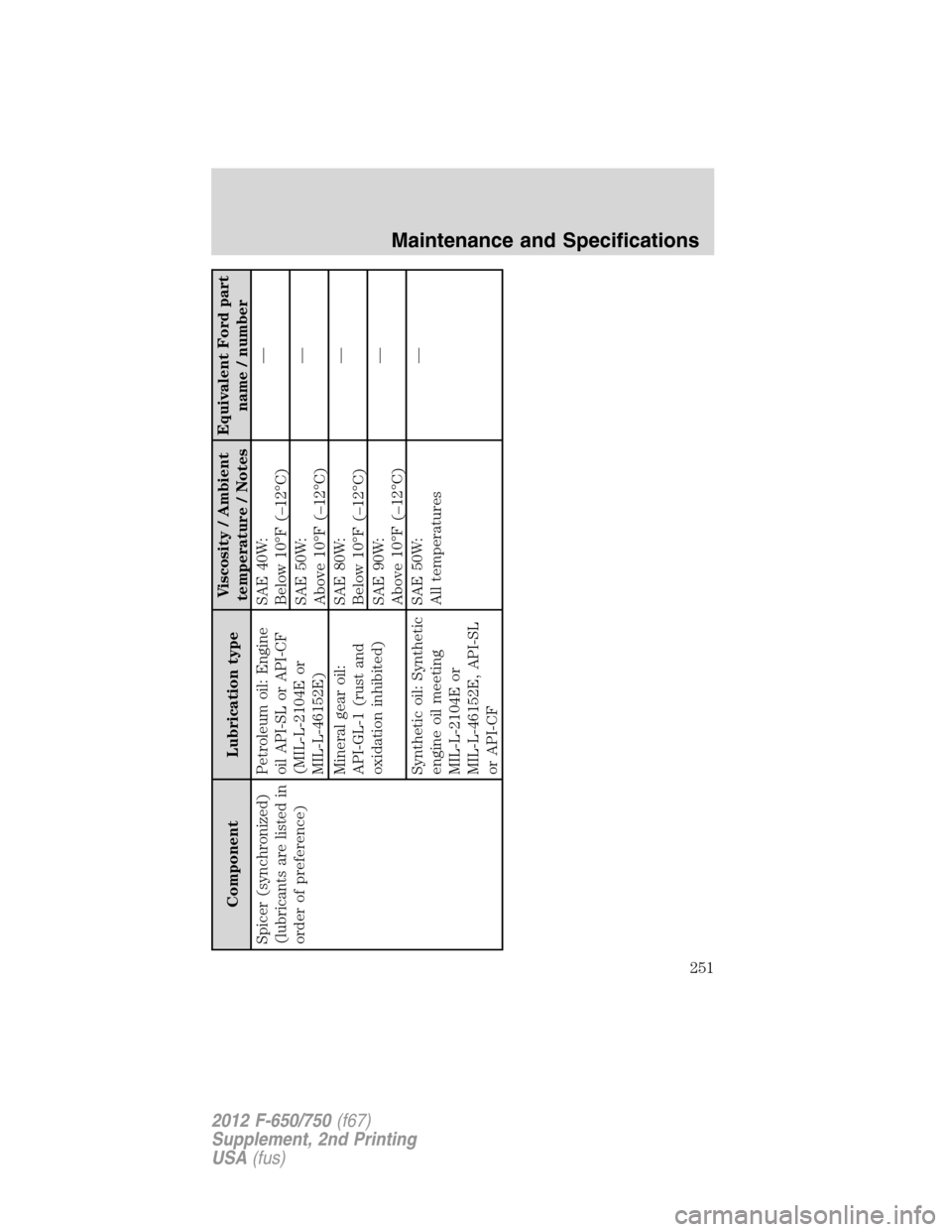

Spicer (synchronized)
(lubricants are listed in
order of preference)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 80W:
Below 10°F (–12°C)—
SAE 90W:
Above 10°F (–12°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFSAE 50W:
All temperatures—
Maintenance and Specifications
251
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

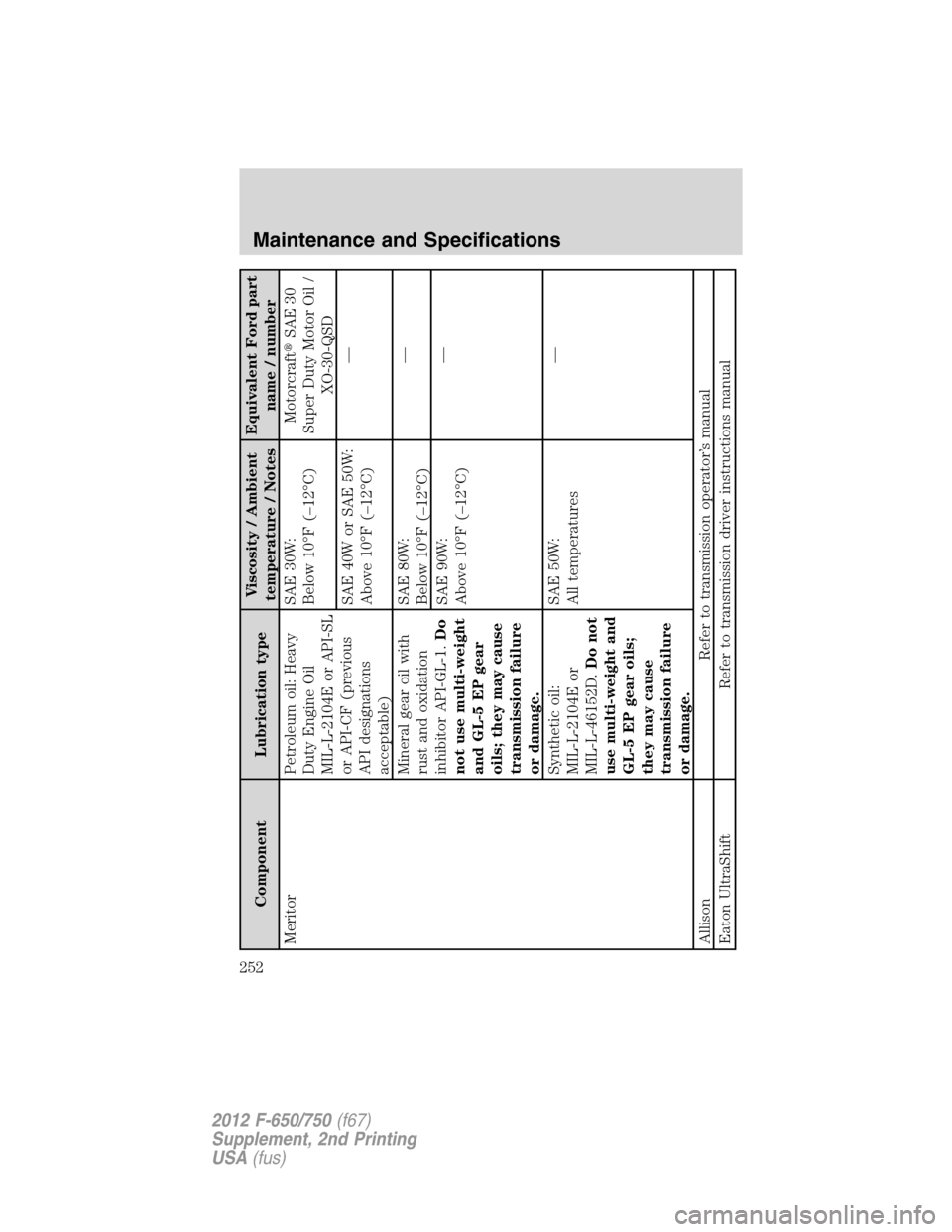

Meritor Petroleum oil: Heavy
Duty Engine Oil
MIL-L-2104E or API-SL
or API-CF (previous
API designations
acceptable)SAE 30W:
Below 10°F (–12°C)MotorcraftSAE 30
Super Duty Motor Oil /
XO-30-QSD
SAE 40W or SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil with
rust and oxidation
inhibitor API-GL-1.Do
not use multi-weight
and GL-5 EP gear
oils; they may cause
transmission failure
or damage.SAE 80W:
Below 10°F (–12°C)—
SAE 90W:
Above 10°F (–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D.Do not
use multi-weight and
GL-5 EP gear oils;
they may cause
transmission failure
or damage.SAE 50W:
All temperatures—
Allison Refer to transmission operator’s manual
Eaton UltraShift Refer to transmission driver instructions manual
Maintenance and Specifications
252
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Rear axle
Eaton-Spicer -
two-speed axleRHEOLUBE 362 (or
equivalent) (Eaton
part number 113741)——
Eaton - single-speed
axleGeneric lubricant SAE 75W:
–40°F to –15°F
(–40°C to –26°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-80:
–40°F to 80°F
(–40°C to 27°C)
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 80W-90:
–15°F to 100°F
(–26°C to 38°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
Maintenance and Specifications
253
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Spicer - single-speed
axleMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricantsSAE 75W:
–40°F to 32°F
(–40°C to 0°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W:
–15°F to 70°F
(–26°C to 21°C)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 140W:
40°F and above
(4°C and above)
SAE 90W:
10°F to 100°F
(–12°C to 38°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
Maintenance and Specifications
254
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Meritor (non-extended
drain lubricants)Petroleum with EP
additives of API GL-5
quality meeting
MIL-PRF-2105E
specifications.SAE 75W:
Above –40°F (–40°C);
Up to 35°F (2°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-90:
Above –40°F (–40°C)
SAE 75W-140:
Above –40°F (–40°C)
SAE 80W-140:
Above –15°F (–26°C)
SAE 85W-140:
Above 10° (–12°C)
SAE 80W-90:
Above –15°F (–26C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
Maintenance and Specifications
255
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

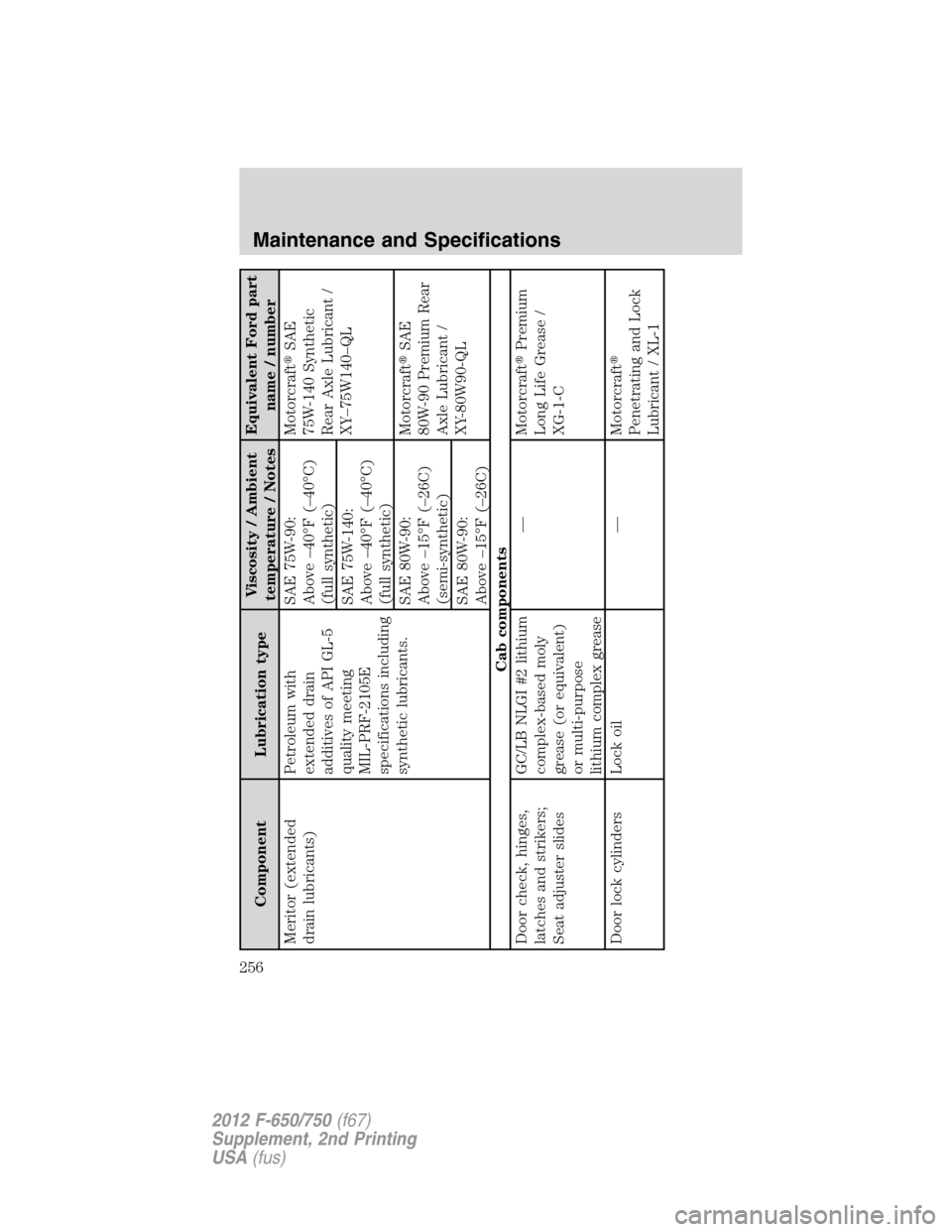

Meritor (extended
drain lubricants)Petroleum with
extended drain
additives of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricants.SAE 75W-90:
Above –40°F (–40°C)
(full synthetic)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
Above –40°F (–40°C)
(full synthetic)
SAE 80W-90:
Above –15°F (–26C)
(semi-synthetic)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY-80W90-QL
SAE 80W-90:
Above –15°F (–26C)
Cab components
Door check, hinges,
latches and strikers;
Seat adjuster slidesGC/LB NLGI #2 lithium
complex-based moly
grease (or equivalent)
or multi-purpose
lithium complex grease— MotorcraftPremium
Long Life Grease /
XG-1-C
Door lock cylinders Lock oil — Motorcraft
Penetrating and Lock
Lubricant / XL-1
