Cleaner air - gasoline engines
Ford endorses the use of reformulated “cleaner-burning” gasolines to
improve air quality, per the recommendations in theChoosing the right
fuelsection.
Running out of fuel - diesel engines
Avoid running out of fuel as this allows air to enter the fuel system,
which makes restarting the vehicle difficult.
If you have run out of fuel:
•If your vehicle is equipped with dual fuel tanks,add at least
4–5 gallons (15–19 liters) of fuel to each tank before attempting to
restart the engine.
•The fuel system must be primed before attempting to restart the
engine. Refer to the engine operator’s manual for instructions on
priming the engine.
•Use caution not to overheat and damage the starterby cranking
the engine for an excessive period of time. You may need to crank the
engine for a longer time than normal. If the engine fails to start in
30 seconds, turn the ignition to the off position and wait for two
minutes before cranking the engine again.
•Any remaining trapped air self-purges from the fuel system once the
engine starts running.
•The engine may run rough and produce white smoke while air is in
the fuel system. This is normal and should stop after a short period of
time.
Running out of fuel - gasoline engines
Avoid running out of fuel because this situation may have an adverse
effect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from off to on several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•If your vehicle is equipped with dual fuel tanks,adding
4–5 gallons (15–19 liters) of fuel is enough to restart the engine. If the
vehicle is out of fuel and on a steep grade, more than 4–5 gallons
(15–19 liters) may be required.
Maintenance and Specifications
209
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

•The service engine soonindicator may come on. For more
information on the service engine soon
indicator, refer to
Warning lights and chimesin theInstrument Clusterchapter.
Selective Catalytic Reduction (SCR) System - diesel engines
Your vehicle is equipped with a selective catalytic reduction (SCR)
system to help reduce emission levels of oxides of nitrogen from the
exhaust of the diesel engine. The system automatically injects diesel
exhaust fluid (DEF) into the exhaust system to enable proper SCR
function.
Importance of maintaining the DEF level
In order for the SCR system to operate properly, the DEF must be
maintained. Generally, the DEF tank should be filled before the DEF
gauge in the instrument cluster reached the first low level warning (refer
toDEF warning messages and vehicle operations).
The engine control unit monitors the amount of fluid available in the
DEF tank. Failure to maintain an adequate amount of DEF in the system
generates warning messages that appear in the instrument cluster
message center and, unless the DEF tank is refilled, leads to a forced
reduction of engine operations.
DEF warning messages and vehicle operations
Your vehicle is equipped with a DEF gauge located in the instrument
cluster. The low level warning symbols (see chart) are illuminated if the
DEF gauge level drops below 0.5 gallon (1.9L) in the 5 gallon (19.0L)
DEF tank or 1 gallon (3.8L) in the 9 gallon (34.0L) DEF tank.
Upon filling the DEF tank after a low level warning, normal operation
resumes when the vehicle is restarted.
Continued driving without refilling results in the following actions as
required by the U.S. Environmental Protection Agency (EPA):
DEF Low Level Warning and Vehicle Consequence
DEF Tank LevelIndicator
LampsConsequence Remedy
Above initial
warning threshold
(Over 10% full)None None None
Maintenance and Specifications
210
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

DEF Low Level Warning and Vehicle Consequence
DEF Tank LevelIndicator
LampsConsequence Remedy
Below initial warning
threshold (10% full)DEF solid
None
Add minimum of
1 gallon (3.8L)
DEF to 5 gallon
(19.0L) tank or
2 gallons (7.6L)
DEF to 9 gallon
(34.0L) tank Below critical
warning threshold
(5% full)DEF
blinking
None
Below initial derate
level (2.5% full)DEF
blinking
/
Amber warning
solid40% torque
reduction
Empty + engine
intentionally shut
down or in extended
idleDEF
blinking
/
Amber warning
solid
/
Red engine
solid
40% torque
reduction +
5 mph
(8 km/h)
vehicle speed
limit
Filling the DEF tank
Your vehicle is equipped with a DEF tank with a blue-capped filler port
The 5 gallon (19.0L) DEF tank is located on the left side of the vehicle
under the cab and the 9 gallon (34.0L) DEF tank is located on the right
side of the vehicle behind the Regular Cab and Super Cabs and under the
Crew Cab. The tank can be filled using a nozzle at a DEF filling station
(similar to fuel fill) or using a DEF bottle with a spout. Motorcraftbrand
DEF bottles are recommended. Other aftermarket bottles can be used but
it should have a seal on the spout and an internal vent tube to achieve best
fill performance and prevent overfilling.
Note:Do not put DEF in the fuel tank or any other tank on the vehicle.
This can cause damage to components not covered by your vehicle’s
warranty.
Maintenance and Specifications
211
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

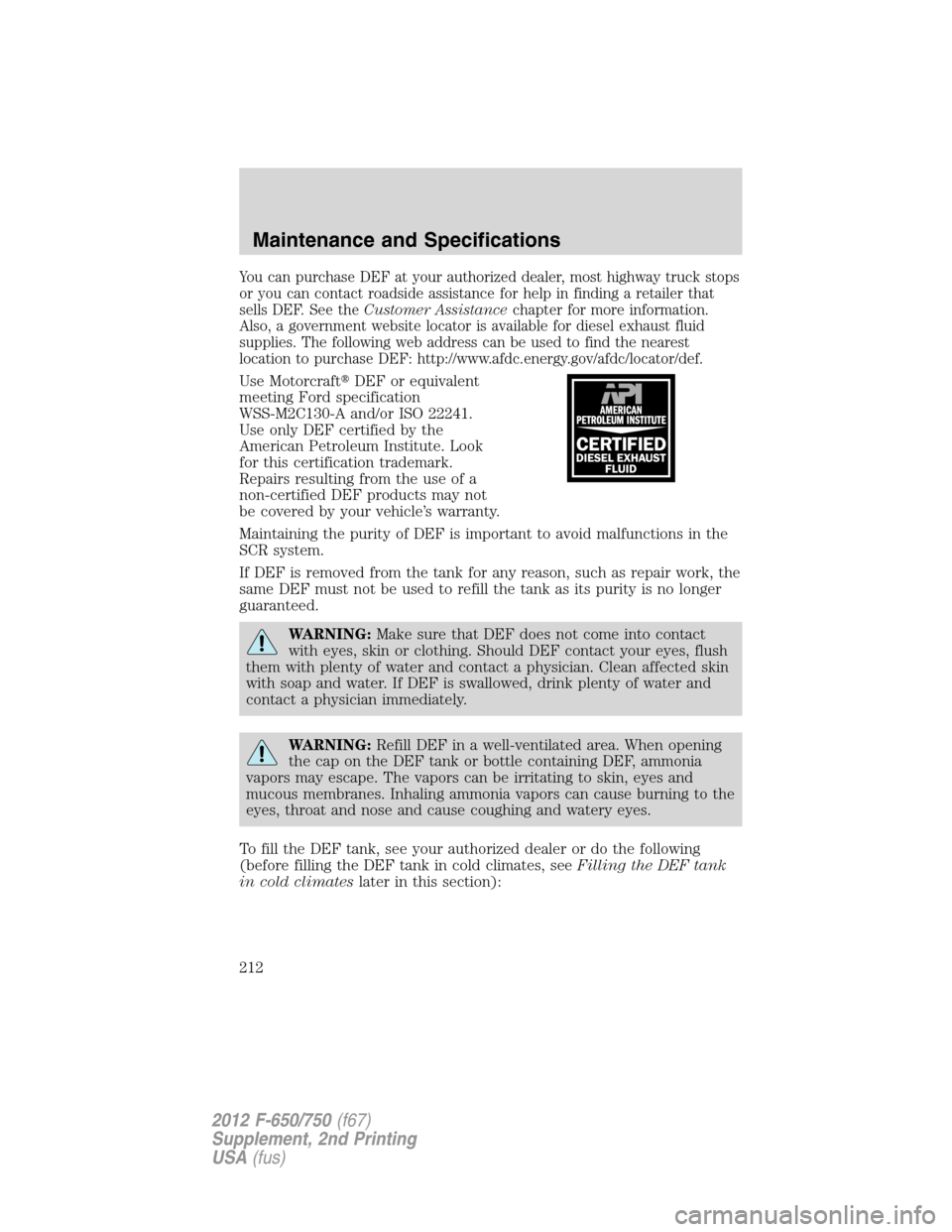

You can purchase DEF at your authorized dealer, most highway truck stops
or you can contact roadside assistance for help in finding a retailer that
sells DEF. See theCustomer Assistancechapter for more information.
Also, a government website locator is available for diesel exhaust fluid
supplies. The following web address can be used to find the nearest
location to purchase DEF: http://www.afdc.energy.gov/afdc/locator/def.
Use MotorcraftDEF or equivalent
meeting Ford specification
WSS-M2C130-A and/or ISO 22241.
Use only DEF certified by the
American Petroleum Institute. Look
for this certification trademark.
Repairs resulting from the use of a
non-certified DEF products may not
be covered by your vehicle’s warranty.
Maintaining the purity of DEF is important to avoid malfunctions in the
SCR system.
If DEF is removed from the tank for any reason, such as repair work, the
same DEF must not be used to refill the tank as its purity is no longer
guaranteed.
WARNING:Make sure that DEF does not come into contact
with eyes, skin or clothing. Should DEF contact your eyes, flush
them with plenty of water and contact a physician. Clean affected skin
with soap and water. If DEF is swallowed, drink plenty of water and
contact a physician immediately.
WARNING:Refill DEF in a well-ventilated area. When opening
the cap on the DEF tank or bottle containing DEF, ammonia
vapors may escape. The vapors can be irritating to skin, eyes and
mucous membranes. Inhaling ammonia vapors can cause burning to the
eyes, throat and nose and cause coughing and watery eyes.
To fill the DEF tank, see your authorized dealer or do the following
(before filling the DEF tank in cold climates, seeFilling the DEF tank
in cold climateslater in this section):
Maintenance and Specifications
212
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

DEF bottle fill with spout
The following procedure applies to MotorcraftDEF or similar DEF
bottles; for other brands or bottle types, refer to the instructions on the
bottle label.
1. Remove the cap from DEF
container and twist the spout onto
the container until the locking tab is
engaged.
2. Open the DEF filler port on the
vehicle by turning the blue cap
counterclockwise
14-turn.
3. Lift and hold the DEF container, without tipping, and insert the spout
into the DEF filler.
4. Lift and tip the container to let
DEF flow into the tank. Pour DEF
until the container is empty or DEF
flow stops. DEF can be seen flowing
through the spout, but does not
completely fill the spout while
flowing. Air is trapped in the spout
while DEF is flowing. When the
DEF tank is full, DEF completely
fills the spout and displace the air in
the spout.
Maintenance and Specifications
213
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

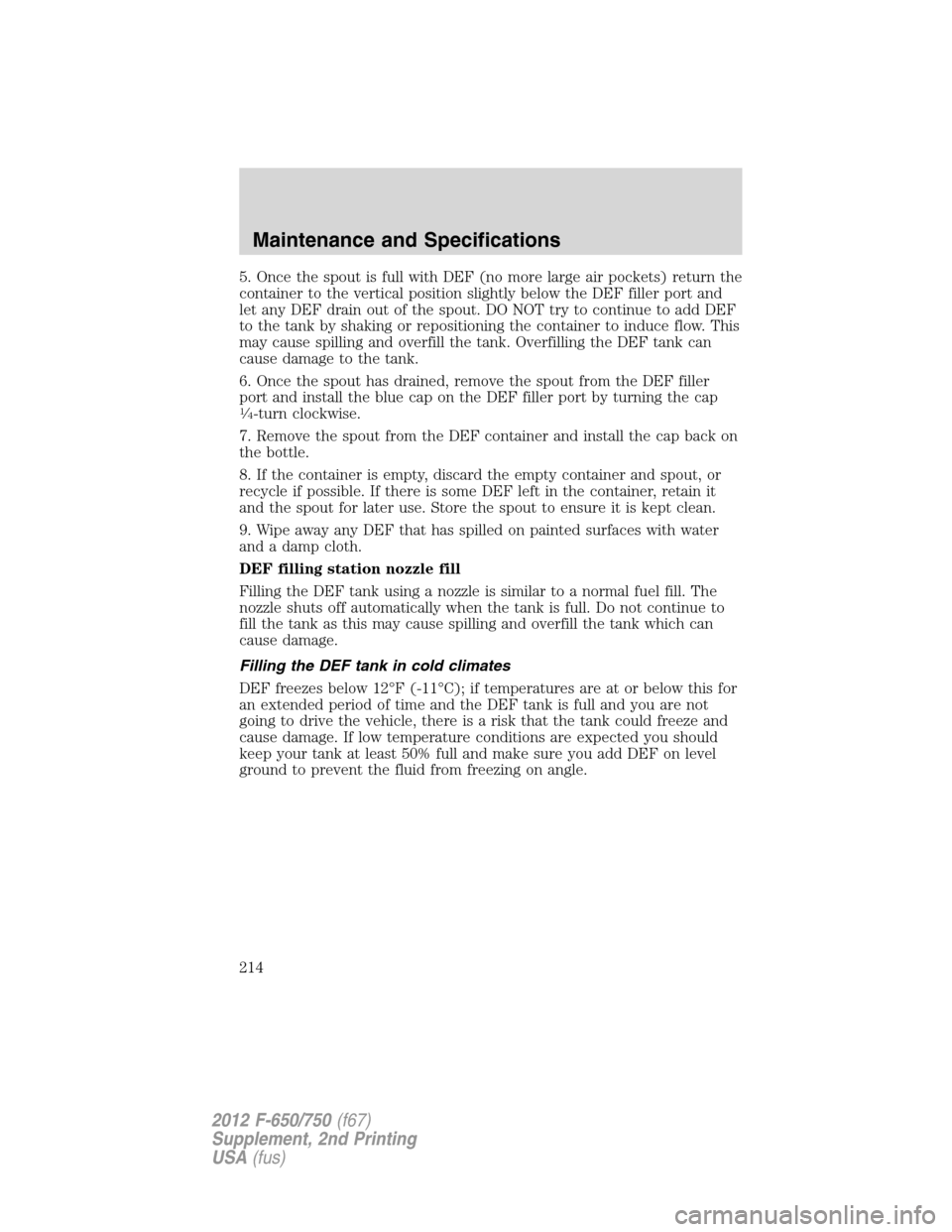

5. Once the spout is full with DEF (no more large air pockets) return the
container to the vertical position slightly below the DEF filler port and
let any DEF drain out of the spout. DO NOT try to continue to add DEF
to the tank by shaking or repositioning the container to induce flow. This
may cause spilling and overfill the tank. Overfilling the DEF tank can
cause damage to the tank.
6. Once the spout has drained, remove the spout from the DEF filler
port and install the blue cap on the DEF filler port by turning the cap
14-turn clockwise.
7. Remove the spout from the DEF container and install the cap back on
the bottle.
8. If the container is empty, discard the empty container and spout, or
recycle if possible. If there is some DEF left in the container, retain it
and the spout for later use. Store the spout to ensure it is kept clean.
9. Wipe away any DEF that has spilled on painted surfaces with water
and a damp cloth.
DEF filling station nozzle fill
Filling the DEF tank using a nozzle is similar to a normal fuel fill. The
nozzle shuts off automatically when the tank is full. Do not continue to
fill the tank as this may cause spilling and overfill the tank which can
cause damage.
Filling the DEF tank in cold climates
DEF freezes below 12°F (-11°C); if temperatures are at or below this for
an extended period of time and the DEF tank is full and you are not
going to drive the vehicle, there is a risk that the tank could freeze and
cause damage. If low temperature conditions are expected you should
keep your tank at least 50% full and make sure you add DEF on level
ground to prevent the fluid from freezing on angle.
Maintenance and Specifications
214
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

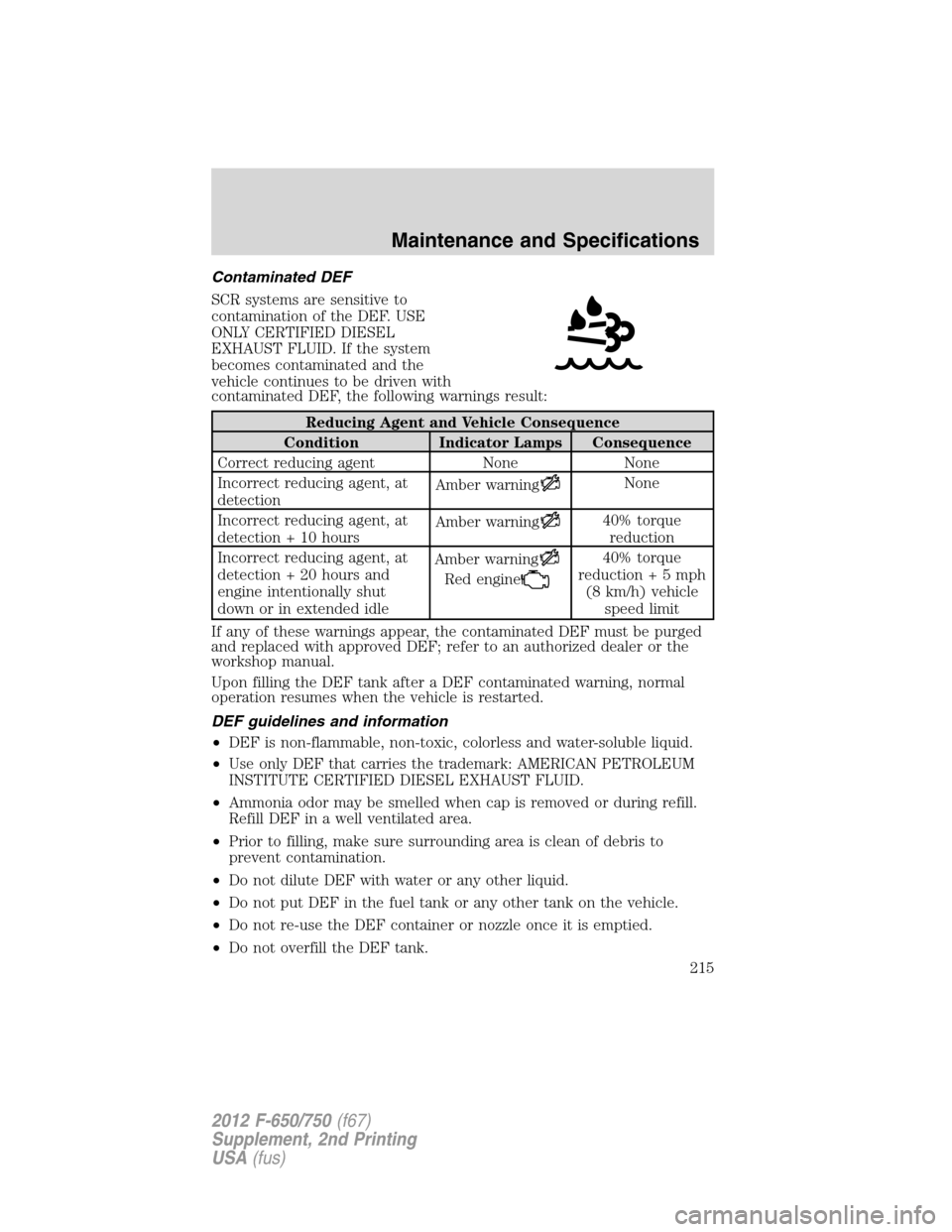

Contaminated DEF
SCR systems are sensitive to
contamination of the DEF. USE
ONLY CERTIFIED DIESEL
EXHAUST FLUID. If the system
becomes contaminated and the
vehicle continues to be driven with
contaminated DEF, the following warnings result:
Reducing Agent and Vehicle Consequence
Condition Indicator Lamps Consequence
Correct reducing agent None None
Incorrect reducing agent, at
detectionAmber warning
None
Incorrect reducing agent, at
detection + 10 hoursAmber warning
40% torque
reduction
Incorrect reducing agent, at
detection + 20 hours and
engine intentionally shut
down or in extended idleAmber warning
Red engine
40% torque
reduction+5mph
(8 km/h) vehicle
speed limit
If any of these warnings appear, the contaminated DEF must be purged
and replaced with approved DEF; refer to an authorized dealer or the
workshop manual.
Upon filling the DEF tank after a DEF contaminated warning, normal
operation resumes when the vehicle is restarted.
DEF guidelines and information
•DEF is non-flammable, non-toxic, colorless and water-soluble liquid.
•Use only DEF that carries the trademark: AMERICAN PETROLEUM
INSTITUTE CERTIFIED DIESEL EXHAUST FLUID.
•Ammonia odor may be smelled when cap is removed or during refill.
Refill DEF in a well ventilated area.
•Prior to filling, make sure surrounding area is clean of debris to
prevent contamination.
•Do not dilute DEF with water or any other liquid.
•Do not put DEF in the fuel tank or any other tank on the vehicle.
•Do not re-use the DEF container or nozzle once it is emptied.
•Do not overfill the DEF tank.
Maintenance and Specifications
215
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

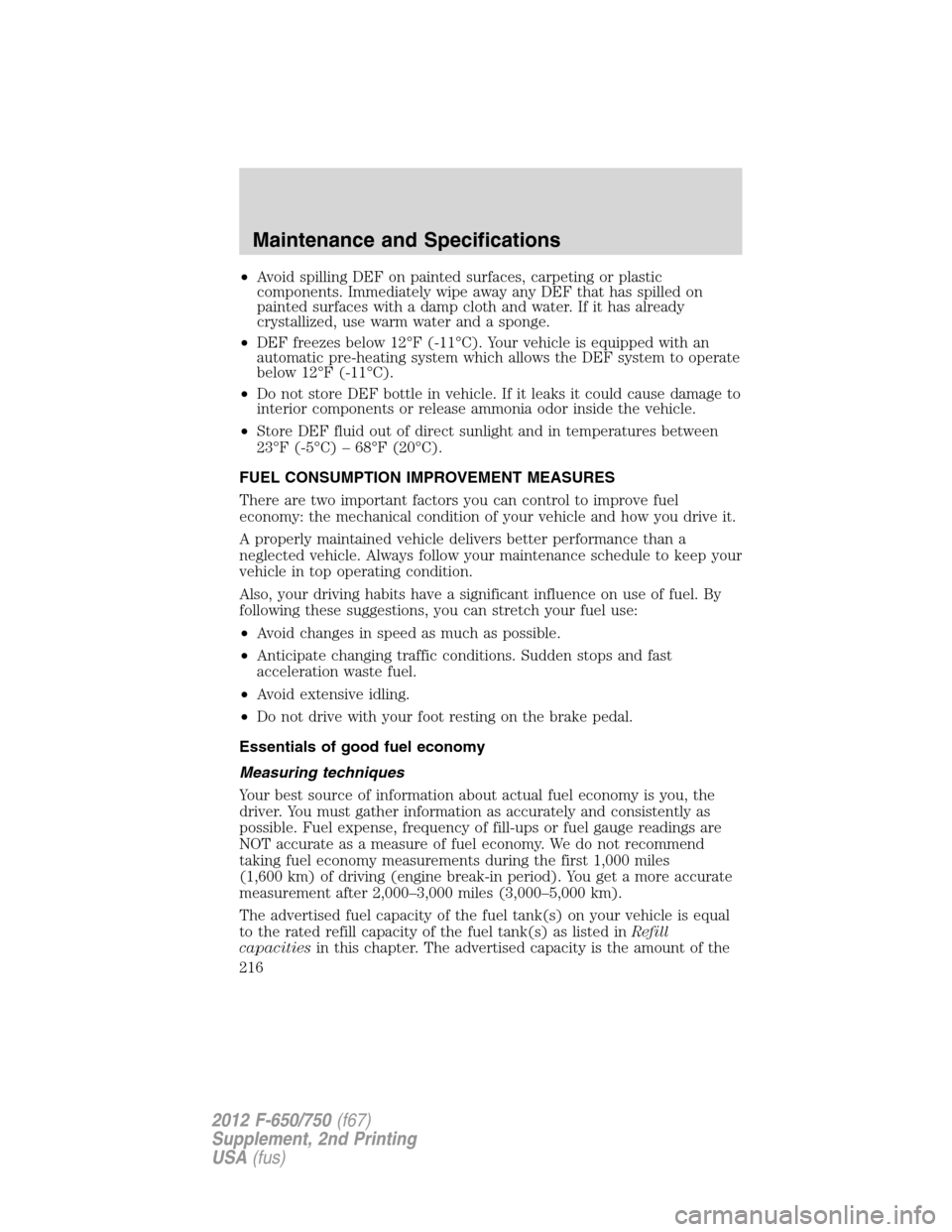

•Avoid spilling DEF on painted surfaces, carpeting or plastic
components. Immediately wipe away any DEF that has spilled on
painted surfaces with a damp cloth and water. If it has already
crystallized, use warm water and a sponge.
•DEF freezes below 12°F (-11°C). Your vehicle is equipped with an
automatic pre-heating system which allows the DEF system to operate
below 12°F (-11°C).
•Do not store DEF bottle in vehicle. If it leaks it could cause damage to
interior components or release ammonia odor inside the vehicle.
•Store DEF fluid out of direct sunlight and in temperatures between
23°F (-5°C) – 68°F (20°C).
FUEL CONSUMPTION IMPROVEMENT MEASURES
There are two important factors you can control to improve fuel
economy: the mechanical condition of your vehicle and how you drive it.
A properly maintained vehicle delivers better performance than a
neglected vehicle. Always follow your maintenance schedule to keep your
vehicle in top operating condition.
Also, your driving habits have a significant influence on use of fuel. By
following these suggestions, you can stretch your fuel use:
•Avoid changes in speed as much as possible.
•Anticipate changing traffic conditions. Sudden stops and fast
acceleration waste fuel.
•Avoid extensive idling.
•Do not drive with your foot resting on the brake pedal.
Essentials of good fuel economy
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You get a more accurate
measurement after 2,000–3,000 miles (3,000–5,000 km).
The advertised fuel capacity of the fuel tank(s) on your vehicle is equal
to the rated refill capacity of the fuel tank(s) as listed inRefill
capacitiesin this chapter. The advertised capacity is the amount of the
Maintenance and Specifications
216
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
