2012 FORD F650 Owners Manual

Service engine soon:Illuminates
when the ignition is first turned to
the on position to check the bulb
and to indicate whether the vehicle
is ready for Inspection/Maintenance
(I/M) testing.
Solid illumination after the engine is
started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Speed control (if equipped):
Illuminates when the speed control
system is engaged. Turns off when
the speed control system is
disengaged.
Stop engine (diesel engine only):
This red lamp illuminates when the
engine needs to be stopped (as soon
as it can be safely done). If the lamp
begins flashing, automatic engine shutdown may take place in as little as
20 seconds.
WARNING:In the event of engine shutdown, make sure the
vehicle is safely off the road and the problem is remedied prior
to returning to the road. Failure to remove the vehicle from the road
could result in an accident, causing serious injury or death.
If the engine shuts down, it can be restarted and operated for
30 seconds at a time or until the problem is corrected. For more
information, refer toEngine automatic shutdown warning light or
chimein theDrivingchapter of this owner guide and/or your engine
operator’s manual.
Refer to your engine operator’s manual for specific information regarding
this feature. Drivers of electronically-controlled engines should know the
extent of warning engine shutdown system before operating the vehicle.
Instrument Cluster
25
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Traction control (if equipped)
(diesel engine only):Illuminates
and flashes slowly if the Off Road or
Mud/Snow mode is selected.
Illuminates and flashes rapidly
during a traction control event.
Traction control (if equipped)
(gasoline engine only):
Illuminates when the traction
control is active. If the light remains
on, have the system serviced
immediately, refer to theDrivingchapter for more information.
Trailer anti-lock brake system
(ABS):Illuminates briefly when the
engine is powered-up and only when
a PLC trailer or a PLC diagnostic
tool is connected. If the light
remains on after the vehicle is
started, continues to flash or fails to
illuminate, have the system serviced
immediately.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
Wait to start (diesel engine
only):Illuminates when the air
intake heater is in operation and
special starting procedures are
required. Refer toStartingin theDrivingchapter.
WARNING:If equipped with an air intake heater, DO NOT use
ether or any other starting fluids. The use of starting fluids
(ether) in an engine equipped with an air intake heater could result in
damage and/or personal injury.
Instrument Cluster
26
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Water in fuel (diesel engine
only):Illuminates when the fuel
filter/water separator has a
significant quantity of water in it.
If the light illuminates when the engine is running, stop the vehicle as
soon as safely possible, shut off the engine, then drain the fuel
filter/water separator. Refer to your engine operator’s manual for the
drain procedure. Allowing water to stay in the system could result in
extensive damage to, or failure of, the fuel injection system.
WARNING:Do not drain water separator while engine is
running. Fuel may ignite if separator is drained while engine is
running or vehicle is moving.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Instrument Cluster
27
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

GAUGES
Base instrument cluster for diesel engine with standard measure
shown; metric similar
1.Tachometer:Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
2.Engine oil pressure gauge:Indicates engine oil pressure. The
needle should stay in the normal operating range (between L and H). If
the needle falls below the normal range, stop the vehicle, turn off the
engine and check the engine oil level. Add oil if needed. If the oil level is
correct, have your vehicle checked at your authorized dealer.
3.Engine coolant temperature gauge:Indicates engine coolant
temperature. At normal operating temperature, the needle is in the
normal range (between H and C).If it enters the red section, the
engine is overheating. Stop the vehicle as soon as safely possible,
switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
4.Diesel exhaust fluid (DEF) gauge:Indicates fluid level in DEF tank.
Instrument Cluster
28
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

5.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge reading
may vary slightly when the vehicle is in motion or on a grade. Refer to
Filling the tankin theMaintenance and Specificationschapter for
more information.
6.Speedometer:Indicates the current vehicle speed.
Odometer and trip odometer:The odometer is displayed on the lower
line in the message center and registers the total accumulated distance
the vehicle has traveled. For trip odometer information, refer toMessage
centerin this chapter.
Base instrument cluster for gasoline engine with standard
measure shown; metric similar
1.Engine oil pressure gauge:Indicates engine oil pressure. The
needle should stay in the normal operating range (between L and H). If
the needle falls below the normal range, stop the vehicle, turn off the
engine and check the engine oil level. Add oil if needed. If the oil level is
correct, have your vehicle checked at your authorized dealer.
2.Engine coolant temperature gauge:Indicates engine coolant
temperature. At normal operating temperature, the needle will be in the
normal range (between H and C).If it enters the red section, the
engine is overheating. Stop the vehicle as soon as safely possible,
switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
1234
56
Instrument Cluster
29
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

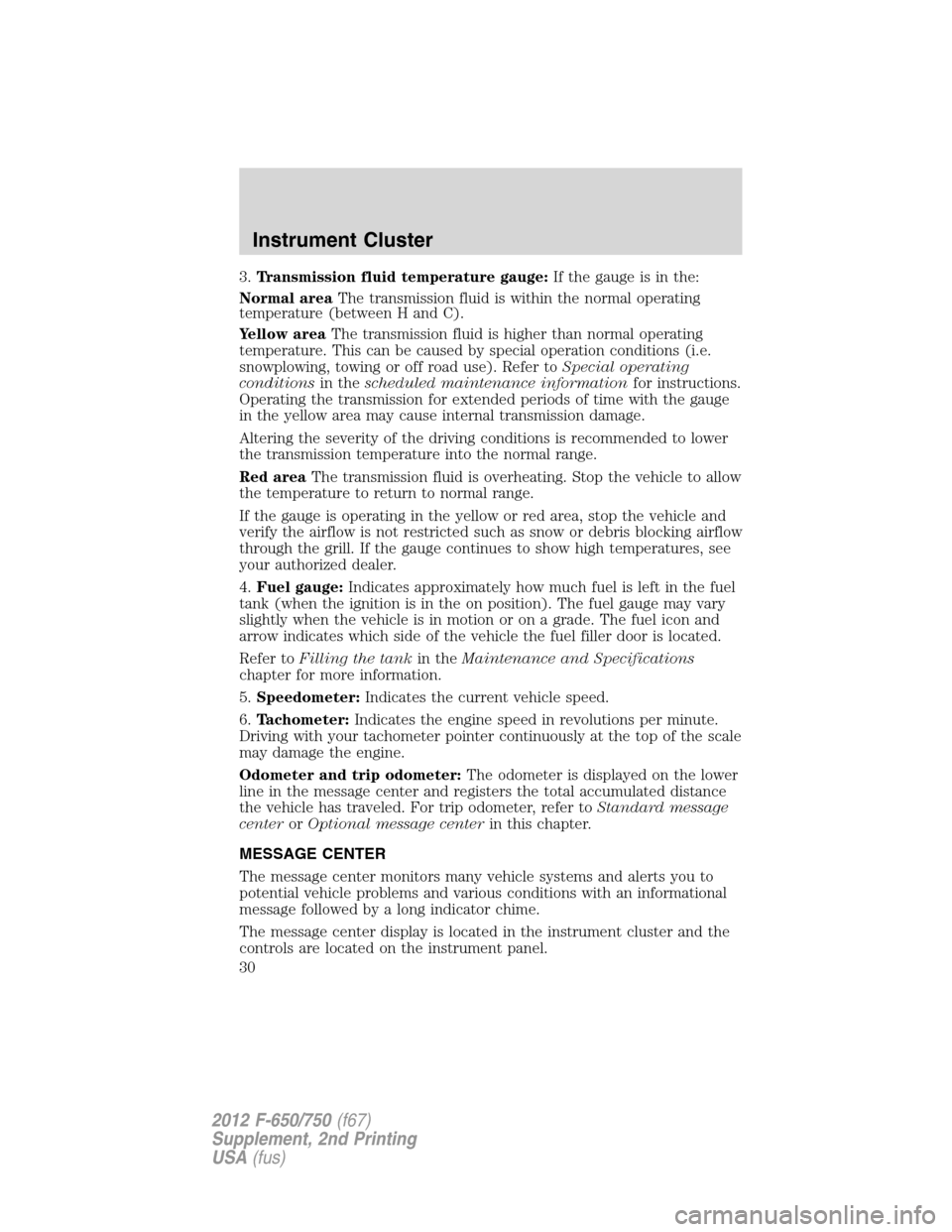

3.Transmission fluid temperature gauge:If the gauge is in the:
Normal areaThe transmission fluid is within the normal operating
temperature (between H and C).
Yellow areaThe transmission fluid is higher than normal operating
temperature. This can be caused by special operation conditions (i.e.
snowplowing, towing or off road use). Refer toSpecial operating
conditionsin thescheduled maintenance informationfor instructions.
Operating the transmission for extended periods of time with the gauge
in the yellow area may cause internal transmission damage.
Altering the severity of the driving conditions is recommended to lower
the transmission temperature into the normal range.
Red areaThe transmission fluid is overheating. Stop the vehicle to allow
the temperature to return to normal range.
If the gauge is operating in the yellow or red area, stop the vehicle and
verify the airflow is not restricted such as snow or debris blocking airflow
through the grill. If the gauge continues to show high temperatures, see
your authorized dealer.
4.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
5.Speedometer:Indicates the current vehicle speed.
6.Tachometer:Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
Odometer and trip odometer:The odometer is displayed on the lower
line in the message center and registers the total accumulated distance
the vehicle has traveled. For trip odometer, refer toStandard message
centerorOptional message centerin this chapter.
MESSAGE CENTER
The message center monitors many vehicle systems and alerts you to
potential vehicle problems and various conditions with an informational
message followed by a long indicator chime.
The message center display is located in the instrument cluster and the
controls are located on the instrument panel.
Instrument Cluster
30
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

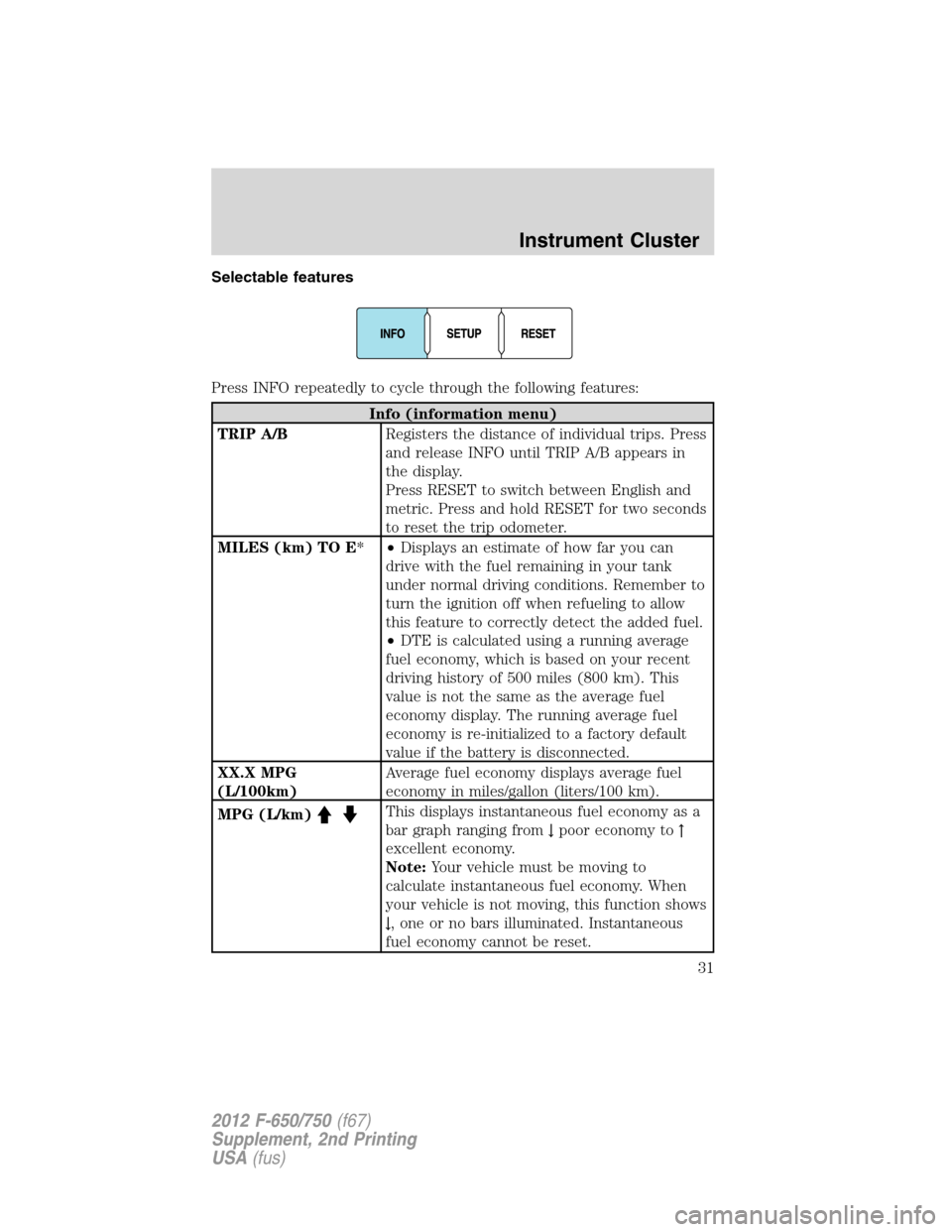

Selectable features
Press INFO repeatedly to cycle through the following features:
Info (information menu)
TRIP A/BRegisters the distance of individual trips. Press
and release INFO until TRIP A/B appears in
the display.
Press RESET to switch between English and
metric. Press and hold RESET for two seconds
to reset the trip odometer.
MILES (km) TO E*•Displays an estimate of how far you can
drive with the fuel remaining in your tank
under normal driving conditions. Remember to
turn the ignition off when refueling to allow
this feature to correctly detect the added fuel.
•DTE is calculated using a running average
fuel economy, which is based on your recent
driving history of 500 miles (800 km). This
value is not the same as the average fuel
economy display. The running average fuel
economy is re-initialized to a factory default
value if the battery is disconnected.
XX.X MPG
(L/100km)Average fuel economy displays average fuel
economy in miles/gallon (liters/100 km).
MPG (L/km)
This displays instantaneous fuel economy as a
bar graph ranging from↓poor economy to↑
excellent economy.
Note:Your vehicle must be moving to
calculate instantaneous fuel economy. When
your vehicle is not moving, this function shows
↓, one or no bars illuminated. Instantaneous
fuel economy cannot be reset.
Instrument Cluster
31
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

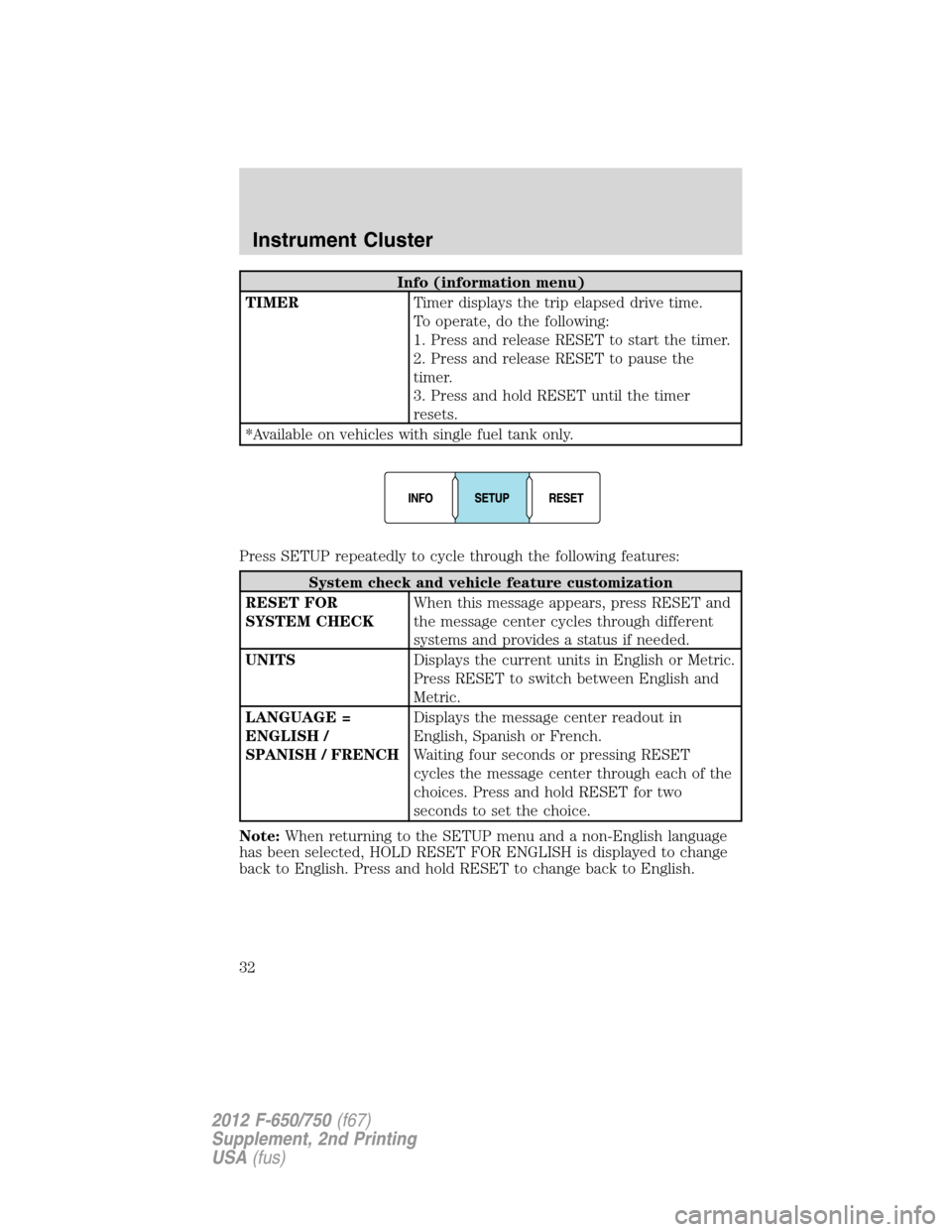

Info (information menu)
TIMERTimer displays the trip elapsed drive time.
To operate, do the following:
1. Press and release RESET to start the timer.
2. Press and release RESET to pause the
timer.
3. Press and hold RESET until the timer
resets.
*Available on vehicles with single fuel tank only.
Press SETUP repeatedly to cycle through the following features:
System check and vehicle feature customization
RESET FOR
SYSTEM CHECKWhen this message appears, press RESET and
the message center cycles through different
systems and provides a status if needed.
UNITSDisplays the current units in English or Metric.
Press RESET to switch between English and
Metric.
LANGUAGE =
ENGLISH /
SPANISH / FRENCHDisplays the message center readout in
English, Spanish or French.
Waiting four seconds or pressing RESET
cycles the message center through each of the
choices. Press and hold RESET for two
seconds to set the choice.
Note:When returning to the SETUP menu and a non-English language
has been selected, HOLD RESET FOR ENGLISH is displayed to change
back to English. Press and hold RESET to change back to English.
Instrument Cluster
32
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
