2012 FORD F650 Owners Manual

CITY - 60,000 MILES (96,000 KM) OR FEWER ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1,000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Meritor - petroleum oil - change Every 50,000 miles (80,000 km) or annually, whichever comes
first
Meritor - synthetic oil - change Every 250,000 miles (400,000 km) or every 3 years, whichever
comes first
Cab components
Door hinges/latches/strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Diesel exhaust fluid (DEF) system
Check and refill DEF system••••••••••
Scheduled Maintenance Guide
289
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1,000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Engine
Engine oil and filter - change (diesel engine) Refer to manufacturer’s recommendation
Engine oil and filter - change (gasoline engine) Every 5,000 miles (8,000 km) or 3 months (see note at end of
table regarding alternate schedule)
Engine coolant - check level••••••••••
Engine coolant - check freeze-protection and additive
strength (corrosion inhibitor) (diesel engine)••••••••••
Extended life engine coolant - add extender (diesel
engine)Refer to manufacturer’s recommendation
Extended life engine coolant - replace (diesel engine) Refer to manufacturer’s recommendation
Engine coolant - replace (gasoline engine) Initial change at 6 years or 100,000 miles (160,000 km)
(whichever occurs first); every 3 years or 50,000 miles
(80,000 km) thereafter
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•
Non-driving front axle
Drag link - lubricate••••••••••
Kingpin and bushing - lubricate••••••••••
Tie rod ends - lubricate••••••••••
Scheduled Maintenance Guide
290
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1,000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Wheel bearing - grease type - repack••
Wheel bearing - oil type - change oil••
Wheel bearing - oil type - check level••••••••••
Brake system - air
S-cam - lubricate••••••••••
Slack adjusters - lubricate••
Brake system - hydraulic
Master cylinder - check fluid level•••
Parking brake relay lever/linkage - lubricate•••
Steering
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joints - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25,000 miles (40,000 km) or 6 months, whichever comes
first
U-joint and slip joint - lubricate (non-SPL) Every 5,000–8,000 miles (8,000–12,800 km) or 3 months,
whichever comes first
Scheduled Maintenance Guide
291
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

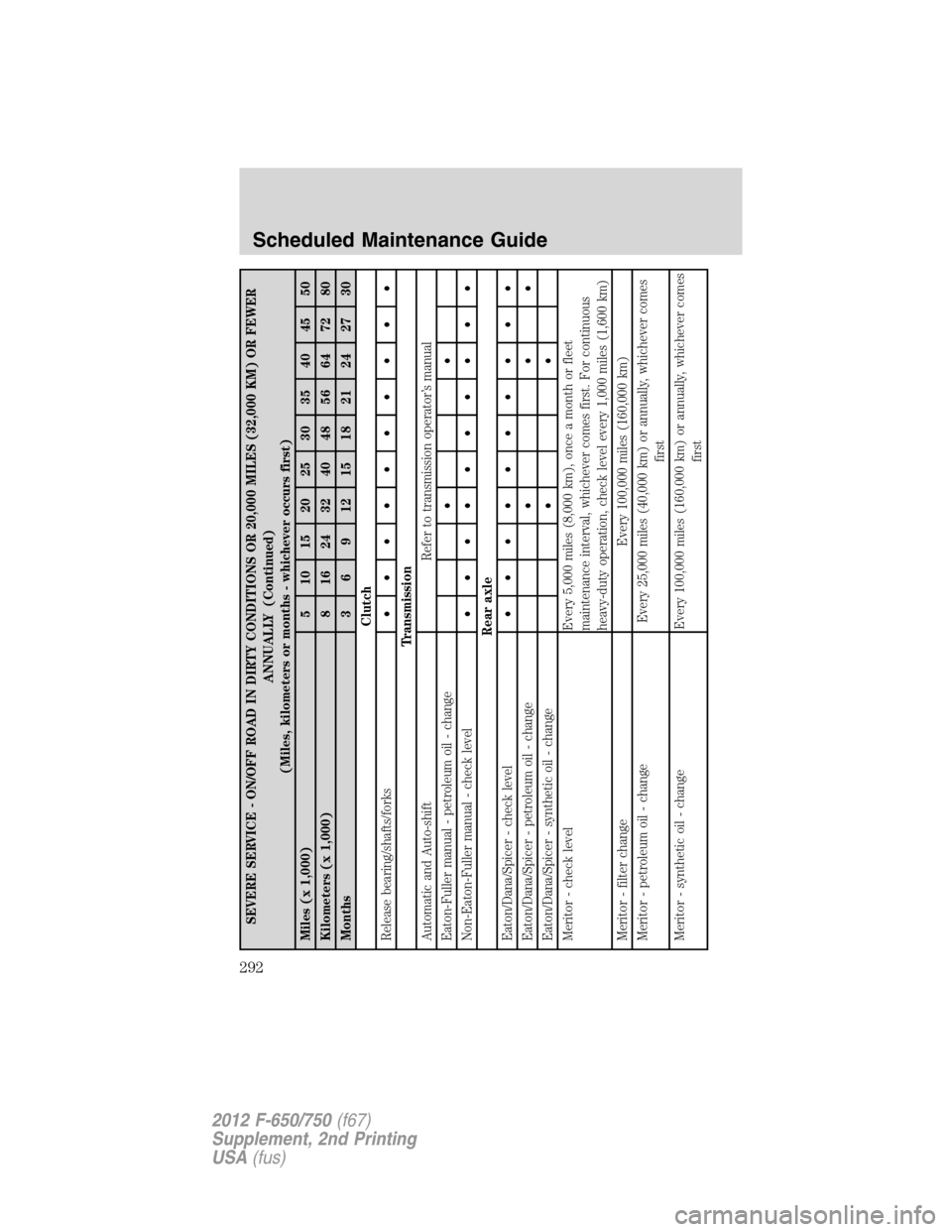

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1,000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Clutch
Release bearing/shafts/forks••••••••••
Transmission
Automatic and Auto-shift Refer to transmission operator’s manual
Eaton-Fuller manual - petroleum oil - change••
Non-Eaton-Fuller manual - check level••••••••••
Rear axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change•••
Eaton/Dana/Spicer - synthetic oil - change••
Meritor - check level Every 5,000 miles (8,000 km), once a month or fleet
maintenance interval, whichever comes first. For continuous
heavy-duty operation, check level every 1,000 miles (1,600 km)
Meritor - filter change Every 100,000 miles (160,000 km)
Meritor - petroleum oil - change Every 25,000 miles (40,000 km) or annually, whichever comes
first
Meritor - synthetic oil - change Every 100,000 miles (160,000 km) or annually, whichever comes
first
Scheduled Maintenance Guide
292
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1,000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Cab components
Door hinges/latches/strikers - lubricate, check link••
Door lock cylinders - lubricate••
Seat adjuster slides - lubricate••
Diesel exhaust fluid (DEF) system
Check and refill DEF system••••••••••
Note:If your vehicle is equipped with a gasoline engine, the engine oil and filter changes should
observe the normal schedule unless conditions such as low-speed operation or stationary use exist
where a schedule based on engine hours is recommended. In this type of schedule, the engine oil
and filter should be replaced every 250 engine hours.
Scheduled Maintenance Guide
293
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1,000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) Refer to manufacturer’s recommendation
Engine oil and filter - change (gasoline engine) Every 5,000 miles (8,000 km) or 3 months (see note at end of
table regarding alternate schedule)
Engine coolant - check level••••••••••
Engine coolant - check freeze-protection and additive
strength (corrosion inhibitor) (diesel engine)••••••••••
Extended life engine coolant - add extender (diesel
engine)Refer to manufacturer’s recommendation
Extended life engine coolant - replace (diesel engine) Refer to manufacturer’s recommendation
Engine coolant - replace (gasoline engine) Initial change at 6 years or 100,000 miles (160,000 km)
(whichever occurs first); every 3 years or 50,000 miles
(80,000 km) thereafter
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)••
Replace spark plugs•
Inspect accessory drive belts(s) Inspect at 100,000 miles (160,000 km) and 120,000 miles
(192,000 km); replace at 150,000 (240,000 km) miles if not
replaced in the last 100,000 miles (160,000 km)
Scheduled Maintenance Guide
294
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1,000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Drag link - lubricate••••••••••
Kingpin and bushing - lubricate••••••••••
Tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••
Wheel bearing - oil type - change oil•••
Wheel bearing - oil type - check level••••••••••
Brake system - air
S-cam - lubricate••••••••••
Slack adjusters - lubricate•••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Parking brake relay lever/linkage - lubricate•••
Steering
Power steering filter - replacement•
Power steering fluid - change•••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Scheduled Maintenance Guide
295
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

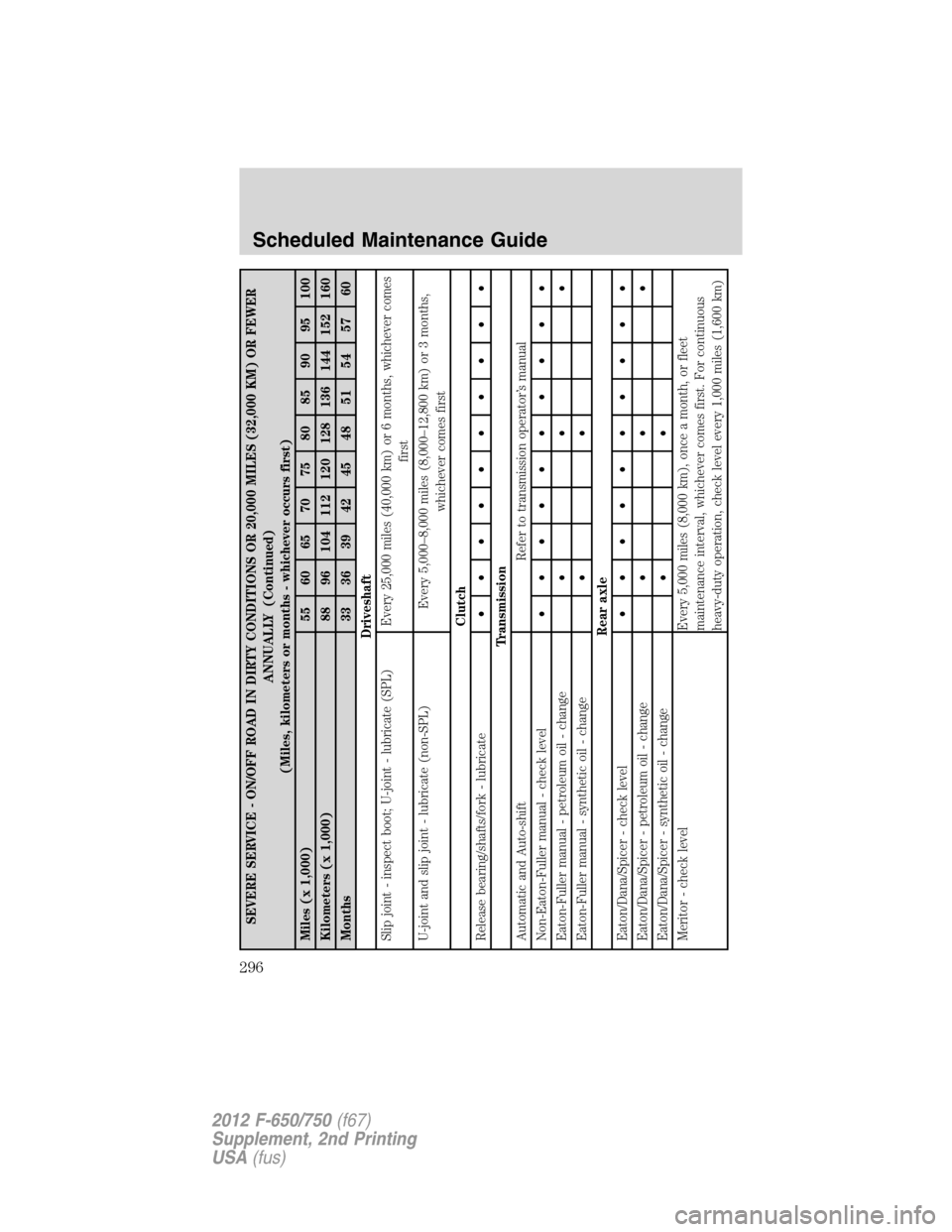

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1,000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1,000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25,000 miles (40,000 km) or 6 months, whichever comes
first
U-joint and slip joint - lubricate (non-SPL) Every 5,000–8,000 miles (8,000–12,800 km) or 3 months,
whichever comes first
Clutch
Release bearing/shafts/fork - lubricate••••••••••
Transmission
Automatic and Auto-shift Refer to transmission operator’s manual
Non-Eaton-Fuller manual - check level••••••••••
Eaton-Fuller manual - petroleum oil - change•••
Eaton-Fuller manual - synthetic oil - change••
Rear axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change•••
Eaton/Dana/Spicer - synthetic oil - change••
Meritor - check level Every 5,000 miles (8,000 km), once a month, or fleet
maintenance interval, whichever comes first. For continuous
heavy-duty operation, check level every 1,000 miles (1,600 km)
Scheduled Maintenance Guide
296
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
