2012 FORD F650 Owners Manual

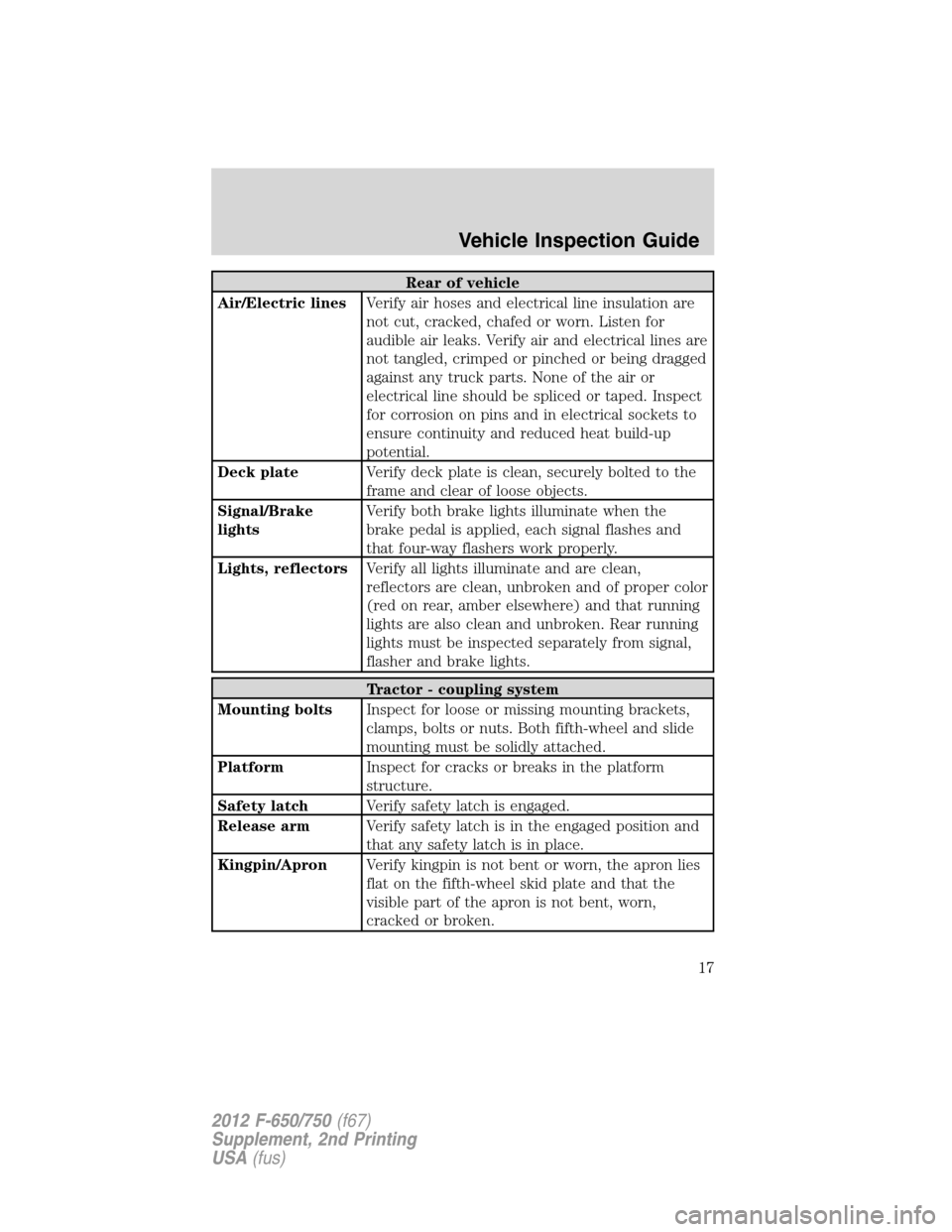

Rear of vehicle
Air/Electric linesVerify air hoses and electrical line insulation are
not cut, cracked, chafed or worn. Listen for
audible air leaks. Verify air and electrical lines are
not tangled, crimped or pinched or being dragged
against any truck parts. None of the air or
electrical line should be spliced or taped. Inspect
for corrosion on pins and in electrical sockets to
ensure continuity and reduced heat build-up
potential.
Deck plateVerify deck plate is clean, securely bolted to the
frame and clear of loose objects.
Signal/Brake
lightsVerify both brake lights illuminate when the
brake pedal is applied, each signal flashes and
that four-way flashers work properly.
Lights, reflectorsVerify all lights illuminate and are clean,
reflectors are clean, unbroken and of proper color
(red on rear, amber elsewhere) and that running
lights are also clean and unbroken. Rear running
lights must be inspected separately from signal,
flasher and brake lights.
Tractor - coupling system
Mounting boltsInspect for loose or missing mounting brackets,
clamps, bolts or nuts. Both fifth-wheel and slide
mounting must be solidly attached.
PlatformInspect for cracks or breaks in the platform
structure.
Safety latchVerify safety latch is engaged.
Release armVerify safety latch is in the engaged position and
that any safety latch is in place.
Kingpin/ApronVerify kingpin is not bent or worn, the apron lies
flat on the fifth-wheel skid plate and that the
visible part of the apron is not bent, worn,
cracked or broken.
Vehicle Inspection Guide
17
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

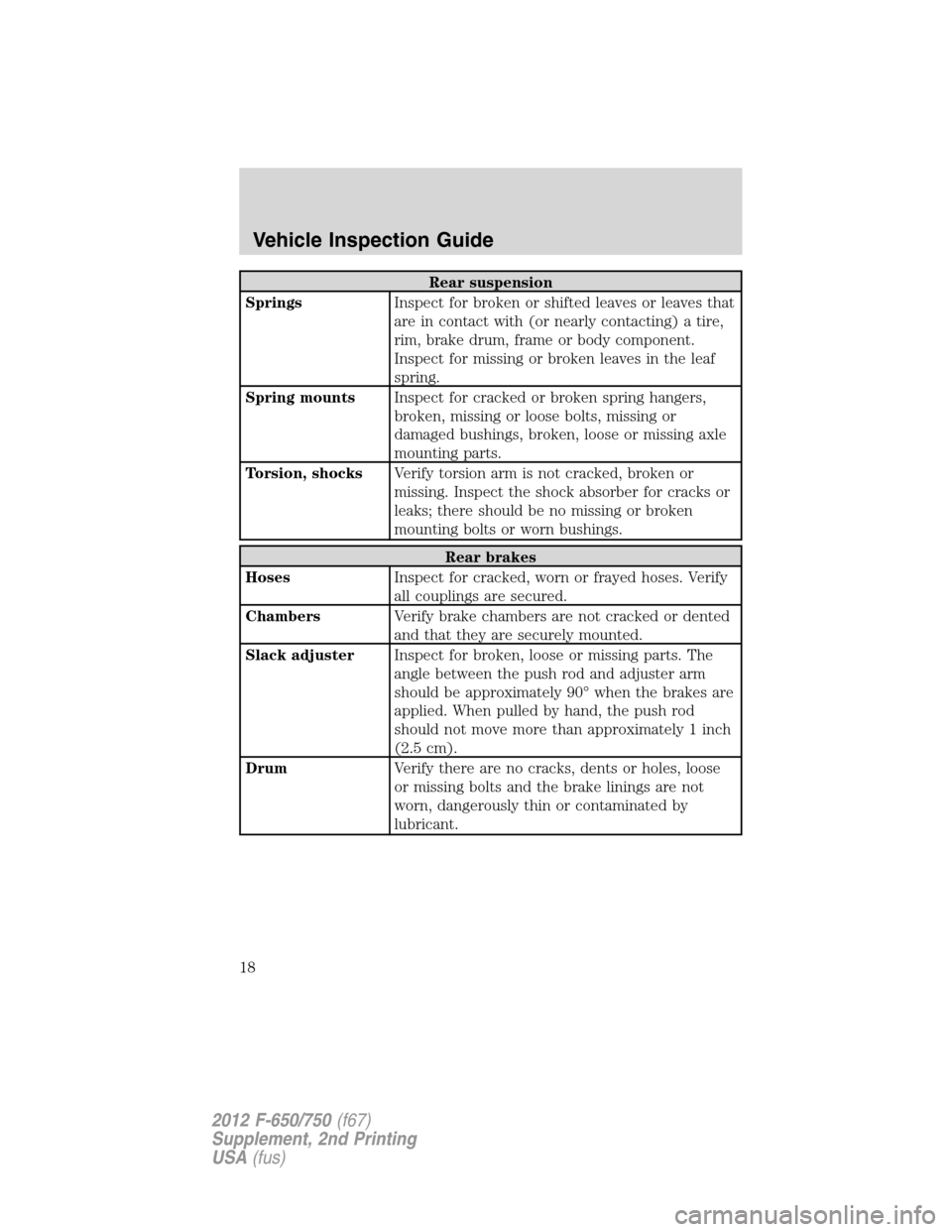

Rear suspension
SpringsInspect for broken or shifted leaves or leaves that
are in contact with (or nearly contacting) a tire,
rim, brake drum, frame or body component.
Inspect for missing or broken leaves in the leaf
spring.
Spring mountsInspect for cracked or broken spring hangers,
broken, missing or loose bolts, missing or
damaged bushings, broken, loose or missing axle
mounting parts.
Torsion, shocksVerify torsion arm is not cracked, broken or
missing. Inspect the shock absorber for cracks or
leaks; there should be no missing or broken
mounting bolts or worn bushings.
Rear brakes
HosesInspect for cracked, worn or frayed hoses. Verify
all couplings are secured.
ChambersVerify brake chambers are not cracked or dented
and that they are securely mounted.
Slack adjusterInspect for broken, loose or missing parts. The
angle between the push rod and adjuster arm
should be approximately 90° when the brakes are
applied. When pulled by hand, the push rod
should not move more than approximately 1 inch
(2.5 cm).
DrumVerify there are no cracks, dents or holes, loose
or missing bolts and the brake linings are not
worn, dangerously thin or contaminated by
lubricant.
Vehicle Inspection Guide
18
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

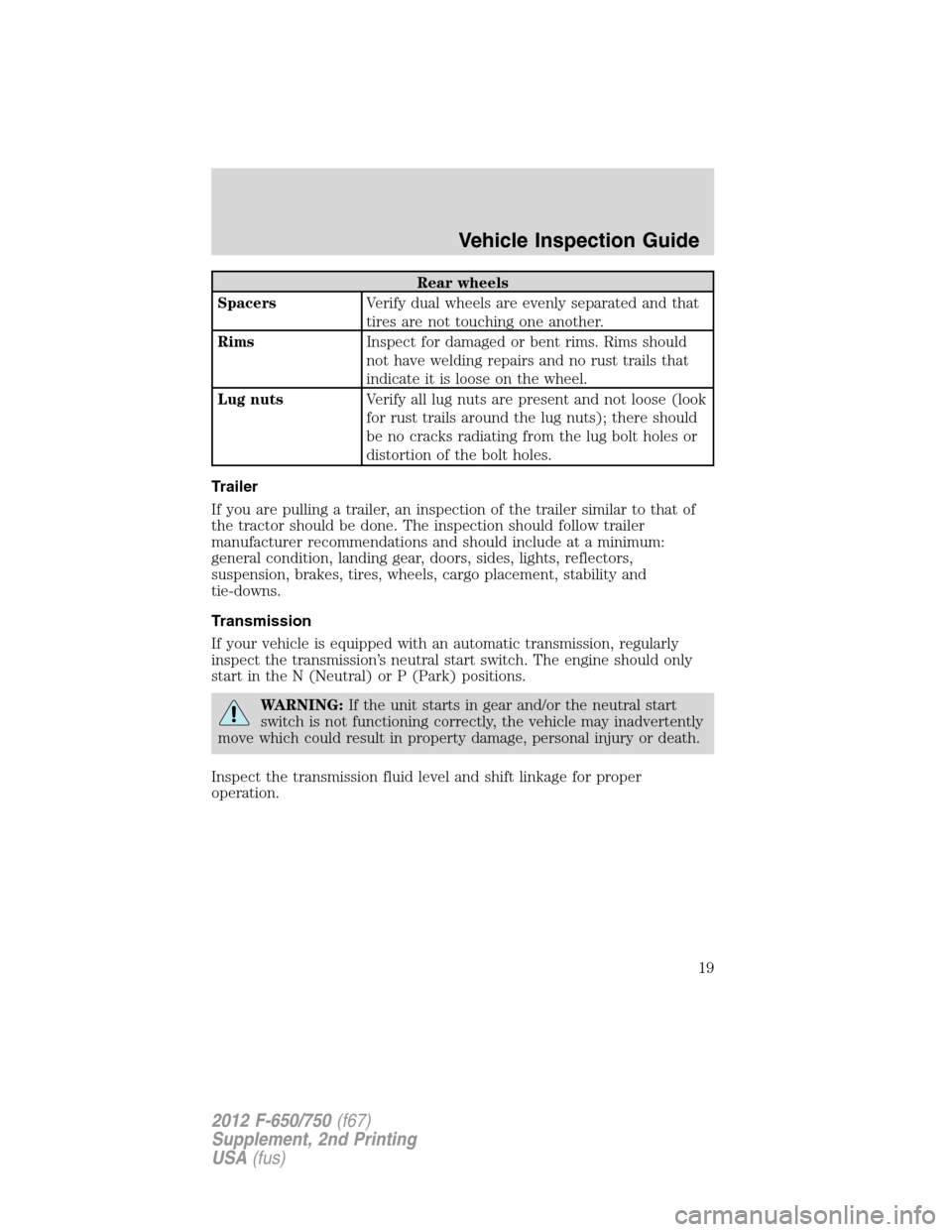

Rear wheels
SpacersVerify dual wheels are evenly separated and that
tires are not touching one another.
RimsInspect for damaged or bent rims. Rims should
not have welding repairs and no rust trails that
indicate it is loose on the wheel.
Lug nutsVerify all lug nuts are present and not loose (look
for rust trails around the lug nuts); there should
be no cracks radiating from the lug bolt holes or
distortion of the bolt holes.
Trailer
If you are pulling a trailer, an inspection of the trailer similar to that of
the tractor should be done. The inspection should follow trailer
manufacturer recommendations and should include at a minimum:
general condition, landing gear, doors, sides, lights, reflectors,
suspension, brakes, tires, wheels, cargo placement, stability and
tie-downs.
Transmission
If your vehicle is equipped with an automatic transmission, regularly
inspect the transmission’s neutral start switch. The engine should only
start in the N (Neutral) or P (Park) positions.
WARNING:If the unit starts in gear and/or the neutral start
switch is not functioning correctly, the vehicle may inadvertently
move which could result in property damage, personal injury or death.
Inspect the transmission fluid level and shift linkage for proper
operation.
Vehicle Inspection Guide
19
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

WARNING LIGHTS AND CHIMES
Base instrument cluster for diesel engine with standard measure
shown; metric similar
Base instrument cluster for gasoline engine with standard
measure shown; metric similar
Warning lights can alert you to a vehicle condition that may become
serious enough to cause expensive repairs by illuminating when a
problem exists with one of your vehicle’s systems. Many lights illuminate
Instrument Cluster
20
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

when you start your vehicle to make sure the bulb works. If any light
remains on after starting the vehicle, refer to the respective system
warning light for additional information.
Note:Some warning lights are
reconfigurable telltale (RTT)
indicator lights and illuminate in the
message center. These lights
function the same as the other
warning lights.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light is also illuminated.
Brake system warning light:To
confirm the brake system warning
light is functional, it momentarily
illuminates when the ignition is
turned to the on position when the
engine is not running, or in a
position between on and start, or by
applying the parking brake when the
ignition is turned to the on position.
If the brake system warning light does not illuminate at this time, seek
service immediately from your authorized dealer. Illumination after
releasing the parking brake indicates low brake fluid level and the brake
system should be inspected immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It takes you longer to stop the vehicle. Have
the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
ABS
Instrument Cluster
21
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Charging system:Illuminates when
the battery is not charging properly.
If it stays on while the engine is
running, there may be a malfunction
with the charging system or a related component. Contact your
authorized dealer as soon as possible.
Check fuel cap (gasoline engine
only):Illuminates when the fuel cap
may not be properly installed.
Continued driving with this light on
may cause the service engine soon
warning indicator to illuminate.
Check suspension (if equipped):
Illuminates when the air suspension
dump switch has been activated.
Check trans (Allison automatic
transmission only):Illuminates
while driving if a problem has been
detected and shifting may be
restricted. Depending upon the
severity of the problem, the
read-out digit on the shifter display
may be blank.
On MD 3000 series transmissions,operation may continue in order to
reach service assistance. The ECU may not respond to shift selector
requests, since operating limitations are being placed on the
transmission, i.e. upshifts and downshifts may be restricted. Direction
changes do not occur.
Refer to your transmission operator’s manual for more information.
Diesel exhaust fluid (diesel
engine only):Illuminates when the
diesel exhaust fluid level falls below
0.5 gallon (1.9L) in the 5 gallon
(19.0L) tank or 1 gallon (3.8L) in
the 9 gallon (34.0L) tank. Refill the
tank or, at a minimum, add at least
1 gallon (3.8L) to the 5 gallon
(19.0L) tank or 2 gallons (7.6L) to the 9 gallon (34.0L) tank.
Instrument Cluster
22
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Diesel particulate filter (diesel
engine only):Illuminates when the
soot level in the DPF has reached a
point where it requires operator
assistance. Refer toDiesel
particulate filterin the
Maintenance and Specifications
chapter and your engine operator’s
manual, for more details.
Do not shift (Allison automatic
transmission only):Illuminates
while driving if a problem has been
detected and shifting may be
restricted. Depending upon the
severity of the problem, the
read-out digit on the shifter display
may be blank. Operation may
continue in order to reach service assistance. The ECU may not respond
to shift selector requests, since operating limitations are being placed on
the transmission, i.e. upshifts and downshifts may be restricted.
Direction changes do not occur.
Refer to your transmission operator’s manual for more information.
Electronic locking differential
(if equipped):Displays when using
the electronic locking differential.
Engine oil pressure (gasoline
engine only):Illuminates when
engine oil pressure is low.
High beams:Illuminates when the
high-beam headlamps are turned on.
Instrument Cluster
23
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

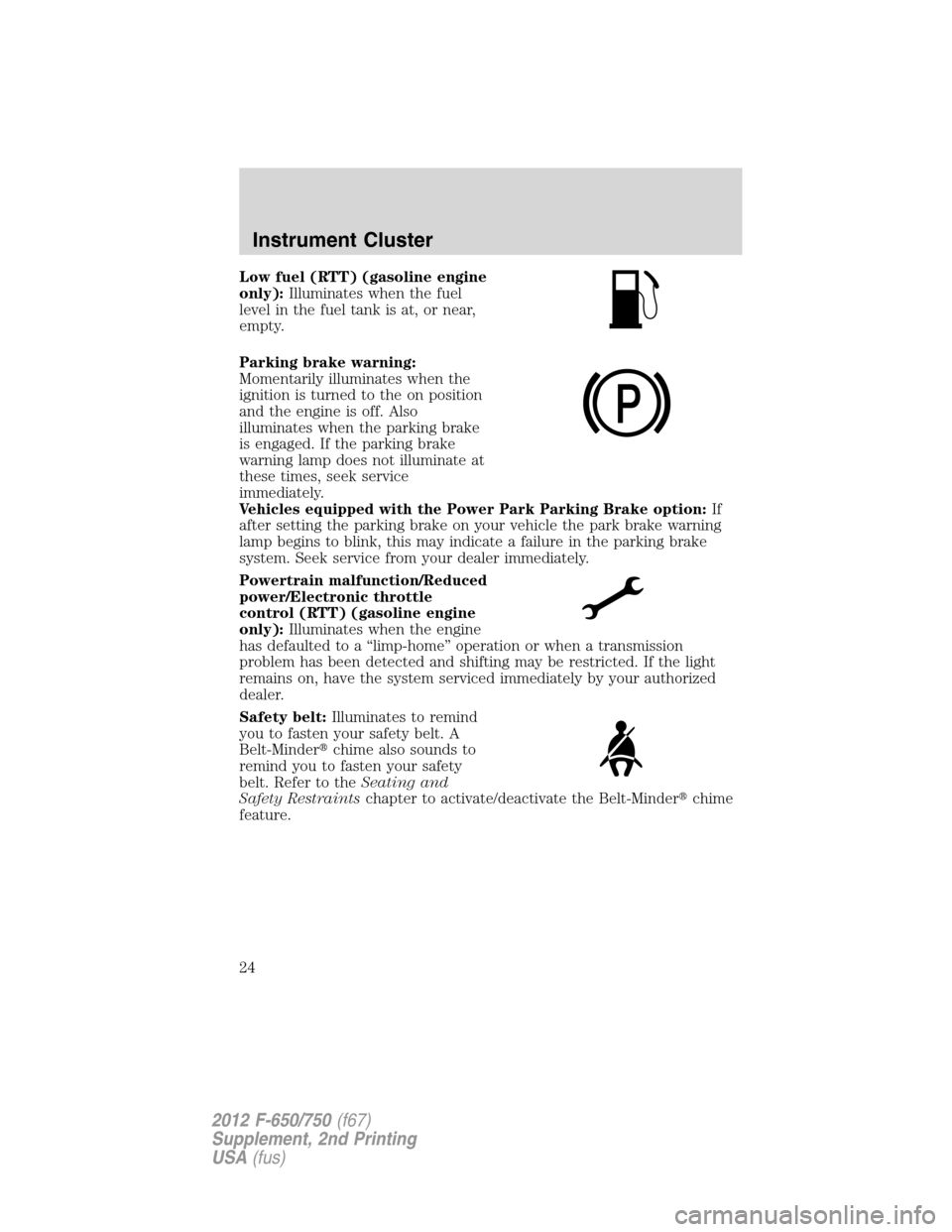

Low fuel (RTT) (gasoline engine
only):Illuminates when the fuel
level in the fuel tank is at, or near,
empty.
Parking brake warning:
Momentarily illuminates when the
ignition is turned to the on position
and the engine is off. Also
illuminates when the parking brake
is engaged. If the parking brake
warning lamp does not illuminate at
these times, seek service
immediately.
Vehicles equipped with the Power Park Parking Brake option:If
after setting the parking brake on your vehicle the park brake warning
lamp begins to blink, this may indicate a failure in the parking brake
system. Seek service from your dealer immediately.
Powertrain malfunction/Reduced
power/Electronic throttle
control (RTT) (gasoline engine
only):Illuminates when the engine
has defaulted to a “limp-home” operation or when a transmission
problem has been detected and shifting may be restricted. If the light
remains on, have the system serviced immediately by your authorized
dealer.
Safety belt:Illuminates to remind
you to fasten your safety belt. A
Belt-Minderchime also sounds to
remind you to fasten your safety
belt. Refer to theSeating and
Safety Restraintschapter to activate/deactivate the Belt-Minderchime
feature.
P
Instrument Cluster
24
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
