2012 Citroen DS4 Owner's Manual

151Fittings
230 V/50 Hz power socket

A 230 V/50 Hz socket (maximum power: 120 W)
is fitted to the centre console.
To use the socket:)lift the front armrest cover for access to itscompartment,)check that the warning lamp is on green, )connect your multimedia or other electricaldevice (telephone charger, laptop computer,CD-DVD player, baby food warmer...).
This socket works with the engine running, as
well as in ST
OP mode on Stop & Star t.
In the event o
f a fault with the socket, the green
warning lamp flashes.
Have it checked by a CITROËN dealer or a qualified workshop.
Connect only one device at a time to the socket (no extension or multi-wayconnector).Connect only devices with class IIinsulation (shown on the device). As a safety measure, when electricalconsumption is high and whenrequired by the vehicle's electrical system (particular weather conditions, electrical overload...), the current
supply to the socket will be cut off;the green warning lamp goes off.







12 V accessory
socket
) To connect a 12 V accessory (max power: 120 W), lift the cover and connect a suitable adaptor.

Mats Removable carpet protection.
When fittin
g the mat for the first time, on the
driver's side use only the fixings provided in
the wallet attached. The other mats are simply placed on the carpet.
Fitting
Removal
To remove the mat on the driver's side: )
move the seat as far back as possible,
)
unclip the fixings,)
remove the mat.



Refitting

To refit the mat on the driver's side:)
position the mat correctly, )
refit the fixings by pressing,)
check that the mat is secured correctly.


To a v o i d a ny risk of jamming of the pedals:


- only use mats which are suitedto the fixings already present in the vehicle; these fixings must beused,

- never fit one mat on top of another.
The use of mats not approved by CITROËN may inter fere with access tothe pedals and hinder the operation of the cruise control/speed limiter.

Fittings
)Raise the front of the drawer and pull it open.






Storage drawers
Located under each front seat, except for the driver's seat on versions with electric seat.
Removal
Avoid removing the drawer completely, as refitting it is not easy.
)
Open the drawer fully. )
Pull the drawer upwards to disengage it.



Opening
Refittin
g
However, if it has been completely removed, to refit it: ) use the torch to illuminate the area under
the seat,
) engage the drawer in its runners,)
lift the retaining tongues and slide the
drawer under these tongues, ) at the end of its travel, press down on thedrawer to engage it.


Do not place heavy objects in the drawer.

) Lower the rear armrest.)
Pull the flap handle downwards. )
Lower the flap.
)
Load the objects from inside the boot.










Ski fl ap
Arrangement for storing and transporting longobjects.


Opening
)Lower the rear armrest for a morecomfortable position.
This also gives access to the ski flap.





Rear armrest Comfor t system for the rear passengers.

155
Fittings

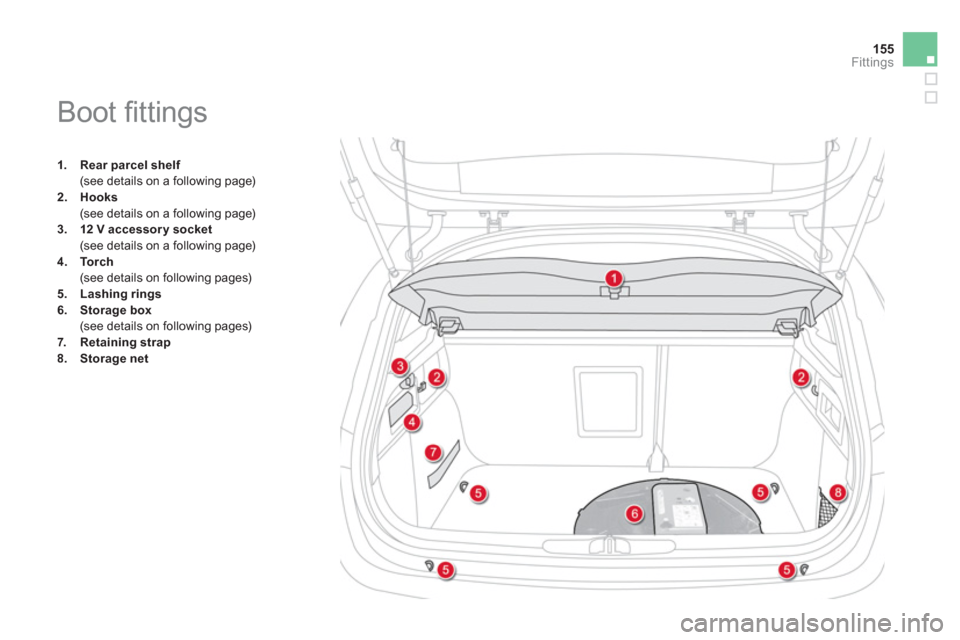

1.Rear parcel shelf
(see details on a following page)2.Hooks
(see details on a following page)
3.12 V accessory socket (see details on a following page)4. Torch
(see details on following pages)
5.Lashing rings
6.Storage box (see details on following pages)
7.Retaining strap8.Storage net

















Boot fi ttings

To remove the shelf: )unhook the two cords, )raise the shelf slightly, then remove it.
There are several options for storing the shelf:
- either upright behind the front seats,
- or flat at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shoppingbags.
Hooks


Access to the storage box

An additional hook under the shelf is used to hold up the boot floor using its cord, to facilitate access to the tools and spare wheel or the temporarypuncture repair kit...

157
Fittings
)To connect a 12 V accessory(max power: 120 W), remove the cap andconnect an appropriate adaptor. )Turn the key to the ignition on position.
12 V acc essory socket
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Torch


Operation

This torch operates with NiMH type
rechargeable batteries.
It has a batter
y life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting therechargeable batteries. Never replace the rechargeable batterieswith normal disposable batteries.

Use
)Extract the torch from its location pulling it upwards.)Press the switch, located on the back,
to switch the torch on or off. )Unfold the suppor t, located on the back,
to set down and raise the torch; for
example, when changing a wheel.



Storing
)
Put the torch back in place in its locationstarting with the lower part.
If you have forgotten to switch off the torch,
this switches it off automatically.
Storage box
)Raise the boot carpet for access to
the storage box.
This has areas for the storage a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporarypuncture repair kit...
It the torch is not engaged correctly, it may not charge and may not come onwhen the boot is opened.
