2012 Citroen DS4 Owner's Manual

271Practical information














12 V battery
Procedure for starting the engine using another battery or for charging your flat battery.
The battery is located under the bonnet.
For access to the (+) terminal:
) Release the bonnet using the interior lever,
then the exterior safety catch, ) raise the bonnet and secure it with its stay, )
lift the plastic cover for access to the (+)
terminal.
Access to the battery

After refitting the battery, the Stop & Start system will only be active after acontinuous period of immobilisation of the vehicle, a period which depends on the climatic conditions and the state of charge of the battery (up to about 8 hours).
The presence of this label, in particular with the Stop & Star t system, indicatesthe use of a 12 V lead-acid battery withspecial technology and specification;
the involvement of a CITROËN dealer or a qualified workshop is essential when replacing or disconnecting the battery.

Check that the battery posts and terminals are clean. If they are coveredwith sulphate (white or green deposit), disconnect them and clean them.


Batteries contain harmful substancessuch as sulphuric acid and lead. Theymust be disposed of in accordancewith regulations and must not, in any circumstances, be discarded with household waste. Ta k e used cell batteries and vehiclebatteries to an authorised collection point.



Before doing any work
Immobilise the vehicle: apply theparking brake, put the gearbox inneutral *
, then switch off the ignition. Check that all electrical equipment is switched off.


*
or position Pfor an automatic gearbox.

can be star ted using a slave battery (external or
in another vehicle
) and jump leads.
Starting using another
battery
)Connect the red lead to the (+) terminal of
the flat battery A, then to the (+) terminal of
the slave battery B.)Connect one end of the green or black lead
to the (-) terminal of the slave battery B (or
the ear th point on the slave vehicle). )Connect the other end to the ear th point Con the broken-down vehicle.)Star t the engine on the slave vehicle andleave the engine running for a few minutes.

First ensure that the slave battery has anominal voltage of 12 V and a capacityat least equal to that of the flat battery.
Do not try to star t the engine by connecting a battery charger.
Do not disconnect the (+) terminal when the engine is running.
)
Operate the star ter on the broken-down
vehicle and leave the engine running.
I
f the engine does not star t straight away, switch off the ignition and wait a few
moments before trying again.) With the engine idling, disconnect the jumpleads in reverse order.
)Position the open clamp Eof the cable on
the positive post (+) of the battery. )Press down on the clamp to position itcorrectly on the battery post. )Lock the clamp by lowering the lever D .


Reconnecting the (+)
term
inal
Disconnectin
g the (+)
terminal
)Raise the lever D
fully to release the clamp E.


Do not force the lever as locking will not be possible if the clamp is not positioned
correctly; star t the procedure again.

273Practical information

Charging the battery using
a battery charger

If the battery of your vehicle is flat or prior
to taking the vehicle out of ser vice for an extended period, you can charge the battery
using a battery charger.
For information on the specification of batterychargers compatible with your battery, refer to
a CITROËN dealer or a qualified workshop.

The Stop & Start battery does not haveto be disconnected for charging.


Reinitialisation after
reconnection
After any reconnection of the battery, switch on
the ignition and wait at least one minute before
starting, to allow time for the initialisation of theelectronic systems.
By referring to the corresponding sections, you should set or initialise the following systems yourself:


- one-touch electric windows,

- time and date,

- audio and navigation system settings.

It is recommended that the battery be disconnected if the vehicle is not be used for more than a month.

Check that no aler t message or warning lamp comes on after switching on the ignition.
However, if minor problems persist after carrying out these operations, contact a CITROËN dealer or a qualified workshop.



Before disconnecting
)Go to the battery. )Check that all of the openings - doors, boot... - are closed but not locked.)Wait at least four minutes after switchingoff the ignition.
Charging
)
Disconnect the (+)terminal. )
Follow the instructions on use provided by
the manufacturer of the charger.) Connect the red cable of the charger to the (+) post of the battery, then the black cable
to the (-) terminal.) Once charging is complete, disconnect thecharger cables in reverse order.
The charging operation must be carried outin a well ventilated area and well away from naked flames and sources of sparks, so as to avoid any risk of explosion and fire. Do not try to charge a frozen battery; the
battery must first be thawed out to avoid any risk of explosion. If the battery hasfrozen, before charging, have it checkedby a CITROËN dealer or a qualified workshop, who will ensure that the internal components have not been damaged and that the casing is not cracked, which wouldintroduce the risk of a leak of toxic and corrosive acid.

Energy economy mode System which manages the period of use of cer tain functions to conser ve a sufficient level of charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of thirty
minutes.
This period may be greatly reduced if the battery is not fully charged.
A flat battery prevents the engine from
starting (refer to the corresponding paragraph).
If the telephone is being used at the same time on the navigation system, it will be interrupted after 10 minutes.


Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the vehiclehas switched to economy mode and the activefunctions are put on standby.

Exiting economy mode

These functions are reactivated automaticallythe next time the vehicle is driven. )In order to resume the use of these functions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running. However, this period will always be between
five and thir ty minutes.








Load reduction mode System which manages the use of certainfunctions according to the level of chargeremaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates cer tain functions, such as the air conditioning,
th
e heated rear screen...
The deactivated functions are reactivated automatically as soon as conditions permit.

275
Practical information

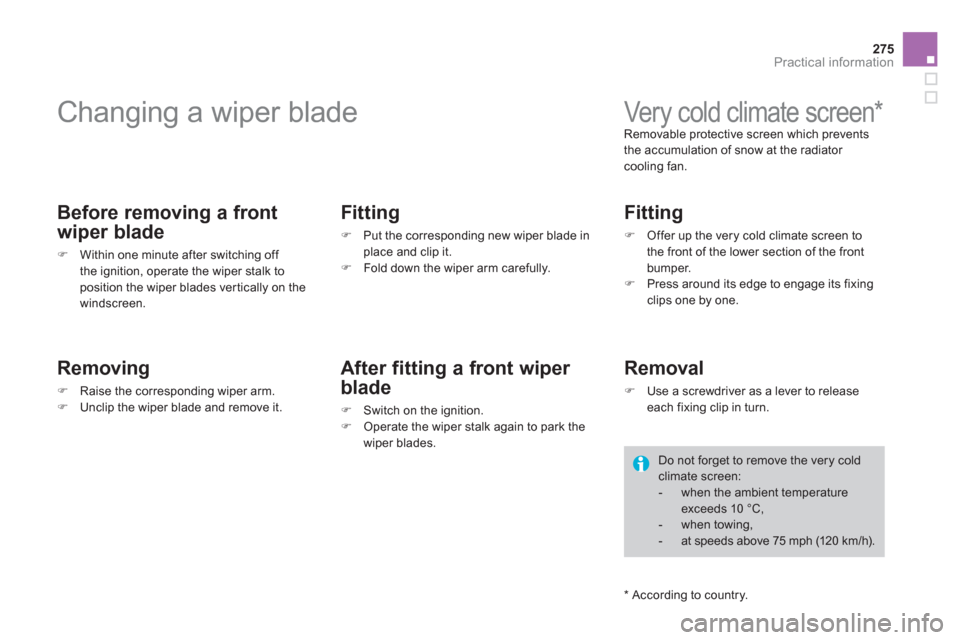

Changing a wiper blade


Before removing a front
w
iper blade
)Within one minute after switching off
the ignition, operate the wiper stalk toposition the wiper blades ver tically on the
windscreen.

Removing
)Raise the corresponding wiper arm.)Unclip the wiper blade and remove it.
Fitting
)
Put the corresponding new wiper blade in
place and clip it.
) Fold down the wiper arm carefully.
After fitting a front wiper
blade
)
Switch on the ignition. )
Operate the wiper stalk again to park the
wiper blades.










Very cold climate screen * Removable protective screen which prevents
the accumulation of snow at the radiator
cooling fan.

Fitting
)
Offer up the very cold climate screen to
the front of the lower section of the frontbumper. ) Press around its edge to engage its fixingclips one by one.



Removal
)
Use a screwdriver as a lever to releaseeach fixing clip in turn.

* Accordin
g to country.

Do not forget to remove the very coldclimate screen:


- when the ambient temperature exceeds 10 °C,

- when towing,

- at speeds above 75 mph (120 km/h).

Fitting roof bars
For safety reasons and to avoid damaging the roof, it is essential to use the transverse barsapproved for your vehicle.
When
fitting roof bars, use only the four fixing points located in the roof frame. The points are
masked by the vehicle doors when closed.
Remove the protective covers, levering them
off with a screwdriver. Take care not to scratch
the paint.
The roof bar fixin
gs include a stud to be fitted to
the hole at each fixing point.
Observe the fitting instructions and theconditions of use in the guide supplied with the bars.
Keep the protective covers safe so that theycan be refitted after removing the roof bars.


Maximum authorised weight on the roof rack, for a loading height not exceeding40 cm (with the exception of bicycle
carriers): 55kg. As this value is subject to change, check the maximum load figure given inthe guide provide d with the roof bars.
If the height exceeds 40 cm, adapt thespeed of the vehicle to the profile of theroad to avoid damaging the roof bars and the fixings on the vehicle.
Be sure to refer to national legislation in order to comply with the regulations for transporting objects which are longer than the vehicle.

Practical information





Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

The towing eye is installed in the boot under
the floor.
To
gain access to it: )open the boot, )raise the floor,)secure it by hooking its cord on the hook on
the rear parcel shelf suppor t,
)remove the towing eye from the holder.

Access to the tools
General
recommendations
Obser ve the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towedvehicle.The driver must stay at the wheel of thetowed vehicle. Driving on motorways and fast roads is prohibited when towing.When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering.

In the following cases, you must always callon a professional recovery service:


- vehicle broken down on a motor way or fast road,

- when it is not possible to put the gearbox into neutral, unlock the steering, or releasethe parking brake,

- towing with only two wheels on the ground,

- where there is no approved towing bar available...

)On the front bumper, unclip the cover by pressing at the bottom. )Screw the towing eye in fully. )Install the towing bar.
)On the rear bumper, unclip the cover by pressing at the bottom. )Screw the towing eye in fully. )Install the towing bar. )Switch on the hazard warning lamps on both vehicles.)Move off gently, drive slowly and for a shor t distance.
To w i ng your vehicle
To w i ng another vehicle
)Place the gear lever in neutral (position Non the electronic gearbox system or automatic gearbox). Failure to observe this instructioncould result in damage to certain components (braking, transmission...) and the absence of braking assistance the next time the engine is started.
)
Unlock the steering by turning the key in the ignition one notch and release the
parking brake.) Switch on the hazard warning lamps onboth vehicles. )
Move off gently, drive slowly and for a shor tdistance.
