2012 Citroen C5 RHD Owner's Manual

IV
71
ACCESS


)
First press button A
to fold the
key.









Locating your vehicle



)
Press the closed padlock to lo-
cate your locked vehicle in a car
park.
This is indicated by switching on
of the interior lighting and fl ash-
ing of the direction indicators for a
few seconds.
The vehicle remains locked.







Guide-me-home lighting










Anti-theft protection


Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a fault,
you are informed by
illumination of this
warning lamp, an au-
dible signal and a message in the
screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.


Folding the key
A press on button B
oper-
ates the guide-me-home
lighting (lighting of the side-
lamps, dipped beams and
number plate lamps).
A second press before the end of
the timing cancels the guide-me-
home lighting.
The timed duration can be set via the
"Lighting" menu on the "Main Menu"
of the instrument panel screen.

IV
72
ACCESS

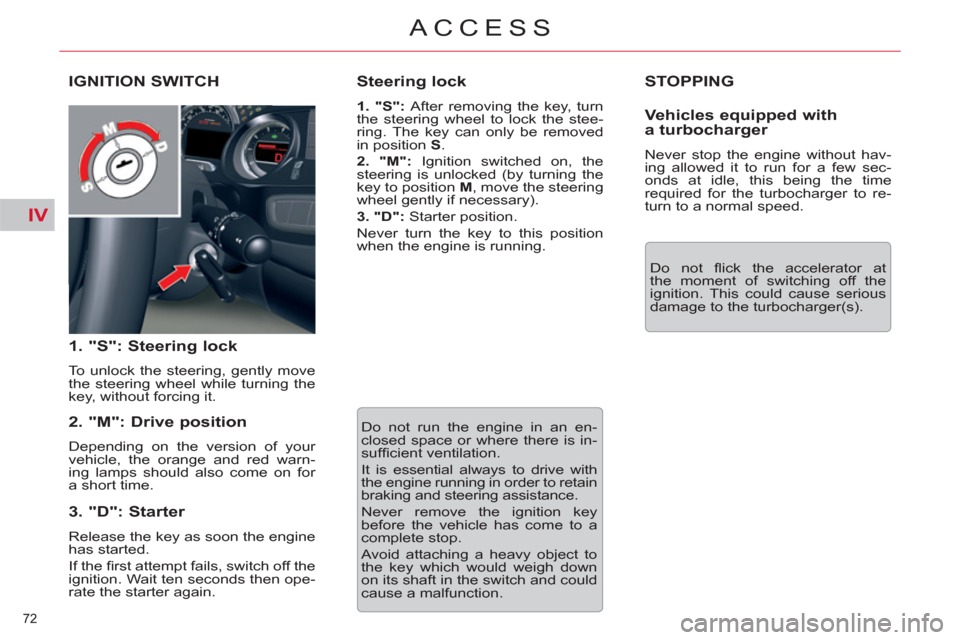

STOPPING

Do not fl ick the accelerator at
the moment of switching off the
ignition. This could cause serious
damage to the turbocharger(s).















IGNITION SWITCH


1. "S": Steering lock

To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.


2. "M": Drive position

Depending on the version of your
vehicle, the orange and red warn-
ing lamps should also come on for
a short time.


3. "D": Starter

Release the key as soon the engine
has started.
If the fi rst attempt fails, switch off the
ignition. Wait ten seconds then ope-
rate the starter again.


Steering lock


1. "

S":
After removing the key, turn
the steering wheel to lock the stee-
ring. The key can only be removed
in position S
.

2. "M":
Ignition switched on, the
steering is unlocked (by turning the
key to position M
, move the steering
wheel gently if necessary).

3. "D":
Starter position.
Never turn the key to this position
when the engine is running.

Do not run the engine in an en-
closed space or where there is in-
suffi cient ventilation.
It is essential always to drive with
the engine running in order to retain
braking and steering assistance.
Never remove the ignition key
before the vehicle has come to a
complete stop.
Avoid attaching a heavy object to
the key which would weigh down
on its shaft in the switch and could
cause a malfunction.

Vehicles equipped with
a turbocharger
Never stop the engine without hav-
ing allowed it to run for a few sec-
onds at idle, this being the time
required for the turbocharger to re-
turn to a normal speed.

IV
73
ACCESS















Operating fault

Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control fault, you can no
longer unlock, lock or locate your
vehicle.


)
First of all, use the key in the lock
to unlock or lock your vehicle.

)
Then, reinitialise the remote con-
trol.


If the problem persists, contact a
CITROËN dealer or a qualifi ed work-
shop as soon as possible.

Reinitialisation


)
Switch off the ignition.

)
Turn the key to position 2 (Drive)
.

)
Press the closed padlock imme-
diately for a few seconds, until
the operation requested is trig-
gered.

)
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers or a
qualifi ed workshop.
If the battery is fl at,
you are informed by
illumination of this
warning lamp, an au-
dible signal and a message in the
multifunction screen.


)
Unclip the casing using a coin at
the notch.

)
Slide the fl at battery out of its
location.

)
Slide the new battery into its
location observing the original
direction.

)
Clip the casing.

)
Reinitialise the remote control.


Changing the battery

IV
74
ACCESS














Lost keys

Visit a CITROËN dealer with the vehi-cle's V5 registration document and your personal identifi cation documents.
The CITROËN dealer will be able to
retrieve the key code and the transpon-
der code required to order a replace-
ment key.


Remote control

The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,
except for reinitialisation.


Locking the vehicle

Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.


Anti-theft protection

Do not make any modifi cations to the
electronic engine immobiliser sys-
tem; this could cause malfunctions.


When purchasing
a second-hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.









Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

IV
!
75
ACCESS





ALARM *

System which protects and provides
a deterrent against theft and break-
ins. It provides the following types of
monitoring:


- Exterior perimeter
The system checks for opening of
the vehicle.
The alarm is triggered if anyone tries
to open a door, the boot, the bonnet...




- Interior volumetric
The system checks for any variation
in the volume in the passenger com-
partment.
The alarm is triggered if anyone breaks a window, enters the passenger com-
partment or moves inside the vehicle.




- Tilt
The system checks for any change
in the attitude of the vehicle.
The alarm is triggered if the vehicle
is lifted, moved or knocked.



Self-protection function
The system checks for the
putting out of service of its
components.
The alarm is triggered if the bat-
tery, the central control or the si-
ren wiring are put out of service or
damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualifi ed workshop.


Locking the vehicle with full
alarm system

Activation


)
Switch off the ignition and get out
of the vehicle.

)
Press the locking button on the
remote control.
The monitoring system is active: the
indicator lamp in the button fl ashes
once per second.
After the locking button on the re-
mote control is pressed, the exterior
perimeter monitoring is activated
after a delay of 5 seconds and the
interior volumetric and anti-tilt moni-
toring after a delay of 45 seconds.
If an opening (door, boot...) is not
closed fully, the vehicle is not locked
but the exterior perimeter monitor-
ing will be activated after a delay of
45 seconds at the same time as the
interior volumetric and anti-tilt moni-
toring.
Deactivation


)
Press the unlocking button on
the remote control.
The alarm system is deactivated: the
indicator lamp in the button goes off.



Locking the vehicle with
exterior perimeter monitoring
only
Deactivate the interior volumetric
and anti-tilt monitoring to avoid un-
wanted triggering of the alarm in
certain cases such as:


- leaving a pet in the vehicle,

- leaving a window partially open,

- washing your vehicle,

- changing a wheel,

- having your vehicle towed,

- transport by sea.

Deactivation of the interior
volumetric and anti-tilt
monitoring


)
Switch off the ignition.

)
Within ten seconds, press the
button until the indicator lamp is
on continuously.

)
Get out of the vehicle.

)
Press the locking button on the
remote control immediately.

The exterior perimeter monitoring
alone is activated: the indicator lamp in
the button fl ashes once per second.

To be effective, this deactivation
must be carried out each time the
ignition is switched off.

*
According to country.

IV
76
ACCESS

Reactivation of the interior
volumetric and anti-tilt
monitoring


)
Press the unlocking button on the
remote control to deactivate the
exterior perimeter monitoring.

)
Press the locking button on the
remote control to activate all the
monitoring functions.
The indicator lamp in the button
again fl ashes once per second.



Triggering of the alarm


This is indicated by sounding of the
siren and fl ashing of the direction in-
dicators for thirty seconds.
The monitoring functions remain
active until the alarm has been trig-
gered eleven times in succession.
When the vehicle is unlocked using
the remote control, rapid fl ashing of
the indicator lamp in the button in-
forms you that the alarm was trig-
gered during your absence. When
the ignition is switched on, this fl ash-
ing stops immediately.



Failure of the remote control

To deactivate the monitoring func-
tions:



)
Unlock the vehicle using the key
in the driver's door lock.

)
Open the door; the alarm is trig-
gered.

)
Switch on the ignition; the alarm
stops. The indicator lamp in the
button goes off.




Locking the vehicle without
activating the alarm



)
Lock or deadlock the vehicle us-
ing the key in the driver's door
lock.




Operating fault


When the ignition is switched on,
fi xed illumination of the indicator
lamp in the button indicates a fault
with the system.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.



Automatic activation *


2 minutes after the last door or the
boot is closed, the system is activat-
ed automatically.


)
To avoid triggering the alarm on
entering the vehicle, fi rst press
the unlocking button on the re-
mote control.


*
According to country.

IV
77
ACCESS

















ELECTRIC WINDOWS



1.
Driver's electric window control.

2.
Passenger's electric window
control.


3.
Rear right electric window
control.


4.

Rear left electric window control.


5.
Deactivation of the rear electric
window and door controls.



One-touch electric windows

There are two options:


- manual mode



)
Press or pull the control gently.
The window stops when the
control is released.

- automatic mode



)

Press or pull the control fi rmly.
The window opens or closes fully
when the control is released.

)
Pressing the control again stops
the movement of the window.

The electric window controls re-
main operational for approximately
45 seconds after the ignition is
switched off or until the vehicle is
locked after a door is opened.
If one of the passenger windows
cannot be operated from the driver's
door control panel, carry out the op-
eration from the control panel of the
passenger door concerned, and vice
versa.
Safety anti-pinch
When the window rises and meets
an obstacle, it stops and partially
lowers again.
If the window cannot be closed (for
example, in the presence of ice),
immediately after the movement is
reversed:


)
press and hold the control until
the window opens fully,

)
then pull the control immediately
and hold it until the window
closes,

)
continue to hold the control for
approximately one second after
the window has closed.

The safety anti-pinch function
is not operational during these
operations.

IV
78
ACCESS

Reinitialisation
If a window does not rise automati-
cally, its operation must be reini-
tialised:


)
pull the control until the window
stops,

)
release the control and pull it
again until the window closes
fully,

)
continue to hold the control for
approximately one second after
the window has closed,

)
press the control to lower the
window automatically to the low
position,

)
when the window has reached
the low position, press the con-
trol again for approximately one
second.

The safety anti-pinch function
is not operational during these
operations.




Deactivation of the rear
electric window and door
controls


)
For the safety of your children,
press control 5
to deactivate the
rear electric window controls re-
gardless of their position.
Indicator lamp on, the rear controls
are deactivated.
Indicator lamp off, the rear controls
are activated. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. A message in the instrument panel
screen informs you of the activation/
deactivation of the control. This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety - §
Electric child lock").
Any other status of the indicator
lamp indicates a fault with the elec-
tric child lock.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
