TECHNICAL DATA


WEIGHTS AND TOWED LOADS (SALOON) in kg



Diesel engines


HDi 160



HDi 200



V6 HDi 240



Gearboxes


Manual



Automatic



Automatic



Automatic



Model codes

:
RD...


RHH-RHE

-
RHD/8



RHH-RHE-
RHD/A



4HL/A



X8Z/A




- Unladen weight
1 563
1 609
1 731
1 766


- Kerb weight
1 638
1 684
1 806
1 841


- Gross vehicle weight (GVW)
2 156
2 190
2 231
2 276


- Gross train weight (GTW)
3 656
3 290
3 831
3 676


- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient
1 500
1 100
1 600
1 400


- Braked trailer * (with load transfer within
GTW limit)
1 740
1 390
1 820
1 650


- Unbraked trailer
750
750
750


- Recommended nose weight
70
57
73
67
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx.) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *

The weight of the braked trailer can be increased within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
216
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (TOURER) in kg



Diesel engines


HDi 110



e-HDi 110



HDi 140



Gearboxes


Manual





Electronic gearbox system




Manual



Model codes:
RW...


9HL
/ 8



9HR
/ 8



RHR-RHF/H-8




- Unladen weight
1 538
1 540
1 655


- Kerb weight
1 613
1 615
1 730


- Gross vehicle weight (GVW)
2 153
2 174
2 276


- Gross train weight (GTW)
3 153
3 174
3 776


- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient
1 000
1 000
1 500


- Braked trailer * (with load transfer within GTW
limit)
1 300
1 300
1 800


- Unbraked trailer
750
750
750


- Recommended nose weight
53

54
72
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *

The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
217
TECHNICAL DATA


WEIGHTS AND TOWED LOADS (TOURER) in kg



Diesel
engines


HDi 160



HDI 200



V6 HDi 240



Gearboxes


Manual



Automatic



Automatic



Automatic



Model codes:
RW...


RHH-RHE-
RHD/8



RHH-RHE-
RHD/A



4HL/A



X8Z/A




- Unladed weight
1 595
1 642
1 767
1 763


- Kerb weight
1 670
1 717
1 842
1 838


- Goss vehicle weight (GVW)
2 238
2 286
2 367
2 347


- Gross train weight (GTW)
3 638
3 286
3 967
3 647


- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient
1 400
1 000
1 600
1 300


- Braked trailer * (with load transfer within
GTW limit)
1 670
1 290
1 890
1 570


- Unbraked trailer
750
750
750


- Recommended nose weight
67
53
76
63
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your
country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed. *

The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

XII
218
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
* The kerb weight is equal to the unladen weight + the driver (75 kg).

**
Exceeding the maximum weight on the rear axle when towing involves restricting the maximum speed to 80 km/h (approxi-
mately 50 mph) as defi ned by point 2.7 of the EU Directive.

***
Exceeding the gross vehicle weight when towing involves restricting the maximum speed to 80 km/h (approximately
50 mph) as defi ned by point 2.7 of the EU Directive.

****
Maximum braked trailer weight within the GTW limit; warning, towing with a lightly loaded towing vehicle may have
an adverse effect on its road holding.

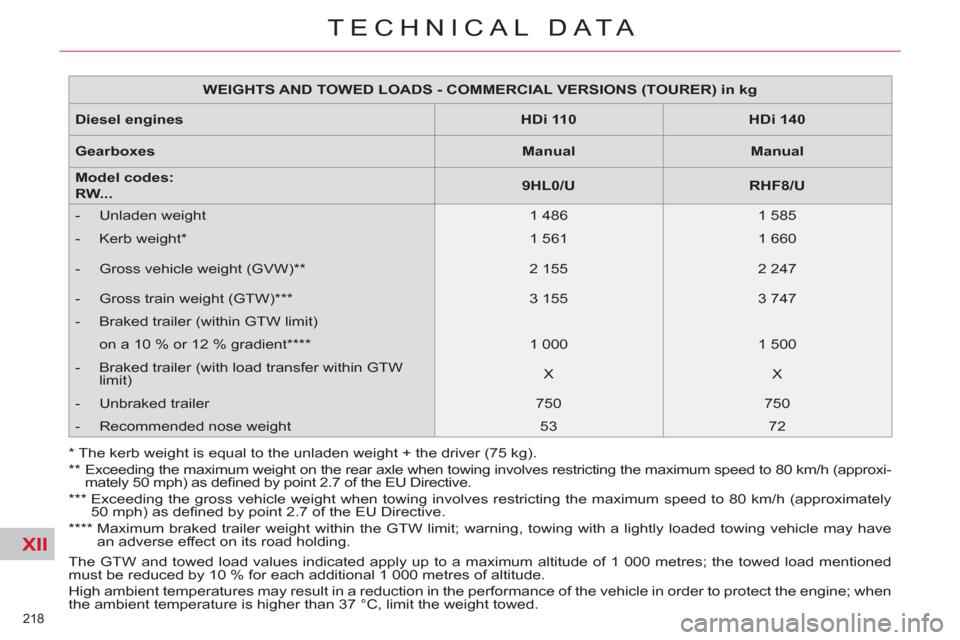

WEIGHTS AND TOWED LOADS - COMMERCIAL VERSIONS (TOURER) in kg


Diesel engines

HDi 110


HDi 140


Gearboxes

Manual


Manual


Model codes:
RW...

9HL0
/U


RHF8/U



- Unladen weight
1 486
1 585


- Kerb weight *

1 561
1 660


- Gross vehicle weight (GVW) **

2 155
2 247


- Gross train weight (GTW) ***

3 155
3 747


- Braked trailer (within GTW limit)


on a 10 % or 12 % gradient ****
1 000
1 500


- Braked trailer (with load transfer within GTW
limit)
X
X


- Unbraked trailer
750
750


- Recommended nose weight
53
72

XII
219
TECHNICAL DATA

* Without roof bars.



























DIMENSIONS (IN MM)


Exterior (Saloon)



A

2 815


B

1 054


C

910


D

4 779


E

1 586


F

2 096


G

1 557


H

1 860


I
*

1 451

XII
220
TECHNICAL DATA

Interior (Saloon)



A

1 030


B

1 115


C

566


D

504


E

1 040


F

1 705

XII
221
TECHNICAL DATA

Exterior (Tourer)



A

2 815


B

1 054


C

959


D

4 829


E

1 586


F

2 096


G

1 557


H

1 860


I
*

1 479
*
Without roof bars.

XII
222
TECHNICAL DATA

Interior (Tourer)



A

1 060


B

1 115


C

510


D

851


E

1 058


F



1 723
