IX
!
132
DRIVING
If any of these instances arises, contact a CITROËN dealer or a qualifi ed workshop as soon as possible.
SITUATION
CONSEQUENCES
1
Electric parking brake problem and display
of message " Parking brake faulty
" and the
following warning lamps: If the electric parking brake problem warning lamp and the service
warning lamp come on, position the vehicle in a safe location
(on fl at ground, with a gear engaged).
2
Display of the messages " Parking brake
faulty
" and " Anti roll-back
fault
" and of the
following warning lamps:
- The automatic functions are deactivated.
- The hill start assist is not available.
- The electric parking brake is only available manually.
3
Display of messages " Parking brake faulty
"
and " Anti roll-back
fault
" and of the
following warning lamp:
- Manual release of the electric parking brake is not available.
- The hill start assist is not available.
- The automatic functions and manual application are still available.
Operating faults
Page 135 of 316
IX
133
DRIVING
SITUATION
CONSEQUENCES
4
Display of messages " Parking brake faulty
"
and " Anti roll-back
fault
" and of the
following warning lamps:
and/or
fl ashing
- The automatic functions are deactivated.
- The hill start assist is not available.
To apply the electric parking brake:
)
Immobilise the vehicle and switch off the ignition
)
Pull the control lever for at least 5 seconds or until maximum
application.
)
Switch on the ignition and check that the electric parking brake
warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp (!)
fl ashes or if the warning lamps do not come
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer or a qualifi ed workshop.
To release the electric parking brake:
)
Switch on the ignition.
)
Push the control lever and hold it for approximately 3 seconds.
5
Display of message " Parking brake control
faulty – automatic mode activated
" and
the following warning lamps:
and/or
fl ashing
- Only the functions for automatic application on switching off
the engine and automatic release on acceleration are
available.
- Manual application/release of the electric parking brake and
dynamic emergency braking are unavailable.
6
Display of message " Parking brake faulty
"
and of the following warning lamp:
fl ashing
- Application of the parking brake is not guaranteed.
- The parking brake is temporarily unavailable.
It this situation arises:
)
Wait approximately 3 minutes.
)
After 3 minutes, if the warning lamp is still fl ashing, try to
reinitialise the parking brake, either by pushing and releasing
the control A
while pressing the brake pedal or by means of a
long pull on control lever A
.
7
Battery problem
-
Illumination of the battery warning lamp makes it essential to stop the
vehicle as soon as traffi c allows. Stop and immobilise your vehicle.
- Apply the electric parking brake before switching off the engine.
Page 140 of 316
IX
138
DRIVING
The position of the gear lever the the
driving mode are displayed in dial C
of the instrument panel.
A selection grille alongside the gear
lever also allows you to see the se-
lected position.
Displays in the instrument panel
Moving off
)
To start the engine, the gear le-
ver must be in position N
.
)
Press the brake pedal down fully.
)
Operate the starter
.
N
appears in the instrument panel
screen.
N
fl ashes in the instrument panel,
accompanied by an audible signal
and a message in the multifunction
screen, if the gear lever is not in
position N
on starting.
)
Select fi rst gear (position M
or A
)
or reverse (position R
).
)
Release the parking brake un-
less it is programmed in auto-
matic mode.
)
Release the brake pedal, then
accelerate.
)
With your foot on the brake, push
the lever forwards.
Reverse
Only engage reverse with
the vehicle immobilised.
To avoid any jerking, wait a
moment before accelerating.
Neutral
Never select position N
with
the vehicle moving.
Page 146 of 316
IX
!
144
DRIVING
Mode selection
Displays in the instrument panel
)
automatic mode: gear lever in
position D
,
)
manual mode: gear lever in posi-
tion M
,
)
SPORT
mode: gear lever in po-
sition D
and button A
pressed,
)
SNOW
mode: gear lever in posi-
tion D
and button B
pressed.
The position of the gear lever and
the driving mode are displayed in
the instrument panel dial C
.
A position grille associated with the
gear lever allows you to view the se-
lected position.
For safety:
- position P
can be disen-
gaged only if you press
the brake pedal,
- when a door is opened, an au-
dible signal is heard if the gear
lever is not in position P
,
- always make sure that the gear
lever is in position P
before you
leave your vehicle.
If the gearbox is in position P
but the
position of the gear lever is different,
reposition the gear lever on P
so that
you can start the vehicle.

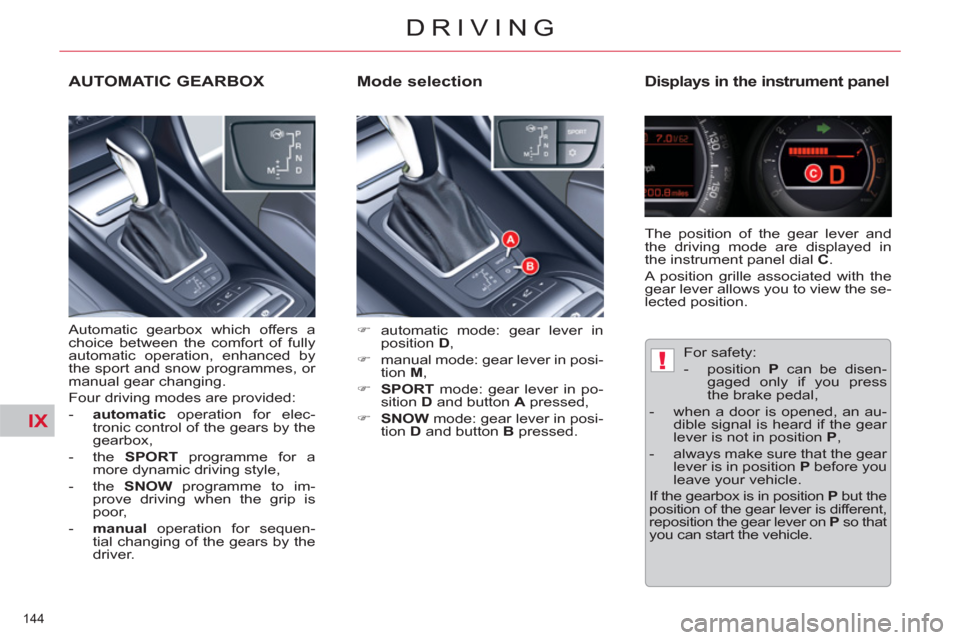

AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation, enhanced by
the sport and snow programmes, or
manual gear changing.
Four driving modes are provided:
- automatic
operation for elec-
tronic control of the gears by the
gearbox,
- the SPORT
programme for a
more dynamic driving style,
- the SNOW
programme to im-
prove driving when the grip is
poor,
- manual
operation for sequen-
tial changing of the gears by the
driver.
Page 150 of 316
IX
148
DRIVING
FIXED CENTRED CONTROLS STEERING WHEEL
1
Rotation
-
Scroll the various pages of information on the instrument panel
screen.
- Move through the various menus on the instrument panel screen.
- Increase/decrease values.
Short press
- Open the menu on the instrument panel screen (only when stationary).
- Select and confi rm information.
Long press Trip computer zero reset (if the trip computer page is
displayed).
2
Short press
- Cancel the current operation.
-
Return to the previous screen on the instrument panel screen.
Long press Return to the initial page on the instrument panel screen.
3
Short press
Increase the speed in steps of 1 mph (1 km/h) / storing the speed.
Maintained press Increase the speed in steps of 5 mph (5 km/h).
4
Short press
Decrease the speed in steps of 1 mph (1 km/h) / storing the speed.
Maintained press Decrease the speed in steps of 5 mph (5 km/h).
5
Short press Suspend or resume cruise control/speed limiter (depending
on the mode selected).
6
Short press Select cruise control or speed limiter mode (the cycle on this
button will always begin with selection of the speed limiter).
7
Short press Deactivate cruise control/speed limiter.
8
Short press
- Pick up an incoming call.
- Hang up the current call.
- Open the telephone short-cut menu.
- Confi rm on the list and the telephone menu.
Long press Refuse an incoming call.
9
Short press / Long press Horn.
10
Short press Activate/deactivate Black Panel mode (night driving).
11
Short press Activate the voice command.
Long press Navigation instruction repeat.
Page 151 of 316
IX
149
DRIVING
12
Rotation
- Radio source: Scroll the pre-set stations.
- CD/MP3 CD/CD changer/jukebox source: Scroll the
CDs or directories.
- On the multifunction screen menus: Movement and
increase/decrease.
Short press
- On the multifunction screen menus: confi rm.
- Open the short-cut menus (depending on the
multifunction screen page).
Long press Open the multifunction screen main menu.
13
Short press Cancel the current operation and return to the previous page
on the multifunction screen.
When an incoming telephone call is received: Refuse the call.
Long press Return to the initial page on the multifunction screen.
14
Short press Access to the multifunction screen general menu.
15
Short press / Maintained press
Volume increase.
16
Short press / Maintained press
Volume decrease.
17
Short press
- First press: mute.
- Second press: restore sound.
18
Short press
- Radio source: Automatic search of higher frequencies.
- CD/MP3 CD/CD changer/jukebox source: Search for the next track.
Maintained press
- CD/MP3 CD/CD changer/jukebox source: Fast forward play.
19
Short press
- Radio source: Automatic search of lower frequencies.
- CD/MP3 CD/CD changer/jukebox source: Search for
the previous track.
Maintained press CD/MP3 CD/CD changer/jukebox source: Fast backwards.
20
Short press
- Radio source: display the list of radio stations available.
- CD/MP3 CD and CD changer source: display the list of
CD tracks and directories.
- Jukebox source: display the list of albums.
Long press Update the list of radio stations.
21
Short press / Long press Horn.
22
Short press
MODE: selection of the type of information presented on the multifunction screen.
Page 152 of 316
IX
150
DRIVING
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
When the limit speed is reached, the
accelerator pedal no longer has any
effect.
The speed limiter is switched on man-
ually: a speed of at least 20 mph (ap-
prox. 30 km/h) must be programmed.
The speed limiter can in no way re-
place respect for speed limits or vigi-
lance and responsibility on the part
of the driver.
Steering mounted controls
The speed limiter switches are lo-
cated on the left-hand side of the
steering wheel.
Displays in the instrument panel
The speed limiter information is dis-
played in zone A
of the instrument
panel.
Programming
)
Press on button 4
to select speed
limiter mode " LIMIT
".
The selection is confi rmed by the
display of the function in zone A
of
the instrument panel.
Activation
)
Press on button 3
when the de-
sired maximum speed is dis-
played.
The information "ON"
then appears
in zone A
.
When the function is selected, the
last memorised speed and the infor-
mation "PAUSE"
are displayed.
With the engine running, you can ad-
just the memorised maximum speed,
displayed in zone A
, by pressing on:
)
Button 1
to increase the memo-
rised maximum speed.
)
Button 2
to decrease the memo-
rised maximum speed. Successive presses will modify the
maximum speed in steps of 1 mph
and a continuous press in steps of
5 mph.
Page 153 of 316
IX
151
DRIVING
In the event of a steep descent or
under excessive acceleration, the
speed limiter (which does not act
on the brakes) may not be able to
prevent the vehicle from exceeding
the programmed speed.
Use of a fl oor mat other than that
recommended by CITROËN may
affect the normal operation of the
accelerator pedal and hamper the
operation of the speed limiter.
Floor mats approved by CITROËN
are fi tted with a 3rd fi xing located in
the pedal area to avoid any risk of
interference with the pedals.
Suspension / Resumption
)
Press on button 3
.
This action causes the information
"PAUSE"
to appear in zone A
of the
instrument panel.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A
of the
instrument panel.
Overriding the programmed
speed
The accelerator pedal has an end-
of-travel switch. In order to exceed
the memorised maximum speed at
any time, you can press the pedal
all the way down. While the speed
is being exceeded, the speed dis-
played in zone A
will fl ash. You have
only to release the accelerator pedal
to return below the maximum speed,
to restore the function.
The speed will also fl ash if the speed
limiter is not able to prevent the vehi-
cle from exceeding the programmed
speed (e.g. on a steep descent or
under excessive acceleration).
To reactivate the speed limiter, re-
lease the accelerator to slow to a
speed lower than the programmed
speed.
Return to normal driving
)
Either press on button 5
.
)
Or select the speed limiter func-
tion.
)
Or stop the engine.
Operating fault
If there is a fault, a message is
displayed accompanied by an au-
dible signal and illumination of the
SERVICE
warning lamp.
Have it checked by a CITROËN
dealer or a qualifi ed workshop.
