Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 348)

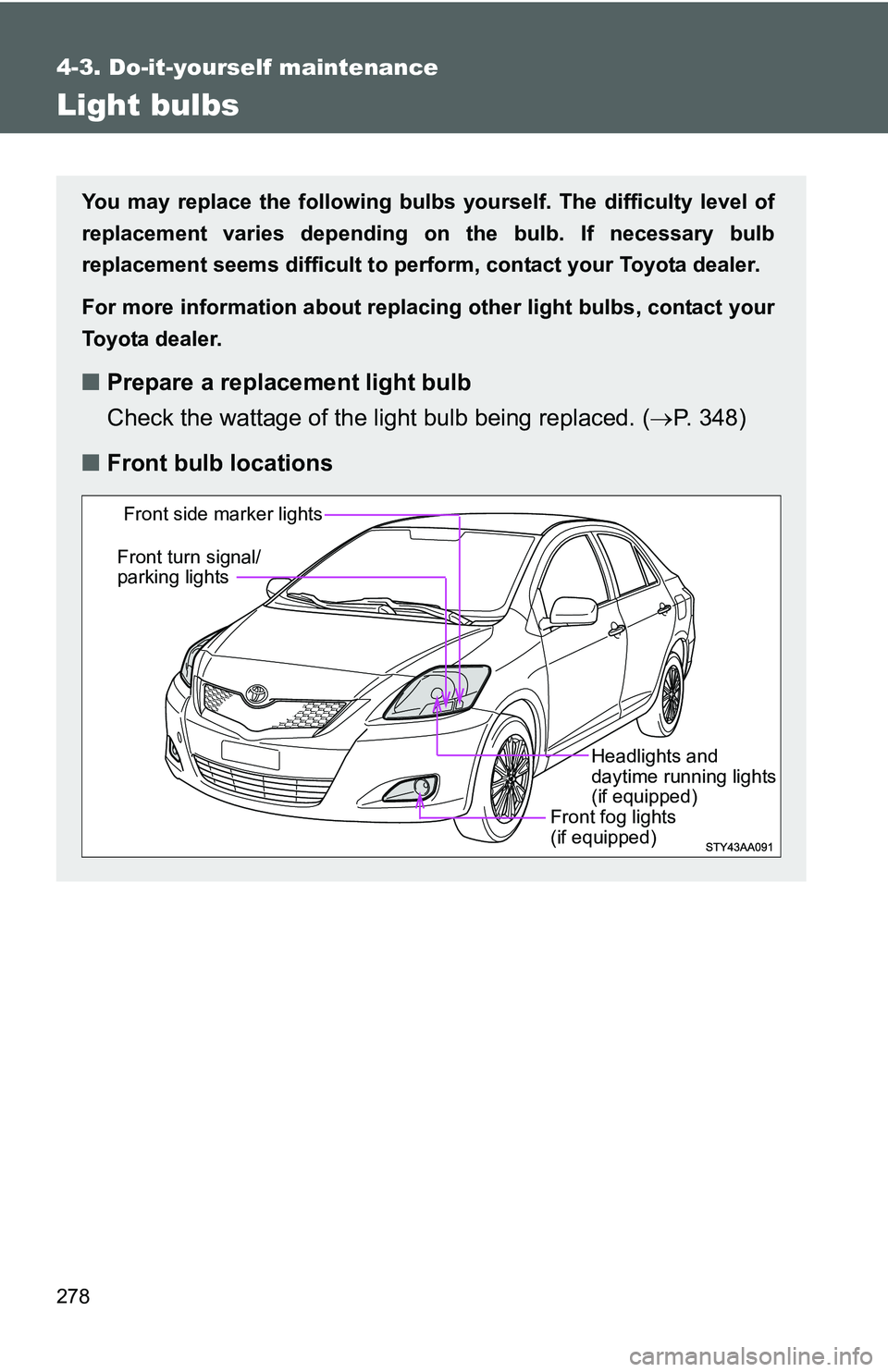

■ Front bulb locations
Front fog lights
(if equipped)
Front side marker lights
Front turn signal/
parking lights
Headlights and
daytime running lights
(if equipped)

279
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs
■ Headlights and daytime r unning lights (if equipped)
Unplug the connector.
Remove the rubber cover.

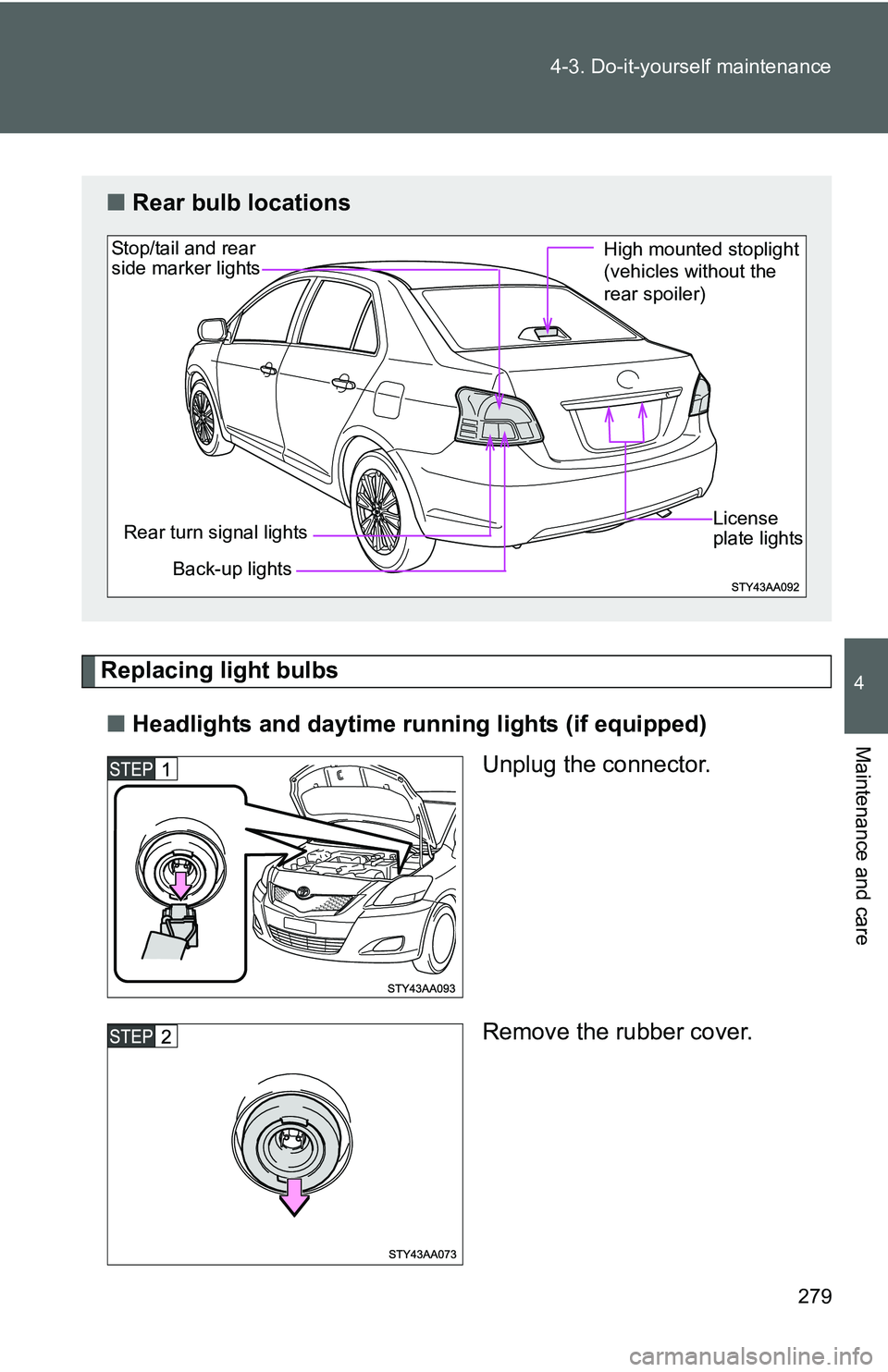

■Rear bulb locations
Back-up lights
Rear turn signal lights
Stop/tail and rear
side marker lights
License
plate lights
High mounted stoplight
(vehicles without the
rear spoiler)

280 4-3. Do-it-yourself maintenance

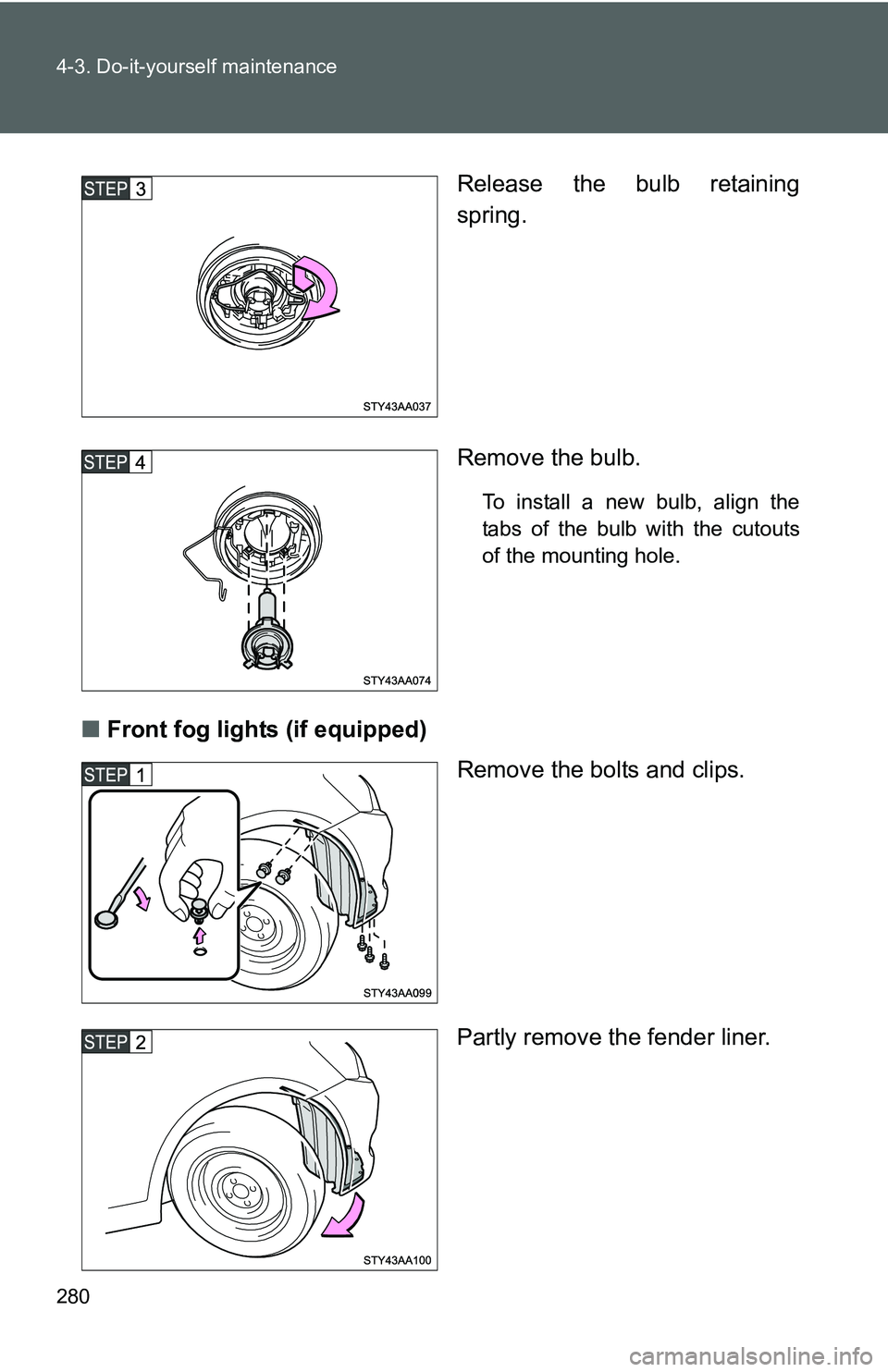

Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
■Front fog lights (if equipped)
Remove the bolts and clips.
Partly remove the fender liner.

281
4-3. Do-it-yourself maintenance
4
Maintenance and care

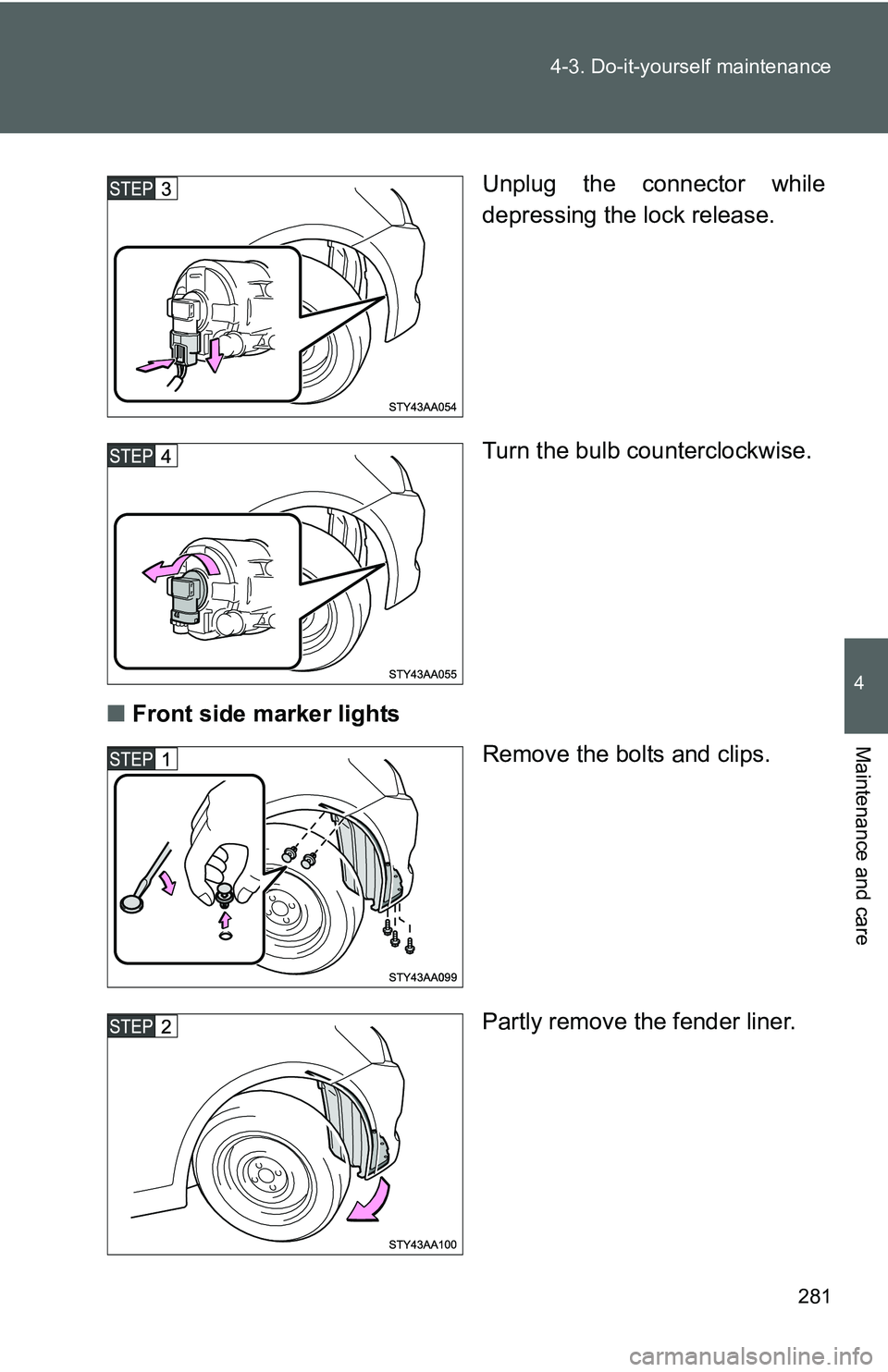

Unplug the connector while
depressing the lock release.
Turn the bulb counterclockwise.
■ Front side marker lights
Remove the bolts and clips.
Partly remove the fender liner.

282 4-3. Do-it-yourself maintenance

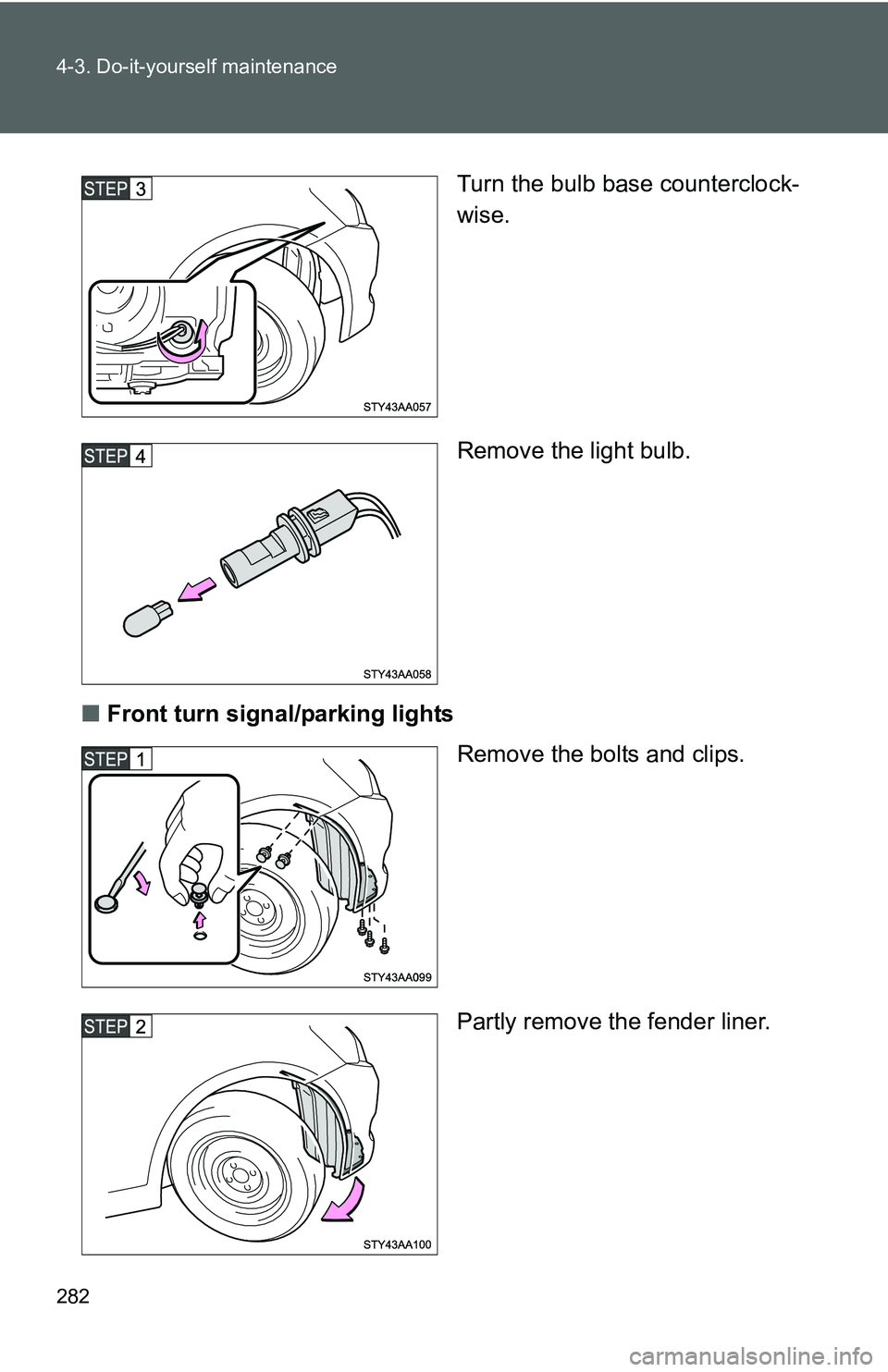

Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front turn signal/parking lights
Remove the bolts and clips.
Partly remove the fender liner.

283
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up lights, stop/tail and rear side marker lights and rear
turn signal lights

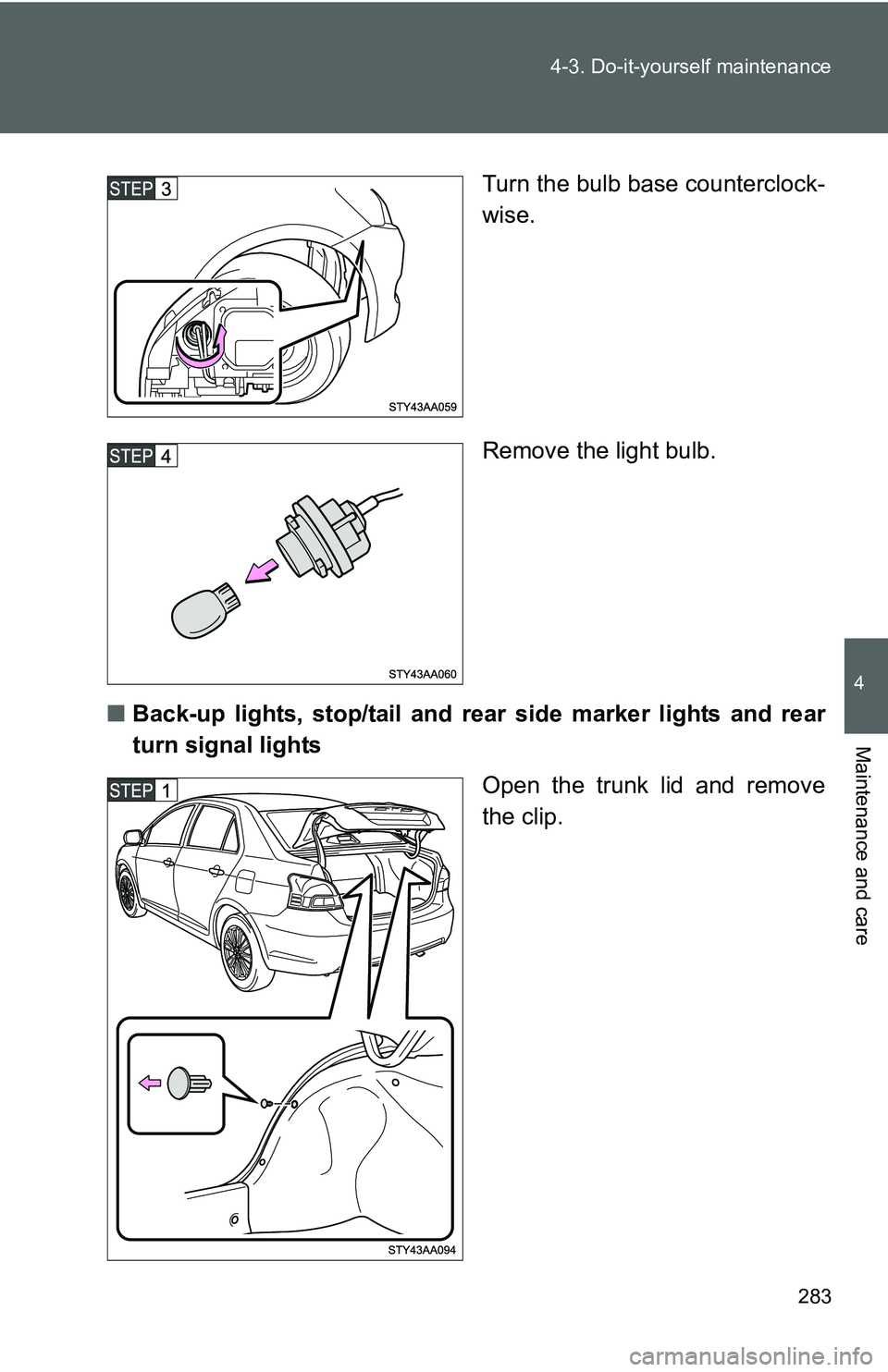

Open the trunk lid and remove
the clip.

284 4-3. Do-it-yourself maintenance

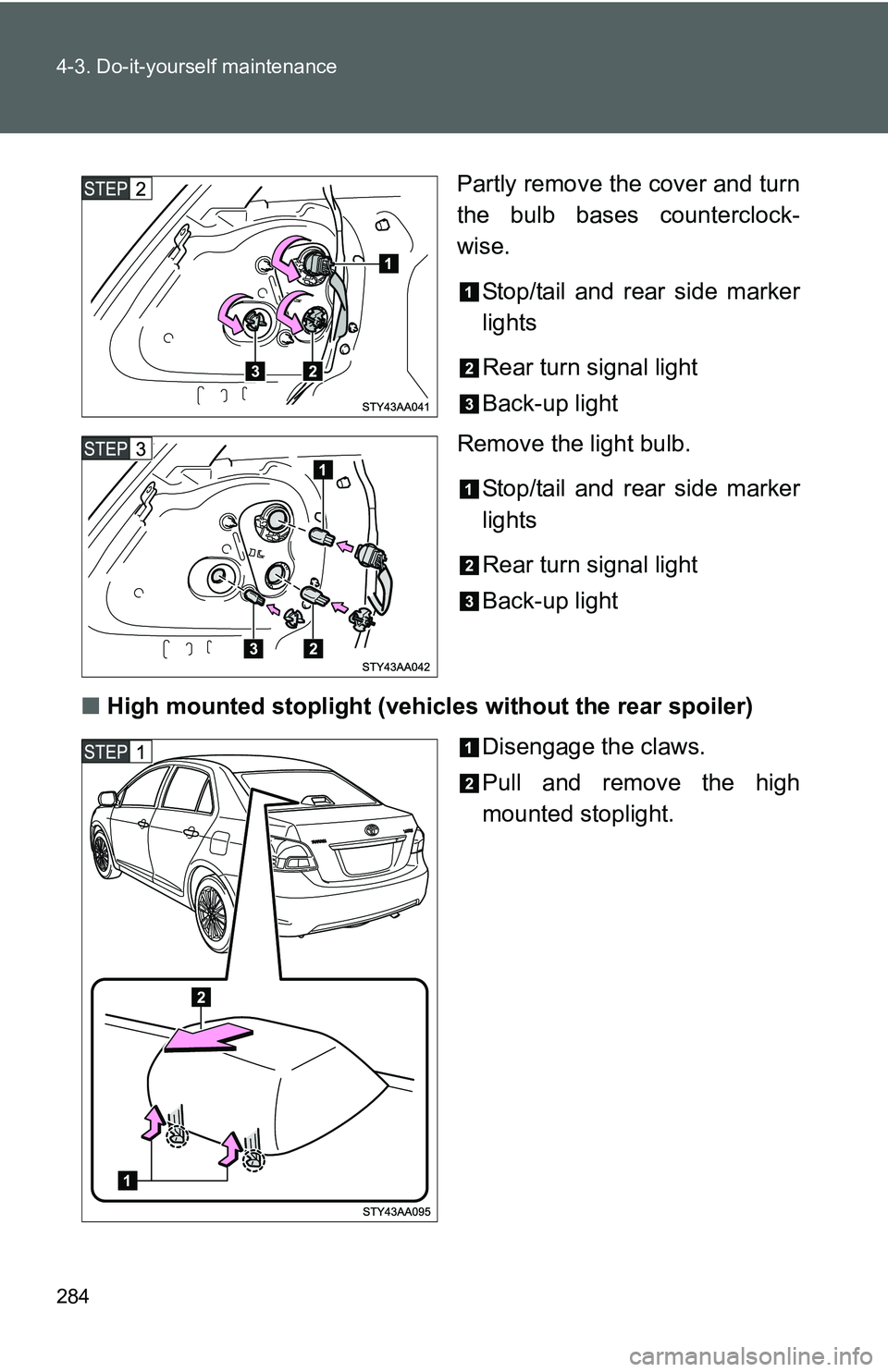

Partly remove the cover and turn
the bulb bases counterclock-
wise.Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
Remove the light bulb.
Stop/tail and rear side marker
lights
Rear turn signal light
Back-up light
■ High mounted stoplight (vehicle s without the rear spoiler)
Disengage the claws.
Pull and remove the high
mounted stoplight.

285
4-3. Do-it-yourself maintenance
4
Maintenance and care

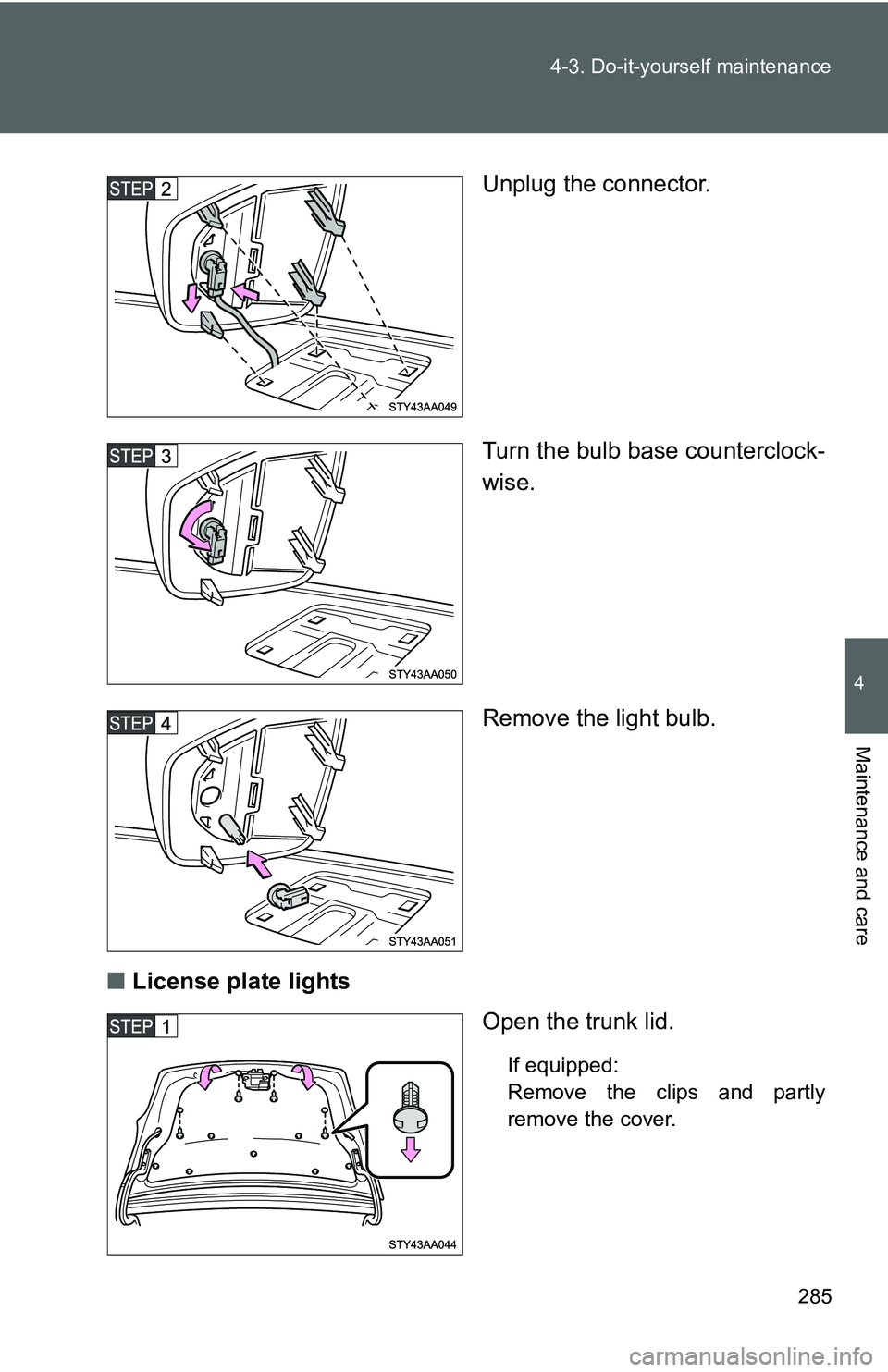

Unplug the connector.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ License plate lights
Open the trunk lid.
If equipped:
Remove the clips and partly
remove the cover.
