2011 TOYOTA YARIS SEDAN Owners Manual

1\f
FEATURES/OPERATIONS

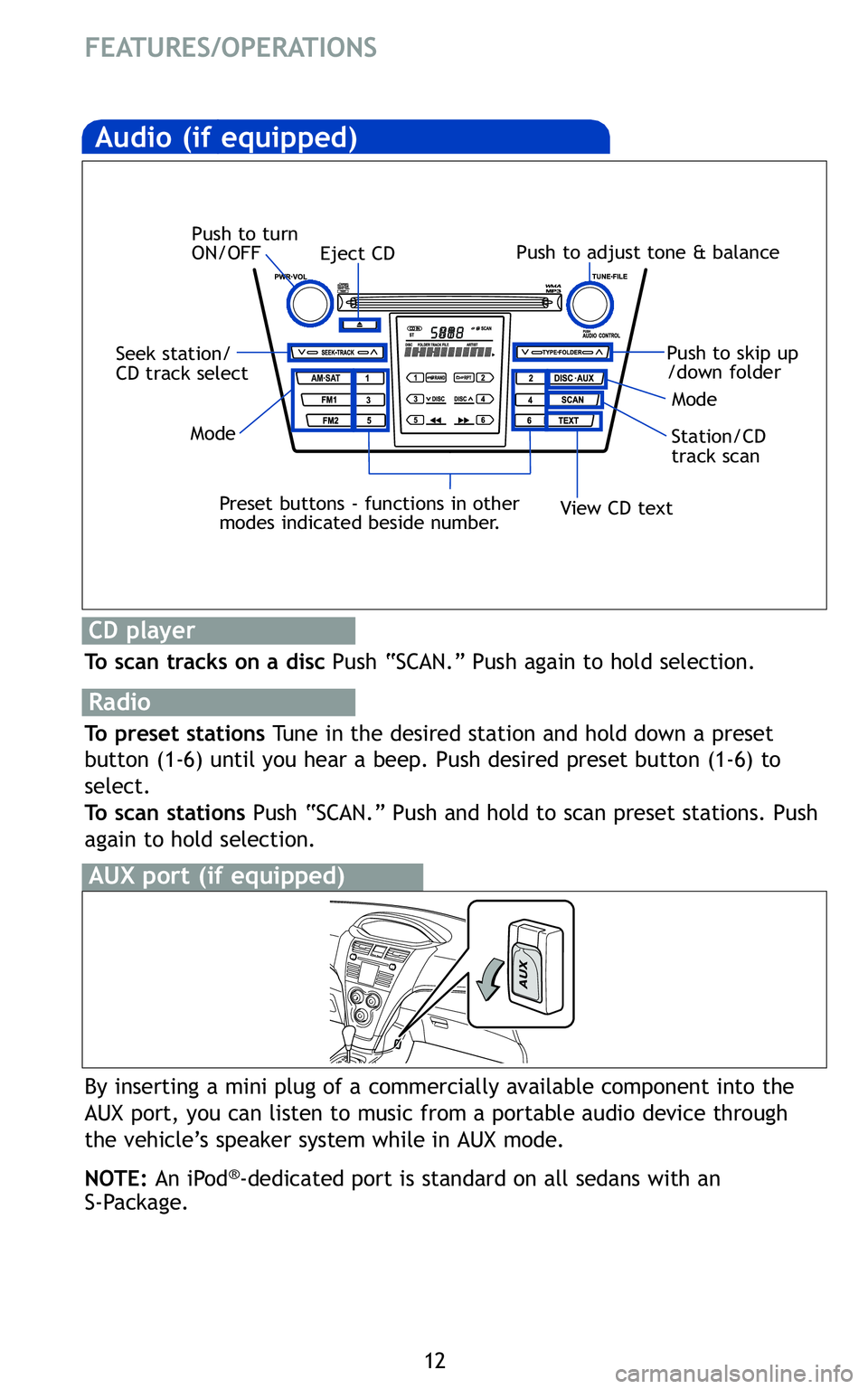

Audio(ifequipped)
Eject CD
Push
toturn
ON/OFF Push
toadjust tone&balance
Seek station/
CD track select
Station/CD
trackscan
Mode
Preset buttons functions inother
modes indicated besidenumber\b
Toscan tracks onadisc Push “SCAN\b” Pushagain tohold selection\b
Radio
Topreset stations Tuneinthe desired stationandhold down apreset
button (16)untilyouhear abeep\b Pushdesired presetbutton (16)to
select\b
To scan stations Push“SCAN\b” Pushandhold toscan preset stations\b Push
again tohold selection\b
CDplayer
Push toskip up
/down folder
ViewCDtext
Mode
R
F
A
A
I
T
R
Air
Byinserting amini plugofacommercially availablecomponent intothe
AUX port, youcanlisten tomusic fromaportable audiodevice through
the vehicle’s speakersystemwhileinAUX mode\b
NOTE: AniPod
®dedicated portisstandard onall sedans withan
SPackage\b
AUX port (ifequipped)
Pow
Desig
posit
414838M2.qxd:414838\:M2 8/4/10 6:08 AM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Push
up

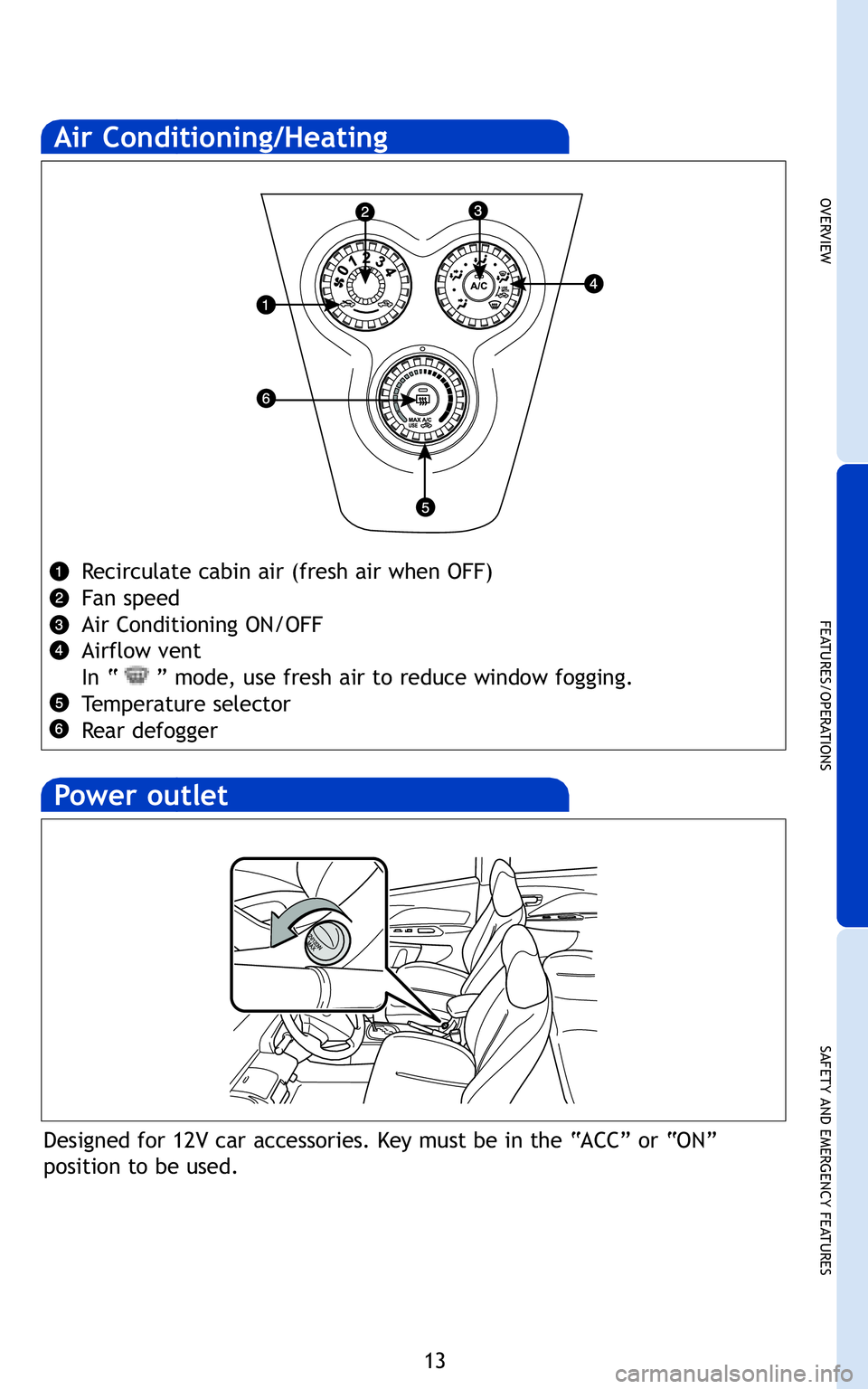

Recirculate cabin air (fresh air when OFF)
Fan speed
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air to reduce window fogging\b
Temperature selector
Rear defogger
e
h
Designed for 1\fV car accessories\b Key must be in the “ACC” or “ON”
position to be used\b
414838M2.qxd:414838\:M2 8/4/10 6:08 AM\: Page 13

14
FEATURES/OPERATIONS

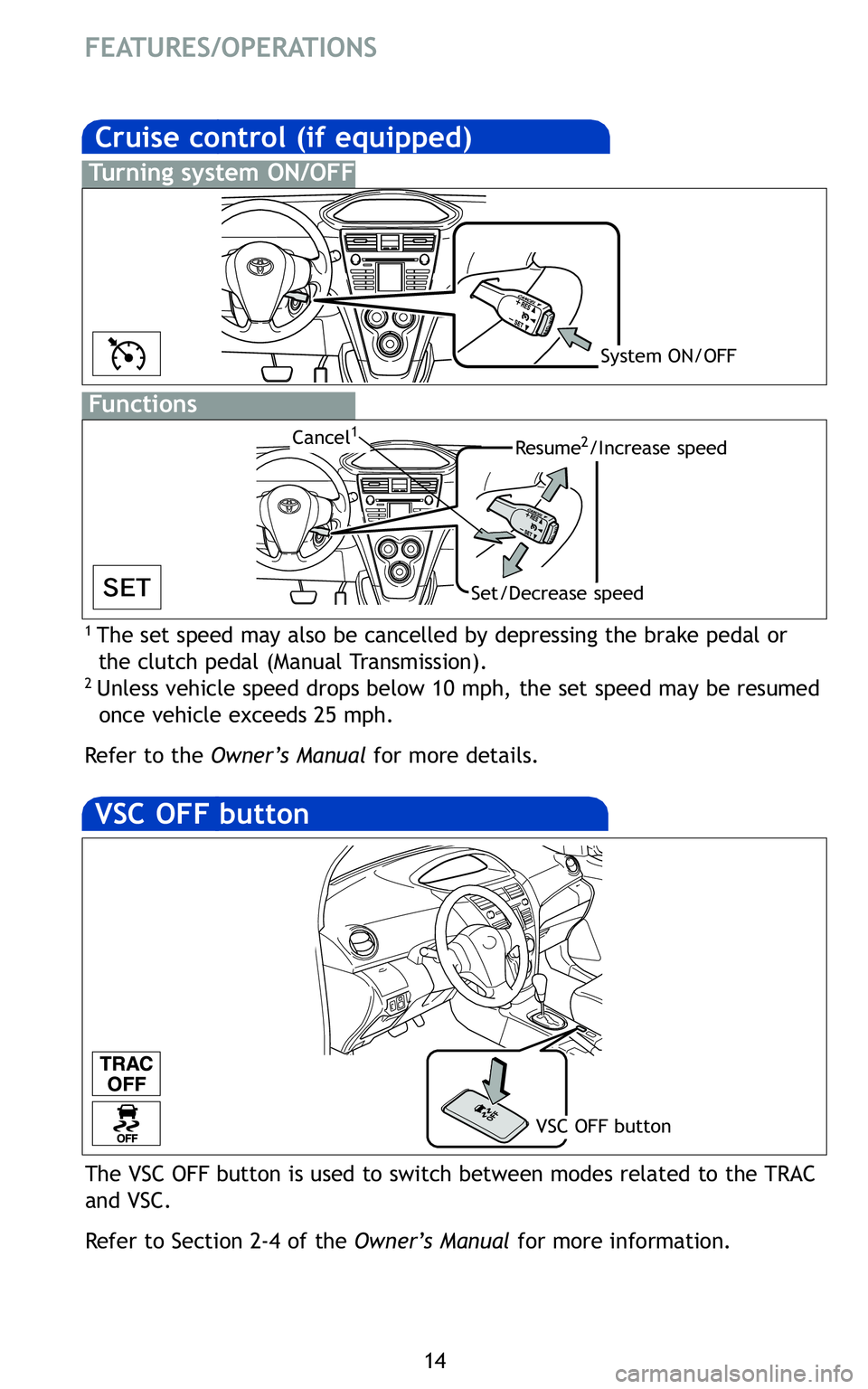

1The set speed may also be cancelled by depressing the brake pedal orthe clutch pedal (Manual Transmission)\b
\fUnless vehicle speed drops below 10 mph, the set speed may be resumed once vehicle exceeds \f5 mph\b
Refer to the Owner’s Manual for more details\b
Resume\f/Increase speed
Set/Decrease speed
Cancel1
System ON/OFF
(1) P
CLOC
(4) W
Rear
The VSC OFF button is used to switch between modes related to the TRAC
and VSC\b
Refer to Section \f4 of the Owner’s Manualfor more information\b
VSC OFF button
414838M2.qxd:414838\:M2 8/4/10 6:0\f AM \: Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
r
med

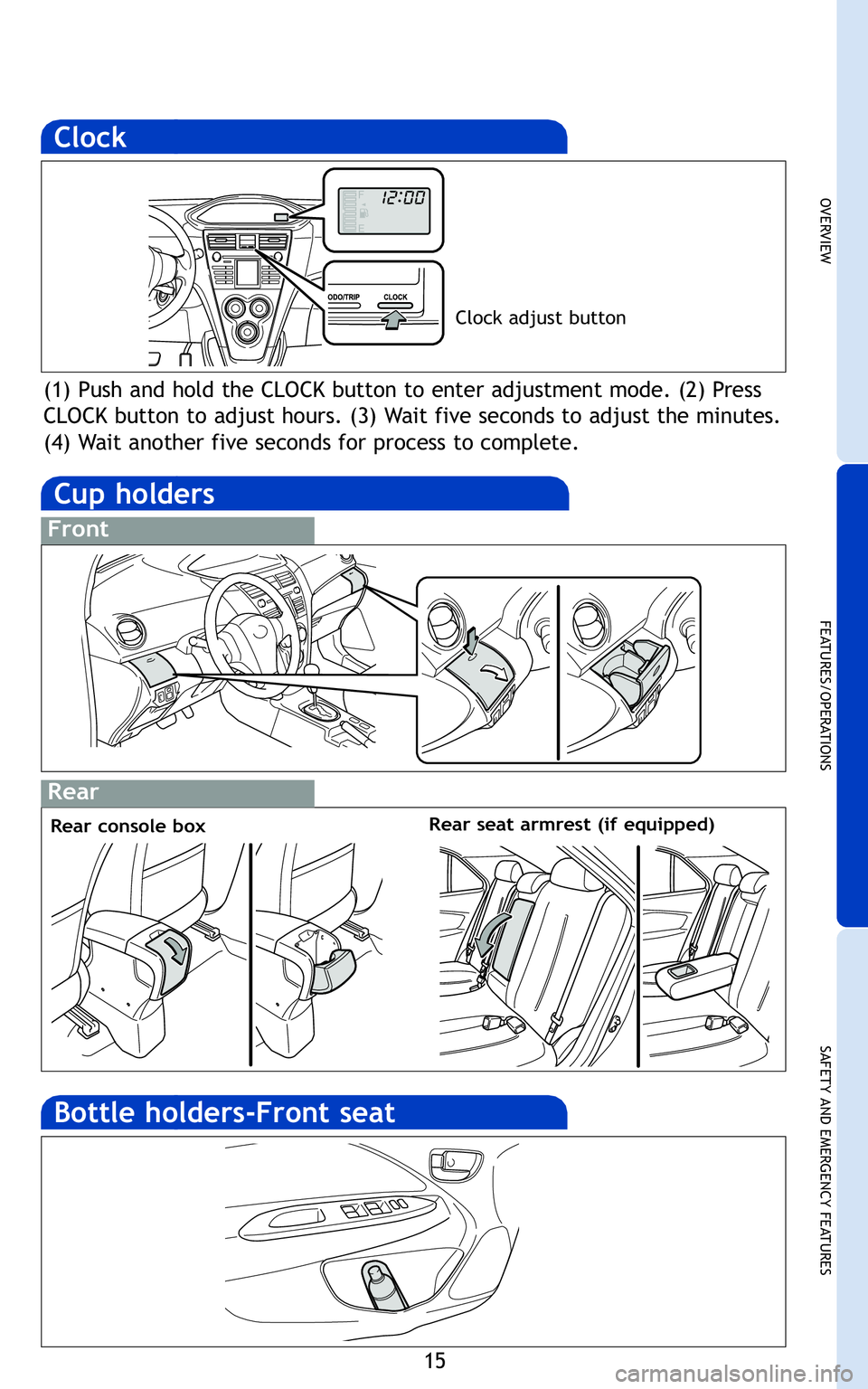

(1) Push and hold the CLOCK button to enter adjustment mode\b (\f) Press
CLOCK button to adjust hours\b (3) Wait five seconds to adjust the minutes\b
(4) Wait another five seconds for process to complete\b
Clock adjust button
Rear console boxRear seat armrest (if equipped)
RAC
414838M2.qxd:414838\:M2 8/4/10 6:0\f AM \: Page 1\b

16

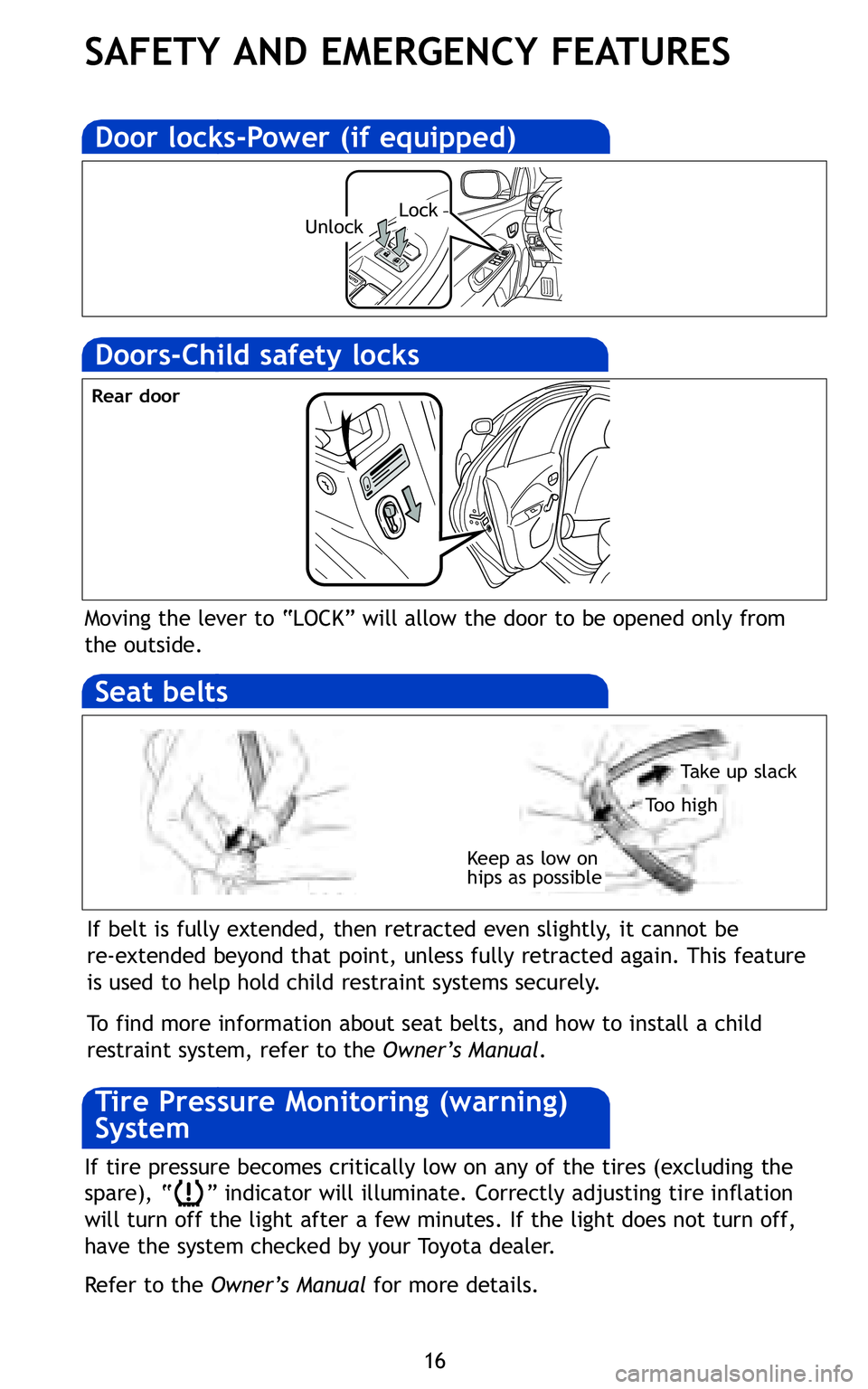

SAFETY AND EMERGENCY FEATURES
Keep as low on
hips as possible
Take up slack
Too high
Moving the lever to “LOCK” will allow the door to be opened only from
the outside\b
If belt is fully extended, then retracted even slightly, it cannot be
reextended beyond that point, unless fully retracted again\b This feature
is used to help hold child restraint systems securely\b
To find more information about seat belts, and how to install a child
restraint system, refer to theOwner’s Manual\b
Rear door
UnlockLock
If tire pressure becomes critically low on any of the tires (excluding the
spare), “ ” indicator will illuminate\b Correctly adjusting tire inflation
will turn off the light after a few minutes\b If the light does not turn off,
have the system checked by your Toyota dealer\b
Refer to theOwner’s Manual for more details\b
414838M2.qxd:414838\:M2 8/4/10 6:0\f AM \: Page 16

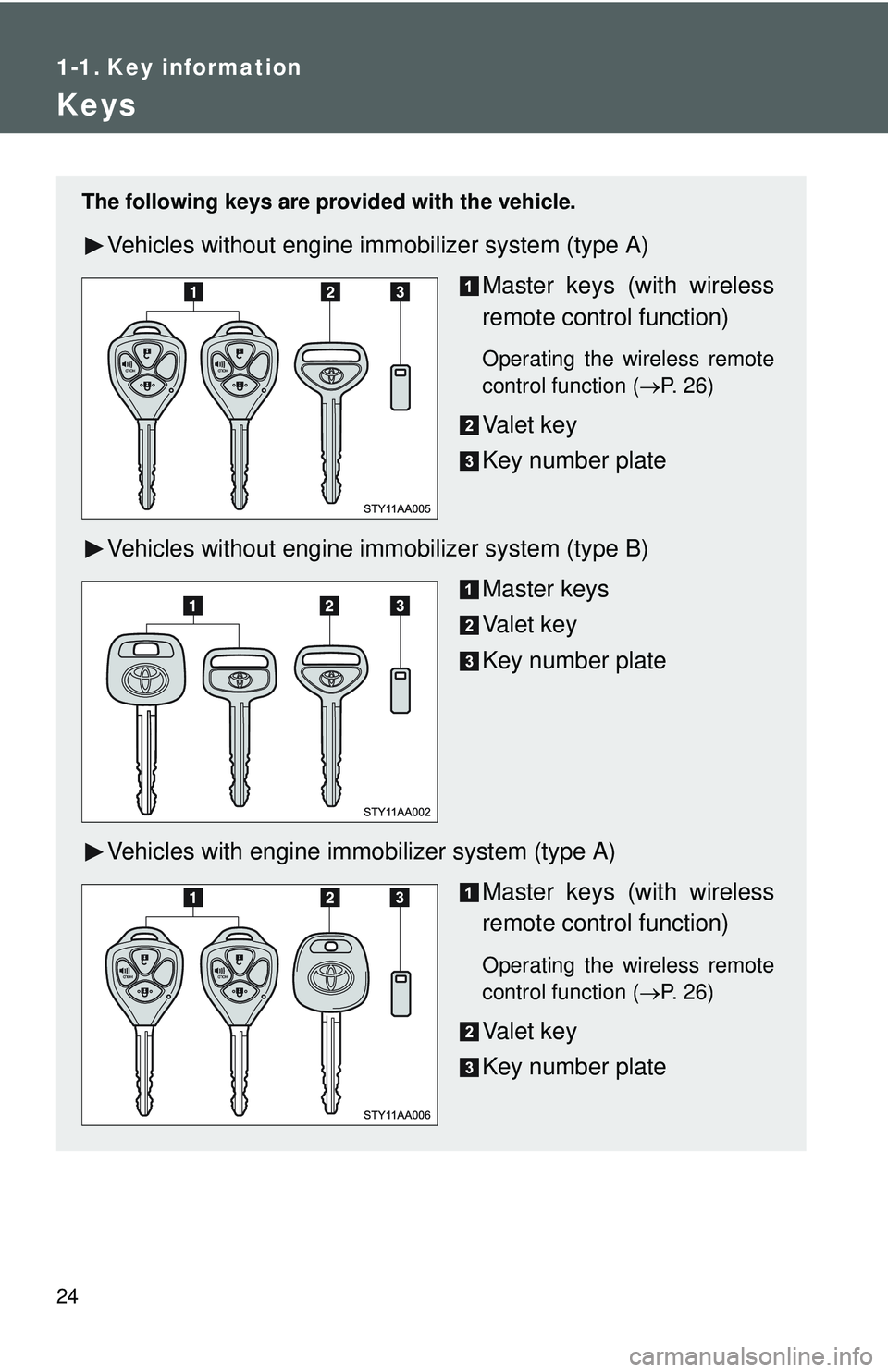

24
1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without engine immobilizer system (type A)
Master keys (with wireless
remote control function)
Operating the wireless remote
control function ( →P. 26)
Va l e t k e y
Key number plate
Vehicles without engine im mobilizer system (type B)
Master keys
Va l e t k e y
Key number plate
Vehicles with engine immobilizer system (type A) Master keys (with wireless
remote control function)
Operating the wireless remote
control function (→P. 26)
Va l e t k e y
Key number plate

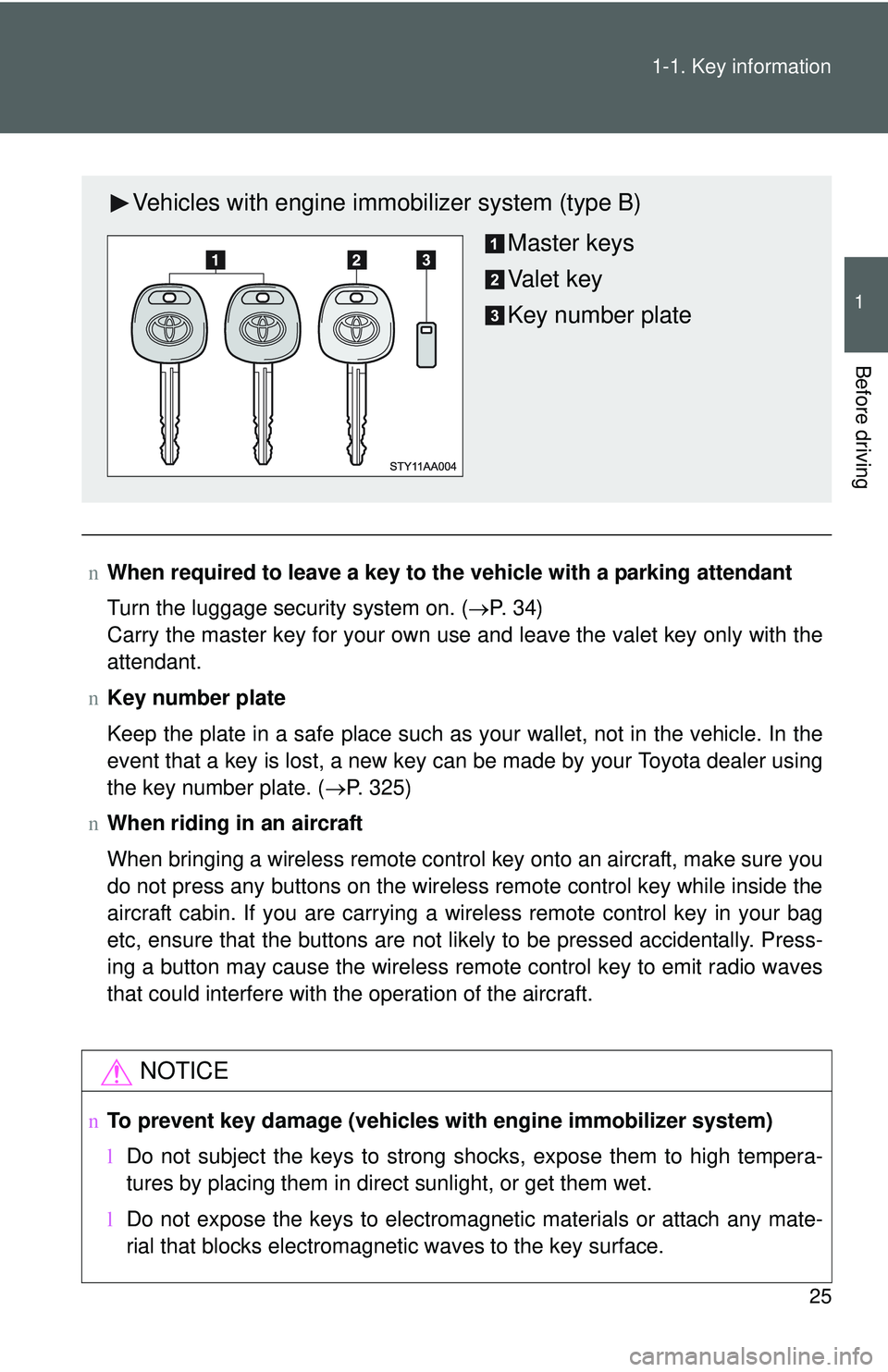

25
1-1. Key information
1
Before driving
n
When required to leave a key to th e vehicle with a parking attendant
Turn the luggage security system on. ( →P. 3 4 )
Carry the master key for your own use and leave the valet key only with the
attendant.
n Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. ( →P. 325)
n When riding in an aircraft
When bringing a wireless remote control key onto an aircraft, make sure you
do not press any buttons on the wireless remote control key while inside the
aircraft cabin. If you are carrying a wireless remote control key in your bag
etc, ensure that the buttons are not likely to be pressed accidentally. Press-
ing a button may cause the wireless remote control key to emit radio waves
that could interfere with the operation of the aircraft.
NOTICE
nTo prevent key damage (vehicles with engine immobilizer system)
l Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
l Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Vehicles with engine immobilizer system (type B)
Master keys
Va l e t k e y
Key number plate

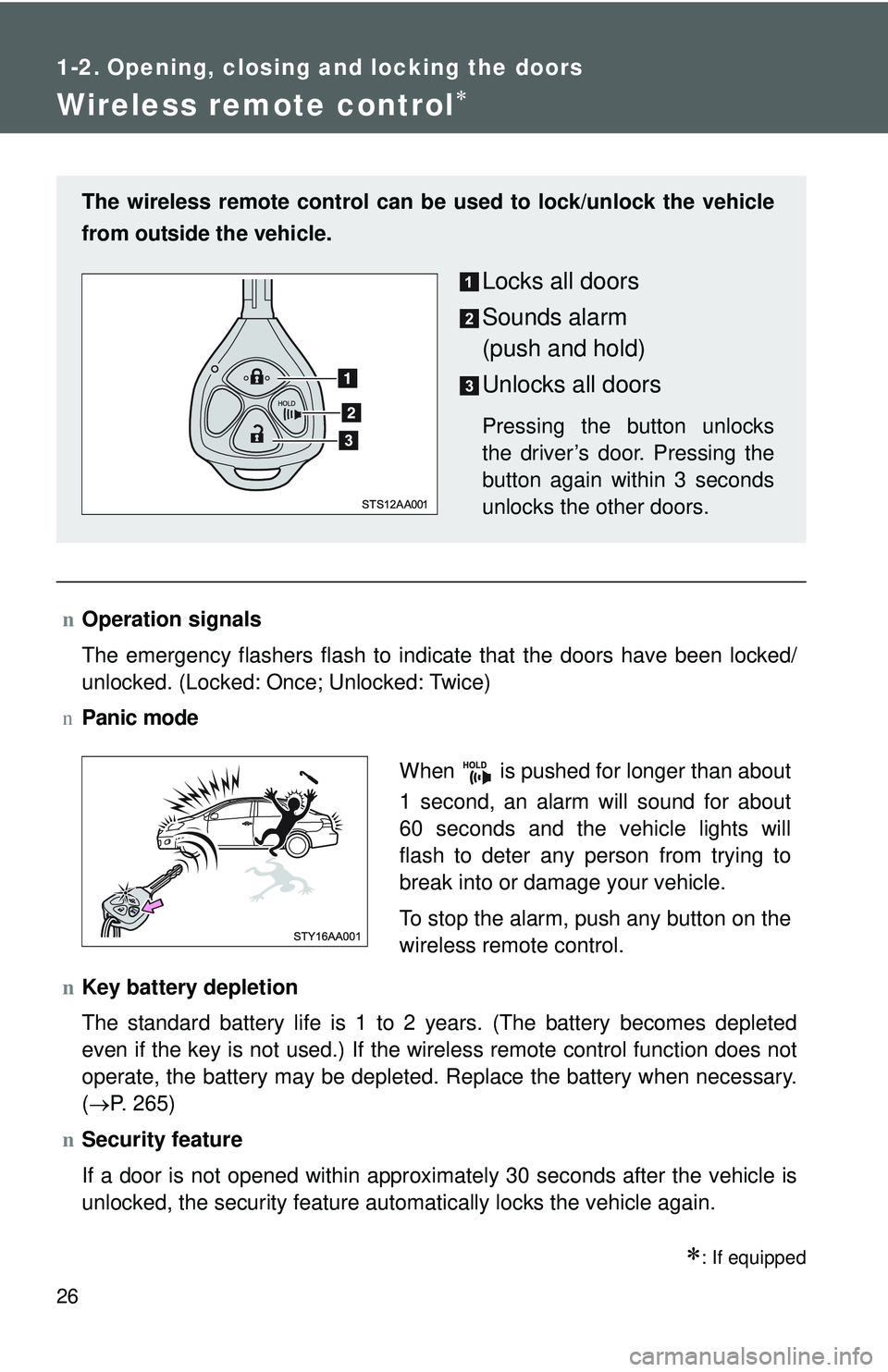

26
1-2. Opening, closing and locking the doors
Wireless remote control∗
∗: If equipped
nOperation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: Once; Unlocked: Twice)
nPanic mode
nKey battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the key is not used.) If the wireless remote control function does not
operate, the battery may be depleted. Replace the battery when necessary.
(→ P. 265)
n Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. The wireless remote control can be used to lock/unlock the vehicle
from outside the vehicle.
Locks all doors
Sounds alarm
(push and hold)
Unlocks all doors
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
When is pushed for longer than about
1 second, an alarm will sound for about
60 seconds and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, push any button on the
wireless remote control.
