2011 TOYOTA YARIS SEDAN Owners Manual

124 2-2. Instrument cluster
Odometer/trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
ODO/TRIP button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.
CLOCK button
Adjusts the time. ( → P. 212)

125
2-2. Instrument cluster
2
When driving

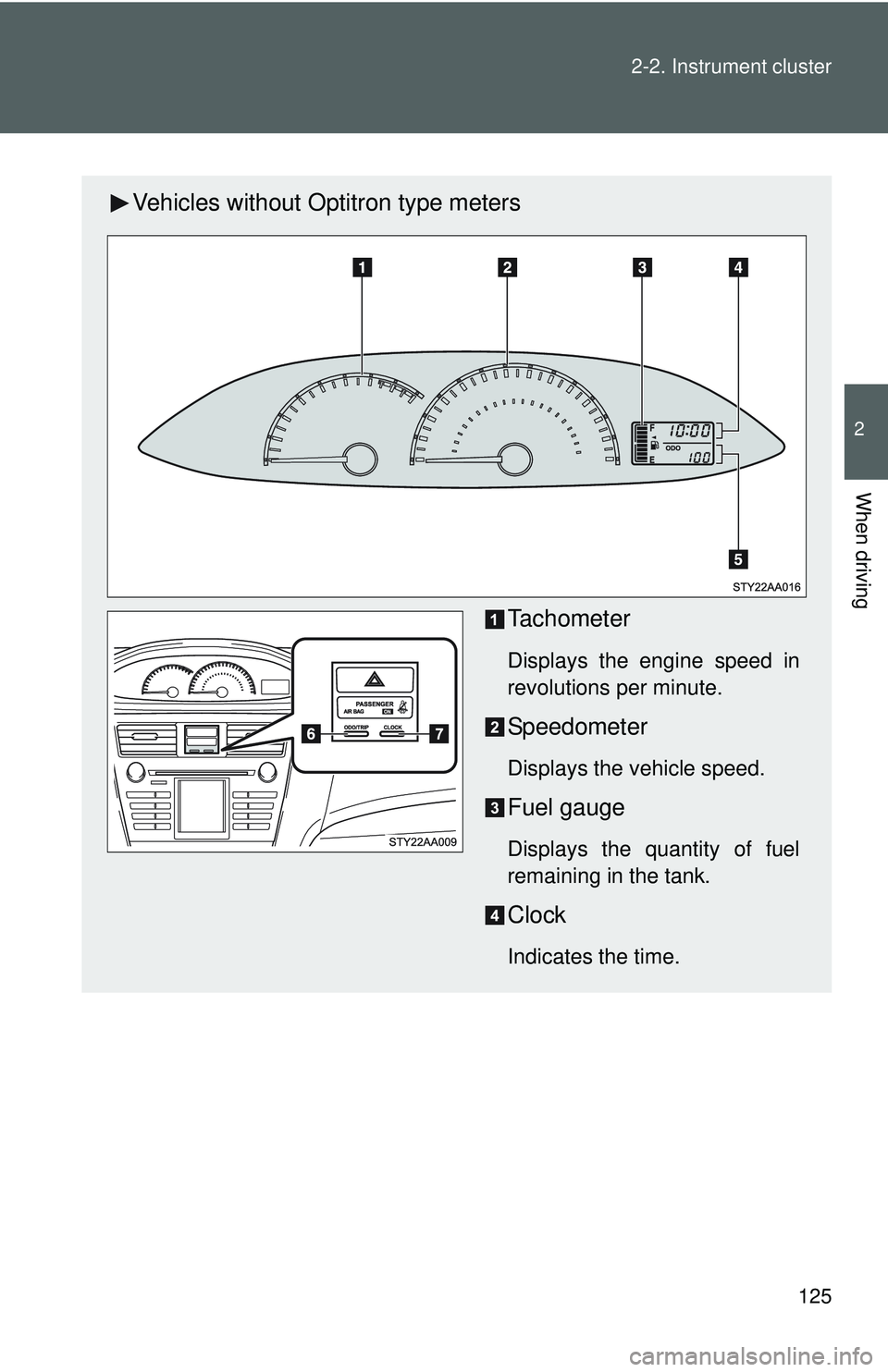

Vehicles without Optitron type meters
Tachometer
Displays the engine speed in
revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel
remaining in the tank.
Clock
Indicates the time.

126 2-2. Instrument cluster
Odometer and trip meter display button
Pressing this button switches between odometer and trip meter dis-
plays.
Odometer
Trip meter A
*
Trip meter B*
*:Pushing and holding the buttonwill reset the trip meter.
Odometer/trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
ODO/TRIP button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.
CLOCK button
Adjusts the time. ( →P. 212)

127
2-2. Instrument cluster
2
When driving

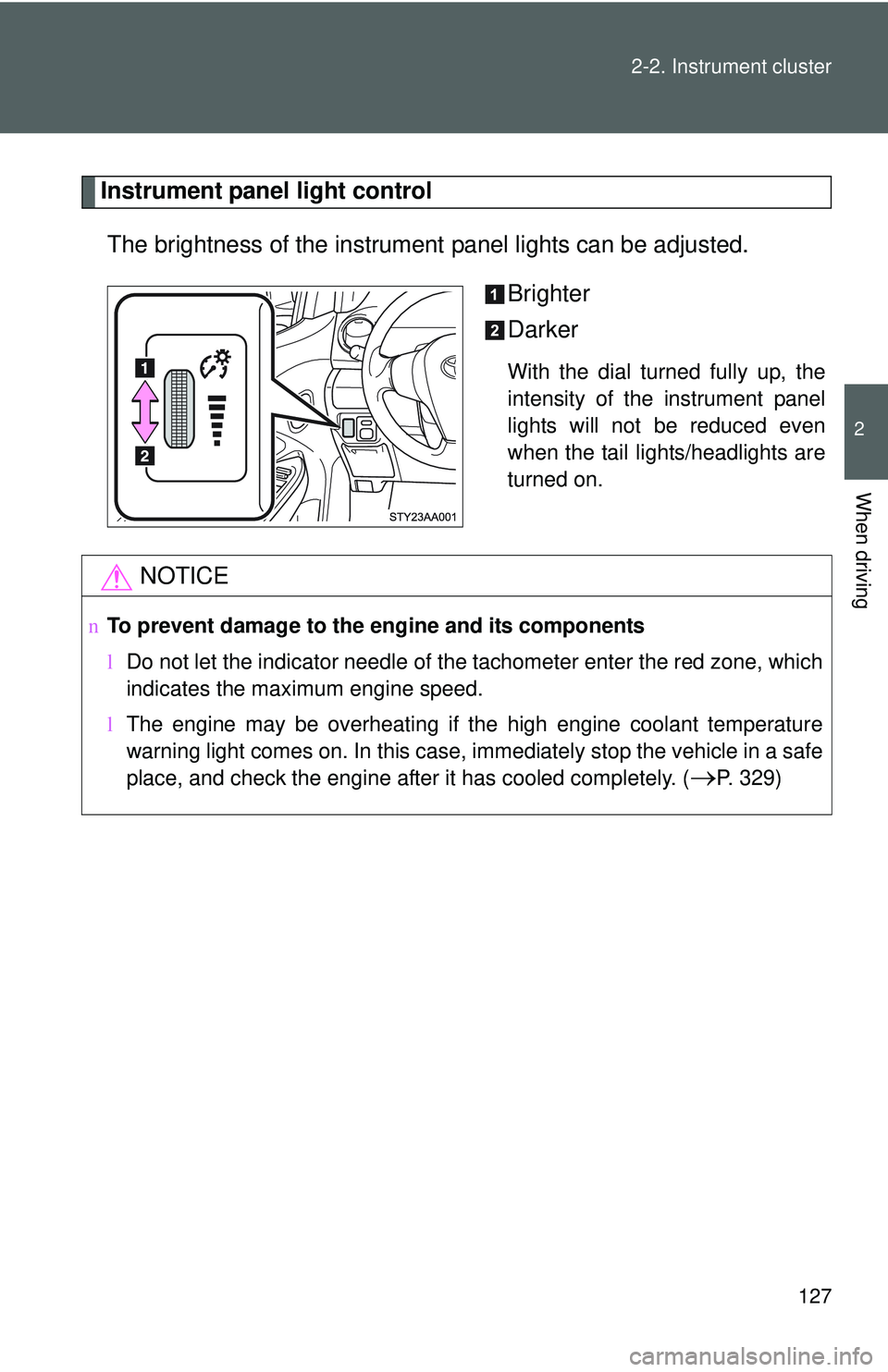

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
With the dial turned fully up, the
intensity of the instrument panel
lights will not be reduced even
when the tail lights/headlights are
turned on.
NOTICE
nTo prevent damage to the engine and its components
lDo not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
l The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (
→P. 329)

128
2-2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster (vehicles with Optitron type meters)
Instrument cluster (vehicles without Optitron type meters)

129
2-2. Instrument cluster
2
When driving

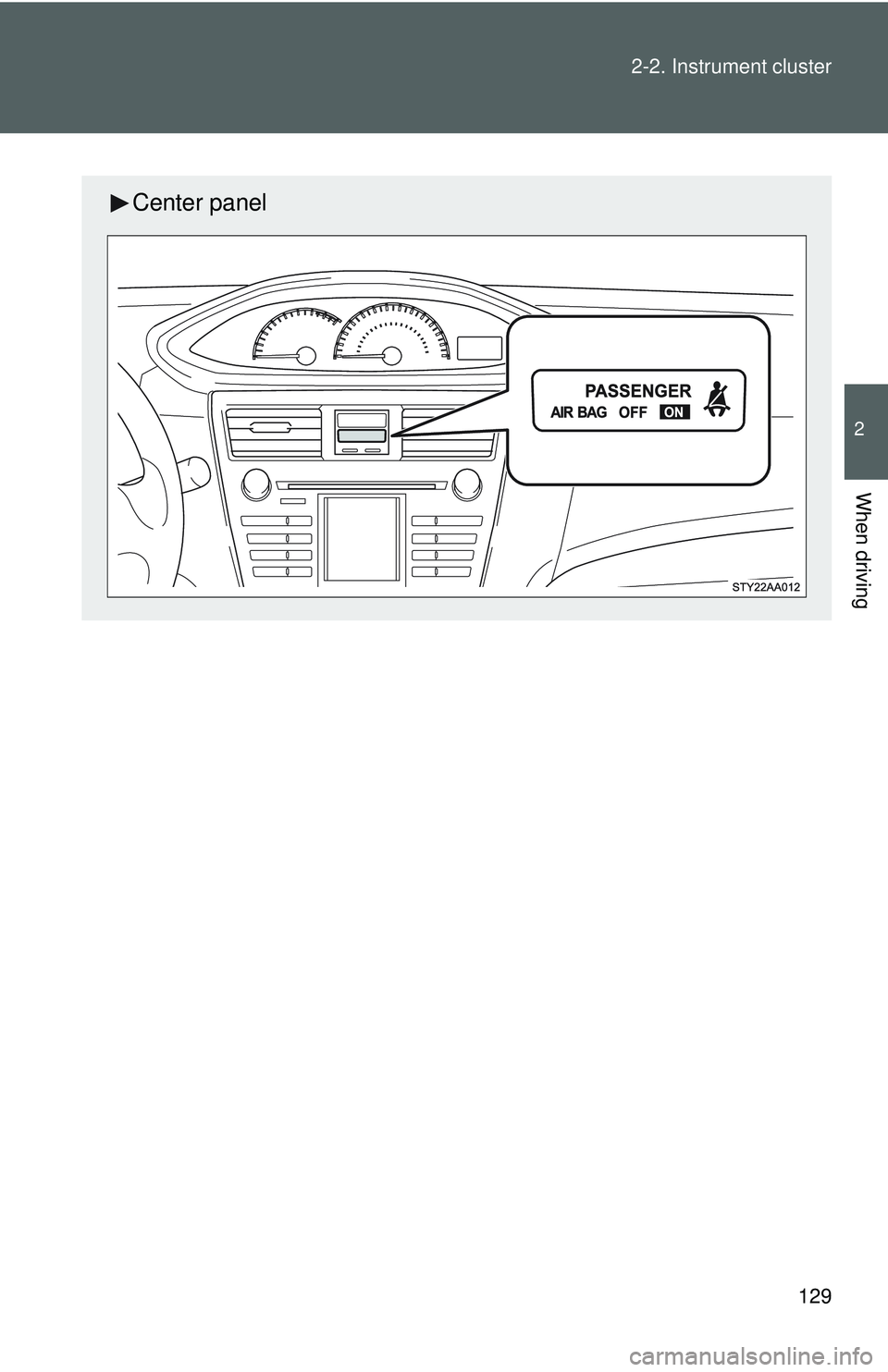

Center panel

130 2-2. Instrument cluster

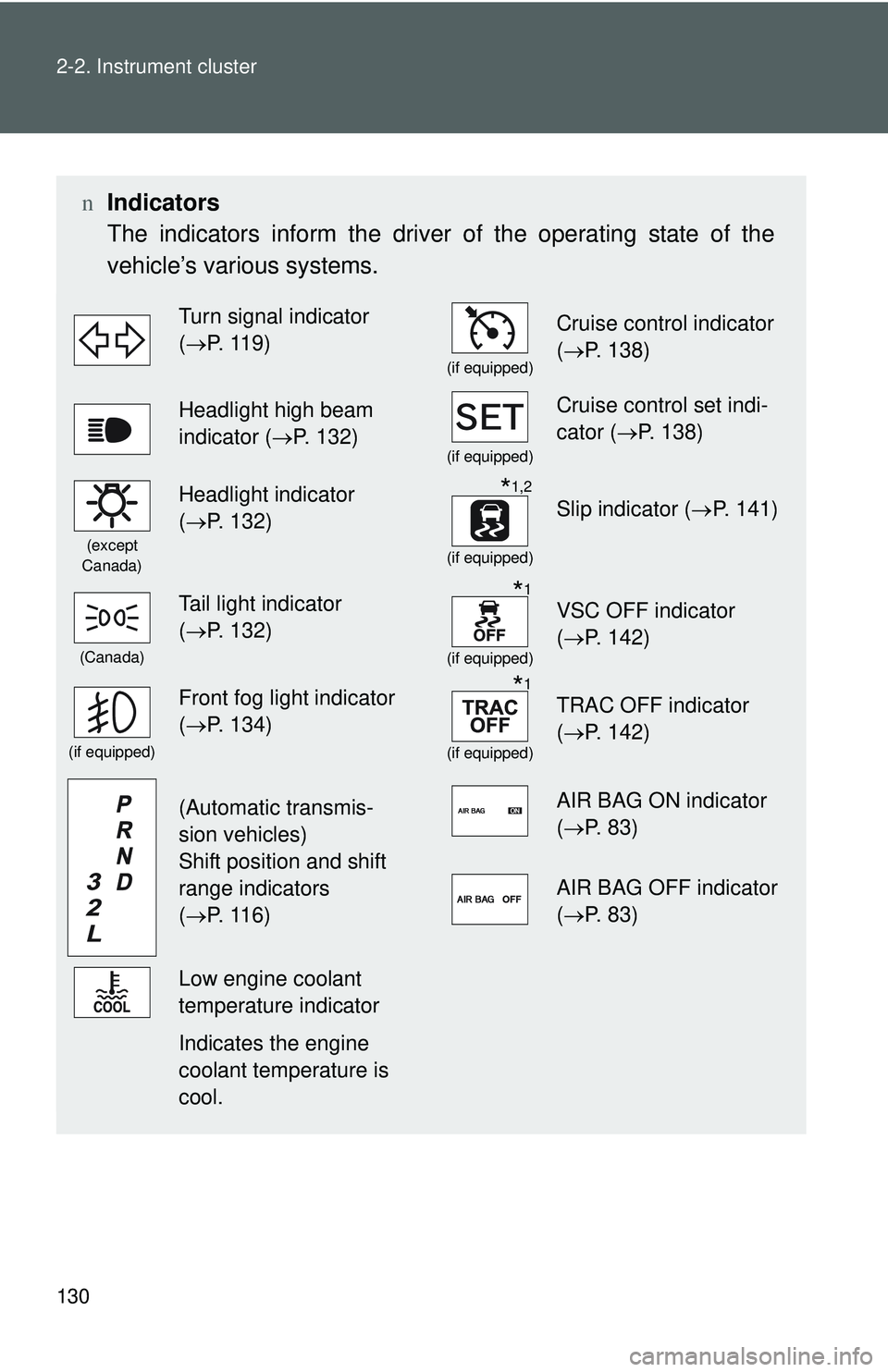

nIndicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(→ P. 119)
(if equipped)
Cruise control indicator
(→ P. 138)
Headlight high beam
indicator ( →P. 132)
(if equipped)
Cruise control set indi-
cator (→ P. 138)
(except
Canada)
Headlight indicator
( → P. 132)*1,2
(if equipped)
Slip indicator ( →P. 141)
(Canada)
Tail light indicator
(→ P. 132)*1
(if equipped)
VSC OFF indicator
(→ P. 142)
(if equipped)
Front fog light indicator
(→ P. 134)*1
(if equipped)
TRAC OFF indicator
(→ P. 142)
(Automatic transmis-
sion vehicles)
Shift position and shift
range indicators
(→ P. 116)AIR BAG ON indicator
(→ P. 83)
AIR BAG OFF indicator
(→ P. 83)
Low engine coolant
temperature indicator
Indicates the engine
coolant temperature is
cool.

131
2-2. Instrument cluster
2
When driving
CAUTION
n
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

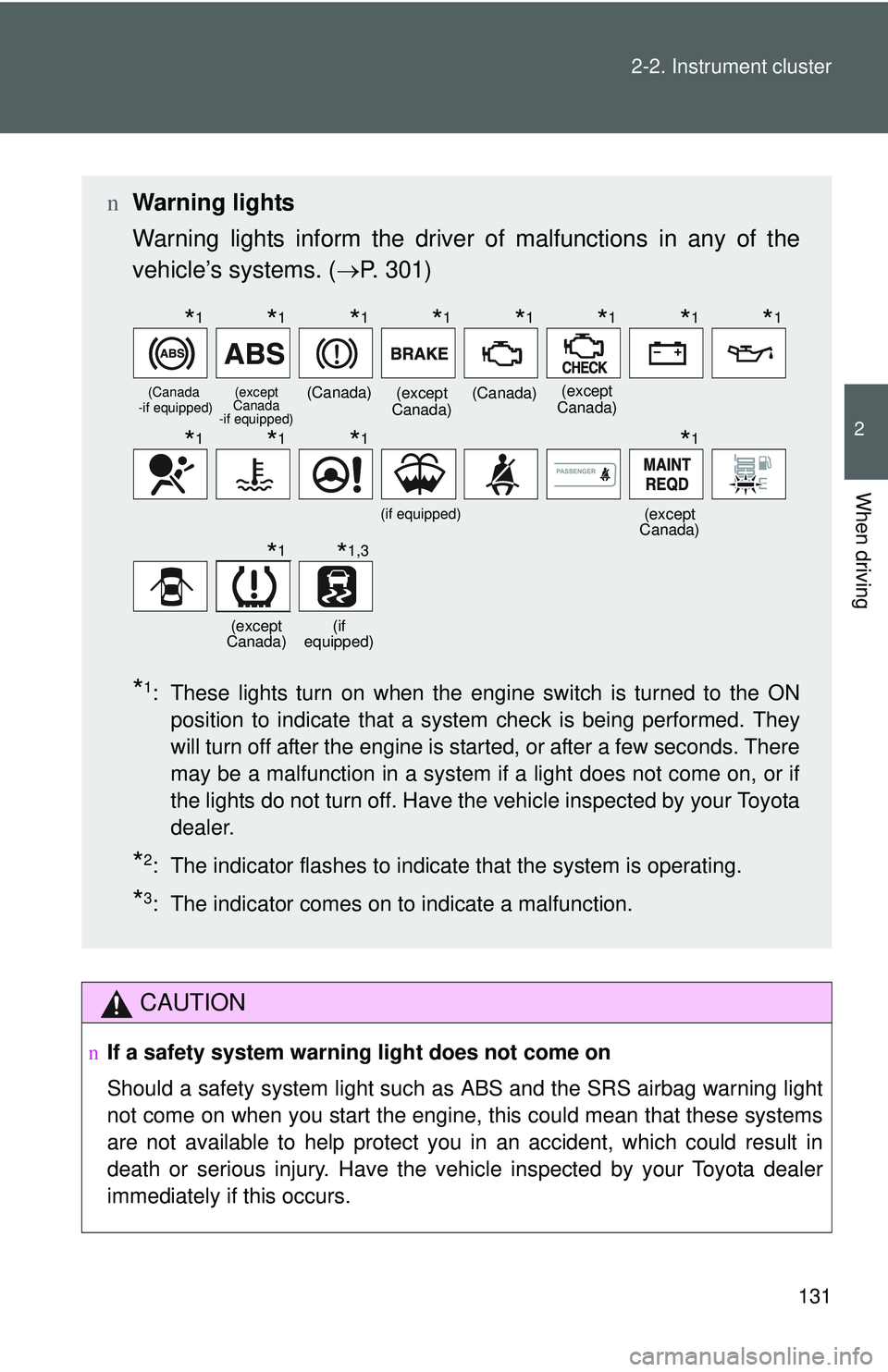

n Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( →P. 301)
*1: These lights turn on when the engine switch is turned to the ON
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
*2: The indicator flashes to indicate that the system is operating.
*3: The indicator comes on to indicate a malfunction.
(Canada
-if equipped)(except
Canada
-if equipped)(Canada)(except
Canada)(Canada)(except
Canada)

(if equipped)(except
Canada)
(except
Canada)(if
equipped)
*1*1*1*1*1*1*1*1
*1*1*1*1
*1*1,3
