2011 TOYOTA YARIS SEDAN Owners Manual

205
3-4. Using the
storage features
3
Interior features
Glove box
Pull up the lever.
Console box
Lift the lid while pulling the lever.
CAUTION
nCaution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

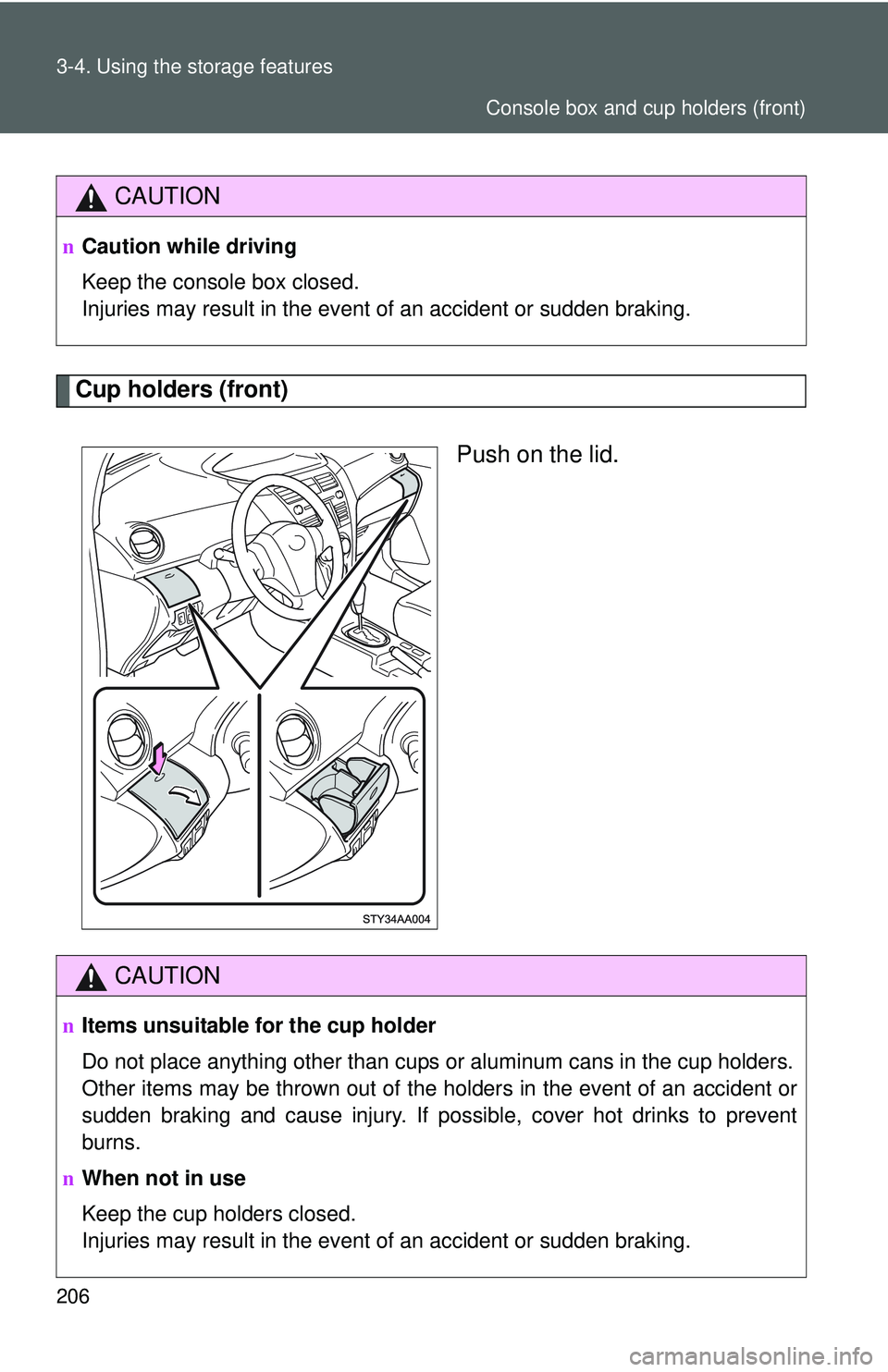

206 3-4. Using the storage features
Cup holders (front)Push on the lid.
CAUTION
nCaution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
CAUTION
nItems unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
n When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Console box and cup holders (front)

207
3-4. Using the
storage features
3
Interior features

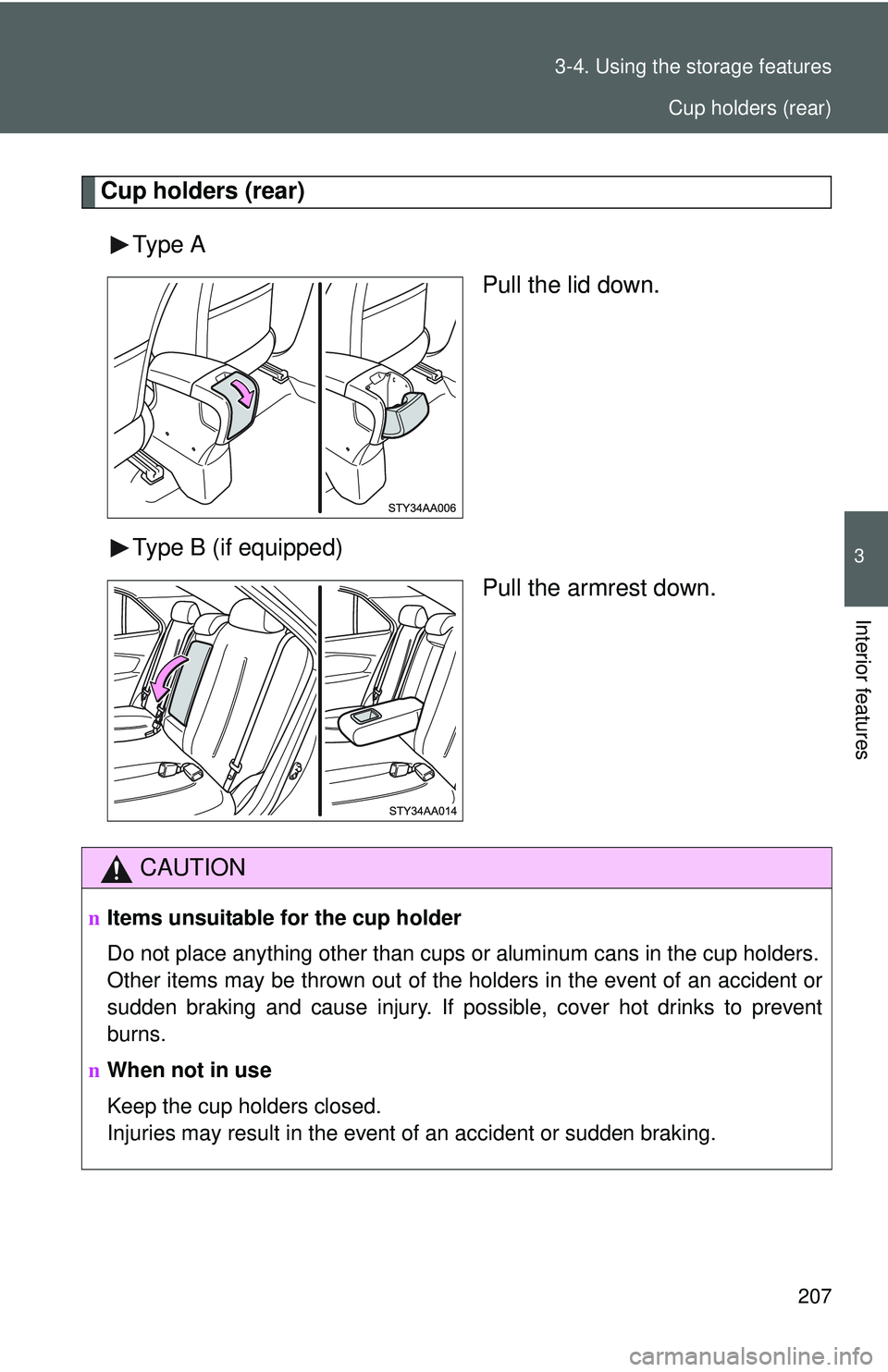

Cup holders (rear)
Type A Pull the lid down.
Type B (if equipped) Pull the armrest down.
CAUTION
nItems unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
n When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders (rear)

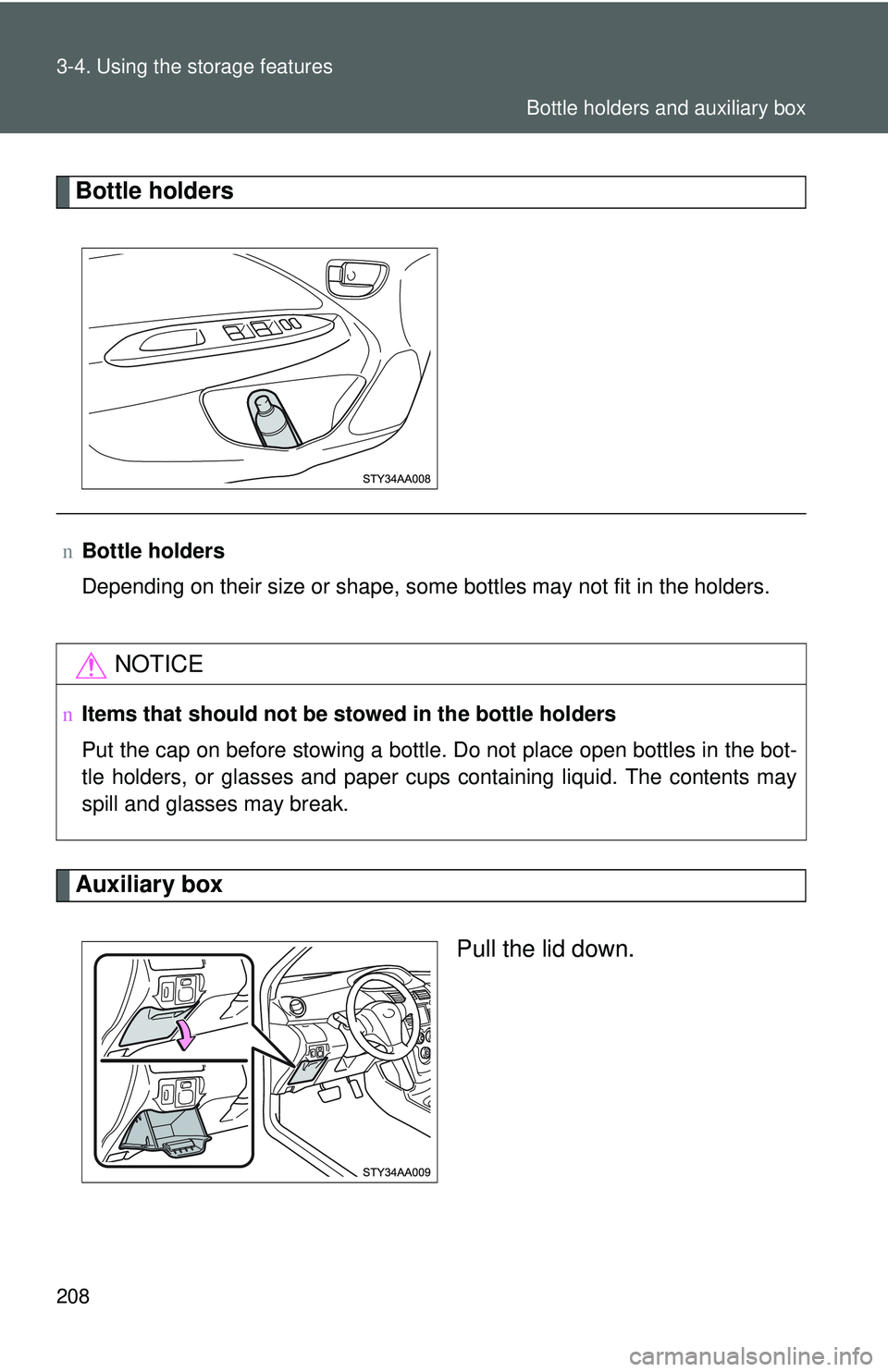

208 3-4. Using the storage features
Bottle holders
Auxiliary boxPull the lid down.
nBottle holders
Depending on their size or shape, some bottles may not fit in the holders.
NOTICE
nItems that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders and auxiliary box

209
3-4. Using the
storage features
3
Interior features

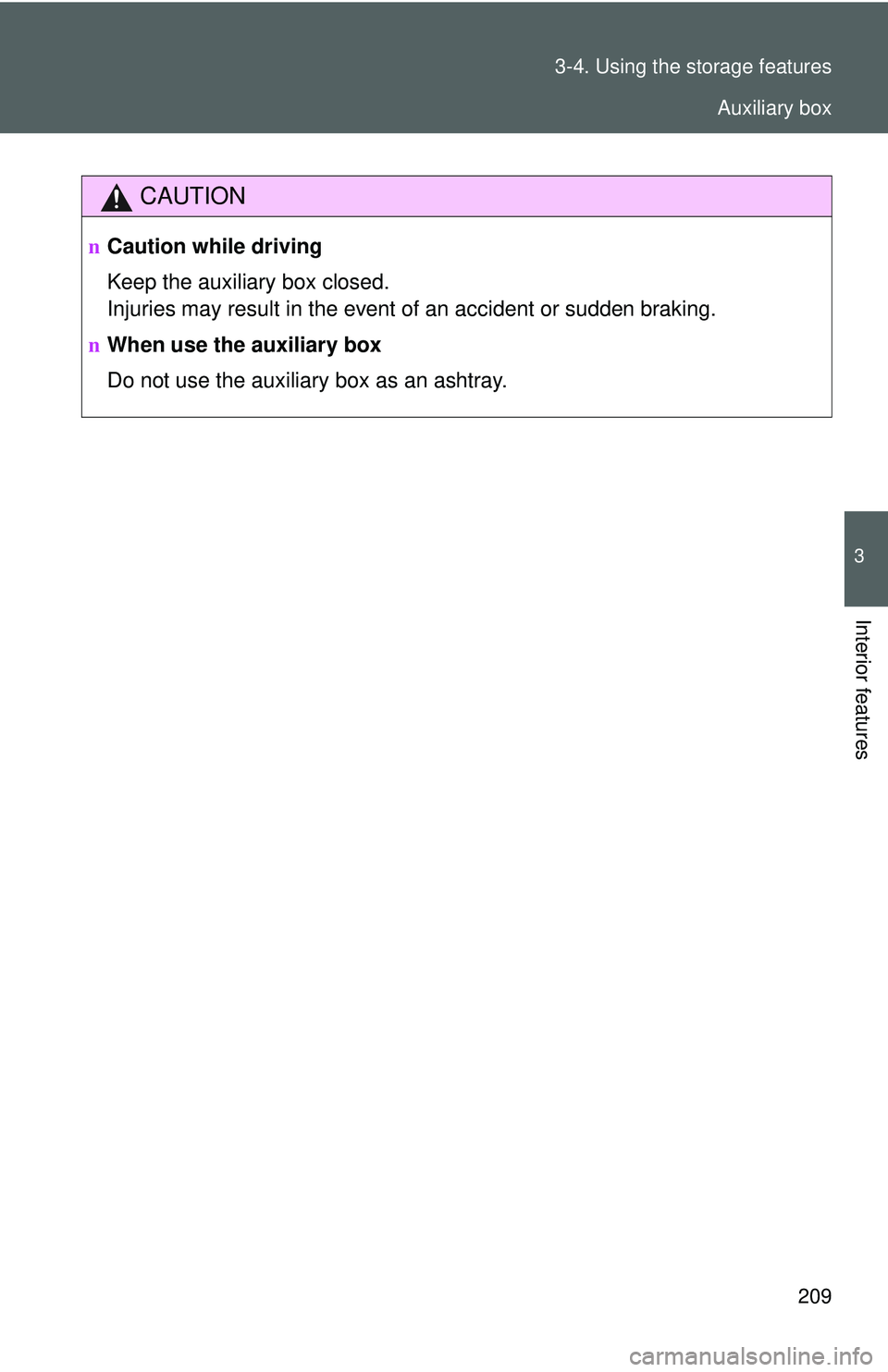

CAUTION
nCaution while driving
Keep the auxiliary box closed.
Injuries may result in the event of an accident or sudden braking.
n When use the auxiliary box
Do not use the auxiliary box as an ashtray.
Auxiliary box

210
3-5. Other interior features

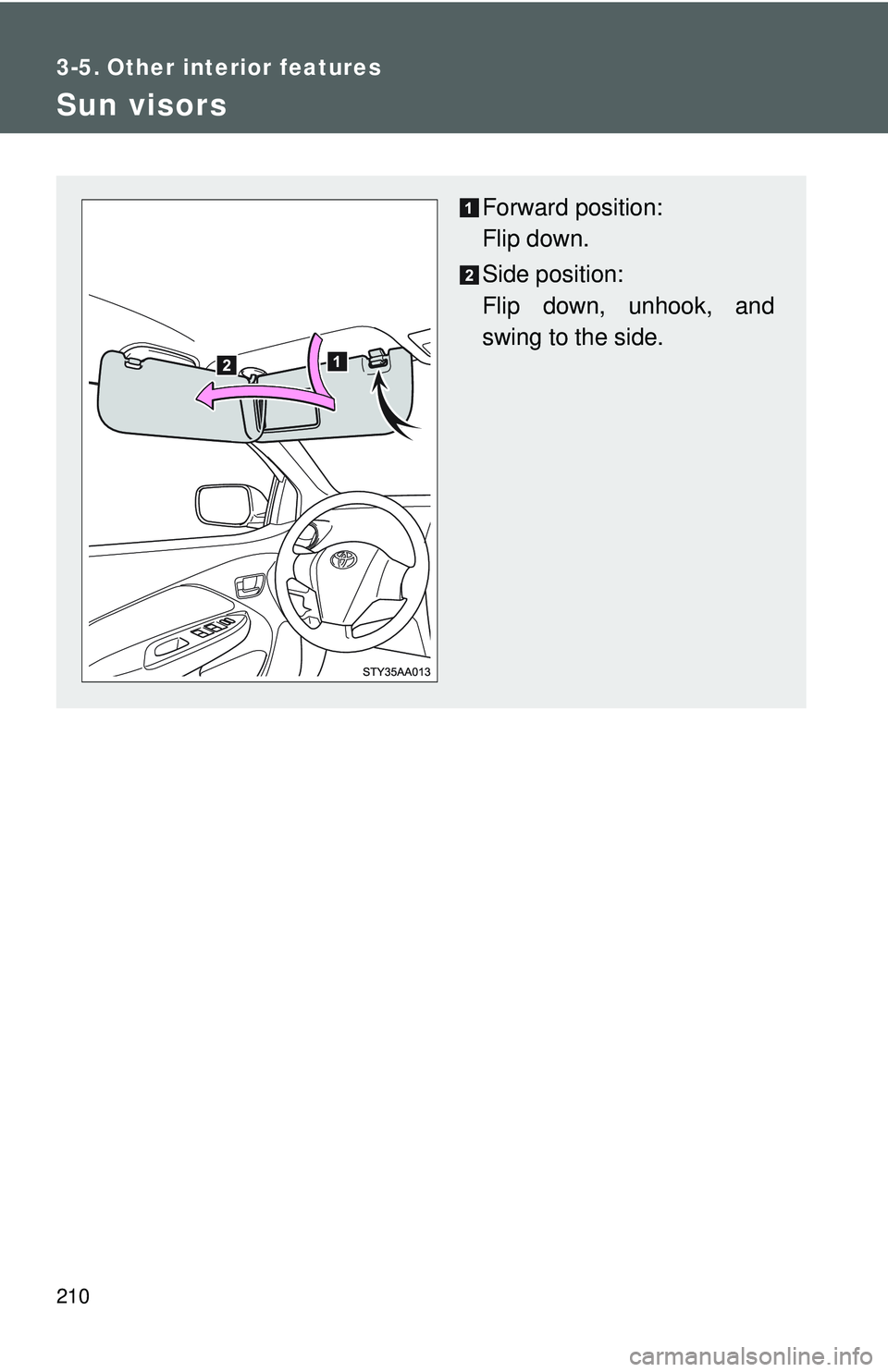

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

211
3-5. Other interior features
3
Interior features

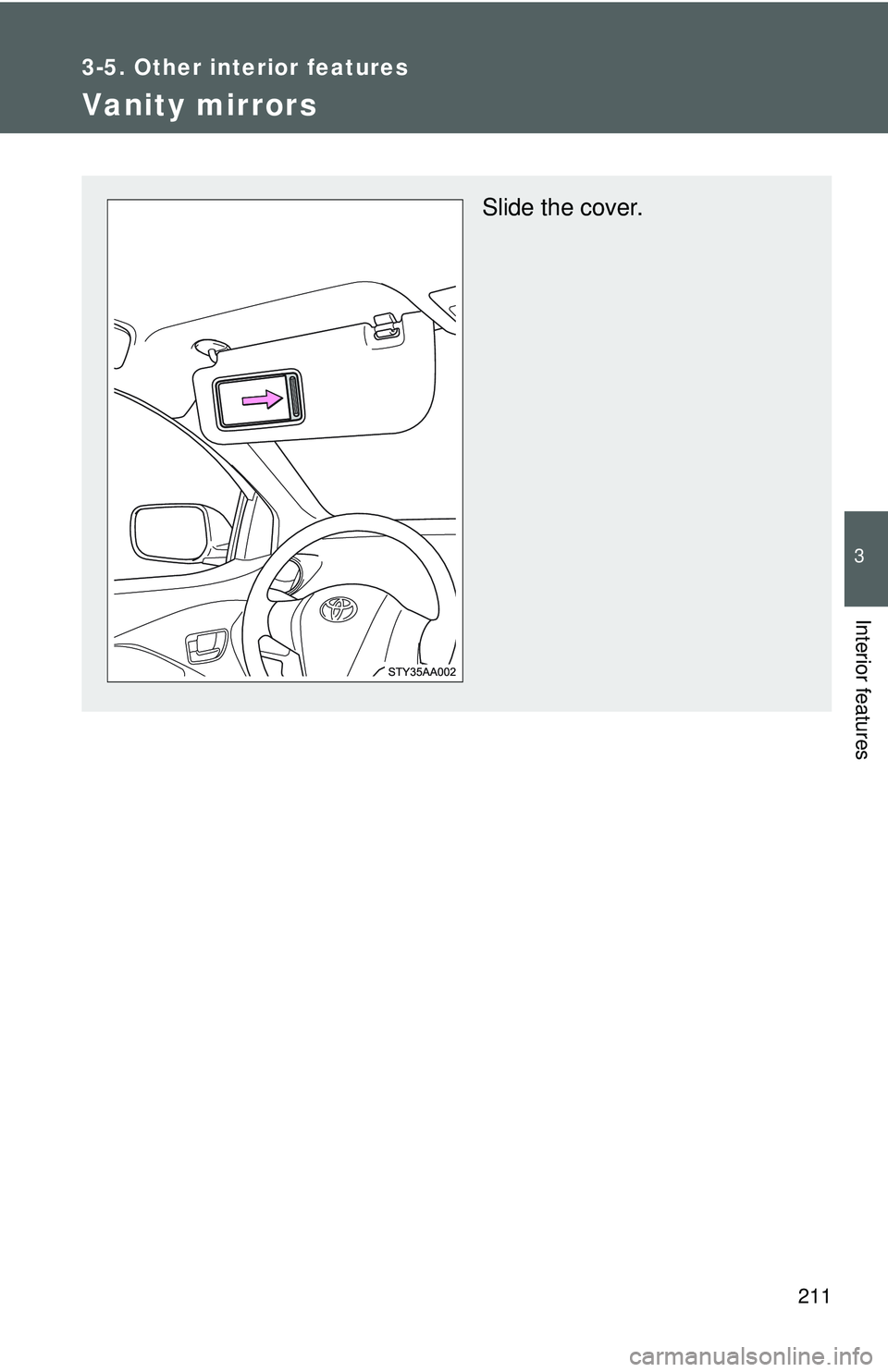

Vanity mirrors
Slide the cover.

212
3-5. Other interior features

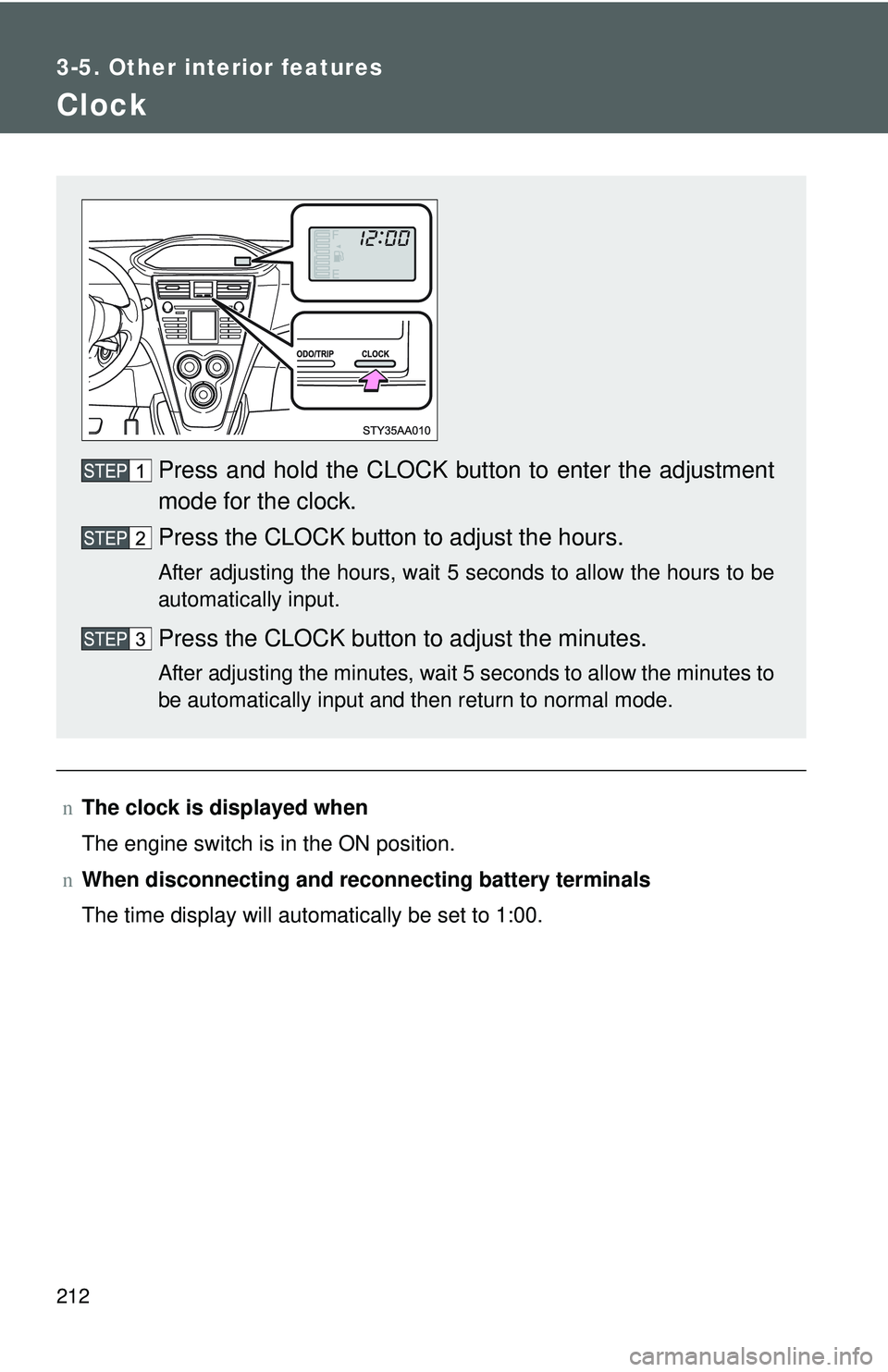

Clock
nThe clock is displayed when
The engine switch is in the ON position.
n When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
Press and hold the CLOCK button to enter the adjustment
mode for the clock.
Press the CLOCK button to adjust the hours.
After adjusting the hours, wait 5 seconds to allow the hours to be
automatically input.
Press the CLOCK button to adjust the minutes.
After adjusting the minutes, wait 5 seconds to allow the minutes to
be automatically input and then return to normal mode.
