2011 TOYOTA AURIS HYBRID Owners Manual

497 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.

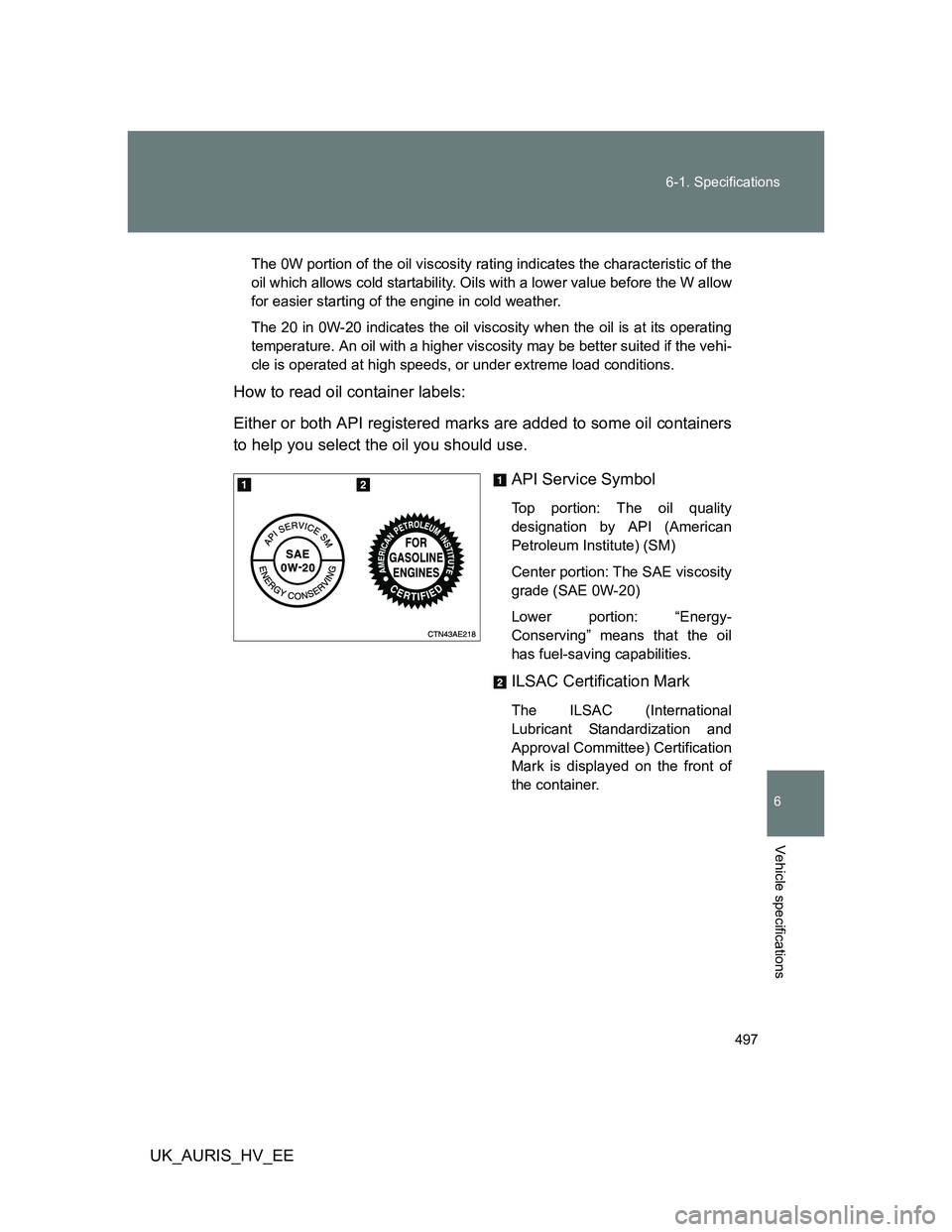

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality
designation by API (American
Petroleum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-
Conserving” means that the oil
has fuel-saving capabilities.
ILSAC Certification Mark
The ILSAC (International
Lubricant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

498 6-1. Specifications
UK_AURIS_HV_EE
Cooling system
Ignition system
Capacity (reference)
Gasoline engine
With an exhaust heat
recovery system
Without an exhaust heat
recovery system
Power control unit7.2 L (7.6 qt., 6.3 Imp. qt.)
6.5 L (6.9 qt., 5.7 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
Make
GapDENSO SC20HR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

499 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
Electrical system
Transmission
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
12-volt battery
Open voltage at
20C (68F):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 5  11.9 V Discharged
(Voltage checked 20 minutes after the hybrid sys-
tem and all the lights are turned off)
Charging rates 4.2 A max.
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
ultimately damage the transmission of your vehicle.

500 6-1. Specifications
UK_AURIS_HV_EE
Brakes
*1: Minimum pedal clearance when depressed with a force of 196 N (20 kgf, 44
lbf) while the hybrid system is operating
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Steering
Pedal clearance *1
Left-hand drive vehicles
Right-hand drive vehicles78 mm (3.07 in.) Min.
82 mm (3.23 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel *24  7 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Free play Less than 30 mm (1.2 in.)

501 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
Tires and wheels
17-inch tires
15-inch tires
Tire size 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 250 (2.5, 36)
160 km/h
(99 mph)
or less
230 (2.3, 33) 220 (2.2, 32)
Wheel size 17  7 J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)250 (2.5, 36) 240 (2.4, 35)
160 km/h
(99 mph)
or less250 (2.5, 36) 240 (2.4, 35)
Wheel size 15  6 J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

502 6-1. Specifications
UK_AURIS_HV_EECompact spare tire
Tire size T125/70D17 98M
Tire inflation pressure
(Recommended cold tire
inflation pressure)420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size 17  4T
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

503 6-1. Specifications
6
Vehicle specifications
UK_AURIS_HV_EE
Light bulbs
A: HB3 halogen bulbs B: D4S discharge bulbs
C: H11 halogen bulbs D: Single end bulbs (amber)
E: Wedge base bulbs (clear) F: Wedge base bulbs (amber)
G: Double end bulbs
*
1: Vehicles without intrusion sensor
*
2: Vehicles with intrusion sensor
Light BulbsWTy p e
ExteriorHeadlights
High beam
Low beam (discharge bulbs)
Low beam (halogen bulbs)60
35
55A
B
C
Front turn signal lights 21 D
Front position lights 5 E
Front fog lights 55 C
Rear turn signal lights 21 F
Back-up lights 16 E
Rear fog light 21 E
Stop lights 16 E
Tail lights 5 E
License plate lights 5 E
InteriorVanity lights 8 E
Interior light 8 G
Personal lights6*1
5*2E
Luggage compartment light 5 G

504
6-1. Specifications
UK_AURIS_HV_EE
Fuel infor mation
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to European
standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
