2011 TOYOTA AURIS HYBRID Owners Manual

161 1-8. Safety information
1
Before driving
UK_AURIS_HV_EE
Airbag manual on-off indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator does not change when the airbag manual on-off switch is
switched to the “ON” or “OFF” position.
CAUTION
When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

162 1-8. Safety information
UK_AURIS_HV_EE

2When driving
163
UK_AURIS_HV_EE
2-1. Driving procedures
Driving the vehicle ............ 164
Power (ignition) switch...... 175
EV-Drive Mode ................. 180
Transmission .................... 183
Turn signal lever ............... 190
Parking brake ................... 191
Horn .................................. 192
2-2. Instrument cluster
Gauges and meters .......... 193
Indicators and warning
lights ............................... 197
Multi-information
display ............................ 200
2-3. Operating the lights and
wipers
Headlight switch ............... 206
Fog light switch ................. 211
Windshield wipers and
washer ............................ 212
Rear window wiper and
washer ............................ 217
Headlight cleaner
switch ............................. 2182-4. Using other driving
systems
Cruise control.................... 219
Toyota parking
assist-sensor .................. 223
Driving assist systems ...... 228
Hill-start assist control....... 232
2-5. Driving information
Cargo and luggage ........... 234
Winter driving tips ............. 236
Trailer towing .................... 240

164
UK_AURIS_HV_EE
2-1. Driving procedures

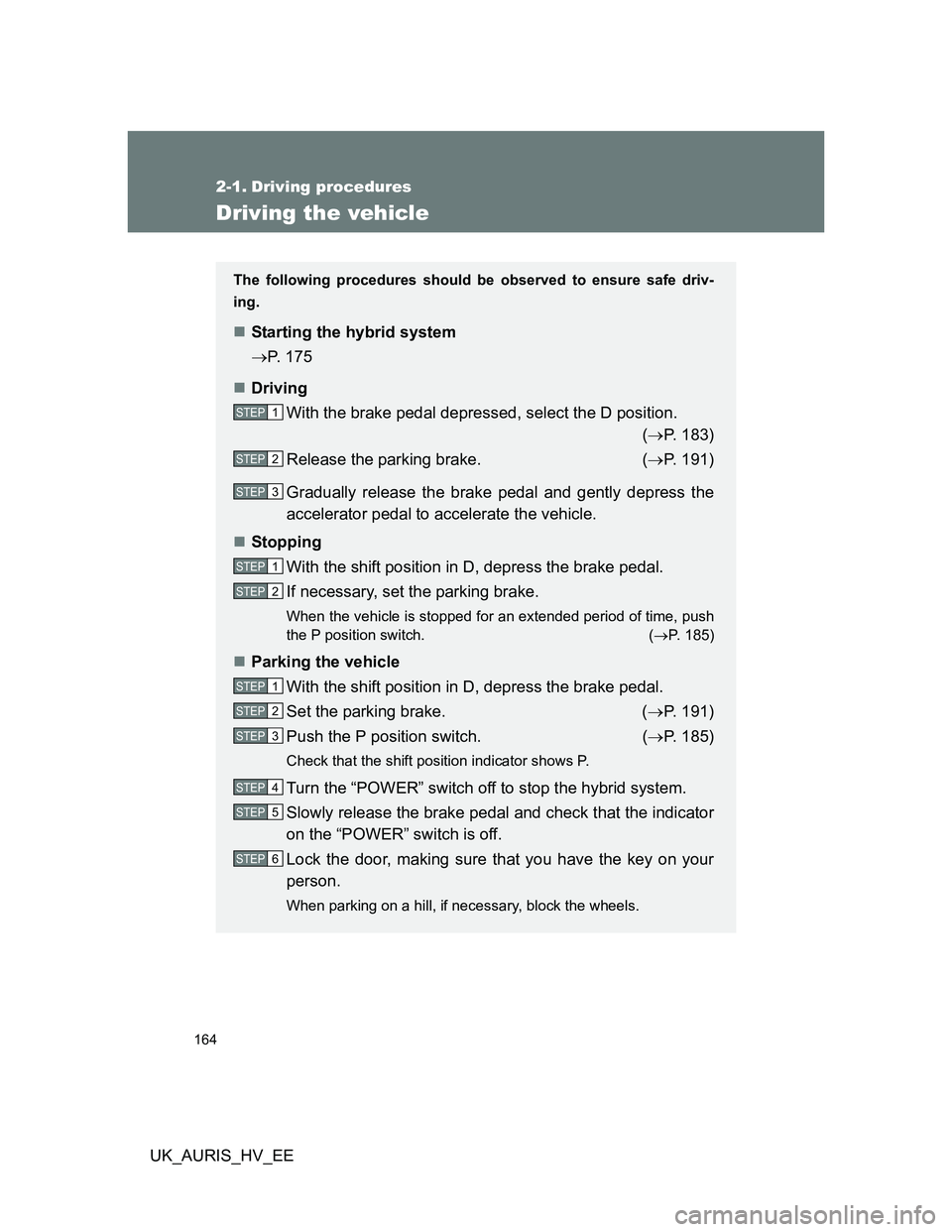

Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
Starting the hybrid system
P. 175
Driving
With the brake pedal depressed, select the D position.
(P. 183)
Release the parking brake. (P. 191)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Stopping
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, push
the P position switch. (P. 185)
Parking the vehicle
With the shift position in D, depress the brake pedal.
Set the parking brake. (P. 191)
Push the P position switch. (P. 185)
Check that the shift position indicator shows P.
Turn the “POWER” switch off to stop the hybrid system.
Slowly release the brake pedal and check that the indicator
on the “POWER” switch is off.
Lock the door, making sure that you have the key on your
person.
When parking on a hill, if necessary, block the wheels.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

165 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE

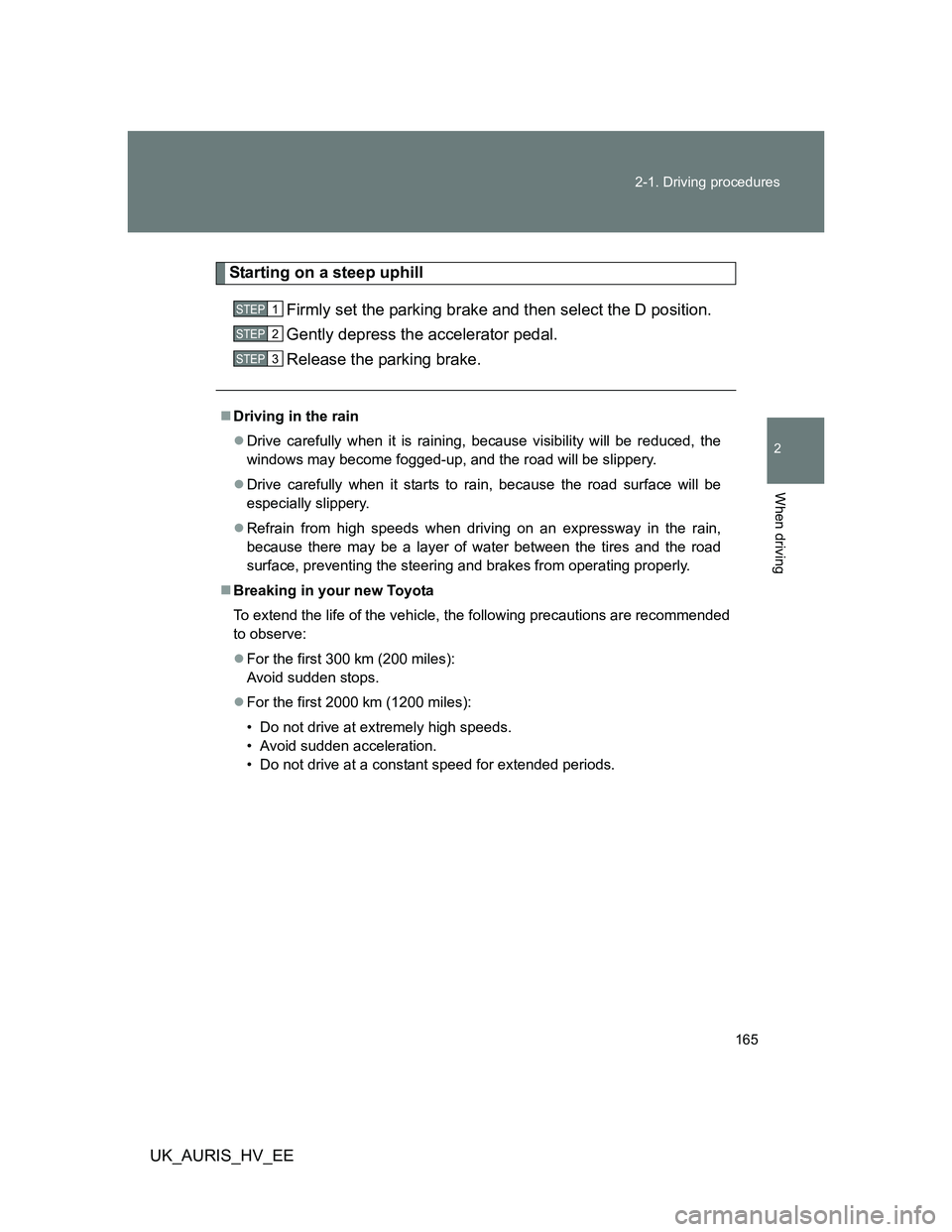

Starting on a steep uphill
Firmly set the parking brake and then select the D position.
Gently depress the accelerator pedal.
Release the parking brake.
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
For the first 300 km (200 miles):
Avoid sudden stops.
For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
STEP1
STEP2
STEP3

166 2-1. Driving procedures
UK_AURIS_HV_EE
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 494)
For efficient use
Select the D position when driving.
In the N position, the gasoline engine operates but electricity cannot be
generated.
The hybrid battery (traction battery) will be discharged requiring unnec-
essary engine power to recharge.
Drive your vehicle smoothly.
Avoid abrupt acceleration and deceleration. Gradual acceleration and
deceleration will make more effective use of the traction motor without
having to use gasoline engine power.
Avoid repeated acceleration.
Repeated acceleration consumes hybrid battery (traction battery) power,
resulting in poor acceleration. Battery power can be restored by driving
with the accelerator pedal slightly released.
Push the P position switch when parking.
In the N position, the hybrid battery (traction battery) does not recharge.
Leaving the N position selected for an extended period of the time may
discharge the hybrid battery. The vehicle cannot run if the hybrid battery
is discharged.

167 2-1. Driving procedures
2
When driving
UK_AURIS_HV_EE

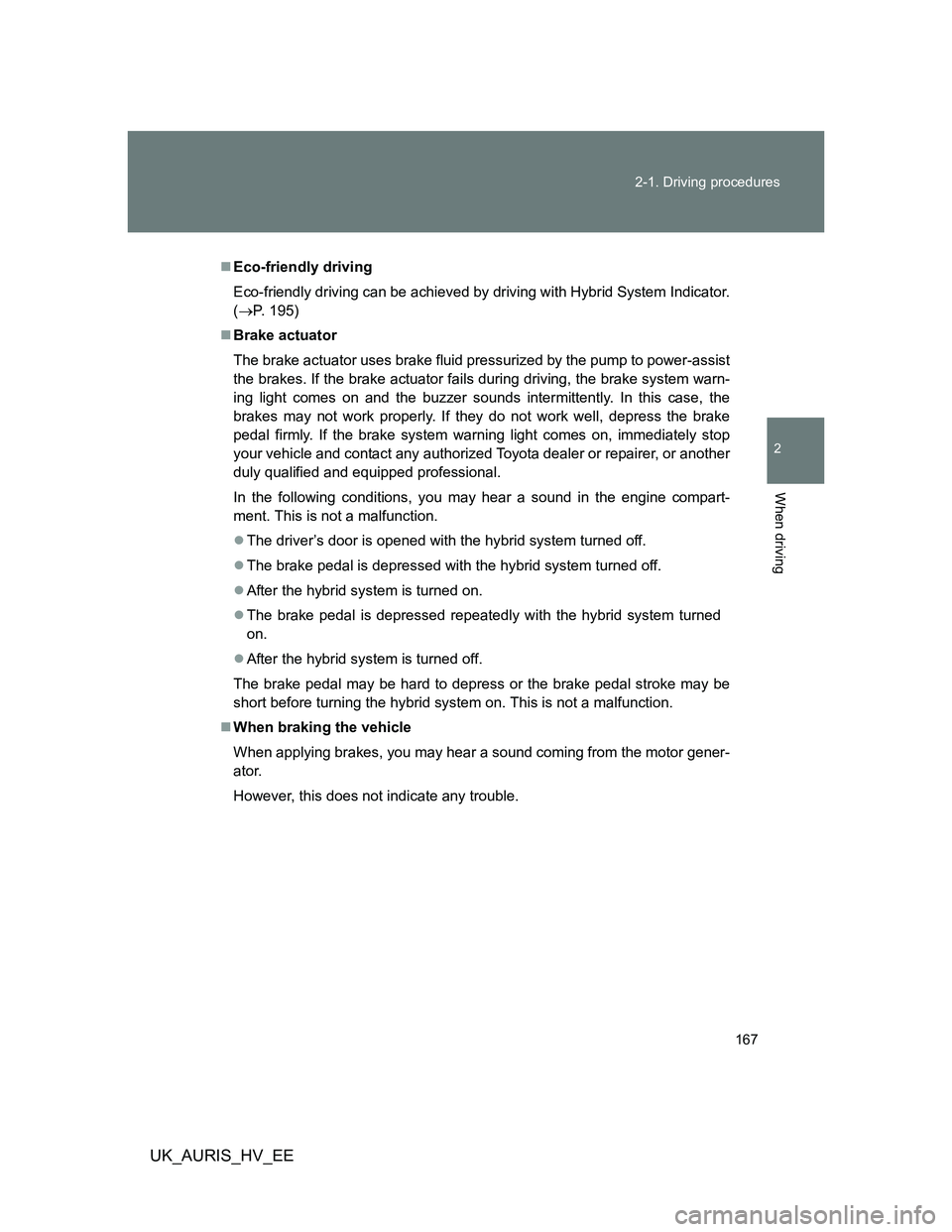

Eco-friendly driving
Eco-friendly driving can be achieved by driving with Hybrid System Indicator.
(P. 195)
Brake actuator
The brake actuator uses brake fluid pressurized by the pump to power-assist
the brakes. If the brake actuator fails during driving, the brake system warn-
ing light comes on and the buzzer sounds intermittently. In this case, the
brakes may not work properly. If they do not work well, depress the brake
pedal firmly. If the brake system warning light comes on, immediately stop
your vehicle and contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
In the following conditions, you may hear a sound in the engine compart-
ment. This is not a malfunction.
The driver’s door is opened with the hybrid system turned off.
The brake pedal is depressed with the hybrid system turned off.
After the hybrid system is turned on.
The brake pedal is depressed repeatedly with the hybrid system turned
on.
After the hybrid system is turned off.
The brake pedal may be hard to depress or the brake pedal stroke may be
short before turning the hybrid system on. This is not a malfunction.
When braking the vehicle
When applying brakes, you may hear a sound coming from the motor gener-
ator.
However, this does not indicate any trouble.

168 2-1. Driving procedures
UK_AURIS_HV_EE
CAUTION
When starting the vehicle
Always keep your foot on the brake pedal while stopped with the hybrid sys-
tem operating. This prevents the vehicle from creeping.
When driving the vehicle
Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident
that could result in death or serious injury.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly, allowing you to depress the brake and accelerator
pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
The driver should pay attention to pedestrians when the vehicle is pow-
ered only by the electric motor (traction motor). Because there is no hybrid
system sounds, the pedestrians may misjudge the vehicle’s movement.
Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
Do not let the vehicle roll backwards while a forward driving position is
selected, or roll forward while R is selected.
Doing so may cause the hybrid system not to operate or lead to poor
brake and steering performance, resulting in an accident or damage to the
vehicle.
