Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP1STEP1
Flat tireWheel chock
positions
Front
Left-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
Rear
Left-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire
STEP2

450 5-2. Steps to take in an emergency
UK_AURIS_HV_EETurn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP3
STEP4
STEP5

5
451 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Installing the tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the tire and loosely tighten
each wheel nut by hand by
approximately the same amount.
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Lower the vehicle.
STEP1
Tapered portion
Disc
wheel
seatSTEP2
STEP3

452 5-2. Steps to take in an emergency
UK_AURIS_HV_EEFirmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the tools in the locations specified below.
Jack spacer (type A) or toolbox (type B): spare tire well
Jack and tool bag: luggage undertray
Flat tire: luggage compartment (on the luggage mat)
These are temporary locations while the compact spare tire is in
use.
STEP4
STEP5

5
453 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
When stowing the spare tire
Type A
Stow the jack spacer and jack as
shown, with the jack laid flat.
Type B
Stow the toolbox and jack as
shown, making sure that the jack
does not protrude above the top
of the toolbox.
The compact spare tire
The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
Make sure to check the tire inflation pressure of the compact spare tire.
(
P. 501)

454 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on the rear of the vehicle. Perform the following
steps and fit tire chains to the front tires.
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the
vehicle.
Fit tire chains to the front tires.
STEP1
STEP2
STEP3

5
455 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Certification for the jack

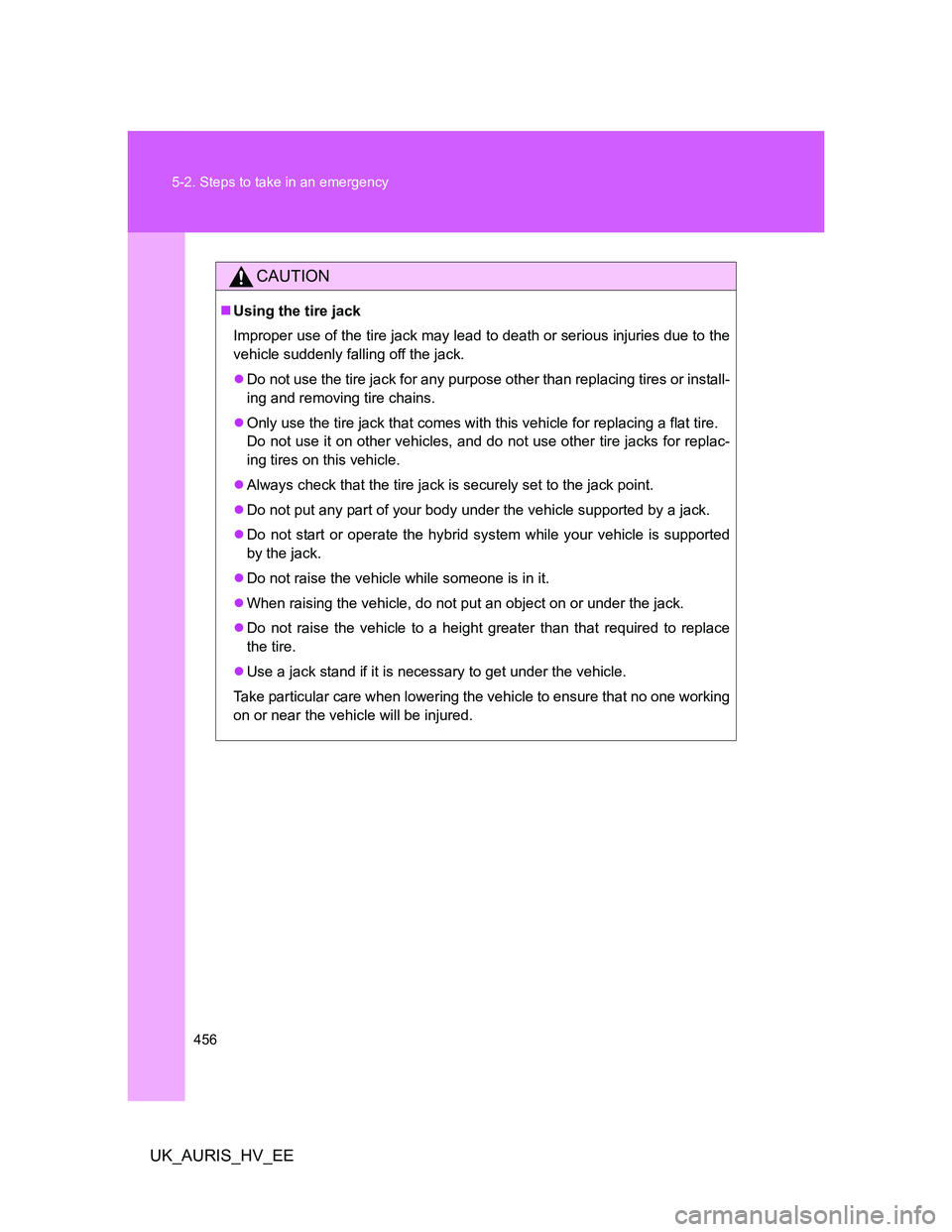

456 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or operate the hybrid system while your vehicle is supported
by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.
