457 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE

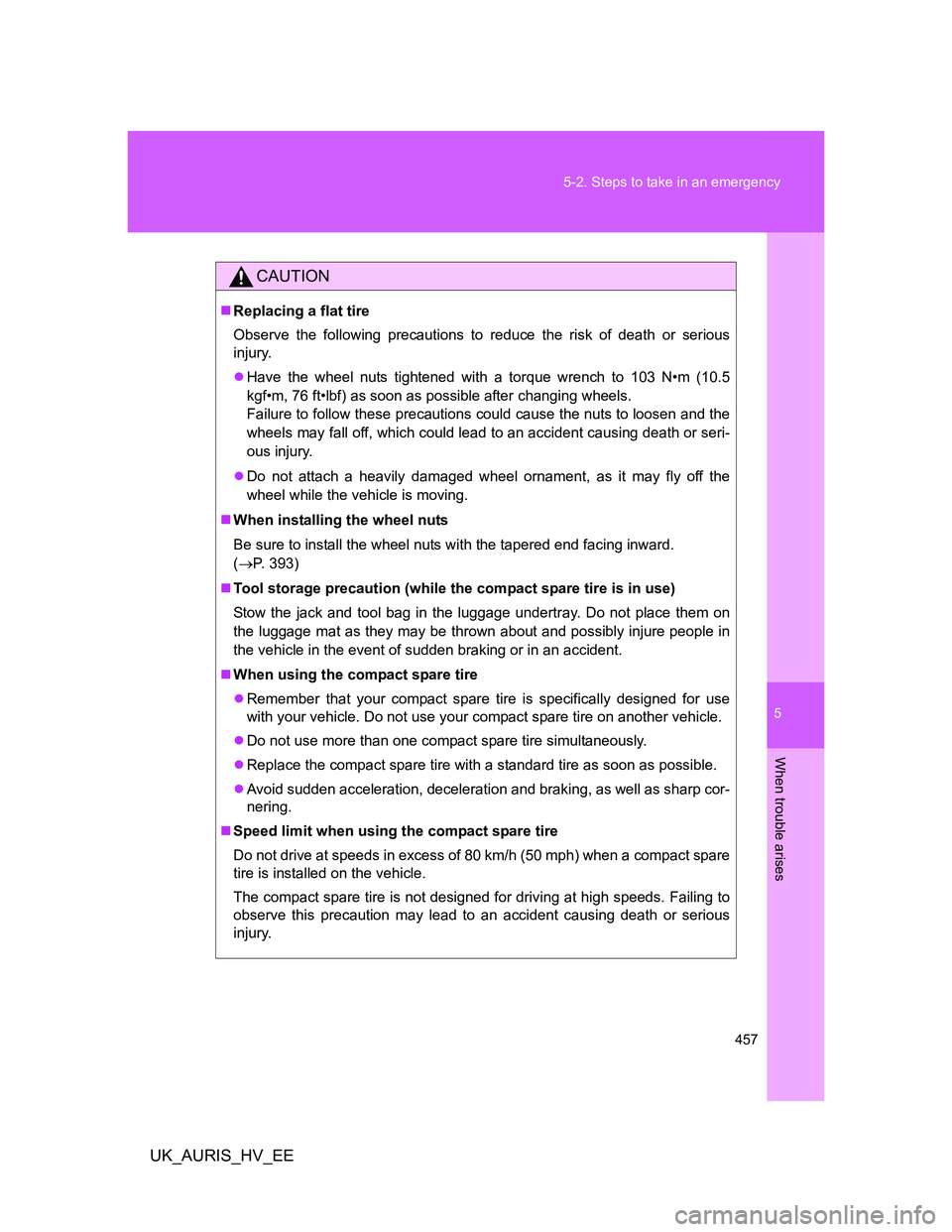

CAUTION
Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury.
Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5
kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the
wheels may fall off, which could lead to an accident causing death or seri-
ous injury.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
When installing the wheel nuts
Be sure to install the wheel nuts with the tapered end facing inward.
(P. 393)
Tool storage precaution (while the compact spare tire is in use)
Stow the jack and tool bag in the luggage undertray. Do not place them on
the luggage mat as they may be thrown about and possibly injure people in
the vehicle in the event of sudden braking or in an accident.
When using the compact spare tire
Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
Do not use more than one compact spare tire simultaneously.
Replace the compact spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.

458 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
CAUTION
When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & Brake assist
VSC
Navigation system (if equipped)
TRC
Cruise control (if equipped)
Rear view monitor system (if equipped)
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Tool storage precaution (while the compact spare tire is in use)
Do not stow anything but the soft jack spacer (type A) or toolbox (type B) in
the spare tire well. Hard, unsecured objects may damage nearby compo-
nents.
Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

5
459
5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily with the emergency tire puncture repair
kit.
Before repairing the vehicle
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Push the P position switch.
Stop the hybrid system.
Turn on the emergency flashers.
Location of the emergency tire puncture repair kit, jack and
tools
Ty p e A
*: Use of the jack (P. 449)
Tool bag
(if equipped) Jack*
(if equipped)Wheel nut
wrench
Emergency tire
puncture repair kit
Towing eyelet

460 5-2. Steps to take in an emergency
UK_AURIS_HV_EE
Ty p e B
*: Use of the jack (P. 449)
Contents
Tool bag
(if equipped) Jack*
(if equipped)
or wheel nut
wrench (if the
tool bag is not
equipped)
Emergency tire
puncture repair kit
Towing eyelet
Sealant
Injection
hoseValve core tool
Va l v e c o r e
(spare)Compressor
Stickers

5
461 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EE
Before putting the sealant into use
Check the degree of the tire damage before making use of the seal-
ant in the emergency tire puncture repair kit.
A tire should only to be repaired
if the damage is caused by a nail
or screw passing through the tire
tread. Perform the repair with the
nail or screw that has punctured
the tire positioned at the bottom,
in contact with the ground.
Emergency repair with the sealant in the kit is not possible in the fol-
lowing cases. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
When the wheel is damaged
When two or more tires have been punctured
When the tire is damaged due to driving without sufficient air pres-
sure
When the tire is visibly disengaged from the wheel
When the tire lost air pressure due to a crack or damage in the tire
sidewall
When the cut or damage to the tread is 4 mm (0.16 in.) or more

462 5-2. Steps to take in an emergency
UK_AURIS_HV_EE

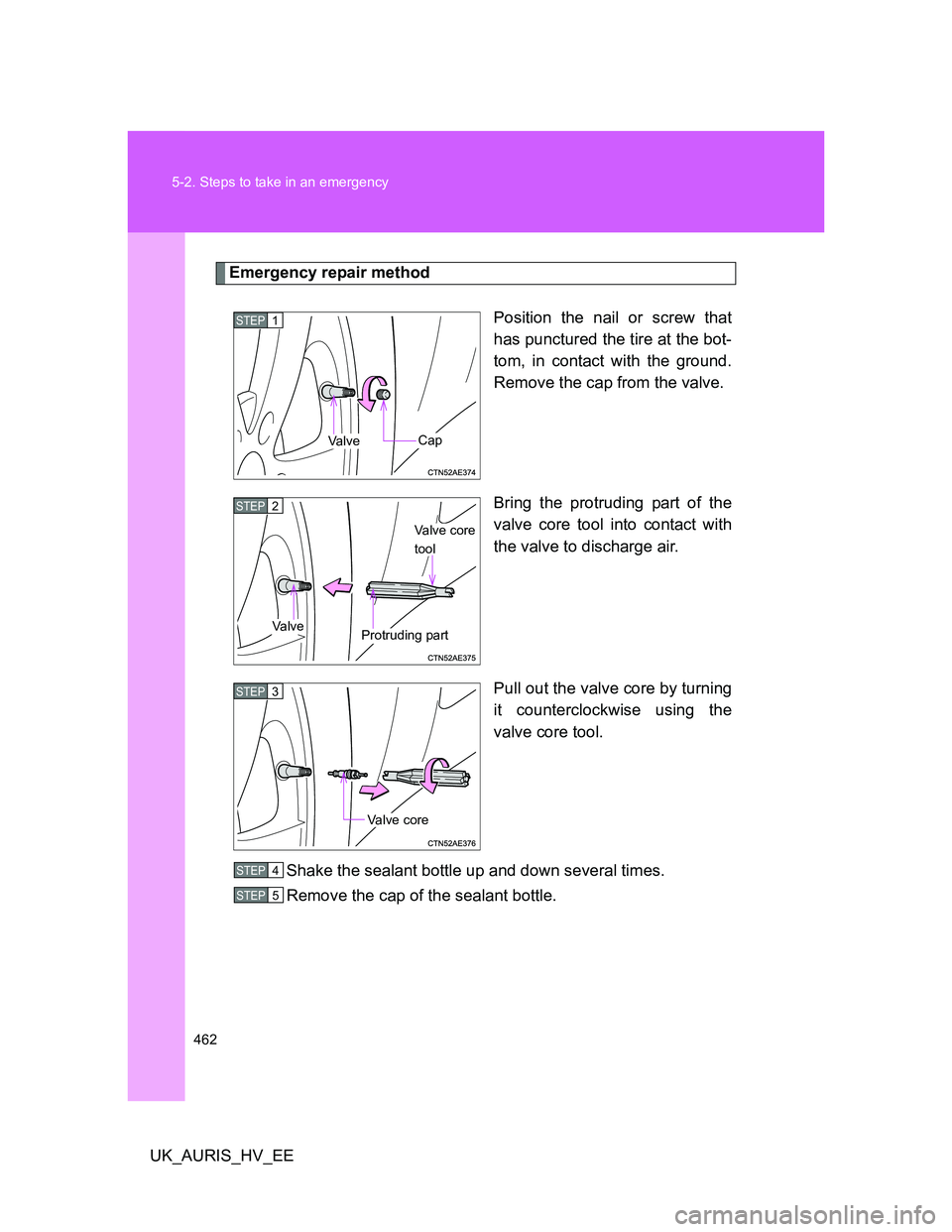

Emergency repair method
Position the nail or screw that
has punctured the tire at the bot-
tom, in contact with the ground.
Remove the cap from the valve.
Bring the protruding part of the
valve core tool into contact with
the valve to discharge air.
Pull out the valve core by turning
it counterclockwise using the
valve core tool.
Shake the sealant bottle up and down several times.
Remove the cap of the sealant bottle.
STEP1
Va l v eCap
STEP2
Va l v eProtruding partVa l v e c o r e
tool
STEP3
Va l v e c o r e
STEP4
STEP5

5
463 5-2. Steps to take in an emergency
When trouble arises
UK_AURIS_HV_EEConnect the injection hose by
screwing onto the sealant. As it
is screwed in, the aluminum seal
on the bottle will be torn.
Remove the plug from the injec-
tion hose.
Connect the injection hose to the
valve.
Inject the sealant that is in the
bottle. Hold and tilt the bottle,
then squeeze sealant out of the
bottle as shown.
STEP6
Injection
hose
Sealant
STEP7
Plug
Injection
hose
STEP8Va l v e
Injection
hose
STEP9

464 5-2. Steps to take in an emergency
UK_AURIS_HV_EEAttach the sticker as shown.
Remove the injection hose from
the valve and screw the valve
core in the valve securely by
turning it clockwise with the
valve core tool.
Connect the air compressor
hose by threading it on the valve.
With a power outlet: Connect the
compressor power plug to the
power outlet.
The “POWER” switch must be in
ACCESSORY mode.
STEP10
STEP11
Va l v e
core tool
Va l v e c o r e
STEP12
Compressor
Hose
Power
outlet
STEP13Power plug
