2011 TOYOTA AURIS HYBRID Owners Manual

209 2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE
Headlight control sensor (if equipped)
Automatic light off system (if equipped)
When the light switch is in
or : The headlights and front fog
lights turn off automatically if the “POWER” switch is turned to ACCES-
SORY mode or turned off.
When the light switch is in : The headlights and all lights turn off
automatically if the “POWER” switch is turned to ACCESSORY mode or
turned off and the driver's door is opened.
To turn the lights on again, turn to ON mode, or turn the light switch off once
and then back to
or .
Light reminder buzzer (if equipped)
A buzzer sounds when the “POWER” switch is turned off or to ACCESSORY
mode and the driver's door is opened while the lights are turned on.
Automatic headlight leveling system (vehicles with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 506)
Headlight control sensor is located on the
driver's side.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

210 2-3. Operating the lights and wipers
UK_AURIS_HV_EE

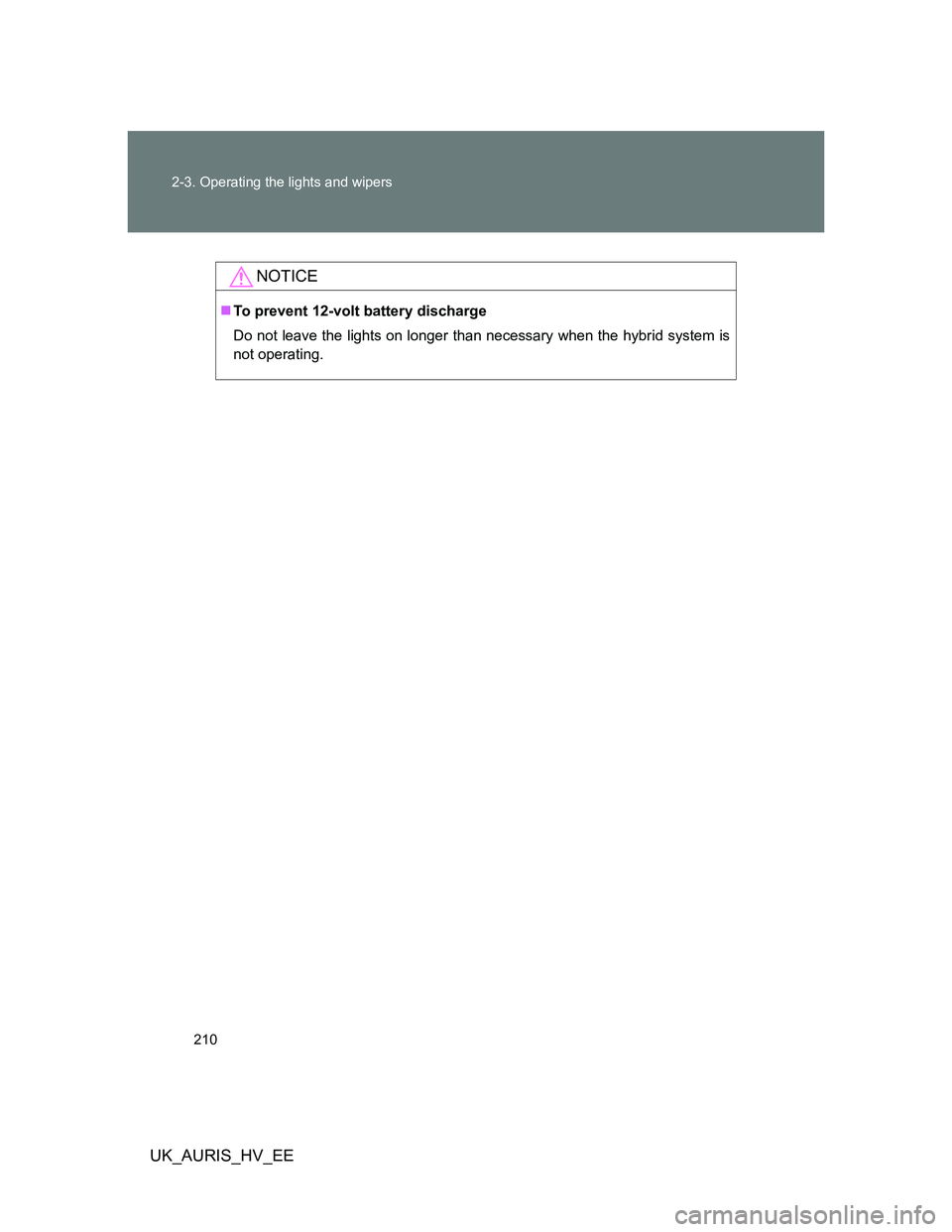

NOTICE
To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
not operating.

211
2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE
Fog light switch
Fog lights can be used when
Front fog lights: The headlights or front position lights are turned on.
Rear fog light: The front fog lights are turned on.
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog.
Turns the front and rear fog
lights off
Turns the front fog lights on
Turns both front and rear
fog lights on
Releasing the switch ring
returns it to . (vehicles
with an automatic headlight
system)
Operating the switch ring again
turns only the rear fog light off.

212
2-3. Operating the lights and wipers
UK_AURIS_HV_EE

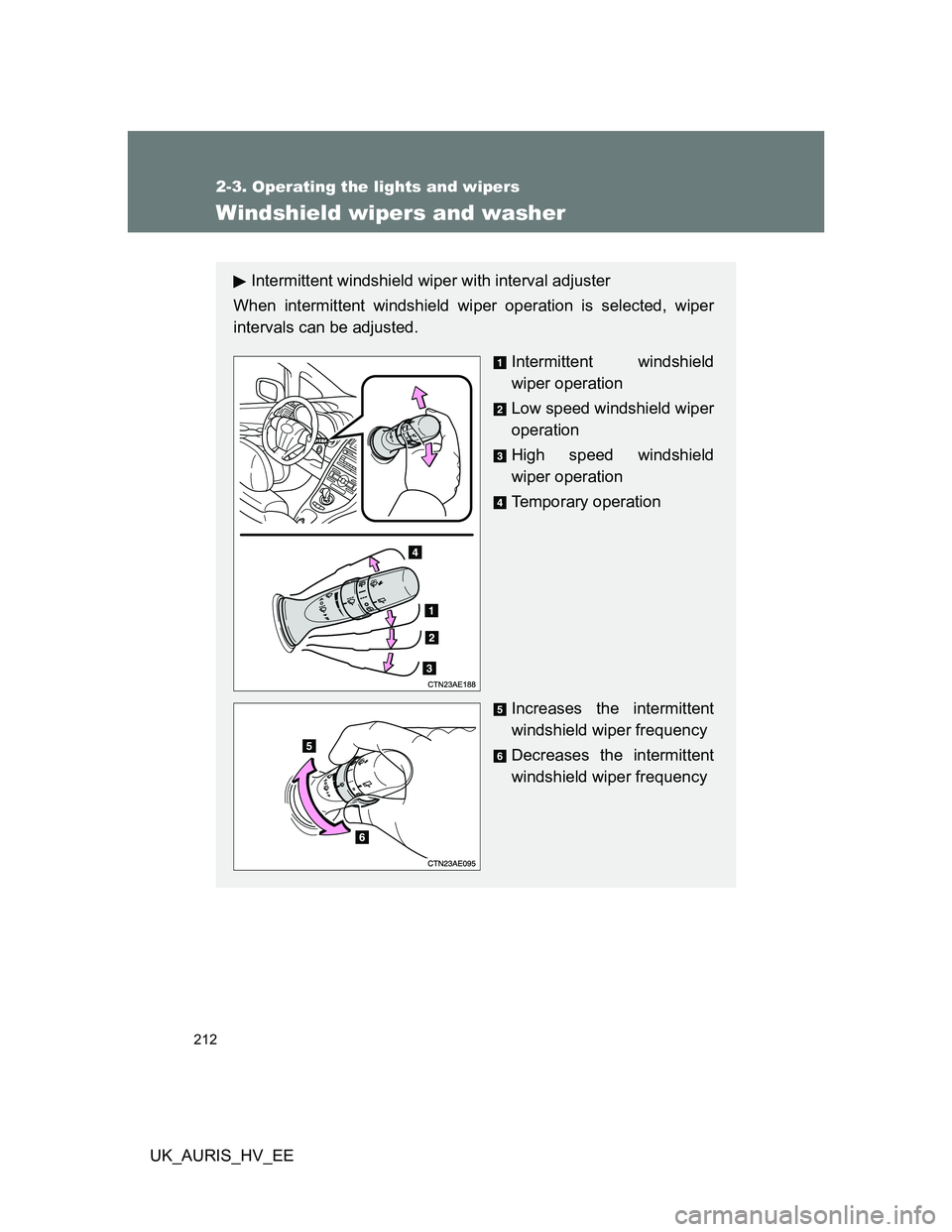

Windshield wipers and washer
Intermittent windshield wiper with interval adjuster
When intermittent windshield wiper operation is selected, wiper
intervals can be adjusted.
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

213 2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE
Wash/wipe operation
Wipers operate automatically.
Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume and vehicle speed.
Rain-sensing windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation

214 2-3. Operating the lights and wipers
UK_AURIS_HV_EE
The windshield wipers and washer can be operated when
The “POWER” switch is in ON mode.
Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
Even when the wipers are not in “AUTO” mode, wiper operation varies
depending on vehicle speed when the washer is being used (delay until drip
prevention wiper sweep occurs).
Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers operate automatically.
(After operating several times,
the wipers operate one more
time after a short delay to pre-
vent dripping.)
With the headlight cleaner and
discharge headlights: If the
headlights are on, the head-
light cleaners will operate
once. (P. 218)

215 2-3. Operating the lights and wipers
2
When driving
UK_AURIS_HV_EE
Raindrop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to the “AUTO” position while the “POWER”
switch is in ON mode, the wiper will operate once to show that “AUTO”
mode is activated.
If the temperature of the raindrop sensor is 90C (194F) or higher, or
-15C (5F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
CAUTION
Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
The sensor judges the amount of rain-
drops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

216 2-3. Operating the lights and wipers
UK_AURIS_HV_EE
NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
When a nozzle becomes blocked
In this case, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
