2011 TOYOTA 4RUNNER Owners Manual

5
When trouble arises
609
5-2. Steps to take in an emergency
4RUNNER_U
CAUTION
■
If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: Stop the engine by press-
ing and holding the “ENGINE
START STOP” switch for 3
consecutive seconds or more.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more
STEP 4
STEP 5

610 5-2. Steps to take in an emergency
4RUNNER_U

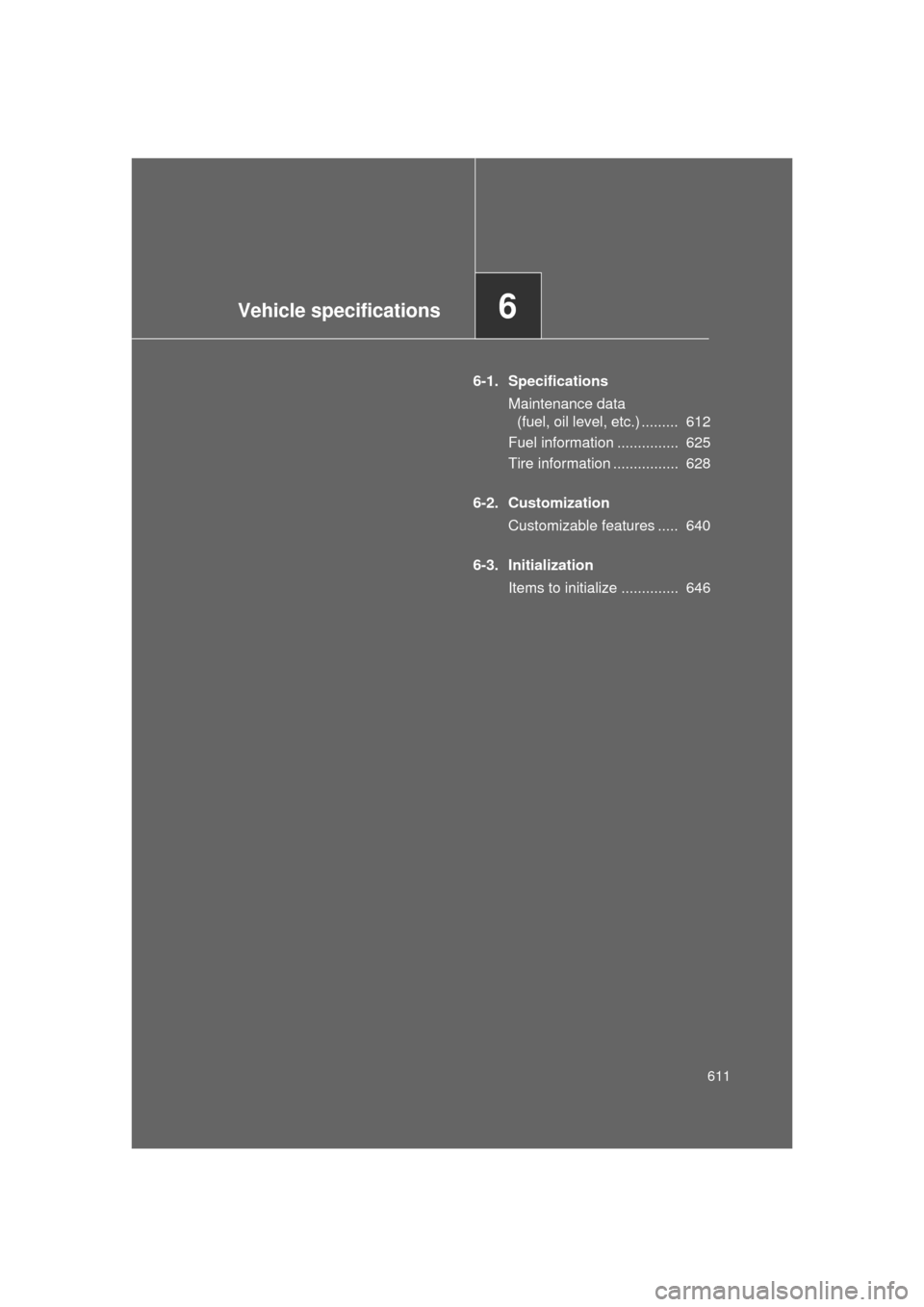

Vehicle specifications6
611
4RUNNER_U
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 612
Fuel information ............... 625
Tire information ................ 628
6-2. Customization Customizable features ..... 640
6-3. Initialization Items to initialize .............. 646

612
4RUNNER_U
6-1. Specifications

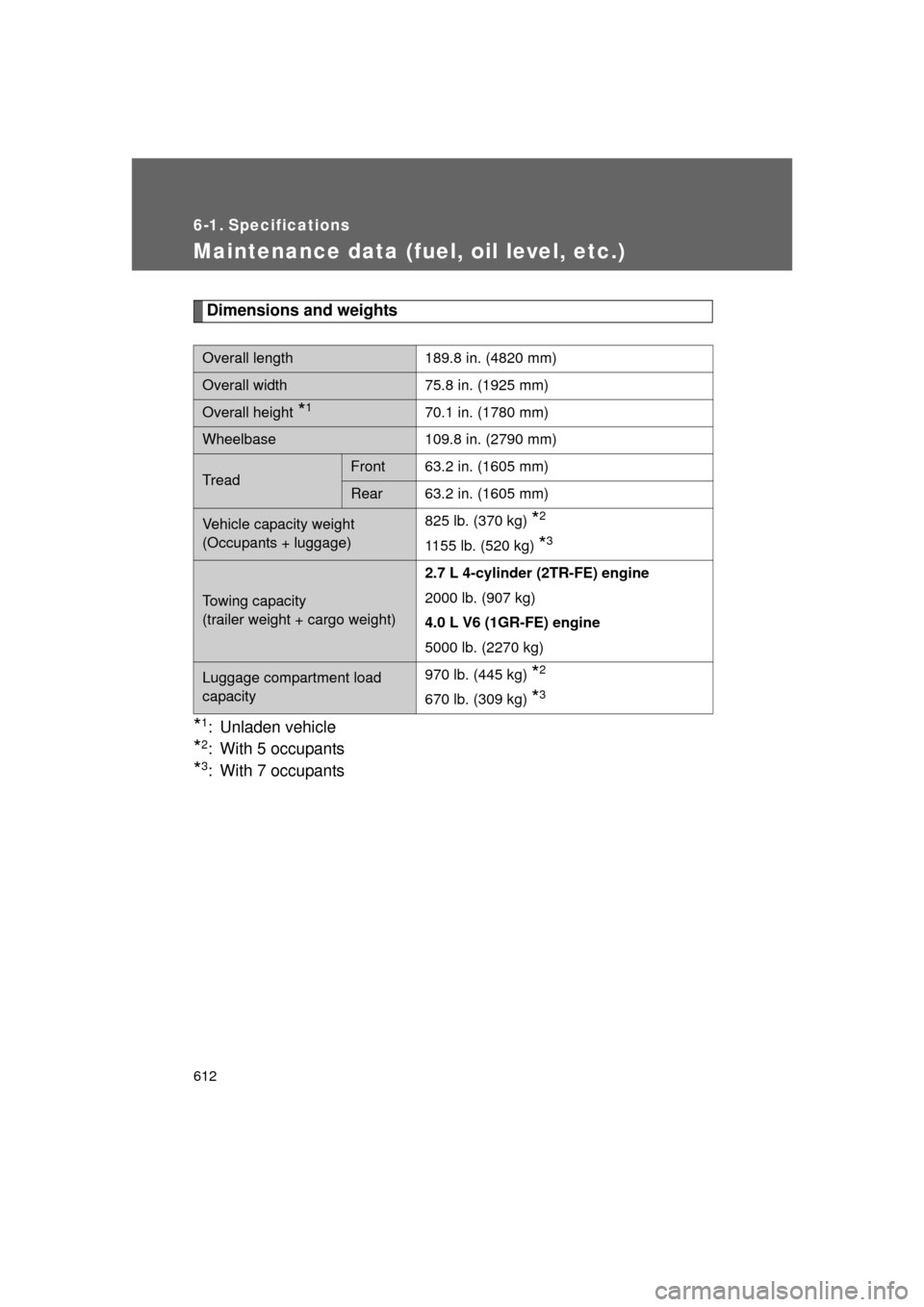

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicle
*2: With 5 occupants
*3: With 7 occupants
Overall length189.8 in. (4820 mm)
Overall width75.8 in. (1925 mm)
Overall height *170.1 in. (1780 mm)
Wheelbase109.8 in. (2790 mm)
TreadFront63.2 in. (1605 mm)
Rear63.2 in. (1605 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg) *2
1155 lb. (520 kg) *3
Towing capacity
(trailer weight + cargo weight)
2.7 L 4-cylinder (2TR-FE) engine
2000 lb. (907 kg)
4.0 L V6 (1GR-FE) engine
5000 lb. (2270 kg)
Luggage compartment load
capacity970 lb. (445 kg) *2
670 lb. (309 kg) *3

613
6-1. Specifications
6
Vehicle specifications
4RUNNER_U
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
CTH61AS001
CTH61AS020

614 6-1. Specifications
4RUNNER_U■
Engine number
2.7 L 4-cylinder (2TR-FE) engine
The engine number is stamped
on the engine block as shown.
4.0 L V6 (1GR-FE) engine The engine number is stamped
on the engine block as shown.
CTH61AS003
CTH61AS026

615
6-1. Specifications
6
Vehicle specifications
4RUNNER_U
Engine
2.7 L 4-cylinder (2TR-FE) engine
4.0 L V6 (1GR-FE) engine
Fuel
Model2TR-FE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.74  3.74 in. (95.0  95.0 mm)
Displacement164.4 cu.in. (2694 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Automatic adjustment
Model1GR-FE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.74 in. (94.0  95.0 mm)
Displacement241.4 cu.in. (3956 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)23.0 gal. (87.0 L, 19.1 Imp. gal.)

616 6-1. Specifications
4RUNNER_U
Lubrication system■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
The 0W portion of the oil viscosity rating indicates the characteristic of the
oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehi-
cle is operated at high speeds, or under extreme load conditions.
Oil capacity
(Drain and refill  reference)
With filter
Without filter2.7 L 4-cylinder (2TR-FE) engine
6.1 qt. (5.8 L, 5.1 Imp. qt.)
4.0 L V6 (1GR-FE) engine
6.6 qt. (6.2 L, 5.5 Imp. qt.)
2.7 L 4-cylinder (2TR-FE) engine
5.4 qt. (5.1 L, 4.5 Imp. qt.)
4.0 L V6 (1GR-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)
CTH61AS015Outside temperature
