2011 TOYOTA 4RUNNER Owners Manual

5
When trouble arises
577
5-2. Steps to take in an emergency
4RUNNER_U
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi
cate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.

578
5-2. Steps to take in an emergency
4RUNNER_U

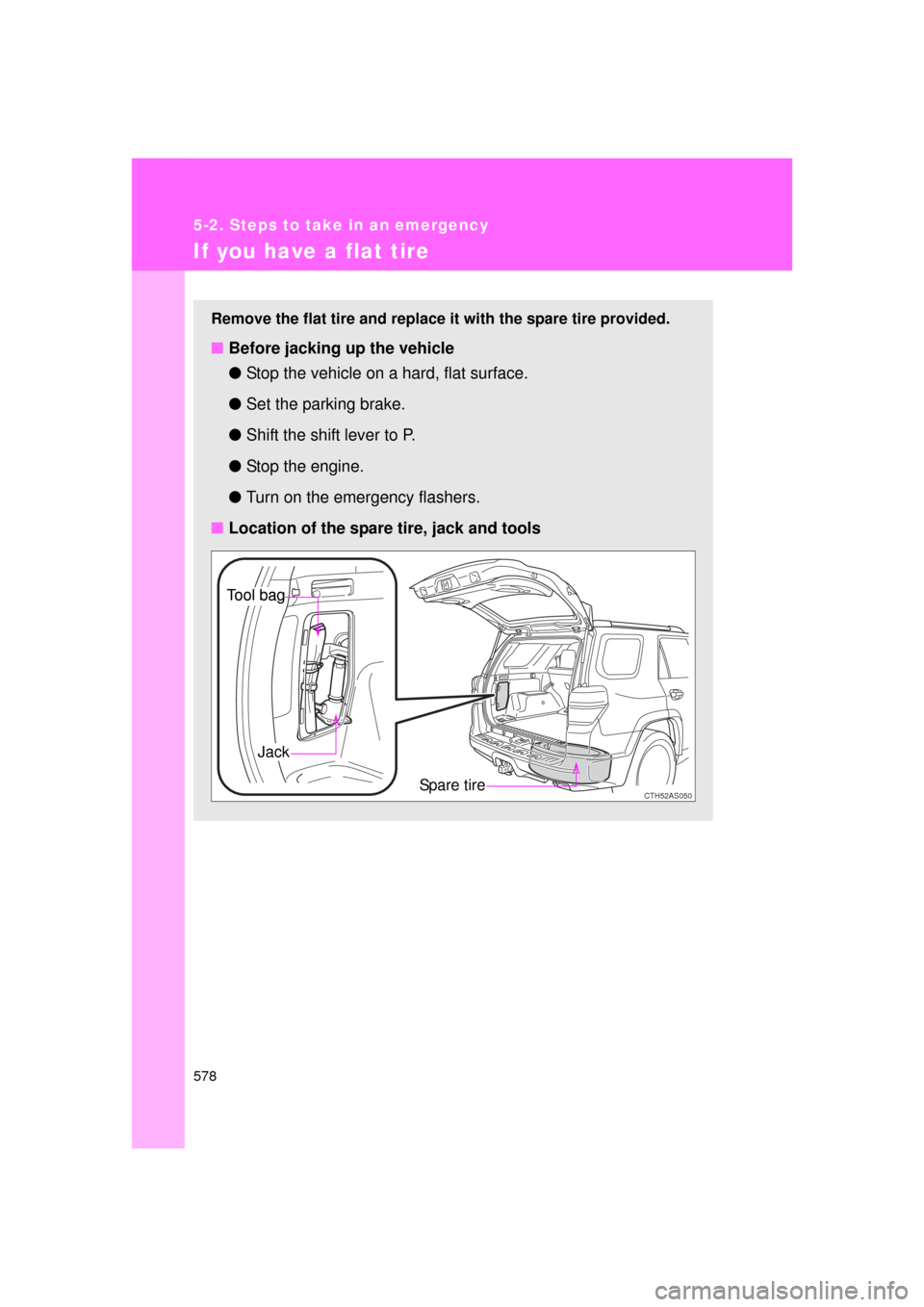

If you have a flat tire
Remove the flat tire and replace it with the spare tire provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
CTH52AS050Spare tire
Jack
Tool bagTool bag

5
When trouble arises
579
5-2. Steps to take in an emergency
4RUNNER_U
Taking out the jack and tool bag
Remove the cover.
Unhook and take out the tool
bag.
Take out the jack.For loosening
For tightening
CTH52AS020
STEP 1
CTH52AS004
STEP 2
CTH52AS035
STEP 3

580 5-2. Steps to take in an emergency
4RUNNER_U
Taking out the spare tireAssembling the jack handle.
Remove the jack handle and the jack handle extension bar from the
tool bag and assembly by following these steps.
Loosen the bolt and the screw
using either the jack handle or
a screwdriver.
Assemble the jack handle
extension bars and tighten the
bolt.
Check that the bolt is firmly tight-
ened.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is firmly
tightened.
STEP 1
CTH52AS051
CTH52AS052
CTH52AS053

5
When trouble arises
581
5-2. Steps to take in an emergency
4RUNNER_U
Insert the end of the jack handle
extension into the lowering
screw and turn it counterclock-
wise.
Lower the spare tire completely
to the ground.
Pull out the spare tire and
remove the holding bracket.
CTH52AS008
STEP 2
CTH52AS009
STEP 3

582 5-2. Steps to take in an emergency
4RUNNER_U
Replacing a flat tireChock the tires.
Remove the wheel ornament
using the wheel ornament
remover.
To protect the wheel ornament,
place a rag between the wheel
ornament remover and the
wheel ornament, as shown in
the illustration.
CTH52AS038
STEP 1
Flat tire
Wheel
chock posi- tions
Front
Left-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
Rear
Left-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire
CTH52AS041
STEP 2

5
When trouble arises
583
5-2. Steps to take in an emergency
4RUNNER_U
Slightly loosen the wheel nuts
(one turn).
Assembling the jack handle.
Remove the jack handle, jack handle extension bar and jack handle
bar from the tool bag and assembly by following these steps.
Loosen the bolts and the
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
extension bars and the jack
handle bar and tighten the
bolts.
Check that the bolts are firmly
tightened.
CTH52AS012
STEP 3
STEP 4
CTH52AS054
CTH52AS055

584 5-2. Steps to take in an emergency
4RUNNER_UAssemble the jack handle
extension bar and the jack
handle and tighten the screw.
Check that the screw is firmly
tightened.
Position the jack at the jack
points as shown.
Front - Under the chassis frame
side rail
Rear - Under the rear axle hous-
ing
Raise the vehicle until the tire is
slightly raised off the ground.
When positioning the jack under
the rear axle housing, make
sure the groove on the top of
the jack fits with the rear axle
housing.
CTH52AS056
CTH52AS039
STEP 5
CTH52AS015
STEP 6
