If you drive faster than 6 km/h with the handbrake on, the following message
will appear on the instrument panel display
17):
HANDBRAKE ON. Yo u w i l l a l s o
hear an acoustic warning signal.
•the brake fluid level is too low ⇒page 245.
The instrument panel displays the following message
17): STOP BRAKE FLUID
INSTRUCTION MANUAL .
•there is a fault in the brake system.
The instrument panel displays the following message
17): BRAKE SYSTEM
FAULT INSTRUCTION MANUAL .
This warning lamp can light up together with the ABS system warning lamp.
WARNING
•Before opening the bonnet, read and observe the warnings on
⇒ page 233.•If the brake warning lamp does not go out, or if it lights up when
driving, the brake fluid level ⇒page 245, “Brake fluid” in the reservoir is
too low. Risk of accident. Stop the vehicle and do not drive on. Obtain tech-
nical assistance.•If the brake warning lamp
H lights up together with the ABS warning
lamp
J, the control function of the ABS could be out of action. This could
cause the rear wheels to lock quickly when you brake. This could cause the
rear to break away. Risk of skidding. Stop the vehicle and seek technical
assistance.
Engine oil pressure
E
If this warning lamp is red it indicates that the engine oil pres-
sure is too low.If this warning symbol starts to flash, and is accompanied by three audible
warnings , switch off the engine and check the oil level. If necessary, add more
oil ⇒page 236.
The instrument panel displays the following message
18): STOP ENGINE OIL
PRESSURE INSTRUCTION MANUAL .
If the symbol flashes although the oil level is correct, do not drive on. The
engine must not even run at idle speed. Obtain technical assistance.
Checking the oil level
E
If the warning lamp is yellow
E the engine oil level should be checked as
soon as possible. Top up the oil ⇒page 238 at the next opportunity.
Oil level sensor faulty*
E
If the
E yellow warning lamp flashes, take the vehicle to a specialised work-
shop to have the oil level sensor checked. Until then it is advisable to check
the oil level every time you refuel.
Cruise control system*

The warning lamp comes on when the cruise control system
is switched on.The warning lamp
 lights up when the cruise control system is switched on.
For further information on the cruise control system, see ⇒page 193.
17)Depending on the model version.
18)Depending on the model version.
AlteaXL_EN.book Seite 87 Donnerstag, 9. September 2010 12:13 12

Cockpit
88Indicator for open doors or tailgate*
o
This warning lamp lights up if one of the doors or the tailgate
is open.The warning light
o should go off when all the doors are closed correctly.
The system also works when the ignition is switched off. It should go off
approx. 15 seconds after the vehicle is locked.
Electromechanical steering*

For vehicles with power steering, the level of steering assistance depends on
the vehicle's speed and on the steering angle.
The warning lamp should light up for a few seconds when the ignition is
switched on. It should go out once the engine is started.
If the battery is disconnected, the indicator remains lit, even with the engine
running. The warning light only goes off after a distance of approx. 50 m.
There is a fault in the electromechanical steering system if the lamp does not
go out or lights up whilst the vehicle is in motion. The warning lamp may
appear in two different colours to indicate faults. If it lights yellow, this indi-
cates a minor fault. If it lights red, seek workshop assistance immediately, as
the steering assistance is not working; in this case you should not keep
driving. Stop the vehicle and seek technical assistance. The power steering
does not work if the battery is flat or if the engine is off (for example, for
towing). You should take into account that you will need considerably more
power than normal to steer the vehicle if the power steering is not working
correctly or at all.
For those vehicles fitted with ESP* the function “Recommended steering
manoeuvre” is included. See ⇒page 199.
Emission control system*

This warning lamp monitors the exhaust system.
Warning lamp
 flashes:
When there is misfiring that can damage the catalytic converter. Reduce
speed and drive carefully to the nearest specialised workshop to have the
engine checked.
The instrument panel displays the following message
19): EXHAUST GAS SEE
WORKSHOP
Warning lamp
 is lit:
If a fault has developed during driving which has reduced the quality of the
exhaust gas (e.g. lambda probe fault). Reduce speed and drive carefully to
the nearest specialised workshop to have the engine checked.
The following message is shown in the instrument panel display: EXHAUST
GAS SEE WORKSHOP .
Electronic Stability Programme (ESP)*
/ l
There are two warning lamps for the electronic stability
programme. The
 lamp provides information concerning
the function and the l provides information on the discon-
nection status
B ot h lam ps com e on to ge the r whe n th e ig nit io n is s wi tche d o n an d s ho uld go
out after approx. 2 seconds, which is how long the function check lasts.19)Depending on the model version.
AlteaXL_EN.book Seite 88 Donnerstag, 9. September 2010 12:13 12

Cockpit89
Safety First
Operating Instructions
Practical Tips
Technical Specifications
This programme includes the ABS, EDL and TCS. This also includes the brake
assist system (BAS), automatic cleaning of the brake discs and the trailer
stability programme (TSP).
The warning lamp
 has the following functions:
•It flashes when the TCS/ESP is activated when driving.•It will light up continuously if there is a malfunction in the ESP.•It will also come on if a fault should occur in the ABS because the ESP
operates in conjunction with the ABS.
If the ESP warning lamp
 lights up and stays on after the engine is started,
this may mean that the control system has temporarily switched off the ESP.
In this case the ESP can be reactivated by switching the ignition off and then
on again. If the warning lamp goes out, this means the system is fully func-
tional.
The
l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the
l switch.
Differential lock fault (EDL)*
EDL operates along with the ABS in vehicles equipped with an
Electronic Stability Programme (ESP)*A malfunction in the EDL is indicated by the ABS warning lamp
J. Take the
vehicle to a specialised workshop as soon as possible. For further informa-
tion on the EDL see ⇒page 200, “Electronic differential lock (EDL)*”.
Traction control system (TCS)*
/l
The traction control system prevents the driven wheels from
spinning when the vehicle is acceleratingThere are two warning lamps for the traction control system:
 and
l. Both
lamps come on together when the ignition is switched on and should go out
after approx. 2 seconds, which is how long the function check lasts.
The
 lamp has the following function:
•It flashes when the TCS is on, and the vehicle is moving.
If the system is deactivated or if it has any fault, the warning lamp will remain
l it . It will als o co m e on if a fa ult s ho uld o ccur in t he A B S b e caus e the TCS op er -
ates in conjunction with the ABS. For further information, see ⇒page 197,
“Brakes”
The l lamp provides information about the disconnection status of the
system:
•It stays lit when the TCS is disconnected after pressing the TCS OFF switch.
By pressing again, TCS function is reactivated and the warning lamp switched
off.Operating the foot brake
K
The brake pedal must be depressed when this warning lamp lights up. This is
necessary when the automatic gearbox* selector lever is moved out of the
positions P or N.
AlteaXL_EN.book Seite 89 Donnerstag, 9. September 2010 12:13 12

Cockpit

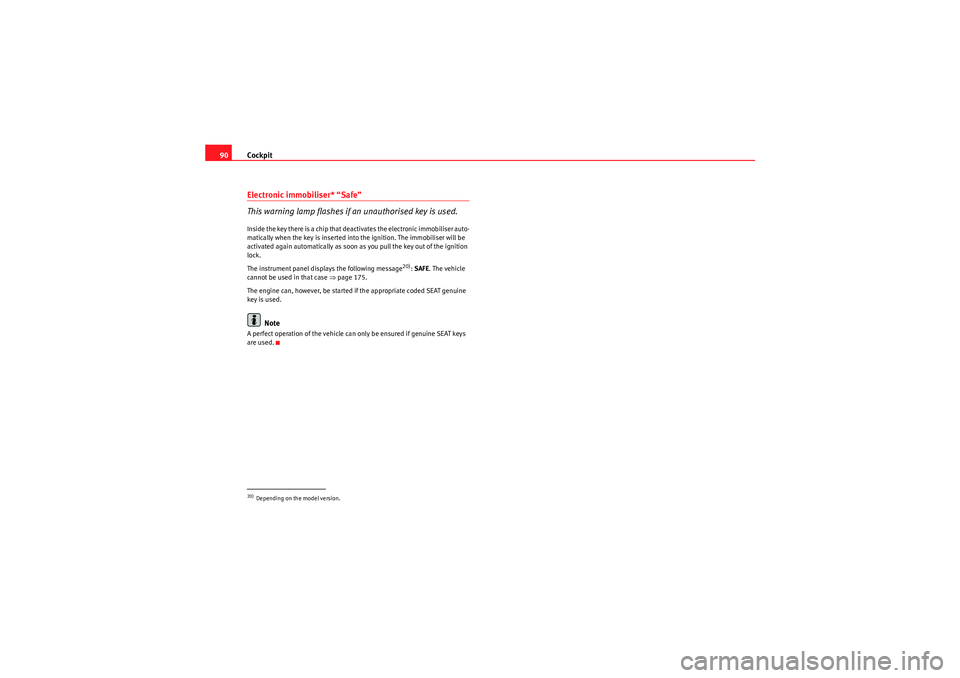

90Electronic immobiliser* “Safe”
This warning lamp flashes if an unauthorised key is used.Inside the key there is a chip that deactivates the electronic immobiliser auto-
matically when the key is inserted into the ignition. The immobiliser will be
activated again automatically as soon as you pull the key out of the ignition
lock.
The instrument panel displays the following message
20): SAFE . The vehicle
cannot be used in that case ⇒page 175.
The engine can, however, be started if the appropriate coded SEAT genuine
key is used.
Note
A perfect operation of the vehicle can only be ensured if genuine SEAT keys
are used.20)Depending on the model version.
AlteaXL_EN.book Seite 90 Donnerstag, 9. September 2010 12:13 12

Steering wheel controls91
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Steering wheel controlsGeneral informationThe steering wheel includes a multifunction module from where it is possible
to control the audio, telephone and radio navigation functions, as well as the
automatic gears*, without needing to distract the driver.
There are two versions of the multifunction module:•Audio version, to control the available audio functions from the steering
wheel.•Audio + Telephone version, to control the available audio functions and
the telephone system from the steering wheel.
Both versions may be used to control the Audio system (Radio, Audio CD,
mp3 CD, iPod
21)/USB
21)/SD21)) and the Radio navigation system, in which
case they also control the Navigation system.
•Version for automatic gearbox* ⇒page 186.21)If fitted in the vehicle.
AlteaXL_EN.book Seite 91 Donnerstag, 9. September 2010 12:13 12

Steering wheel controls

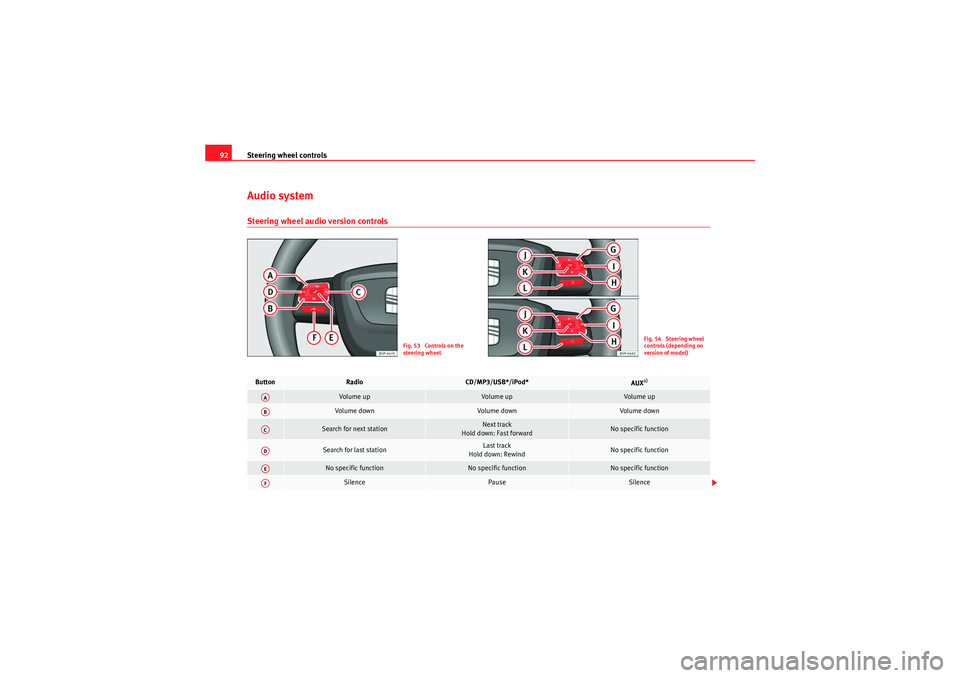

92Audio systemSteering wheel audio version controls
Fig. 53 Controls on the
steering wheel
Fig. 54 Steering wheel
controls (depending on
version of model)
Button
Radio
CD/MP3/USB*/iPod*
AUX
a)
Vol u m e up
Vol um e up
Vol um e up
Volume down
Volume down
Volume down
Search for next station
Next track
Hold down: Fast forward
No specific function
Search for last station
Last track
Hold down: Rewind
No specific function
No specific function
No specific function
No specific function
Silence
Pause
Silence
AAABACADAEAF
AlteaXL_EN.book Seite 92 Donnerstag, 9. September 2010 12:13 12

Steering wheel controls93
Safety First
Operating Instructions
Practical Tips
Technical Specifications
b)
Operates on instrument panel display
Operates on instrument panel display
Operates on instrument panel display
Next preset
a)
Next track
a)
No specific function
a)
b)
Operates on instrument panel display
Operates on instrument panel display
Operates on instrument panel display
Previous preset
a)
Previous track
a)
No specific function
a)
b)
Next preset
Change folder
No specific function
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument panel
b)
Previous preset
Change folder
No specific function
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
b)
Change source
Change source
Change source
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
a)Only if the panel is in Audio menu.b)Depending on the model versionAGAHAIAJAKAL
AlteaXL_EN.book Seite 93 Donnerstag, 9. September 2010 12:13 12

Steering wheel controls

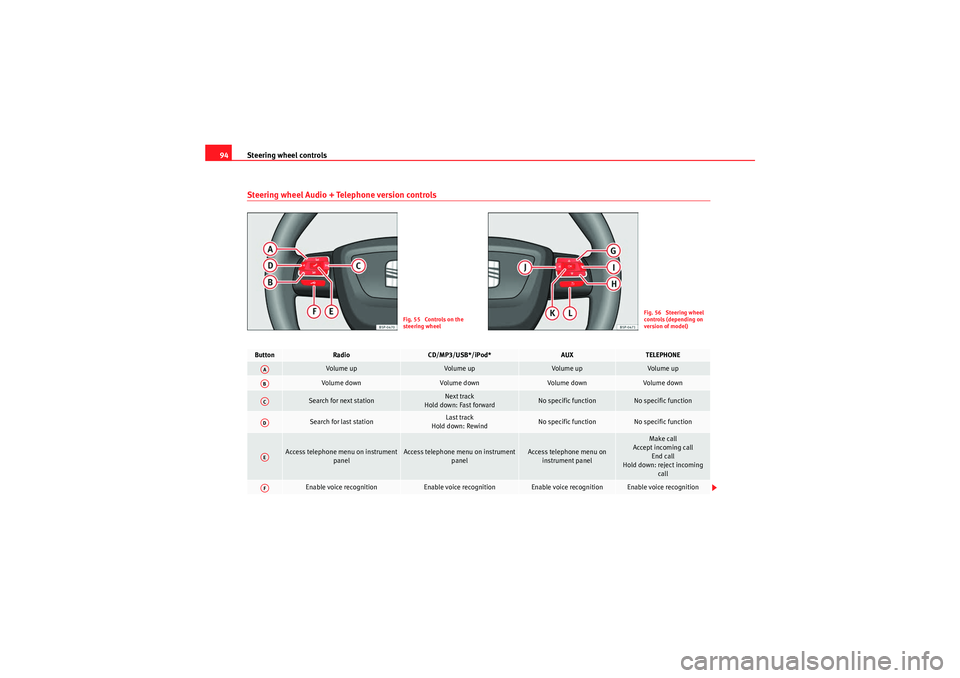

94Steering wheel Audio + Telephone version controls
Fig. 55 Controls on the
steering wheel
Fig. 56 Steering wheel
controls (depending on
version of model)
Button
Radio
CD/MP3/USB*/iPod*
AUX
TELEPHONE
Volume up
Vol um e up
Vol um e u p
Volume up
Vol u m e dow n
Volume down
Vol u m e d own
Vol um e d ow n
Search for next station
Next track
Hold down: Fast forward
No specific function
No specific function
Search for last station
Last track
Hold down: Rewind
No specific function
No specific function
Access telephone menu on instrument panel
Access telephone menu on instrument panel
Access telephone menu on instrument panel
Make call
Accept incoming call End call
Hold down: reject incoming call
Enable voice recognition
Enable voice recognition
Enable voice recognition
Enable voice recognition
AAABACADAEAF
AlteaXL_EN.book Seite 94 Donnerstag, 9. September 2010 12:13 12
