2011 Seat Altea XL Owner's Manual

Cockpit55
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Operating InstructionsCockpitOverviewOverview of the dash panel
This overview will help you to familiarise yourself with the
controls and displays.
Door release lever
Light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lighting control for instrument and control lighting . . . . . . .
Headlight range control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air vent
Turn signal and main beam lever and cruise control system*
Controls on the steering wheel . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel:
− Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn (works only when the ignition is on)/ Driver front airbag
Windscreen wiper and washer lever and operation of the
multifunction display* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Left seat heating button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls for
− Heating* and ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . −
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Climatronic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio/Navigator*
Right seat heating button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lamp for deactivated front passenger airbag . . . . . .
Front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove compartment lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controls on the centre console:
− Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Tyre pressure monitoring
− Park Pilot* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
− Cigarette lighter / Power socket . . . . . . . . . . . . . . . . . . . . .
− Exterior mirror adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .
− Start-Stop* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning light switch . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering column control lever* . . . . . . . . . . . . . . . . . . . . . . . .
Handle for releasing the bonnet . . . . . . . . . . . . . . . . . . . . . . .
A1A2
118
A3
122
A4
122
A5A6
125, 193
A7
91
A8
57
61
77
A9
30
A10
130, 63
A11
141
A12
160 162
166
A13A14
141
A15
44
A16
30
A17
144
A18
183
A19
149
A20
99
199
190
153
135
179
A21
188
A22
123
A23A24
174
A25
172
A26
233
AlteaXL_EN.book Seite 55 Donnerstag, 9. September 2010 12:13 12

Cockpit
56

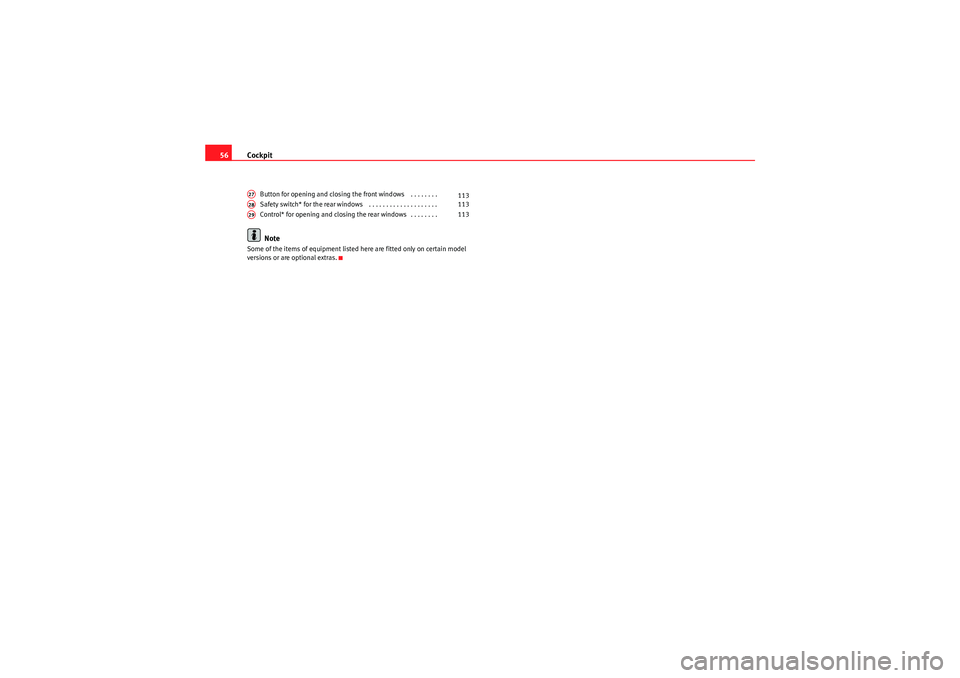

Button for opening and closing the front windows . . . . . . . .
Safety switch* for the rear windows . . . . . . . . . . . . . . . . . . . .
Control* for opening and closing the rear windows . . . . . . . .Note
Some of the items of equipment listed here are fitted only on certain model
versions or are optional extras.A27
113
A28
113
A29
113
AlteaXL_EN.book Seite 56 Donnerstag, 9. September 2010 12:13 12

Cockpit57
Safety First
Operating Instructions
Practical Tips
Technical Specifications
InstrumentsInstrument overview
The instruments display the vehicle operating status.Detailed view of the dash panel: instrument panel
Fuel gauge ⇒ page 58
Multifunction display ⇒page 61
Engine coolant temperature gauge ⇒ page 58
Rev counter ⇒ page 59
Time adjustment button / trip recorder reset button ⇒page 59
Speedometer ⇒page 59
Fig. 34 Detailed view of the dash panel: instrument
panel
A1A2A3A4A5A6
AlteaXL_EN.book Seite 57 Donnerstag, 9. September 2010 12:13 12

Cockpit
58Fuel gauge
z and reserve indicator
Instrument panel: fuel gauge
The fuel tank has a capacity of approx. 55 litres.
When the needle reaches the reserve area ⇒fig. 35 (arrow), the warning
lamp will light up and an acoustic signal will sound reminding the driver to
refuel . At this point there are still 7 litres of fuel in the tank.
The following text appears on the instrument panel display
3) PLEASE REFUEL
[XXX] *
Engine coolant temperature gauge
v
This gauge shows the engine coolant temperature.
Needle in cold zone
Avoid high engine speeds and heavy engine loads ⇒fig. 36 .
Needle in normal zone
In normal driving conditions, the needle should be in the middle section of
the scale. The temperature may also rise when the engine is working hard,
especially at high outside temperatures. This is no cause for concern as long
as the warning lamp does not light up and no warning message* appears on
the instrument panel display.
Needle in warning zone
The warning lamp* ⇒page 77, fig. 50 will light up if the needle is in the
warning zone. The following warning message appears on the instrument
3)Depending on the model version
Fig. 35 Instrument panel:
fuel gauge
Fig. 36 Instrument panel:
engine coolant tempera-
ture gauge
AAABAC
A2
AlteaXL_EN.book Seite 58 Donnerstag, 9. September 2010 12:13 12

Cockpit59
Safety First
Operating Instructions
Practical Tips
Technical Specifications
panel display
4).
Stop the vehicle and switch off the engine. Check the
coolant level ⇒ page 240 ⇒.
Even if the coolant level is correct do not continue driving. You should obtain
technical assistance.
WARNING
When working in the engine compartment, always observe the safety warn-
ings ⇒page 233.
Caution
Accessories in front of the air inlet reduce the cooling effect of the coolant. At
high outside temperatures and high engine loads, there is a risk of the
engine overheating.Rev counter
The rev counter displays the engine speed in revolutions per
minute.The start of the red zone ⇒page 57, fig. 34 indicates the maximum
engine speed operating at service temperature. However, it is advisable to
change up to a hi ghe r gea r, m ov e th e s e le cto r le ve r to D o r lif t you r fo ot of f t he
accelerator before the needle reaches the red zone.
Caution
The rev counter needle must never enter the red zone on the scale. Risk of
engine damage.
For the sake of the environment
C h a n g i ng u p i n t o h i g h e r ge a r s e a r l y wi ll h e l p yo u t o r e d u ce f u e l co ns u m p t i o n ,
emissions and minimise engine noise.SpeedometerThe speedometer is equipped with a digital odometer and a trip recorder, in
addition to a service intervals display.
During the running-in period, the instructions shown on ⇒page 205 should
be followed.Setting the digital clock*
The digital clock is located in the instrument panel display.– Turn the setting knob ⇒page 57, fig. 34 clockwise until the
first “click” to set the hour. The hour will flash. To change the
hour, press the button.
– Turn the setting knob clockwise to the second “click” to set the minutes. The minutes will flash. To change the minutes, press the
button.
4)Depending on the model version
A4
A5
AlteaXL_EN.book Seite 59 Donnerstag, 9. September 2010 12:13 12

Cockpit
60LPG system*LPG gaugeLPG system filler level display
The LPG tank ⇒ in the spare wheel well has a capacity of 39 litres at an
outside temperature of 15 °C ⇒page 228, “Refuelling with LPG”.
The charge level can be checked on the analogue gas gauge located on the
instrument panel ⇒fig. 37. When the level reaches reserve, a notification
text is displayed on the screen. Refill with LPG at the earliest opportunity.
If, while driving in LPG mode, a sudden warning signal is heard and the
warning LPG fault, contact workshop is displayed on the screen
5), it means
that there is a fault in the LPG system. Take the vehicle to a specialised work-
shop to check the LPG system.
WARNING
LPG is a highly explosive and inflammable substance. It may cause severe
burns and other injury.•Due care must be taken to avoid any risk of fire or explosion.•When parking the vehicle in a closed area (for example in a garage),
make sure that there is adequate ventilation, either natural or mechanical,
to neutralise the LPG in the event of a leak.Note
•The values shown in the average fuel consumption and distance to empty
indications on the multifunction display (MFI)
6) on the instrument panel
5) are
approximate values only.
•Two different consumption values are given on the MFI, depending on
whether the vehicle is running in GAS or Petrol mode.•Please check the fuel level on the fuel level gauge on the instrument panel
⇒ page 58•If frequent short journeys are made, especially when the outside temper-
ature is low, the vehicle will tend to run on petrol more often than on LPG.
Therefore, the petrol tank may empty before the LPG tank.
5)Depending on the model version
Fig. 37 Instrument panel:
gas gauge.
6)Optional equipment
AlteaXL_EN.book Seite 60 Donnerstag, 9. September 2010 12:13 12

Cockpit61
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Digital instrument panel displayDisplay (without warnin g or information texts)
The display in the instrument panel shows, amongst other
things, the mileage and trip recorder as well as the selector
lever position.
Digital clock display ⇒page 59. On the right of the display: Selector
lever position display for the automatic gearbox*. The current position of
the selector lever or the gear which is engaged (for tiptronic)* is high-
lighted.
Outside temperature.
Odometer or flexible service interval display.*
Displayed categories*
The display on the instrument panel shows the mileage and
trip recorder as well as the selector lever position.
Clock: “Setting the time”. On the right of the display: Selector lever posi-
tion display for the automatic gearbox*. The actual position of the
selector lever or the gear which is engaged (for tiptronic) is highlighted.
There are optional and automatic displays in this field.
– Optional indicators: e.g. those on the multifunction display (MFI)
– Automatic indicators: Information and warning messages.
– Menus providing further information and which can be used to make diverse settings are also shown: “Instrument panel menus”
Outside temperature:
Odometer or flexible service interval display.
Fig. 38 Detailed view of
the instrument panel:
screen with different indi-
cators
A1A2A3
Fig. 39 Digital instru-
ment panel display
A1A2A3A4
AlteaXL_EN.book Seite 61 Donnerstag, 9. September 2010 12:13 12

Cockpit
62Recommended gear display*
This display helps to save fuel.Use the gear display to save fuel. If you are driving in the correct gear, a dot
will be shown next to the gear display. If you are not in the correct gear, an
arrow will appear next to the gear display indicating whether you should
change up or down.Odometer or flexible service interval displayOdometer
The left-hand counter in the display registers the total amount of distance
covered by the vehicle.
The right-hand counter registers the short journeys. The last digit indicates
steps of 100 metres. The trip recorder counter may be reset by holding down
the reset button for a few seconds. Service interval display
Ve hi cle s wi th Service intervals dependent on time/distance travelled
already
have certain service intervals set. The intervals are calculated individually in
vehicles with LongLife service .
The service interval display only indicates the dates of services that include
engine oil change. The dates of all other services, such as Inspection Service
or brake fluid change, appear in the sticker on the door pillar or in the Main-
tenance Programme.
A Service pre-warning will appear in the odometer if a service is due soon. A
“spanner” symbol appears and the display “km” with the distance that can
be driven until the next service appointment is due. The display will change
after approximately 10 seconds. A “clock symbol” appears and the number
of days until the service appointment should be carried out. The following
message is shown in the instrument panel display*:
Service in
[XXXX]
km
or
[XXXX]
days
The service message will disappear approximately 20 seconds after the igni-
tion is switched on or the engine is running. The normal display can be
resumed by briefly pressing the reset button on the trip counter or by pressing
the button on the steering wheel controls.
With the ignition on, you can check the current service message at any
moment in the Vehicle status menu or turning the reset button to access the
service display.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Fig. 40 Gear display
OK
AlteaXL_EN.book Seite 62 Donnerstag, 9. September 2010 12:13 12
