Steering wheel controls95
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Next preset
a)
Next track
a)
No specific function
Movement on telephone menu
Address book / Last calls /
Calls received / Missed calls
Previous preset
a)
Previous track
a)
No specific function
Movement on telephone menu Address book / Last calls /
Calls received / Missed calls
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument panel
Change menu on instrument
panel
Change menu on instrument panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
Confirm
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
Return to MULTIFUNCTION DIS-PLAY menu
a)Only if the instrument panel is in Audio menu.AGAHAIAJAKAL
AlteaXL_EN.book Seite 95 Donnerstag, 9. September 2010 12:13 12

Steering wheel controls

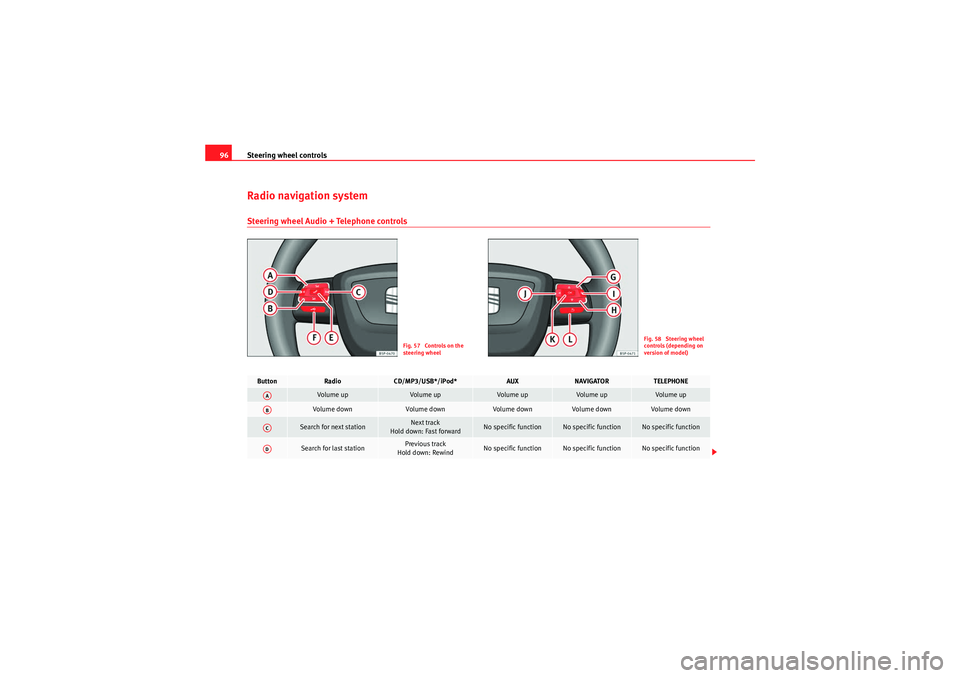

96Radio navigation systemSteering wheel Audio + Telephone controls
Fig. 57 Controls on the
steering wheel
Fig. 58 Steering wheel
controls (depending on
version of model)
Button
Radio
CD/MP3/USB*/iPod*
AUX
NAVIGATOR
TELEPHONE
Volume up
Vol um e up
Volu m e up
Volu m e up
Volu m e up
Vol u m e dow n
Volume down
Vol um e d own
Vol um e d own
Vol um e d own
Search for next station
Next track
Hold down: Fast forward
No specific function
No specific function
No specific function
Search for last station
Previous track
Hold down: Rewind
No specific function
No specific function
No specific function
AAABACAD
AlteaXL_EN.book Seite 96 Donnerstag, 9. September 2010 12:13 12

Steering wheel controls97
Safety First
Operating Instructions
Practical Tips
Technical Specifications
No specific function
No specific function
No specific function
No specific function
Accept incoming call
(press briefly)
Reject incoming call
(press and hold down)
End ongoing call /estab-
lish call (press briefly)
Switch to private mode (press and hold down)
Redial last number (press
and hold down)
a)
Activation of voice recogni-tion for mobile telephone
connected to the system (if
the telephone has this func- tion) / MUTE
Activation of voice recognition for mobile telephone con-
nected to the system (if the tel-
ephone has this function) / MUTE
Activation of voice recog-nition for mobile tele-
phone connected to the
system (if the telephone
has this function) / MUTE
Activation of voice recog- nition for mobile tele-
phone connected to the
system (if the telephone
has this function) / MUTE
Activation of voice recog- nition for mobile tele-
phone connected to the
system (if the telephone
has this function) / MUTE
Next preset
b)
Next track
b)
No specific function
Operates on instrument
panel
Operates on instrument
panel / No specific func-
tion
Previous preset
b)
Previous track
b)
No specific function
Operates on instrument panel
Operates on instrument
panel / No specific func- tion
Change menu on instrument panel
Change menu on instrument panel
Change menu on instru-ment panel
No specific function
Change menu on instru-ment panel
AEAFAGAHAI
AlteaXL_EN.book Seite 97 Donnerstag, 9. September 2010 12:13 12

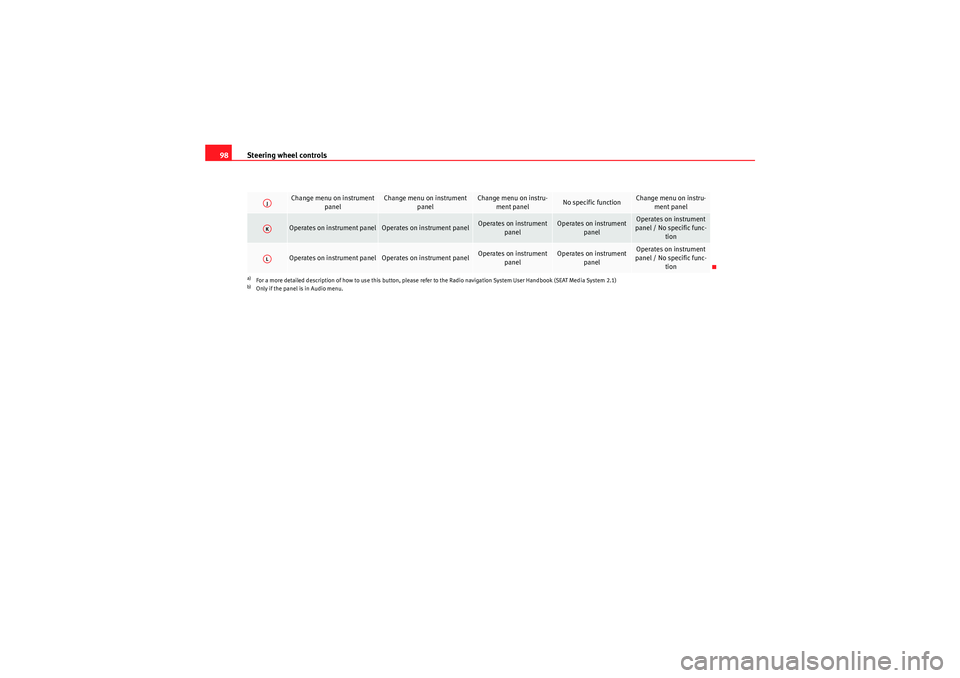

Steering wheel controls
98
Change menu on instrument
panel
Change menu on instrument panel
Change menu on instru-ment panel
No specific function
Change menu on instru-ment panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument
panel / No specific func- tion
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument panel
Operates on instrument
panel / No specific func- tion
a)For a more detailed description of how to use this button, please refer to the Radio navigation System User Handbook (SEAT Medi a System 2.1)b)Only if the panel is in Audio menu.AJAKAL
AlteaXL_EN.book Seite 98 Donnerstag, 9. September 2010 12:13 12

Unlocking and locking99
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Unlocking and lockingCentral locking Basic functions
The central locking system enables you to lock and unlock all
doors by just pushing the button.Description
Central locking can be activated by using any of the following options:•the key, by inserting it into the driver door cylinder and rotating it manu-
ally,•the central locking button in the vehicle interior ⇒page 102.•the radio frequency remote control , using the buttons on the key,
⇒ page 107
Various functions are available to improve the vehicle safety:
– Locking system “Safe”
– Selective unlocking system*
– Automatic speed-dependent locking and unlocking system*
– Self-locking system to prevent involuntary unlocking
– Emergency unlocking system
Unlocking the vehicle*
–Press button ⇒page 107, fig. 64 on the remote control to unlock all
the doors and tailgate. Locking the vehicle*
– Press button
⇒page 107, fig. 64 on the remote control to lock all
doors and the tailgate or turn the key in the door to lock all doors and the
tailgate.
WARNING
•Never leave children or disabled persons in the vehicle. In case of emer-
gency, they may not be able to leave the vehicle and not manage on their
own.•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.•Always take you car keys with you when you leave the vehicle. Misuse
of the keys, for example, by children, may result in serious damage and
accident.
−The engine may accidentally be started and be out of control.
− If the ignition is switched on, the electric equipment could be acti-
vated with risk of injury, for example, in the electric windows.
− The doors can be locked using the remote control key. This could
make the aid difficult in an emergency situation.
− Always take the key with you when you leave the vehicle.•Never remove the key from the ignition if the vehicle is in motion. The
steering lock could suddenly engage, and you would not be able to turn the
steering wheel.


AlteaXL_EN.book Seite 99 Donnerstag, 9. September 2010 12:13 12

Unlocking and locking
100
Note•While the driver door is open, the vehicle cannot be locked with the
remote control. This avoids the user from forgetting his key inside the vehicle.•If the driver door is unlocked with the key shaft, only the driver door is
unlocked, the rest of the doors remain locked. When the ignition is switched
on, the door deadlock function is deactivated (although the doors remain
locked) and the central locking button is activated. See ⇒page 109.•If the central locking or anti-theft alarm are faulty, the driver door warning
lamp remains lit for approx. 30 seconds after locking the vehicle.•For anti-theft security, only the driver door is fitted with a lock cylinder.Safety system “Safe*”
The Safe deadlock makes it more difficult to break into the
vehicle because the door release lever and the central locking
button are not active (depending upon country).Activating deadlock
–Press once the locking button on the remote control. or
–Turn the key once in the driver door lock to lock. A warning lamp
in the driver door flashes to indicate the Safe deadlock is
working. The warning lamp flashes for approx. two seconds at
short intervals and then more slowly. Deactivating deadlock when the vehicle is locked
– Press the locking button on the remote control
twice within
two seconds. The vehicle is locked without activating the dead-
lock. The driver door warning lamp flashes for approx. two
seconds and then goes out. After approx. 30 seconds it starts
flashing again.
The doors can be unlocked and opened from the inside if the Safe deadlock
has not been activated. You will have to pull the door release lever once.
When the Safe deadlock is off, the anti-theft alarm* ⇒page 109 remains
active. The vehicle interior monitoring system* and the anti-tow system are
deactivated*.
WARNING
Nobod y s hould remain in the vehicle if t he a nt i- tow s ystem d ead lock mech-
anism has been activated. It is not possible to open the doors from the
inside. Locked doors could make it more difficult to assist vehicle occu-
pants in the event of an accident. People could become trapped inside in an
emergency.Selective unlocking system*
This system allows unlocking either just the driver door or the
entire vehicle.Using the remote control, press the unlock button on the remote once. The
Safe system for all the vehicle is deactivated, only the driver door is unlocked
and both the alarm and the warning lamp are also turned off.



AlteaXL_EN.book Seite 100 Donnerstag, 9. September 2010 12:13 12

Unlocking and locking101
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Unlocking all doors and the luggage compartment
The unlock button on the remote control must be pressed twice so that all
doors and the luggage compartment can be opened.
Press twice within 2 seconds to deactivate the Safe system for the entire
vehicle, to unlock all doors and to use the luggage compartment. The warning
lamp and the alarm (only vehicles fitted with one) are turned off.
Automatic speed dependent locking and unlocking system*
This is a safety system which
prevent the access to the vehicle
from the outside when it is running (for example, when
stopped at a traffic light).Locking
The doors and the tailgate are automatically locked when vehicle speed
exceeds 15 km/h.
If the vehicle is stopped and one of the doors is opened, when the vehicle
moves off again and exceeds a speed of 15 km/h, the unlocked door(s) will
be locked once more.
Unlocking
The driver door automatically unlocks when the key is removed from the igni-
tion.
Each door can be unlocked and opened independently from the inside (for
example, when a passenger gets out of it). To do it, simply operate the lever
inside the door.
WARNING
The door handles must not be operated when the vehicle is running: the
door would open.
Locking system for involuntary unlocking*
It is an anti-theft system and prevents the unintentional
unlocking of the vehicle.If the vehicle is unlocked and any of the doors (including the tailgate) are
opened within 30 seconds, it gets re-locked automatically. This function
prevents the vehicle from remaining unlocked if the unlock button is pressed
by mistake.Emergency unlocking systemIf the airbags are triggered during an accident, the vehicle is unlocked, except
for the luggage compartment. It is possible to lock the vehicle from inside
with the central locking, after turning the ignition off and back on again.
If the doors must be locked from the outside, see “Emergency locking of the
doors”

AlteaXL_EN.book Seite 101 Donnerstag, 9. September 2010 12:13 12

Unlocking and locking

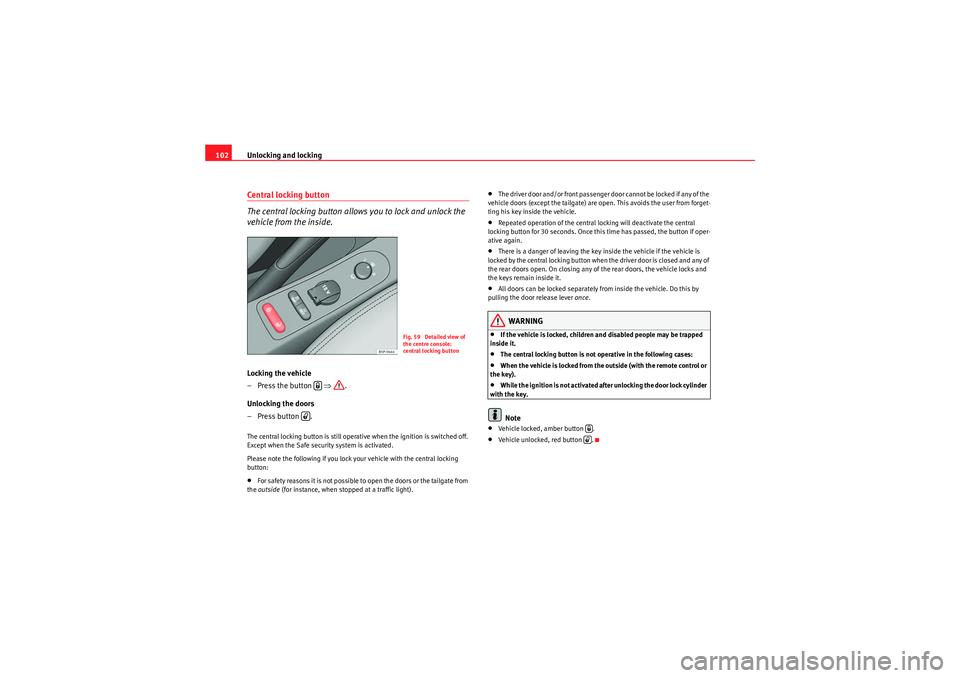

102Central locking button
The central locking button allows you to lock and unlock the
vehicle from the inside.Locking the vehicle
–Press the button ⇒.
Unlocking the doors
–Press button .The central locking button is still operative when the ignition is switched off.
Except when the Safe security system is activated.
Please note the following if you lock your vehicle with the central locking
button:•For safety reasons it is not possible to open the doors or the tailgate from
the outside (for instance, when stopped at a traffic light).
•The driver door and/or front passenger door cannot be locked if any of the
vehicle doors (except the tailgate) are open. This avoids the user from forget-
ting his key inside the vehicle.•Repeated operation of the central locking will deactivate the central
locking button for 30 seconds. Once this time has passed, the button if oper-
ative again.•There is a danger of leaving the key inside the vehicle if the vehicle is
locked by the central locking button when the driver door is closed and any of
the rear doors open. On closing any of the rear doors, the vehicle locks and
the keys remain inside it.•All doors can be locked separately from inside the vehicle. Do this by
pulling the door release lever once.WARNING
•If the vehicle is locked, children and disabled people may be trapped
inside it.•The central locking button is not operative in the following cases:•When the vehicle is locked from the outside (with the remote control or
the key).•While the ignition is not activated after unlocking the door lock cylinder
with the key.Note
•Vehicle locked, amber button .•Vehicle unlocked, red button .
Fig. 59 Detailed view of
the centre console:
central locking button



AlteaXL_EN.book Seite 102 Donnerstag, 9. September 2010 12:13 12
