– Place the mobile storage compartment onto the foam of the
central seat.
– Set both mounting pieces together ⇒page 150, fig. 113 ,
with both mounting rings ⇒page 150, fig. 114 and press
hard until both the clips completely connect with the rings.
Removing mobile storage compartment
– Pull each of the buttons ⇒ page 150, fig. 113 on the clips
(red buttons) forwards, until they snap out of place.
– Fold the larger seat down and remove the mobile storage compartment mounting plate.
Multi-purpose mobile storage compartment* - General information
This storage compartment may only be placed in the central
area of the rear seat
AE
AG
AF
Fig. 115 Mobile storage
compartment. OpeningFig. 116 Mobile storage
compartment. Functions
AlteaXL_EN.book Seite 151 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments
152

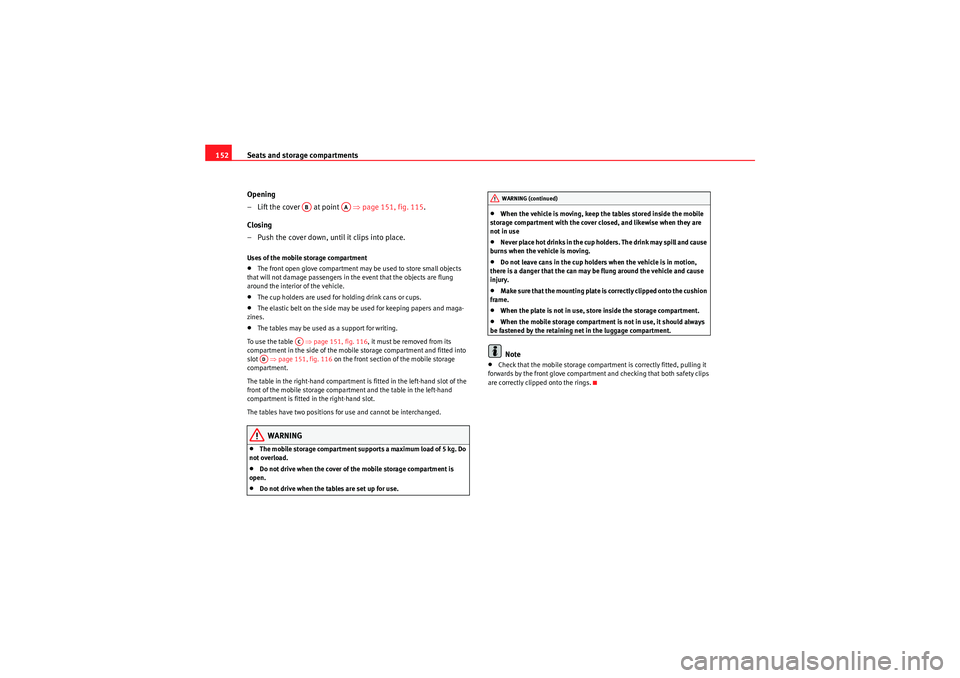

Opening
– Lift the cover at point ⇒page 151, fig. 115 .
Closing
– Push the cover down, until it clips into place.Uses of the mobile storage compartment•The front open glove compartment may be used to store small objects
that will not damage passengers in the event that the objects are flung
around the interior of the vehicle.•The cup holders are used for holding drink cans or cups.•The elastic belt on the side may be used for keeping papers and maga-
zines.•The tables may be used as a support for writing.
To use the table ⇒page 151, fig. 116 , it must be removed from its
compartment in the side of the mobile storage compartment and fitted into
slot ⇒page 151, fig. 116 on the front section of the mobile storage
compartment.
The table in the right-hand compartment is fitted in the left-hand slot of the
front of the mobile storage compartment and the table in the left-hand
compartment is fitted in the right-hand slot.
The tables have two positions for use and cannot be interchanged.WARNING
•The mobile storage compartment supports a maximum load of 5 kg. Do
not overload.•Do not drive when the cover of the mobile storage compartment is
open.•Do not drive when the tables are set up for use.
•When the vehicle is moving, keep the tables stored inside the mobile
storage compartment with the cover closed, and likewise when they are
not in use•Never place hot drinks in the cup holders. The drink may spill and cause
burns when the vehicle is moving.•Do not leave cans in the cup holders when the vehicle is in motion,
there is a danger that the can may be flung around the vehicle and cause
injury.•Make sure that the mounting plate is correctly clipped onto the cushion
frame.•When the plate is not in use, store inside the storage compartment.•When the mobile storage compartment is not in use, it should always
be fastened by the retaining net in the luggage compartment.Note
•Check that the mobile storage compartment is correctly fitted, pulling it
forwards by the front glove compartment and checking that both safety clips
are correctly clipped onto the rings.
AB
AA
AC
AD
WARNING (continued)
AlteaXL_EN.book Seite 152 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments153
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Ashtrays*, cigarette lighter* and electrical
socketsAshtray* Opening and closing the ashtray
– To open the ashtray, lift the cover ⇒fig. 117 .
– To close, push the cover down.
Emptying the ashtray
–Extract the ashtray and empty it.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray and cause a fire.
Cigarette lighter* – Press on the cigarette lighter ⇒fig. 118 to activate it ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the glowing coil.
WARNING
•Improper use of the cigarette lighter ca n lead to serious injuries or start
a fire.•Using the lighter carefully. Carelessness or negligence when using the
cigarette lighter can cause burns, risk of injury.•The lighter only works when the ignition is turned on or the engine is
running. To avoid the risk of fire, never leave children alone inside the
vehicle.
Fig. 117 Ashtray located
in the front drink holder
Fig. 118 The cigarette
lighter is located in the
power socket on the front
of the centre console
AlteaXL_EN.book Seite 153 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments

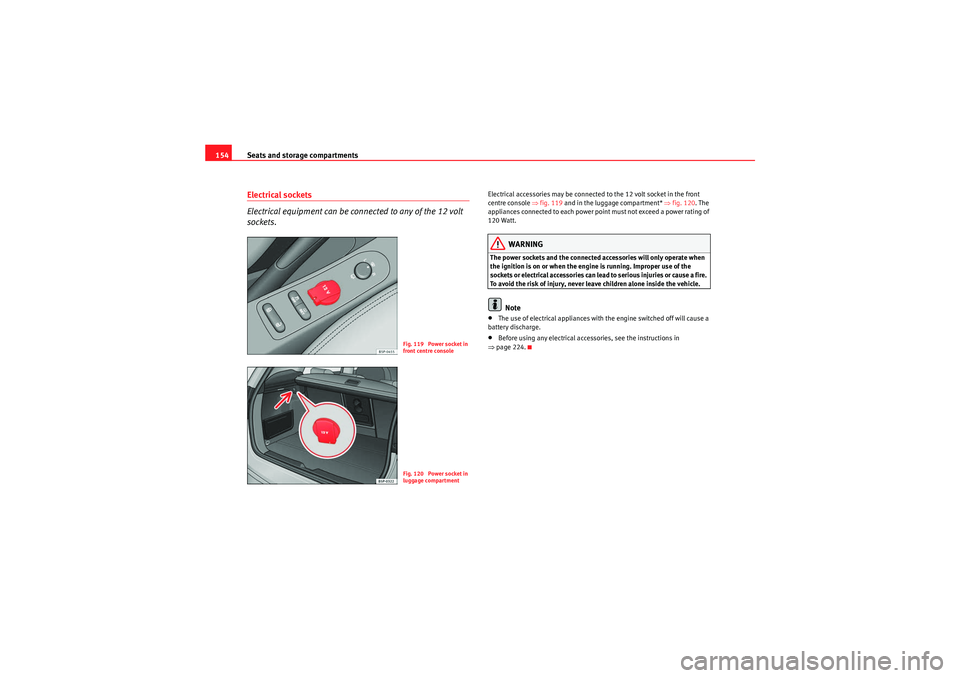

154Electrical sockets
Electrical equipment can be connected to any of the 12 volt
sockets.
Electrical accessories may be connected to the 12 volt socket in the front
centre console ⇒ fig. 119 and in the luggage compartment* ⇒fig. 120 . The
appliances connected to each power point must not exceed a power rating of
120 Watt.
WARNING
The power sockets and the connected accessories will only operate when
the ignition is on or when the engine is running. Improper use of the
sockets or electrical accessories can lead to serious injuries or cause a fire.
To avoid the risk of injury, never leave children alone inside the vehicle.
Note
•The use of electrical appliances with the engine switched off will cause a
battery discharge.•Before using any electrical accessories, see the instructions in
⇒ page 224.
Fig. 119 Power socket in
front centre consoleFig. 120 Power socket in
luggage compartment
AlteaXL_EN.book Seite 154 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments155
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Auxiliary audio connection (AUX-IN)*– Lift the AUX cover ⇒fig. 121.
– Insert the plug as far as possible (see Radio manual).
AUX RSE connection*This connector may be used as an audio input (red and white connectors) or
audio and video connector (red, white and yellow connectors). For more
details about the use of this audio and video source, see the RSE manual.
Fig. 121 Auxiliary audio
connection
Fig. 122 AUX RSE
connection
AlteaXL_EN.book Seite 155 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments

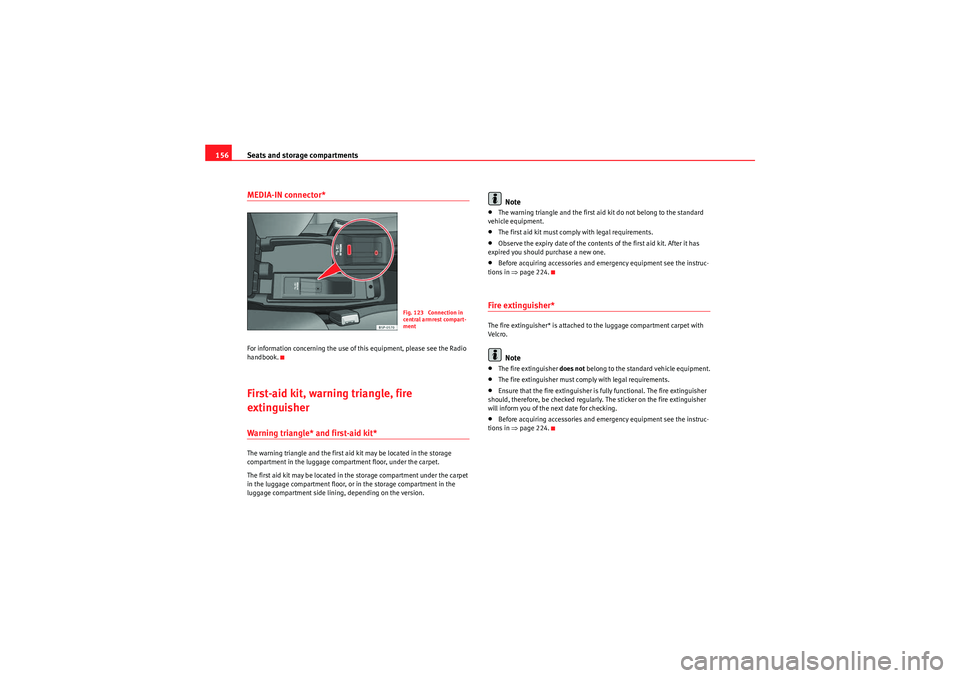

156MEDIA-IN connector*For information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisherWarning triangle* and first-aid kit*The warning triangle and the first aid kit may be located in the storage
compartment in the luggage compartment floor, under the carpet.
The first aid kit may be located in the storage compartment under the carpet
in the luggage compartment floor, or in the storage compartment in the
luggage compartment side lining, depending on the version.
Note
•The warning triangle and the first aid kit do not belong to the standard
vehicle equipment.•The first aid kit must comply with legal requirements.•Observe the expiry date of the contents of the first aid kit. After it has
expired you should purchase a new one.•Before acquiring accessories and emergency equipment see the instruc-
tions in ⇒page 224.Fire extinguisher* The fire extinguisher* is attached to the luggage compartment carpet with
Ve lcro.
Note
•The fire extinguisher does not belong to the standard vehicle equipment.•The fire extinguisher must comply with legal requirements.•Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.•Before acquiring accessories and emergency equipment see the instruc-
tions in ⇒page 224.
Fig. 123 Connection in
central armrest compart-
ment
AlteaXL_EN.book Seite 156 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments157
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Luggage compartmentStoring objects
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
– Secure luggage in the luggage compartment with suitable straps on the fastening rings*.
WARNING
•Loose luggage and other loose items in the vehicle can cause serious
injuries.•Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.•During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.•Always store objects in the luggage compartment and secure with suit-
able straps. This is especially important for heavy objects.•When you transport heavy objects, always take in account that a
change in the centre of gravity can also cause changes in vehicle handling.•Please observe information on safe driving ⇒page 7, “Safe driving”.
Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
AlteaXL_EN.book Seite 157 Donnerstag, 9. September 2010 12:13 12

Seats and storage compartments

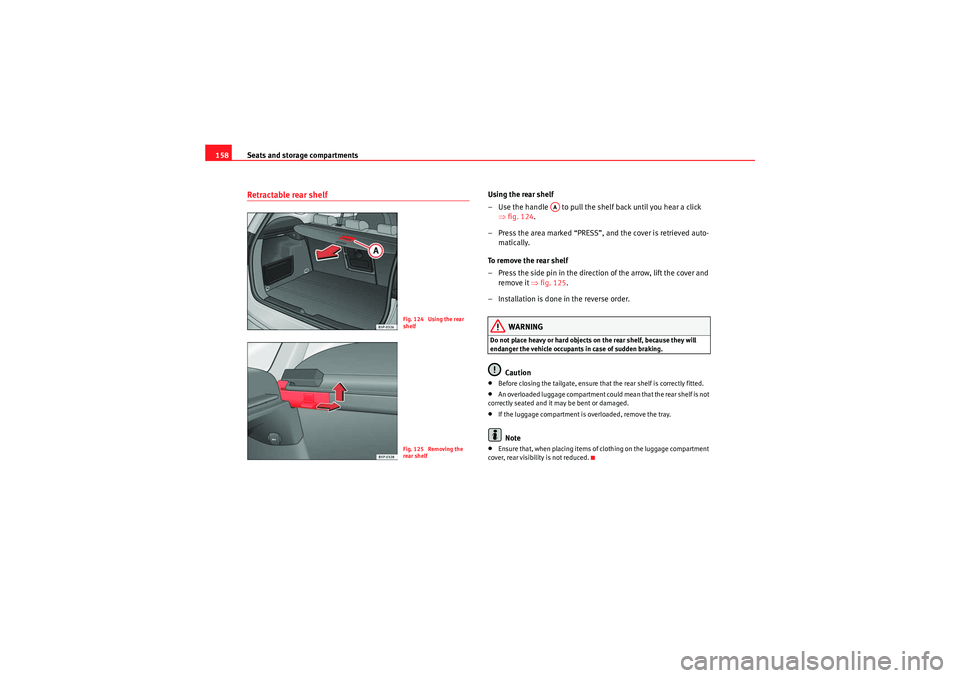

158Retractable rear shelf
