2011 Peugeot Partner Tepee Owner's Manual

63
EASE OF USE
andCOMFOR
T
3


Ventilation


DE-ICING AND DEMISTING

Manual mode

Direct the control to this
temperature setting.
Increase the air fl ow setting. Press the air conditioning.
Returning to exterior air
intake open permits renewal
of the air in the passenger
compartment (diode off). Direct the control to this air
distribution setting.

De-icing the rear screen and/
or mirrors
Pressing this button, with the
engine running, activates the
rapid demisting - de-icing of
the rear screen and/or electric
mirrors.
This function switches off:


- when the button is pressed,

- when the engine is switched off,

- automatically to prevent excessive
energy consumption.

64


Ventilation


DE-ICING AND DEMISTING GOOD PRACTICE

Vents


"Leave them open"
For optimum distribution and diffusion
of hot or cool air in the passenger
compartment, there are adjustable
central and side vents which can
be directed sideways (right or left)
or vertically (up or down). For your
comfort while driving, do not close
them and direct the fl ow of air towards
the windows instead.
Air vents in the footwells and directed
towards the windscreen complete
the equipment.
Do not block the vents located at the
windscreen or the air extractor located
in the boot.


Dust filter, odour filter (activated
carbon)
This fi lter traps certain dust and limits
odours.
Ensure that this fi lter is in good
condition and have all of the fi lter
elements replaced regularly.
Refer to the "Checks" section of
chapter 6.


Air conditioning

In all seasons, the air conditioning
should only be used with the windows
closed. However, if the interior
temperature remains high after a
prolonged period parked in the sun, do
not hesitate to ventilate the passenger
compartment for a few minutes.
Use the AUTO mode as much as
possible as it permits optimised
control of all of the functions: air fl ow,
passenger compartment comfort
temperature, air distribution, air
intake mode or air recirculation in the
passenger compartment.
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
It is normal that the condensation
created by the air conditioning system
results in a fl ow of water which may
form a puddle under the vehicle when
parked.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
Automatic mode: visibility
programme
The comfort programme (AUTO) may
not be suffi cient to quickly demist or
de-ice the windows (humidity, several
passengers, ice).
In this case, select the visibility
programme. The visibility programme
indicator light comes on.
It activates the air conditioning, the air
fl ow and provides optimum distribution
of the ventilation to the windscreen and
side windows.
It deactivates the air recirculation.

65
EASE OF USE
andCOMFOR
T
3





Seats





FRONT SEATS

The following adjustments are
available:
1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards
or backwards.
3 - Driver's seat height adjustment
To raise the seat, pull the control
upwards then take your weight off the
seat cushion.
To lower the seat, pull the control
upwards then push on the seat
cushion.

2 - Seat back angle adjustment
With your back pressed against the
seat back, move the lever forwards
and set the required angle.

66
Seats

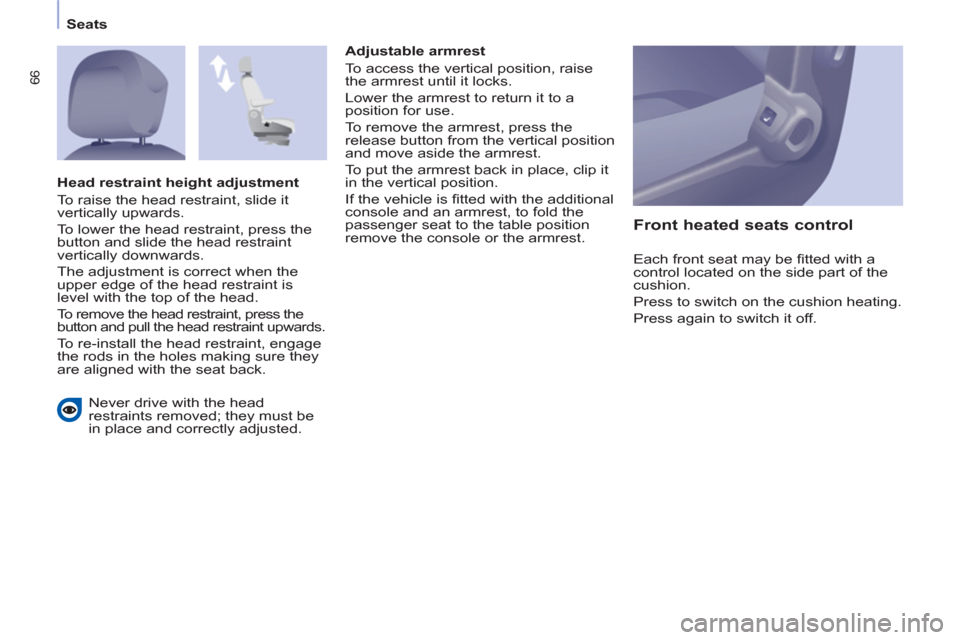

Never drive with the head
restraints removed; they must be
in place and correctly adjusted.
Adjustable armrest
To access the vertical position, raise
the armrest until it locks.
Lower the armrest to return it to a
position for use.
To remove the armrest, press the
release button from the vertical position
and move aside the armrest.
To put the armrest back in place, clip it
in the vertical position.
If the vehicle is fi tted with the additional
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.



Front heated seats control

Each front seat may be fi tted with a
control located on the side part of the
cushion.
Press to switch on the cushion heating.
Press again to switch it off.
Head restraint height adjustment
To raise the head restraint, slide it
vertically upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically downwards.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
To remove the head restraint, press the
button and pull the head restraint upwards.
To re-install the head restraint, engage
the rods in the holes making sure they
are aligned with the seat back.

67
EASE OF USE
andCOMFOR
T
3





Seats

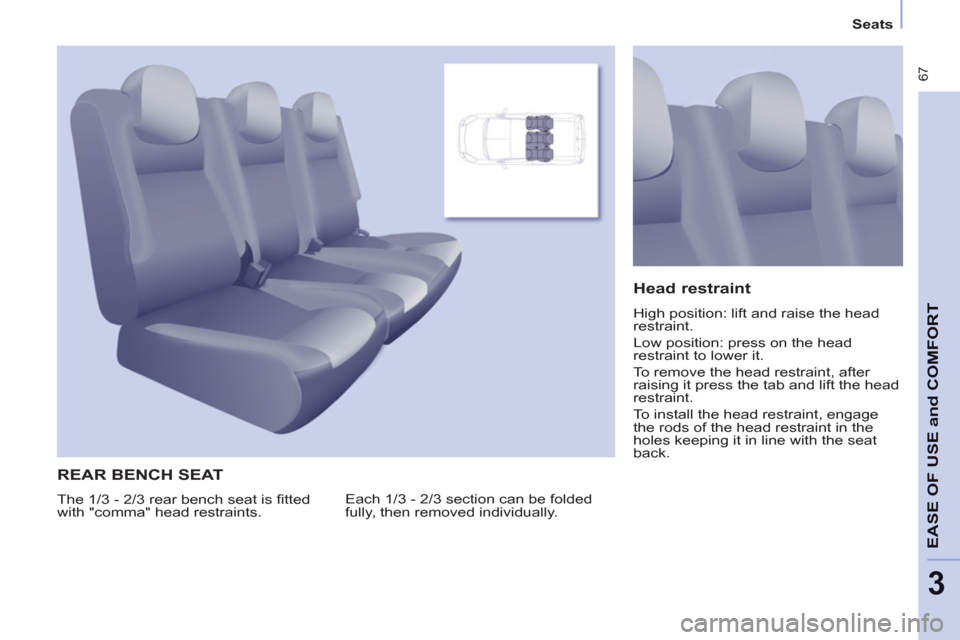

REAR BENCH SEAT

Each 1/3 - 2/3 section can be folded
fully, then removed individually.

Head restraint

High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
The 1/3 - 2/3 rear bench seat is fi tted
with "comma" head restraints.

68
Seats

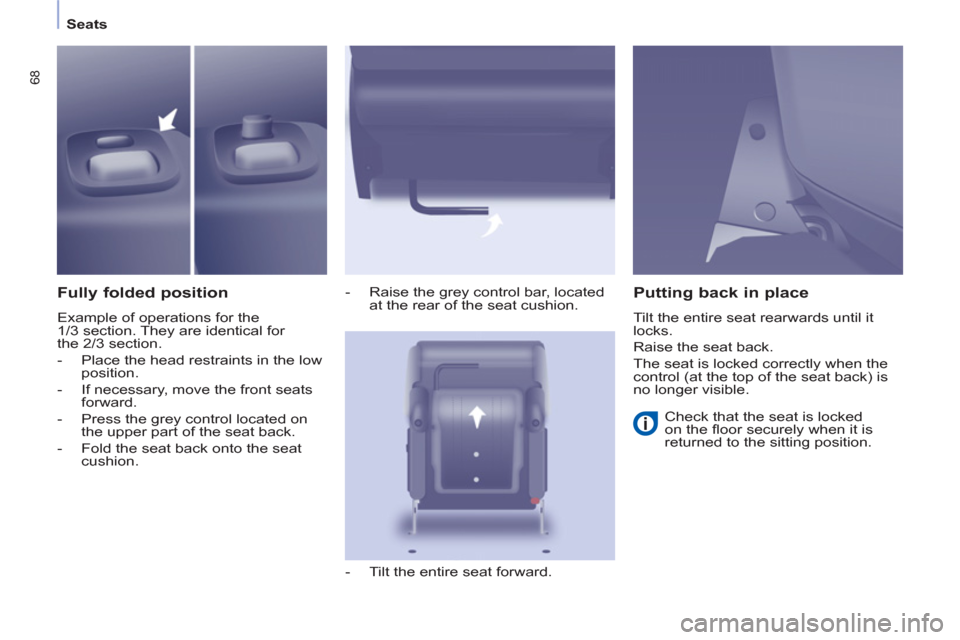

Fully folded position

Example of operations for the
1/3 section. They are identical for
the 2/3 section.


- Place the head restraints in the low
position.

- If necessary, move the front seats
forward.

- Press the grey control located on
the upper part of the seat back.

- Fold the seat back onto the seat
cushion.
- Raise the grey control bar, located
at the rear of the seat cushion.

- Tilt the entire seat forward.



Putting back in place

Tilt the entire seat rearwards until it
locks.
Raise the seat back.
The seat is locked correctly when the
control (at the top of the seat back) is
no longer visible.
Check that the seat is locked
on the fl oor securely when it is
returned to the sitting position.

69
EASE OF USE
andCOMFOR
T
3





Seats

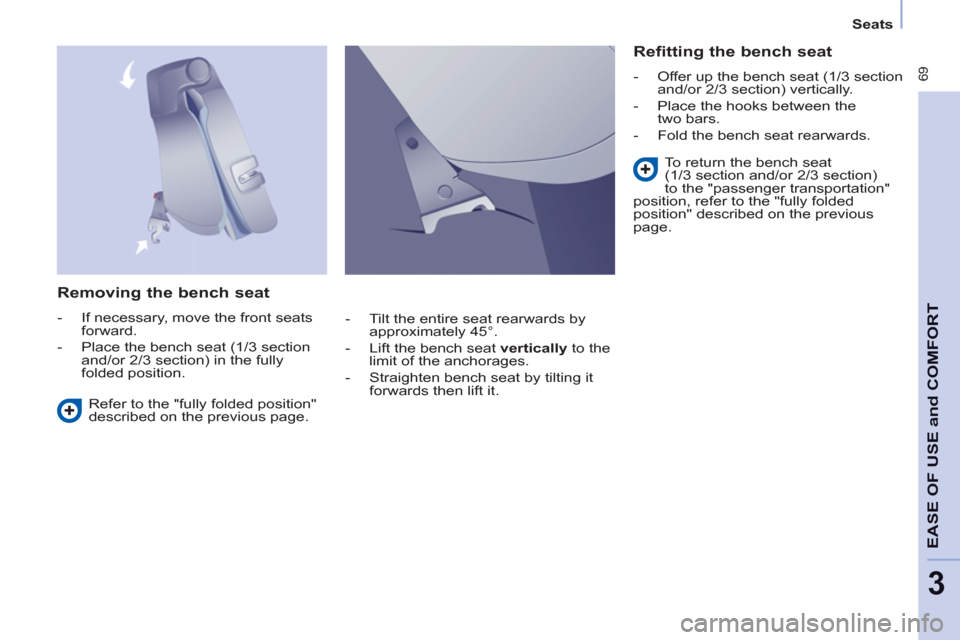

Removing the bench seat



- If necessary, move the front seats
forward.

- Place the bench seat (1/3 section
and/or 2/3 section) in the fully
folded position.


Refitting the bench seat



- Offer up the bench seat (1/3 section
and/or 2/3 section) vertically.

- Place the hooks between the
two bars.

- Fold the bench seat rearwards.
Refer to the "fully folded position"
described on the previous page. To return the bench seat
(1/3 section and/or 2/3 section)
to the "passenger transportation"
position, refer to the "fully folded
position" described on the previous
page.

- Tilt the entire seat rearwards by
approximately 45°.

- Lift the bench seat vertically
to the
limit of the anchorages.

- Straighten bench seat by tilting it
forwards then lift it.

70
Seats

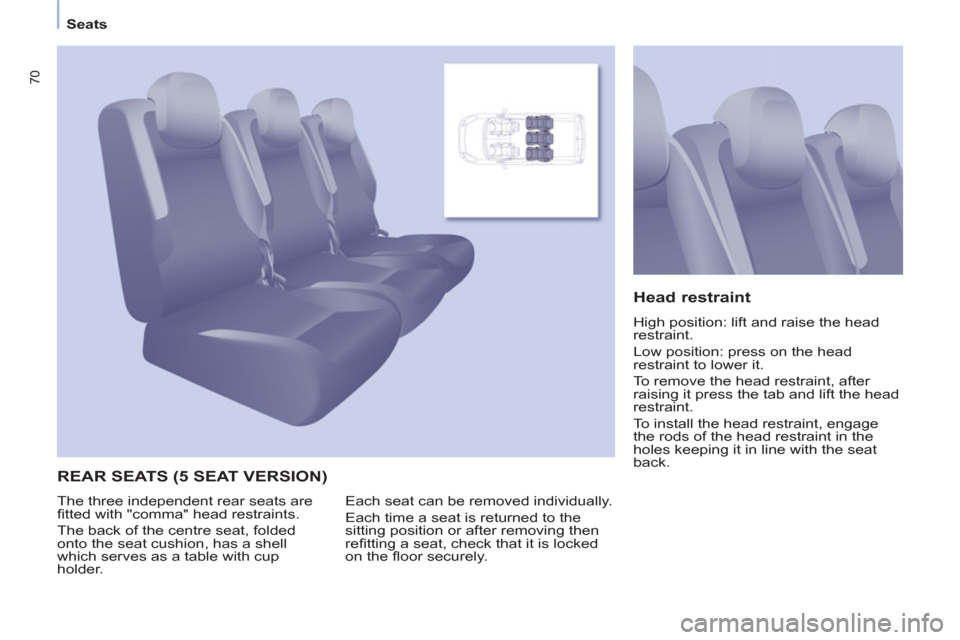

REAR SEATS (5 SEAT VERSION)
Head restraint

High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed individually.
Each time a seat is returned to the
sitting position or after removing then
refi tting a seat, check that it is locked
on the fl oor securely. The three independent rear seats are
fi tted with "comma" head restraints.
The back of the centre seat, folded
onto the seat cushion, has a shell
which serves as a table with cup
holder.
