2011 Peugeot Partner Tepee Owner's Manual

95
EASE OF USE
andCOMFOR
T
3


Practical information

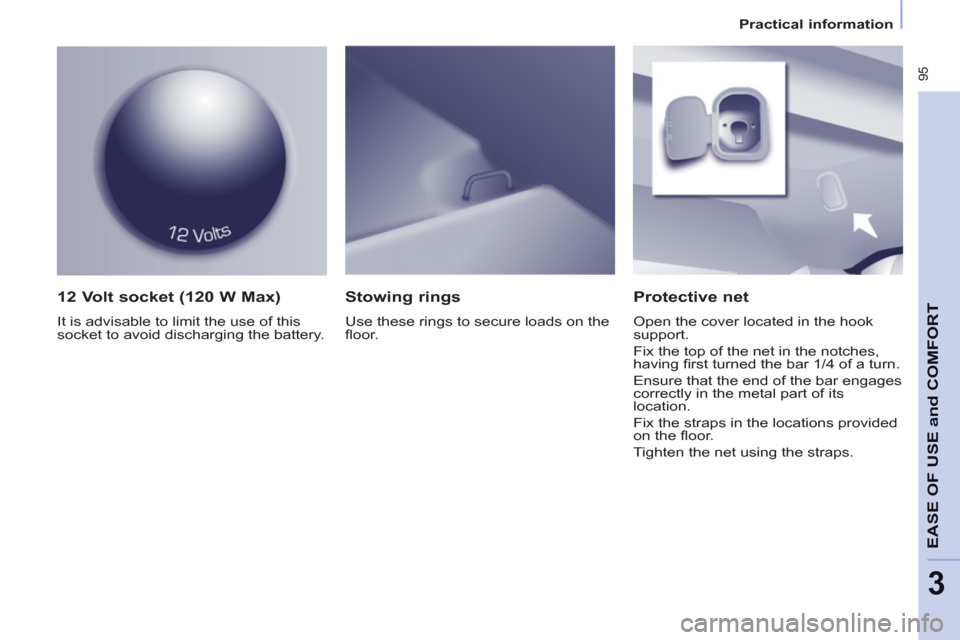

12 Volt socket (120 W Max)

It is advisable to limit the use of this
socket to avoid discharging the battery.


Protective net

Open the cover located in the hook
support.
Fix the top of the net in the notches,
having fi rst turned the bar 1/4 of a turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on the fl oor.
Tighten the net using the straps.


Stowing rings

Use these rings to secure loads on the
fl oor.

96


Practical information

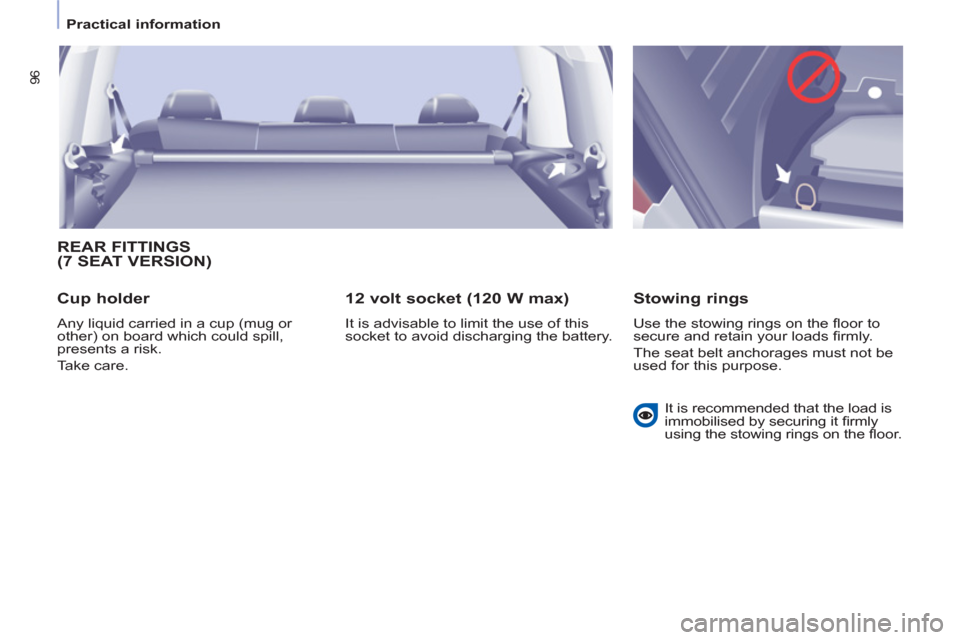

REAR FITTINGS (7 SEAT VERSION)

Cup holder

Any liquid carried in a cup (mug or
other) on board which could spill,
presents a risk.
Take care.


12 volt socket (120 W max)

It is advisable to limit the use of this
socket to avoid discharging the battery.


Stowing rings

Use the stowing rings on the fl oor to
secure and retain your loads fi rmly.
The seat belt anchorages must not be
used for this purpose.

It is recommended that the load is
immobilised by securing it fi rmly
using the stowing rings on the fl oor.

97
EASE OF USE
andCOMFOR
T
3


Practical information

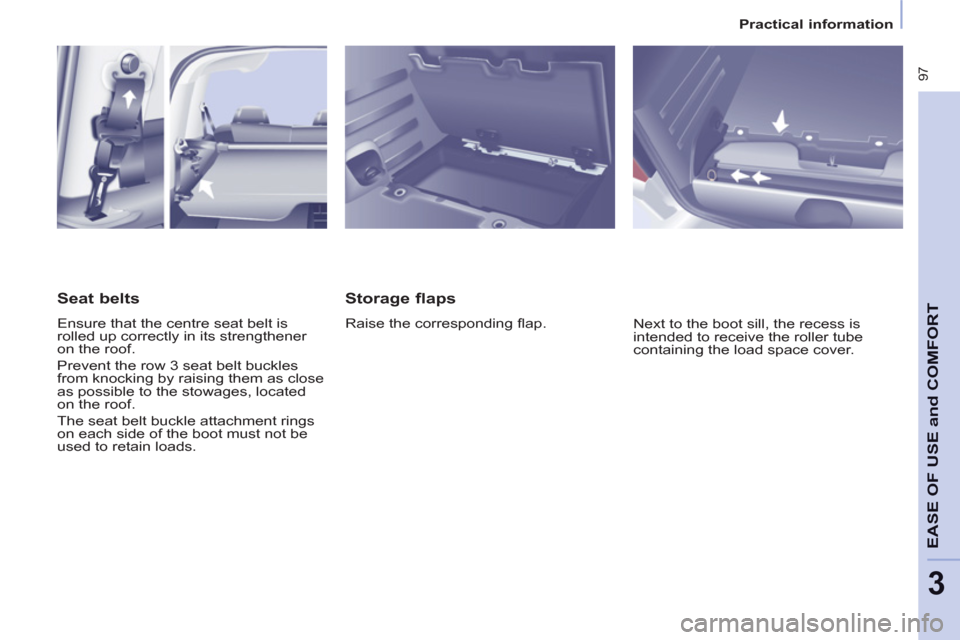

Storage flaps

Raise the corresponding fl ap.
Next to the boot sill, the recess is
intended to receive the roller tube
containing the load space cover.


Seat belts

Ensure that the centre seat belt is
rolled up correctly in its strengthener
on the roof.
Prevent the row 3 seat belt buckles
from knocking by raising them as close
as possible to the stowages, located
on the roof.
The seat belt buckle attachment rings
on each side of the boot must not be
used to retain loads.

98


Practical information

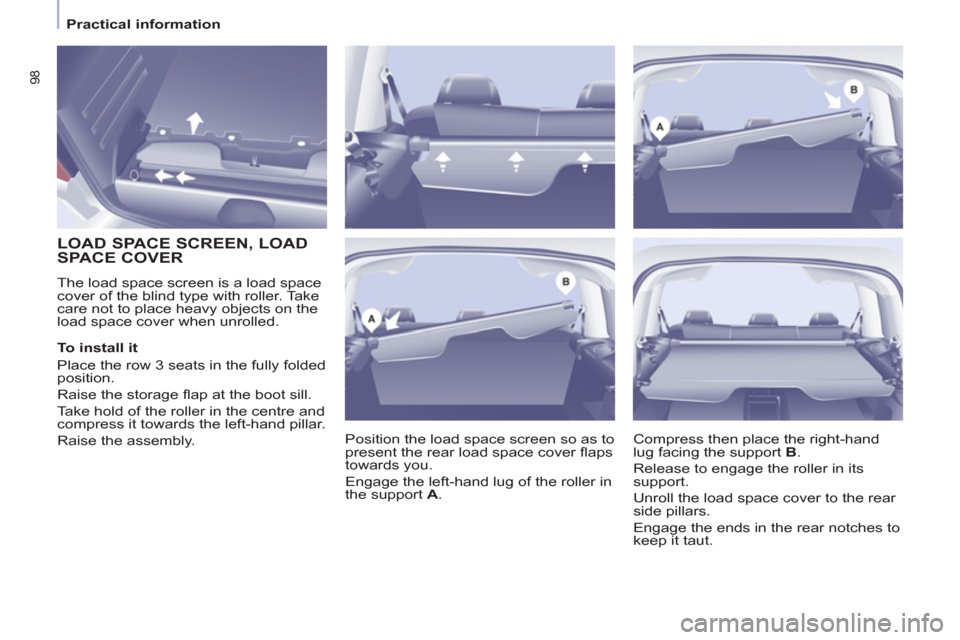

LOAD SPACE SCREEN, LOAD
SPACE COVER
The load space screen is a load space
cover of the blind type with roller. Take
care not to place heavy objects on the
load space cover when unrolled.
Position the load space screen so as to
present the rear load space cover fl aps
towards you.
Engage the left-hand lug of the roller in
the support A .
To install it
Place the row 3 seats in the fully folded
position.
Raise the storage fl ap at the boot sill.
Take hold of the roller in the centre and
compress it towards the left-hand pillar.
Raise the assembly. Compress then place the right-hand
lug facing the support B .
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side pillars.
Engage the ends in the rear notches to
keep it taut.

99
EASE OF USE
andCOMFOR
T
3


Practical information

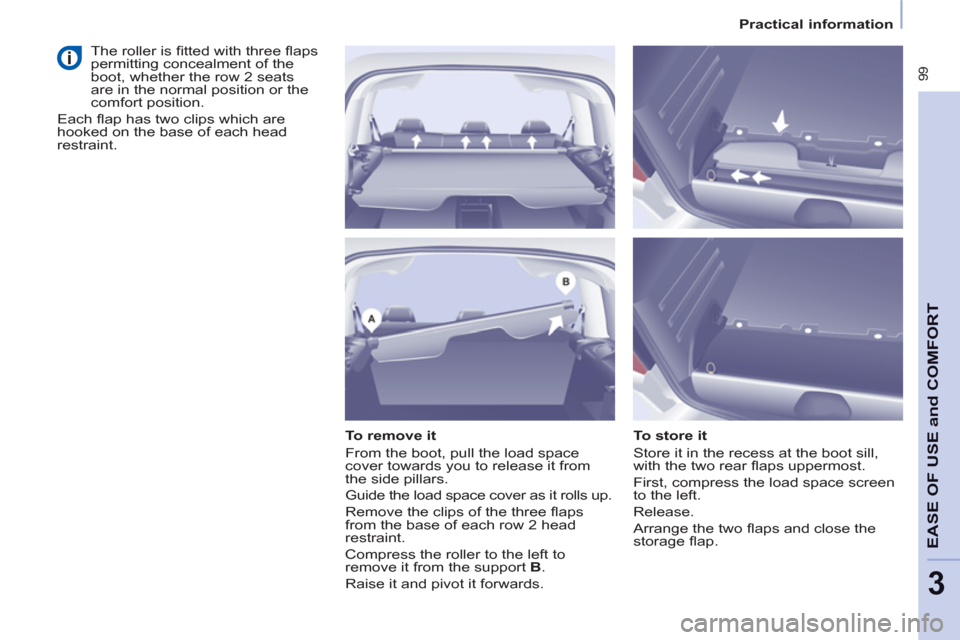

To remove it
From the boot, pull the load space
cover towards you to release it from
the side pillars.
Guide the load space cover as it rolls up.
Remove the clips of the three fl aps
from the base of each row 2 head
restraint.
Compress the roller to the left to
remove it from the support B .
Raise it and pivot it forwards.
To store it
Store it in the recess at the boot sill,
with the two rear fl aps uppermost.
First, compress the load space screen
to the left.
Release.
Arrange the two fl aps and close the
storage fl ap.

The roller is fi tted with three fl aps
permitting concealment of the
boot, whether the row 2 seats
are in the normal position or the
comfort position.
Each fl ap has two clips which are
hooked on the base of each head
restraint.

100


Practical information


INTERIOR RACK

The interior rack consists of two bars
to be installed at the top of the
space leaving the lower area of the
passenger compartment free.
It permits the transportation of long
loads (2 metres maximum) with the
doors or tailgate closed. The long load
must rest on the overhead storage
compartment and the two bars. Maximum load: 10 kilogrammes
per bar. The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
However, be sure to comply with the
loads and weights permitted.

101
EASE OF USE
andCOMFOR
T
3


Practical information


The interior rack is not compatible
with the Zenith roof.

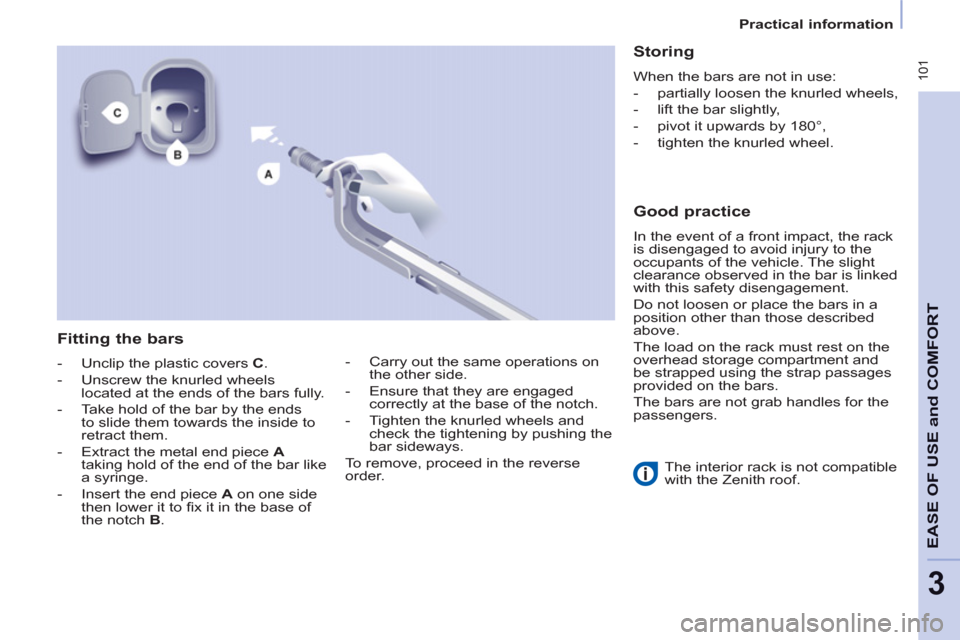

Fitting the bars



- Unclip the plastic covers C .

- Unscrew the knurled wheels
located at the ends of the bars fully.

- Take hold of the bar by the ends
to slide them towards the inside to
retract them.

- Extract the metal end piece A
taking hold of the end of the bar like
a syringe.

- Insert the end piece A on one side
then lower it to fi x it in the base of
the notch B .


Storing

When the bars are not in use:


- partially loosen the knurled wheels,

- lift the bar slightly,

- pivot it upwards by 180°,

- tighten the knurled wheel.



Good practice

In the event of a front impact, the rack
is disengaged to avoid injury to the
occupants of the vehicle. The slight
clearance observed in the bar is linked
with this safety disengagement.
Do not loosen or place the bars in a
position other than those described
above.
The load on the rack must rest on the
overhead storage compartment and
be strapped using the strap passages
provided on the bars.
The bars are not grab handles for the
passengers.
- Carry out the same operations on
the other side.

- Ensure that they are engaged
correctly at the base of the notch.

- Tighten the knurled wheels and
check the tightening by pushing the
bar sideways.
To remove, proceed in the reverse
order.

102

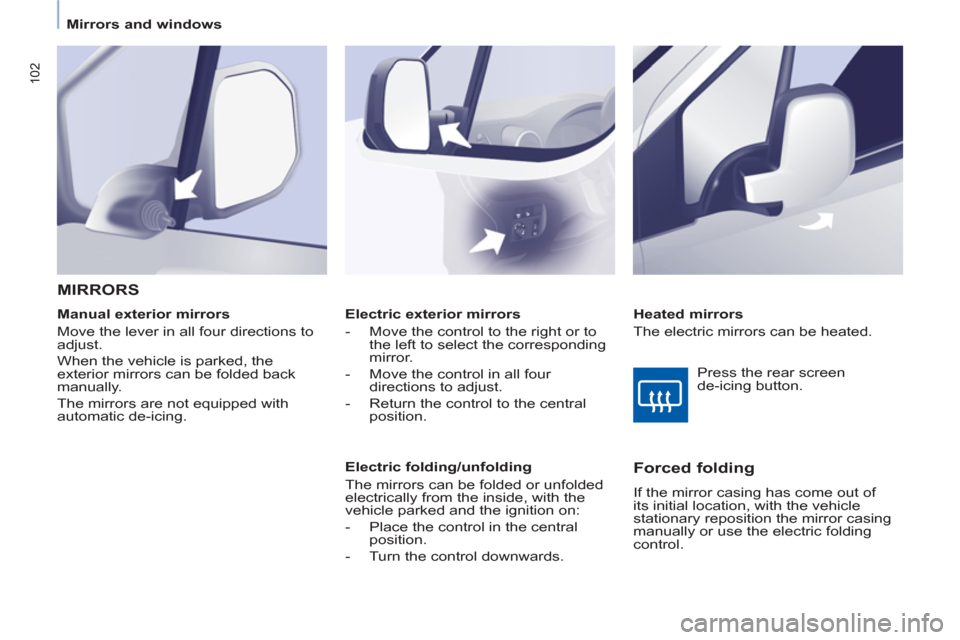

Mirrors and windows


Electric exterior mirrors


- Move the control to the right or to
the left to select the corresponding
mirror.

- Move the control in all four
directions to adjust.

- Return the control to the central
position.


Electric folding/unfolding
The mirrors can be folded or unfolded
electrically from the inside, with the
vehicle parked and the ignition on:


- Place the control in the central
position.

- Turn the control downwards.



MIRRORS


Heated mirrors
The electric mirrors can be heated.
Manual exterior mirrors
Move the lever in all four directions to
adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually.
The mirrors are not equipped with
automatic de-icing.



Forced folding

If the mirror casing has come out of
its initial location, with the vehicle
stationary reposition the mirror casing
manually or use the electric folding
control. Press the rear screen
de-icing button.
