2011 Peugeot Partner Tepee Owner's Manual

HANDBOOK

This new vehicle has been designed to satisfy all your
requirements in terms of practicality, comfort, safety and
aesthetics. In order to get the most out of your vehicle,
we suggest that you take a tour with the "Handbook" in
front of you. The handbook presents the operation of
the equipment available on board in detail.

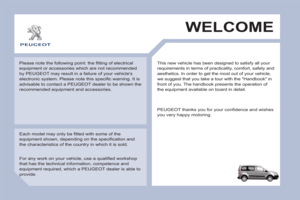

WELCOME
Each model may only be fi tted with some of the
equipment shown, depending on the specifi cation and
the characteristics of the country in which it is sold. Please note the following point: the fi tting of electrical
equipment or accessories which are not recommended
by PEUGEOT may result in a failure of your vehicle's
electronic system. Please note this specifi c warning. It is
advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.

PEUGEOT thanks you for your confi dence and wishes
you very happy motoring.

For any work on your vehicle, use a qualifi ed workshop
that has the technical information, competence and
equipment required, which a PEUGEOT dealer is able to
provide.

2

Contents
Key 17
Doors 20

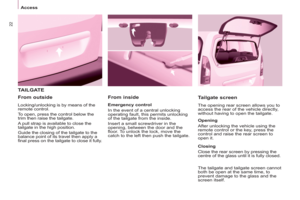

Tailgate 22
Rear roof fl ap 25
Central locking 26

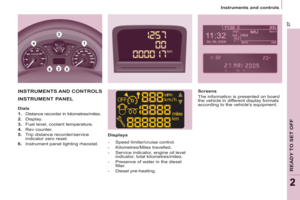

Instrument panel 27

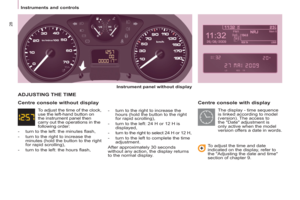

Adjusting the time 28

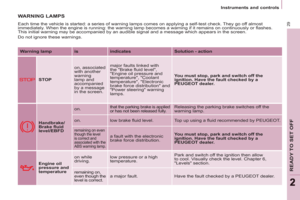

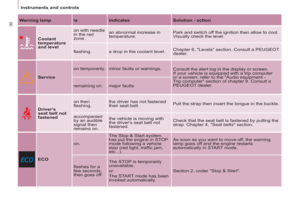

Warning lamps 29
Fuel gauge 35
Coolant 35
Tyre under-infl ation
detection 36

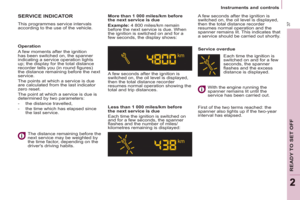

Service indicator 37
Lighting rheostat 38
Gearbox 39
Gear shift indicator 39
6-speed electronic
gearbox system 40
Steering wheel
adjustment 42
Stop & Start 43
Starting and stopping 46

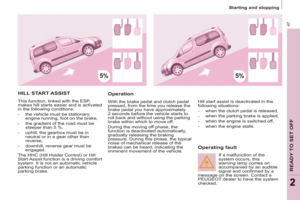

Hill start assist 47Lighting control 48

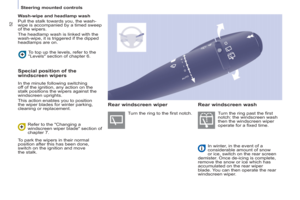

wipers 51

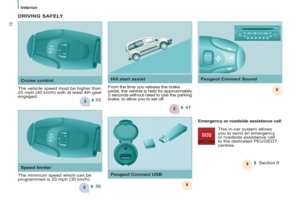

Cruise control 53
Speed limiter 56

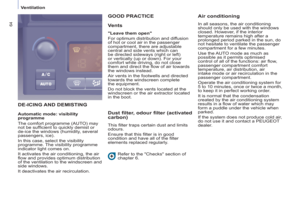

Heating/Manual air
conditioning 59
automatic 61
De-icing and demisting 63

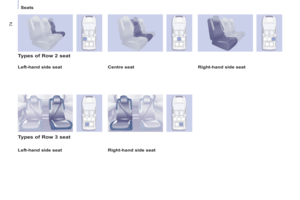

Front seats 65
Rear bench seat 67
Rear seats
(5 seat version) 70
Rear seats
(7 seat version) 73
Adjustments 80

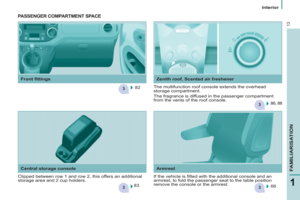

Front layout 82
Zenith roof 86
Roof bars 91
Courtesy lights 92
Torch 93
Load space cover
(5 seat version) 94
Load space cover
(7 seat version) 98
Interior rack 100
Mirrors 102
Electric windows 104
2. READY TO SET OFF
17-47
4. SAFETY
105-126
Presentation 4
Communication 4
Exterior 6
Instruments and controls 8

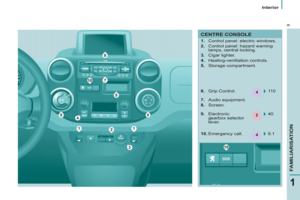

Centre console 9
Sitting comfortably 10
Visibility 11
Driving safely 12
Passenger compartment
space 13
Rear fi ttings 14

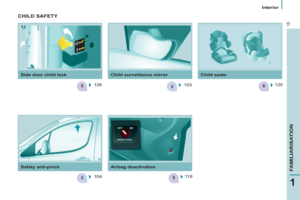

Child safety 15
Ventilation 16
1. FAMILIARISATION
4-16
Hazard warning lamps 105
Parking brake 105
Rear parking
assistance 106
Anti-lock braking system
(ABS) 108
Emergency braking
assistance 108
Traction control (ASR) and
stability control (ESP) 109
"Grip control" 110
Seat belts 113
Airbags 116
Disarming
the passenger airbag 119

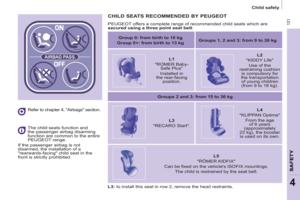

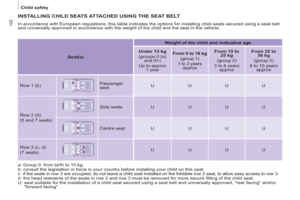

Child seats 120

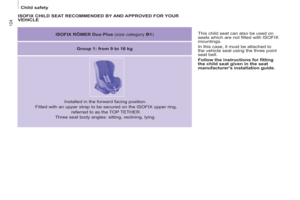

Recommended seats 121
Installing 122
Isofi x seats 125
Child lock 126
COMFORT 48-104

3

Contents
CONTENT
S
9. TECHNOLOGY on
BOARD

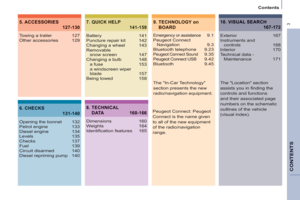

5. ACCESSORIES
127-130
6. CHECKS
131-140
7. QUICK HELP
141-159

Emergency or assistance 9.1
Peugeot Connect

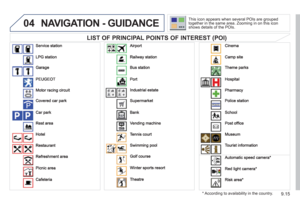

Navigation 9.3
Bluetooth telephone 9.23

Peugeot Connect Sound 9.35
Peugeot Connect USB 9.42
Bluetooth 9.45 Towing a trailer 127
Other accessories 129
Opening the bonnet 132
Petrol engine 133
Diesel engine 134
Levels 135
Checks 137
Fuel 139
Circuit disarmed 140
Diesel repriming pump 140Battery 141
Puncture repair kit 142
Changing a wheel 143
Removable
snow screen 147
Changing a bulb 148

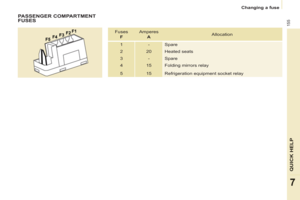

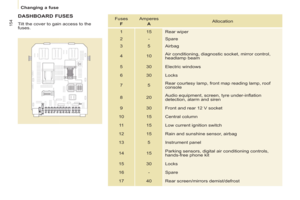

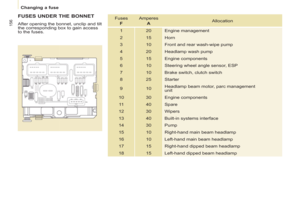

a fuse 153
a windscreen wiper
blade 157
Being towed 158
8. TECHNICAL
DATA 160-166
Dimensions 160
Weights 164
Identifi cation features 165
10. VISUAL SEARCH
167-172
Exterior 167
Instruments and
controls 168
Interior 170

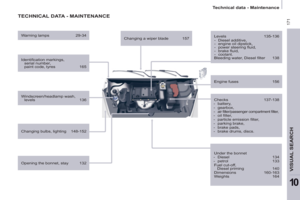

Technical data -
Maintenance 171

Peugeot Connect: Peugeot
Connect is the name given
to all of the new equipment
of the radio/navigation
range. The "In-Car Technology"
section presents the new
radio/navigation equipment.
The "Location" section
assists you in fi nding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle
(visual index).

4PRESENTATION
Within the chapters symbols draw your attention to specifi c
information: This handbook is designed to familiarise you with the new
vehicle from the moment you get behind the wheel and to
describe the operating features.
Reading the handbook is made easy by a content
consisting of 10 identifi ed chapters which can be located
by means of a colour code specifi c to each one. Its
sections cover, by theme, all of the functions of the
vehicle in its most complete specifi cation.
Chapter 8 indicates all of the technical data relating to
your vehicle. At the end of the document, diagrams of the
outside and inside of the vehicle will assist you in locating
equipment or functions and page numbers refer you to
the relevant section of the handbook.
PEUGEOT COMMUNICATION PUTS AN INTERNET SITE AT YOUR DISPOSAL
http://public.servicebox.peugeot.com, select:


- your model,

- the body type: saloon, CC, SW, estate, van…,

- the period corresponding to the date of fi rst registration,

- the "Latest Information" section. The technical data, equipment and accessories may
change during the year. To obtain this new data, refer to
the "Latest Information" section on the SERVICE BOX
Internet site free of charge. directs you to the chapter and section which contains
detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipment on
board.

5
1
FAMILIARISATION

6a6b2b
2a
4
2a
6a
2b
6b
4
6


Exterior

17
132 139

Key


: chapter identifi cation

: page identifi cation

20



Key - Remote control
Complete unlocking of the
vehicle.
Complete locking of the vehicle.

Opening the bonnet
Take care when working under
the bonnet.
Raise the bonnet slightly by
reaching in with a fl at hand, palm
down, to make access to the
lever easier. Engage the base of
the stay in the hole provided to
hold the bonnet open.
High pressure washing of
the engine compartment is
prohibited, to ensure correct
operation of the vehicle.
Sliding side door
Pull the handle towards you
then towards the rear and open
the door, guiding the rearward
movement until the point of
resistance has been passed.

Fuel fi ller fl ap open
A mechanical
system prevents
opening of the
left-hand side
door when the
fuel fi ller fl ap is
open. 11 0
Grip control
The Grip control anti-slip system improves
traction on snow, mud and sand.
