2011 Peugeot Partner Tepee Owner's Manual

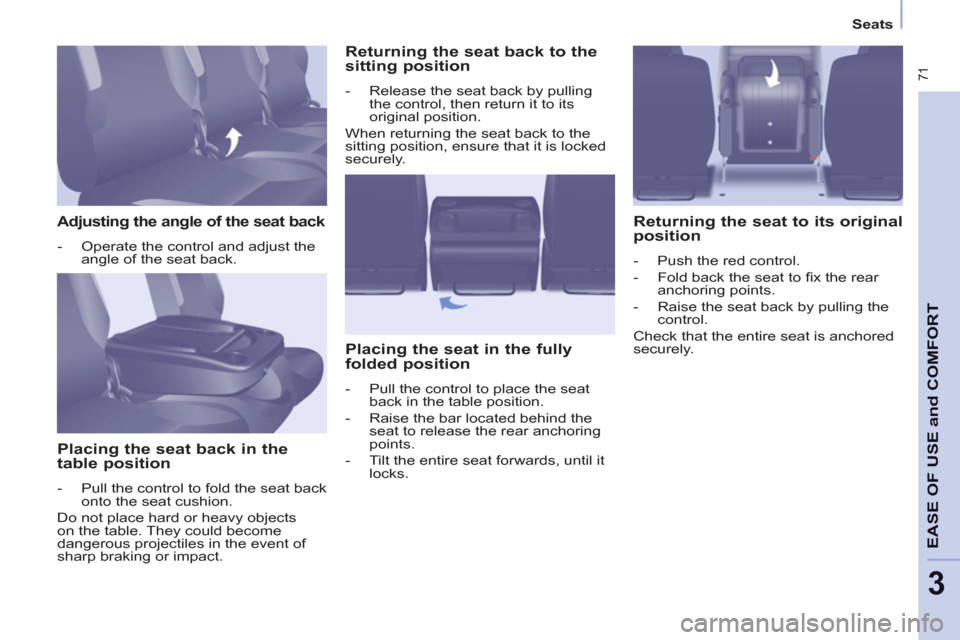

71
EASE OF USE
andCOMFOR
T
3





Seats






Adjusting the angle of the seat back



- Operate the control and adjust the
angle of the seat back.



Placing the seat back in the
table position


- Pull the control to fold the seat back
onto the seat cushion.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.


Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
When returning the seat back to the
sitting position, ensure that it is locked
securely.


Placing the seat in the fully
folded position


- Pull the control to place the seat
back in the table position.

- Raise the bar located behind the
seat to release the rear anchoring
points.

- Tilt the entire seat forwards, until it
locks.



Returning the seat to its original
position


- Push the red control.

- Fold back the seat to fi x the rear
anchoring points.

- Raise the seat back by pulling the
control.
Check that the entire seat is anchored
securely.

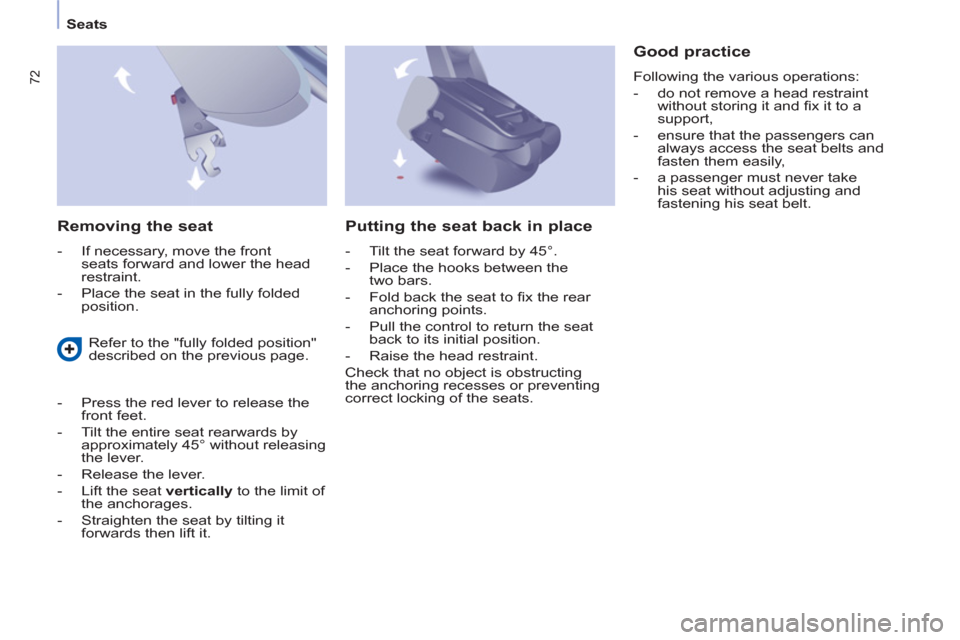

72
Seats

Removing the seat



- If necessary, move the front
seats forward and lower the head
restraint.

- Place the seat in the fully folded
position.


Good practice

Following the various operations:


- do not remove a head restraint
without storing it and fi x it to a
support,

- ensure that the passengers can
always access the seat belts and
fasten them easily,

- a passenger must never take
his seat without adjusting and
fastening his seat belt.

Refer to the "fully folded position"
described on the previous page.

- Press the red lever to release the
front feet.

- Tilt the entire seat rearwards by
approximately 45° without releasing
the lever.

- Release the lever.

- Lift the seat vertically
to the limit of
the anchorages.

- Straighten the seat by tilting it
forwards then lift it.



Putting the seat back in place



- Tilt the seat forward by 45°.

- Place the hooks between the
two bars.

- Fold back the seat to fi x the rear
anchoring points.

- Pull the control to return the seat
back to its initial position.

- Raise the head restraint.
Check that no object is obstructing
the anchoring recesses or preventing
correct locking of the seats.

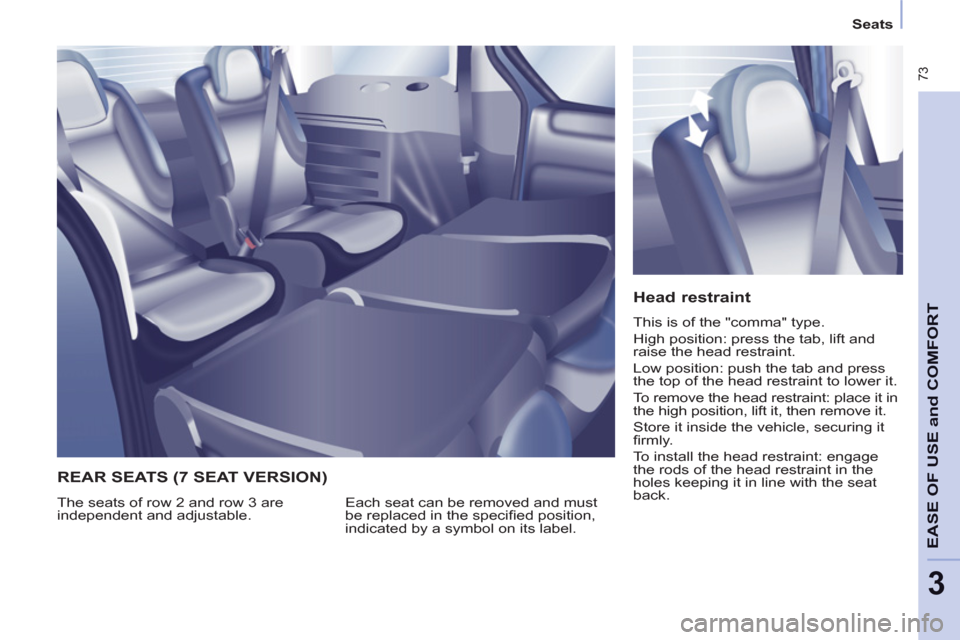

73
EASE OF USE
andCOMFOR
T
3





Seats






Head restraint

This is of the "comma" type.
High position: press the tab, lift and
raise the head restraint.
Low position: push the tab and press
the top of the head restraint to lower it.
To remove the head restraint: place it in
the high position, lift it, then remove it.
Store it inside the vehicle, securing it
fi rmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed and must
be replaced in the specifi ed position,
indicated by a symbol on its label.
The seats of row 2 and row 3 are
independent and adjustable.
REAR SEATS (7 SEAT VERSION)

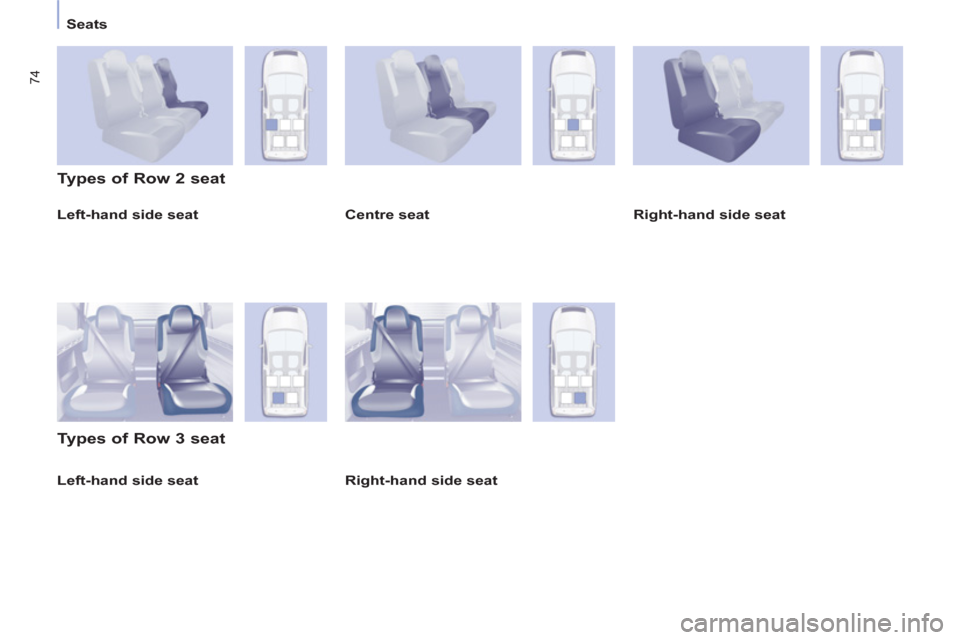

74
Seats

Left-hand side seat


Types of Row 2 seat

Types of Row 3 seat


Centre seat
Right-hand side seat


Right-hand side seat


Left-hand side seat

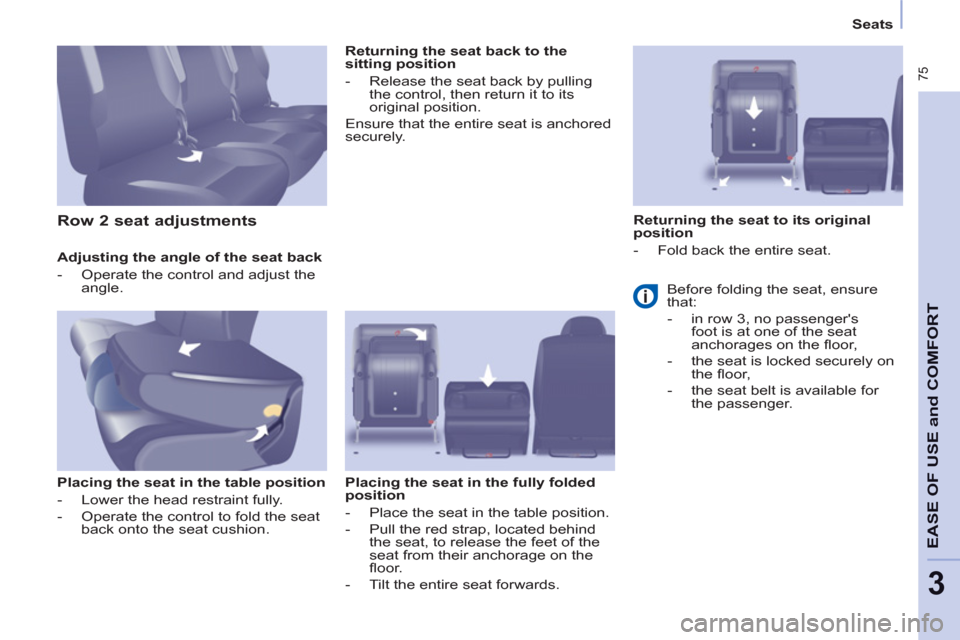

75
EASE OF USE
andCOMFOR
T
3





Seats





Adjusting the angle of the seat back


- Operate the control and adjust the
angle.


Placing the seat in the table position


- Lower the head restraint fully.

- Operate the control to fold the seat
back onto the seat cushion.

Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.

Placing the seat in the fully folded
position


- Place the seat in the table position.

- Pull the red strap, located behind
the seat, to release the feet of the
seat from their anchorage on the
fl oor.

- Tilt the entire seat forwards.



Row 2 seat adjustments

Returning the seat to its original
position


- Fold back the entire seat.
Before folding the seat, ensure
that:


- in row 3, no passenger's
foot is at one of the seat
anchorages on the fl oor,

- the seat is locked securely on
the fl oor,

- the seat belt is available for
the passenger.

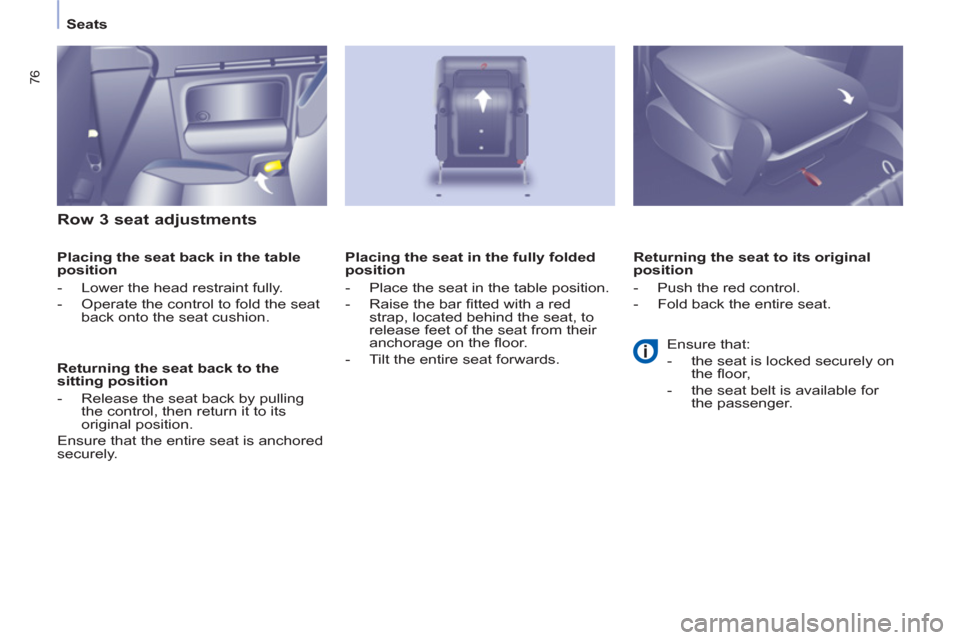

76
Seats

Row 3 seat adjustments


Placing the seat back in the table
position


- Lower the head restraint fully.

- Operate the control to fold the seat
back onto the seat cushion.


Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.
Returning the seat to its original
position


- Push the red control.

- Fold back the entire seat.
Placing the seat in the fully folded
position


- Place the seat in the table position.

- Raise the bar fi tted with a red
strap, located behind the seat, to
release feet of the seat from their
anchorage on the fl oor.

- Tilt the entire seat forwards.
Ensure that:


- the seat is locked securely on
the fl oor,

- the seat belt is available for
the passenger.

77
EASE OF USE
andCOMFOR
T
3





Seats






Entering, exiting from row 3


Entering


- Place the row 2 seat in the table
position.

Exiting


- Lower the head restraint fully.

- Operate the yellow control, located
on the back of the row 2 seat back.

- Fold the seat back to the table
position. Ensure that the stored centre
seat belt is placed correctly in its
strengthener in the headlining.
- Tilt it to the fully folded position to
allow access.
- Pull the red strap to place the seat
in the fully folded position.

- Tilt the entire seat forwards.

- Exit via the side door.
Before folding it back, ensure that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring points.

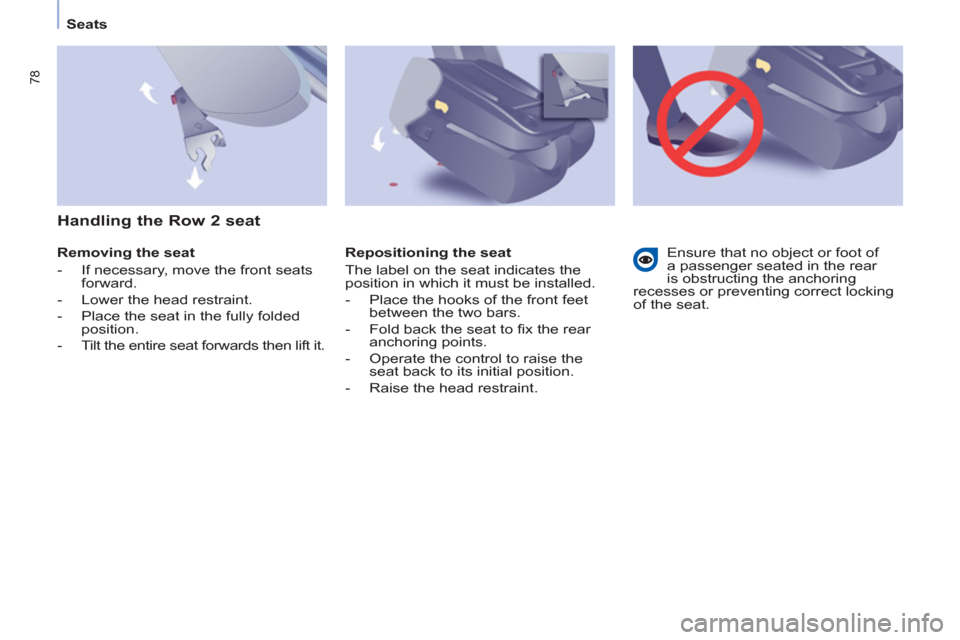

78
Seats

Removing the seat


- If necessary, move the front seats
forward.

- Lower the head restraint.

- Place the seat in the fully folded
position.

- Tilt the entire seat forwards then lift it.

Repositioning the seat
The label on the seat indicates the
position in which it must be installed.


- Place the hooks of the front feet
between the two bars.

- Fold back the seat to fi x the rear
anchoring points.

- Operate the control to raise the
seat back to its initial position.

- Raise the head restraint.

Ensure that no object or foot of
a passenger seated in the rear
is obstructing the anchoring
recesses or preventing correct locking
of the seat.



Handling the Row 2 seat
