2011 Peugeot Partner Tepee Owner's Manual

3
3
5
5
5
15
1

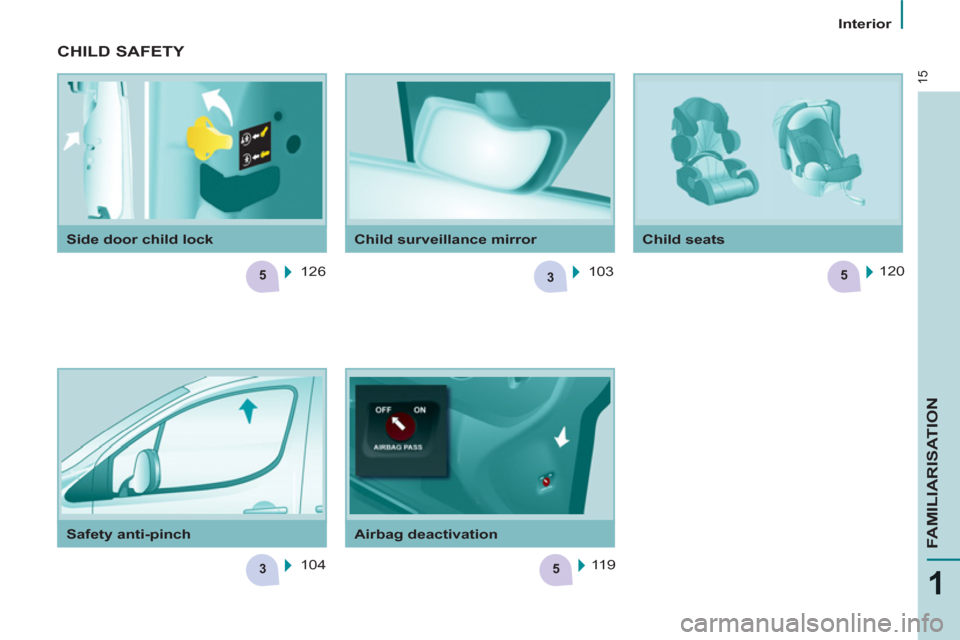

FAMILIARISATION


Interior


Safety anti-pinch
Airbag deactivation
Child seats

Side door child lock
Child surveillance mirror

CHILD SAFETY

126
104 103 120

119

3
3
3
3
16


Interior



VENTILATION



Recommended settings for Manual Air Conditioning


For optimum use of the system, we recommend:


If I require...



Air
distribution





Temperature




Air fl ow




Air
recirculation




AC




Heating

-


Cooling




Demisting


Defrosting


63
With Digital Air Conditioning, operation in AUTO mode is recommended at
all times.

Remember to switch the system off when the ambient air suits
your requirements.
61
Heating

Air conditioning

Automatic air conditioning 59 59

17


Access

READY TO SET OFF
2

KEY

This locks and unlocks the locks on the
vehicle and starts the engine.

ACCESS REMOTE CONTROL

Central unlocking

Central locking

Press this button to lock all of
your vehicle's doors.
The direction indicators fl ash once.
If one of the doors is open or is not
closed correctly, the central locking will
not work.


Deadlocking


A second press on the closed
padlock on the remote control within
fi ve seconds after locking changes the
locking to deadlocking.
This is confi rmed by fi xed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started. Press this button to unlock all
of your vehicle's doors.
The direction indicators fl ash twice.

18


Access



Good practice

Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.

REMOTE CONTROL
Programming the remote
control
Following changing of the remote control
battery or disconnection of the vehicle
battery, the remote control may have to
be reprogrammed.
Wait at least one minute before using the
remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least
fi ve seconds within the next ten seconds.
Switch off the ignition.
Wait at least one minute before using the
remote control.
The remote control is now working again. Use only identical batteries or
batteries of an equivalent type to those
recommended by PEUGEOT dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a PEUGEOT
dealership, or at any other approved
collection point.


Folding/unfolding the key

Changing the battery

Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
There is a risk of damage if the
replacement battery does not conform. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.

19


Access

READY TO SET OFF
2


When purchasing a second-hand
vehicle:


- have the keys memorised by a
PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start
the vehicle.



Good practice

Do not make any modifi cations to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically when
the key is removed from the ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.

If you lose your keys
Visit a PEUGEOT dealer with the
vehicle's V5 registration document and
your identifi cation document.
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.
The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.

20


Access


SLIDING SIDE
DOORS

From the outside

Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it open.
A mechanical system prevents opening
of the left-hand side door when the fuel
fi ller fl ap is open.

FRONT DOORS

From the inside

Use the door opening control to unlock
and open the door concerned.


From the outside

Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.

21


Access

READY TO SET OFF
2

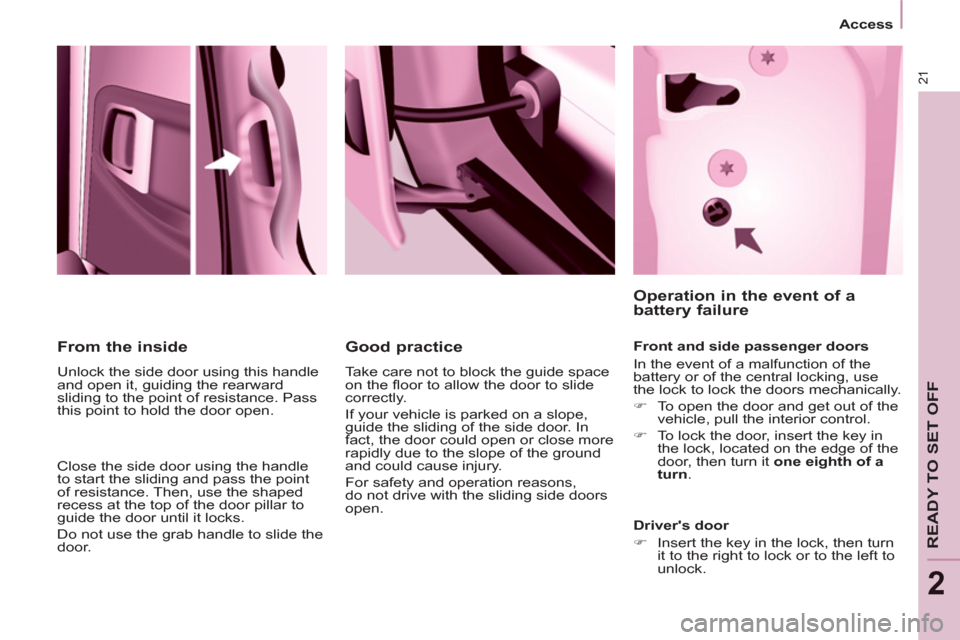

From the inside

Unlock the side door using this handle
and open it, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open.

Close the side door using the handle
to start the sliding and pass the point
of resistance. Then, use the shaped
recess at the top of the door pillar to
guide the door until it locks.
Do not use the grab handle to slide the
door.


Good practice

Take care not to block the guide space
on the fl oor to allow the door to slide
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons,
do not drive with the sliding side doors
open.







Operation in the event of a
battery failure

Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.


)
To open the door and get out of the
vehicle, pull the interior control.

)
To lock the door, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn
.


Driver's door


)
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.

22


Access


TAILGATE

From inside

Tailgate screen

The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.



From outside

Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply a
fi nal press on the tailgate to close it fully.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.

Closing
Close the rear screen by pressing the
centre of the glass until it is fully closed.

The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself.
