FAMILIARISATION
20
22
Rear roof fl ap

The rear roof fl ap is only
compatible with the hinged doors.

Changing bulbs
11 7 11 2
Spare wheel

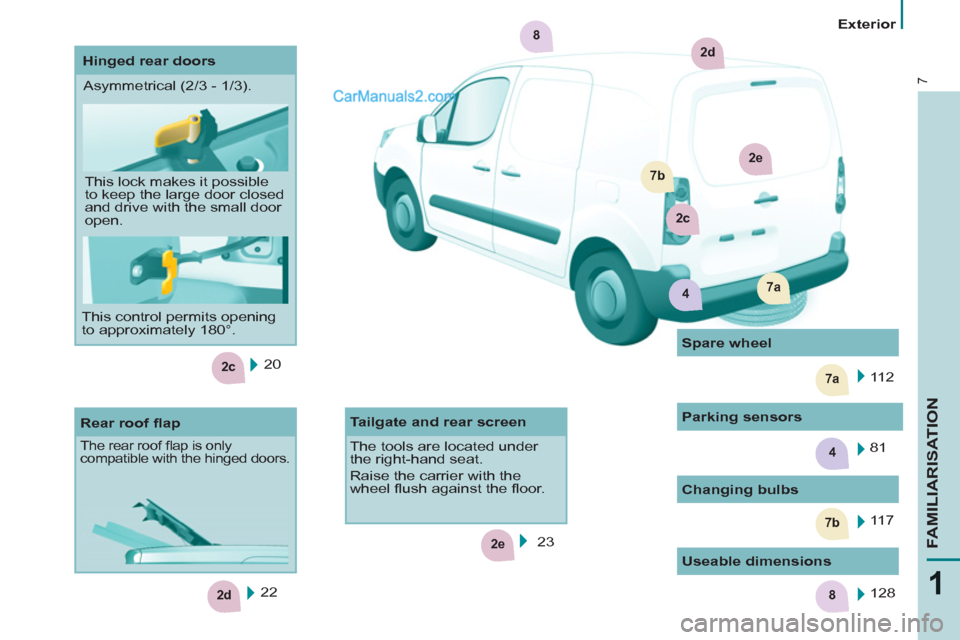

Hinged rear doors

Tailgate and rear screen
The tools are located under
the right-hand seat.
Raise the carrier with the
wheel fl ush against the fl oor.
23 Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.

Useable dimensions
128

Parking sensors
81

Exterior

8

INSTRUMENTS AND CONTROLS



1.
Lights and direction indicator stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip
computer controls.

4.
Ignition.

5.
Audio controls.

6.
Driver's airbag, horn.

7.
Steering wheel height and reach
adjustment.

8.
Cruise control, speed limiter
switches.

9.
Control panel, parking sensors,
headlamp beam adjustment,
ESP, Stop & Start.

10.
Bonnet release.

11 .
Electric door mirror adjustment.

Interior

4
2
4
9
1
FAMILIARISATION


Interior

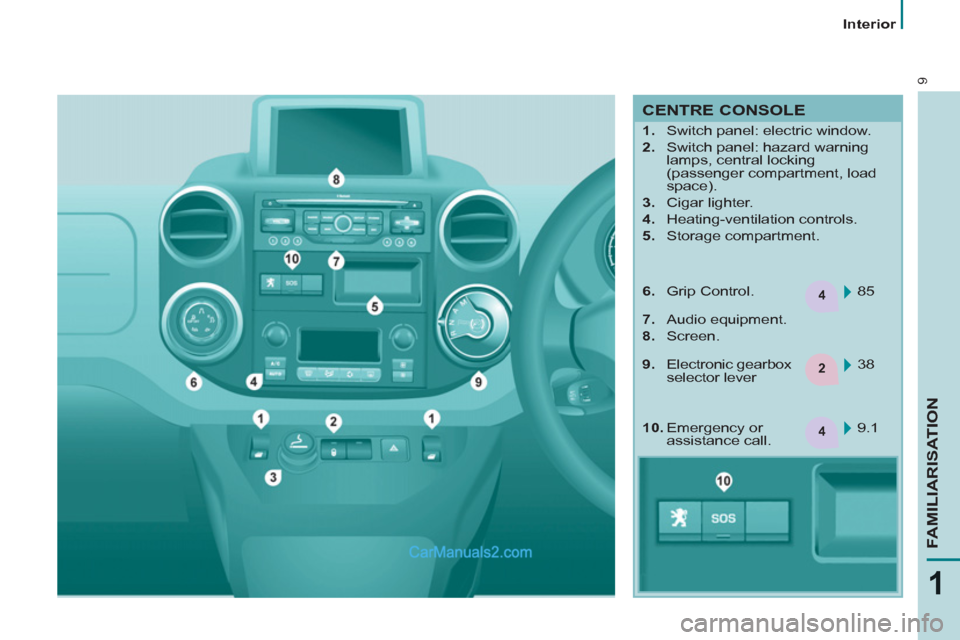

CENTRE CONSOLE




1.
Switch panel: electric window.

2.
Switch panel: hazard warning
lamps, central locking
(passenger compartment, load
space).

3.
Cigar lighter.

4.
Heating-ventilation controls.

5.
Storage compartment.
85

6.
Grip Control.

7.
Audio equipment.

8.
Screen.
38
9.1



10.
Emergency or
assistance call.
9.
Electronic gearbox
selector lever

3
43
2
3
10
Interior


1.

Forwards-backwards
adjustment.
2.
Angle.

3.
Height.
4.
Head restraint
height and
angle.
Driver's seat
63 69

40
77 88





SITTING COMFORTABLY


Steering wheel
Adjust the steering wheel for height
and reach.
Storage compartments
These are placed under the front
seats. For greater ease, reach behind
the seat to access them.
The tools are stored under the right-hand
seat and can be accessed from the rear.

Seat belts
Height adjustment.
Fastening.
Mirrors
Manual adjustments.
Electric adjustments.

3
3
3
3
9
3
11
FAMILIARISATION


Interior

Lighting off.
Sidelamps.

Main beam headlamps (blue).

Dipped beam headlamps (green).
2 fast.
1 normal.
I intermittent.
0 off.
È
single wipe.
AUTO, press the stalk down.
AUTO, automatic
illumination of headlamps.
46 49 In cruise control mode, the vehicle speed
must be higher than 25 mph (40 km/h)
with at least 4th gear engaged.
51,
54
45


SEEING CLEARLY DRIVING SAFELY


Motorway function:
press up or down
once, without passing the point of
resistance; the corresponding direction
indicators will fl ash three times.
Lighting stalk
Wiper stalk
Cruise control, Speed limiter

Hill start assist

Peugeot Connect Sound

50,
126


Special position of the windscreen
wipers
In the minute after switching off the
ignition, any action on the wiper stalk
positions the wipers vertically at the
sides of the windscreen.

33
3
3
12
Interior

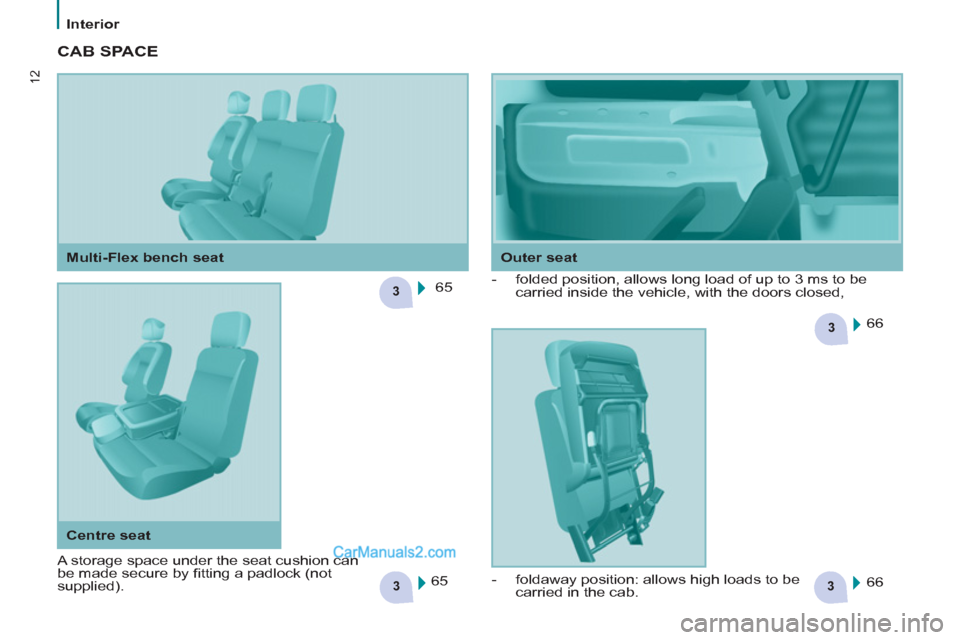

CAB SPACE

65
66
66

- folded position, allows long load of up to 3 ms to be
carried inside the vehicle, with the doors closed,
65

Outer seat

Multi-Flex bench seat

Centre seat
A storage space under the seat cushion can
be made secure by fi tting a padlock (not
supplied).
- foldaway position: allows high loads to be
carried in the cab.

3
3
3
3
13
1
FAMILIARISATION


Interior


LOAD SPACE

We recommend that the load is
properly secured using the stowing
rings on the fl oor and that heavy
objects are placed at the front (towards
the cab). Fitted in the wall, this illuminates
the boot and can be removed when
changing a wheel, ...
74 71 75

Maximum loads
Overhead storage compartment: 5 kg.
Folding seat, in the seat back folded
onto seat cushion position: 50 kg.
Transverse roof bars: 75 kg.
Roof rack: 120 kg.
Rear roof fl ap: 100 kg vertically.
Partitions

Torch

Stowing rings

Removable fl ap
This can be removed for the loading of
long objects.
75

33
4
4
3
14
Interior

VENTILATION

57 59


CHILD SAFETY

94
93

Recommended settings for Manual Air Conditioning


For optimum use of the system, we recommend:


If I require...



Air
distribution





Temperature




Air fl ow




Air
recirculation




AC




Heating

-


Cooling




Demisting


Defrosting

61
With Digital Air Conditioning, operation in AUTO mode is recommended at all
times.
Remember to switch the system off when the ambient air suits
your requirements.
Airbag deactivation

Child seats
Heating Air conditioning
Digital air
conditioning
