Having your vehicle towed


Without lifting
(4 wheels on the road)
You should always use a towbar.

BEING TOWED
From the front



- Unclip the cover by pressing the
bottom part.

- Screw in the removable towing eye
until it locks.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Screw in the removable towing eye
until it locks.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on the road only)

It is preferable to raise the vehicle
using professional lifting equipment. The towing eye is stored in the tool kit,
located under the right-hand seat.

Vehicles fitted with a manual
gearbox (diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.

128

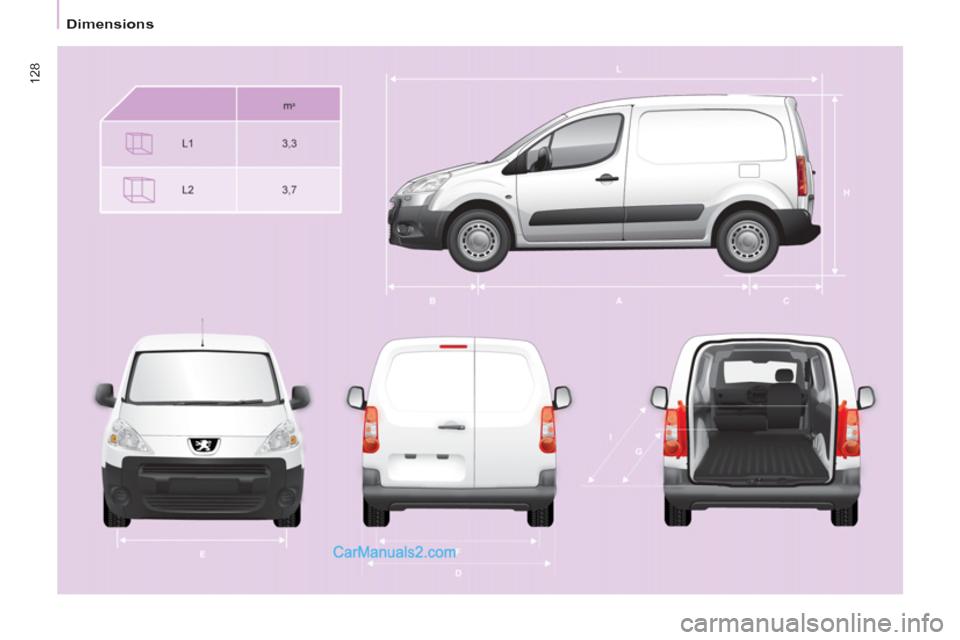

Dimensions

129
TECHNICAL DAT
A
8
Dimensions





VAN (mm)



Short - L1
Long - L2

625
850
750

L Overall length
4 380
4 628

H Overall height
1 805 - 1 834

A Wheelbase
2 728

B Front overhang
925

C Rear overhang
727
975

D Width over panels: without mirrors
1 810
with mirrors
2 112

E Width of front tracks
1 505

F Width of rear tracks
1 554

G Useful length of rear fl oor
1 800
2 050

I Useful length with front passenger seat folded
3 000
3 250 DIMENSIONS DIMENSIONS

The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:

130


Dimensions





REAR DOORS (mm)



L1 - 625
L1 - 850
L2

M Maximum threshold with 195/65 R15 tyre
584
609
612









Hinged doors
Tailgate

Small
Large






N Useful opening height (under panel)
1 148
1 313

O Width
495
543
1 582

131
TECHNICAL DAT
A
8
Dimensions






SLIDING SIDE DOOR (mm)



L1
L2

P
Useful height
1 100

Q
Useful width
650

-
Height under raised tailgate
1 892

132


Dimensions







PLATFORM CAB (mm)



L Overall length
4 237

H Overall height
1 821-1 822

A Wheelbase
2 728

B Front overhang
925

C Rear overhang
584

D Width over panels (without mirrors)
1 810

E Width of front tracks
1 505

F Width of rear tracks
1 554

133
TECHNICAL DAT
A
8

Weights

WEIGHTS AND TOWED LOADS (KG)


General points

The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High ambient temperatures may result
in a reduction in the performance
of the vehicle in order to protect the
engine; when the ambient temperature
is higher than 37 °C, limit the towed
weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90 %. For more information, refer to your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle's towing capacities
and its gross train weight, consult a
PEUGEOT dealer.

134


Identification markings

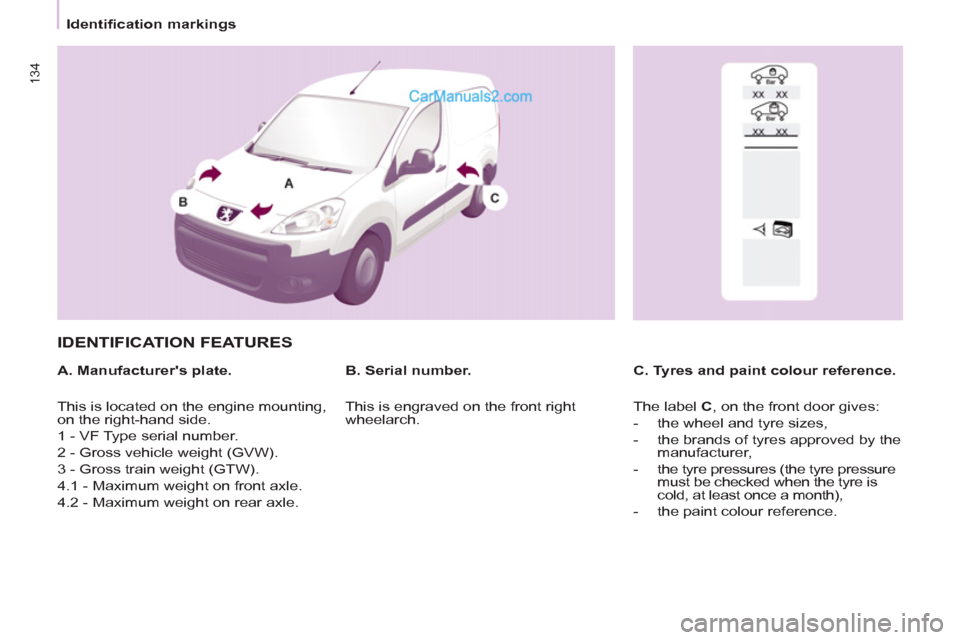

IDENTIFICATION FEATURES


A. Manufacturer's plate.
C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch. The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre pressure
must be checked when the tyre is
cold, at least once a month),

- the paint colour reference.
