2011 Peugeot Partner width

129
TECHNICAL DAT
A
8

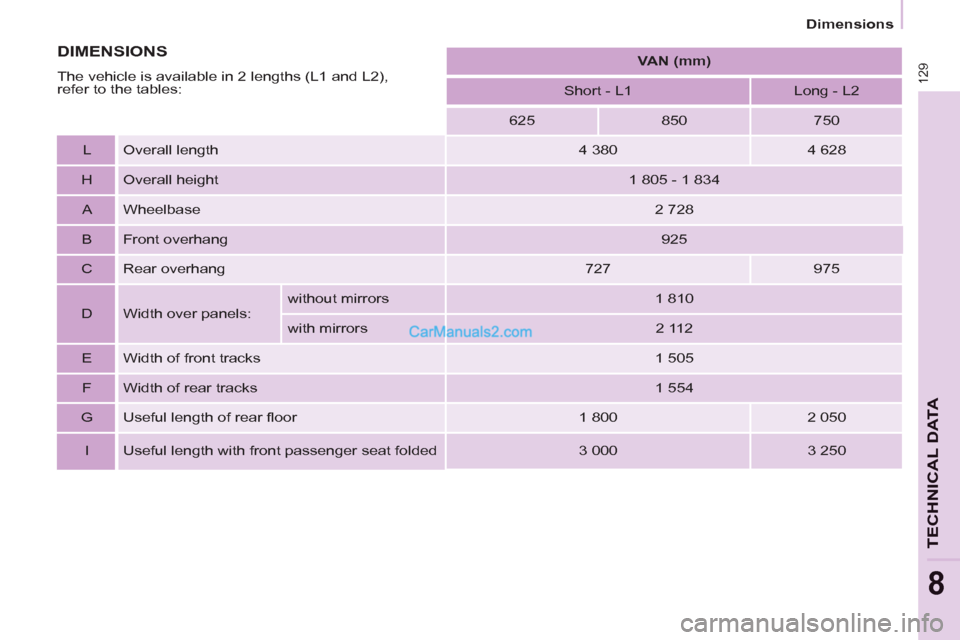

Dimensions





VAN (mm)



Short - L1
Long - L2

625
850
750

L Overall length
4 380
4 628

H Overall height
1 805 - 1 834

A Wheelbase
2 728

B Front overhang
925

C Rear overhang
727
975

D Width over panels: without mirrors
1 810
with mirrors
2 112

E Width of front tracks
1 505

F Width of rear tracks
1 554

G Useful length of rear fl oor
1 800
2 050

I Useful length with front passenger seat folded
3 000
3 250 DIMENSIONS DIMENSIONS

The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:

130


Dimensions

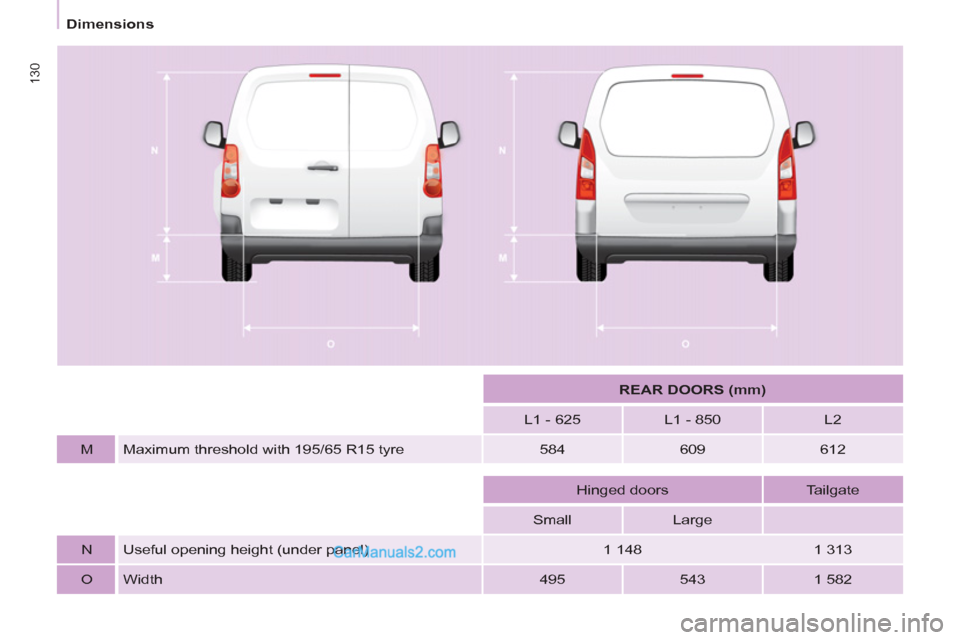

REAR DOORS (mm)



L1 - 625
L1 - 850
L2

M Maximum threshold with 195/65 R15 tyre
584
609
612









Hinged doors
Tailgate

Small
Large






N Useful opening height (under panel)
1 148
1 313

O Width
495
543
1 582

131
TECHNICAL DAT
A
8
Dimensions

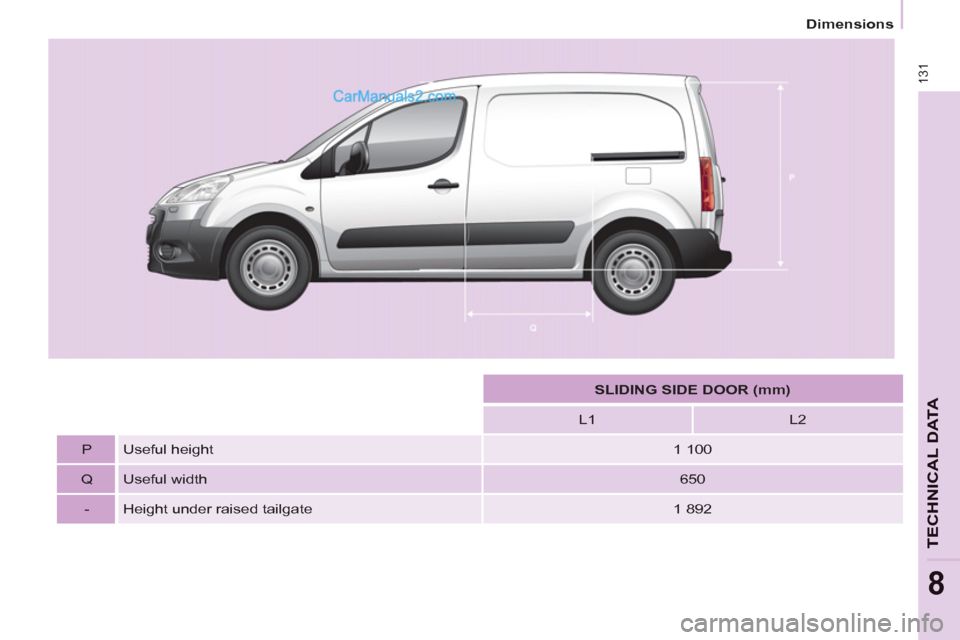

SLIDING SIDE DOOR (mm)



L1
L2

P
Useful height
1 100

Q
Useful width
650

-
Height under raised tailgate
1 892

132


Dimensions

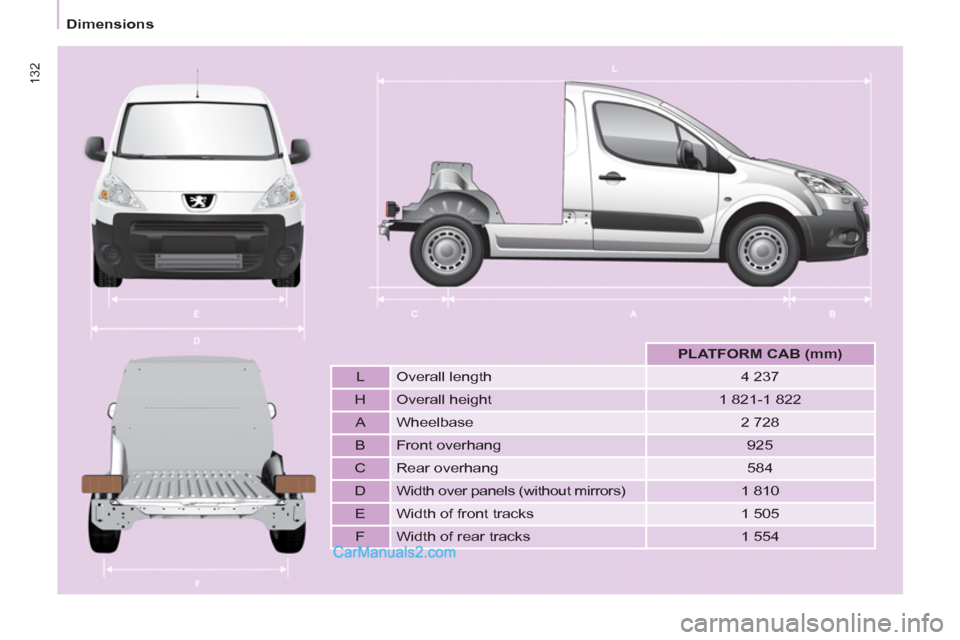

PLATFORM CAB (mm)



L Overall length
4 237

H Overall height
1 821-1 822

A Wheelbase
2 728

B Front overhang
925

C Rear overhang
584

D Width over panels (without mirrors)
1 810

E Width of front tracks
1 505

F Width of rear tracks
1 554
