2011 Peugeot 308 CC key

6
96

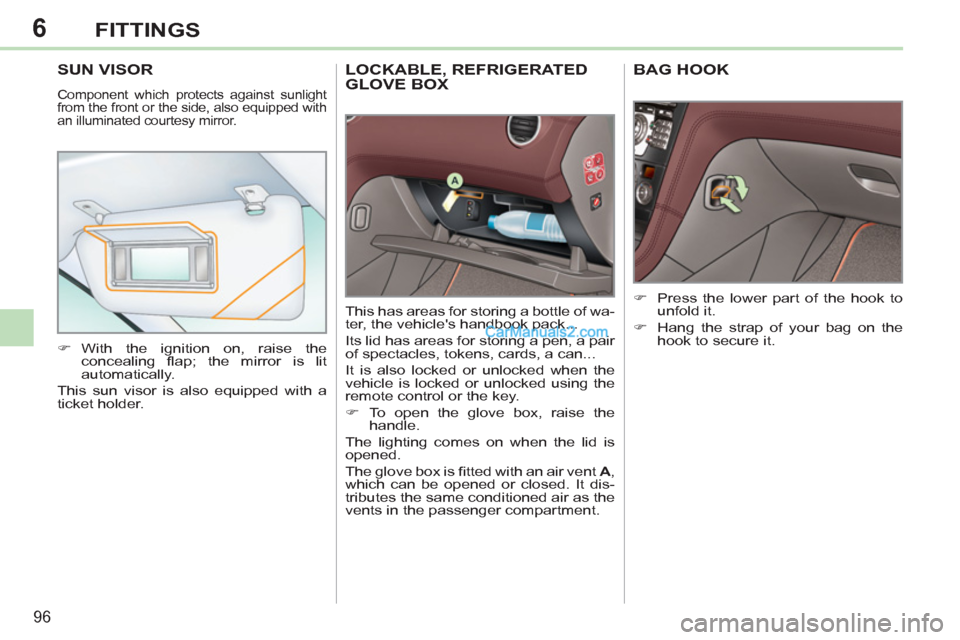

FITTINGS





LOCKABLE, REFRIGERATED
GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.


)
To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A
,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.








SUN VISOR

Component which protects against sunlight
from the front or the side, also equipped with
an illuminated courtesy mirror.


)
With the ignition on, raise the
concealing fl ap; the mirror is lit
automatically.
This sun visor is also equipped with a
ticket holder.
BAG HOOK



)
Press the lower part of the hook to
unfold it.

)
Hang the strap of your bag on the
hook to secure it.

6
97
FITTINGS








LOCKABLE FRONT ARMREST

Comfort and storage device for the driver
and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key.

Storage

It can hold up to 6 CDs.


)
Raise the lever 1
.

)
Raise the lid fully.


)
Slide the lid fully forwards or rear-
wards.



)
Raise the lid to the required position
(low, intermediate or high).

)
If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position.



Longitudinal adjustment

Height adjustment











PEUGEOT CONNECT USB


This connection box, consisting of a
USB port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of this
equipment, refer to the "Peugeot Connect
Media" or "Peugeot Connect Sound" part
of the "Audio and Telematics" section.

7
!
!
111
SAFETY

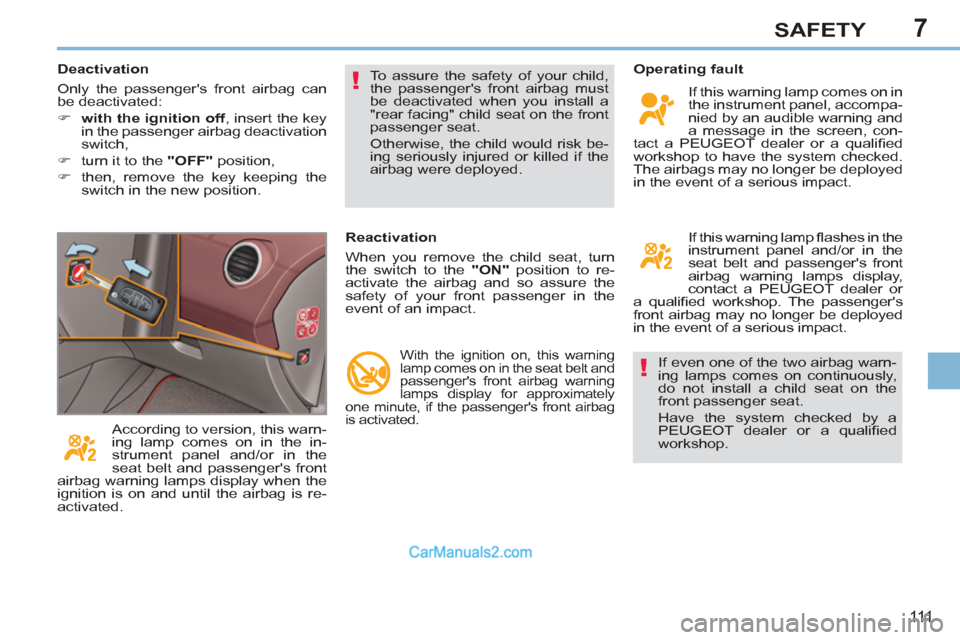

If even one of the two airbag warn-
ing lamps comes on continuously,
do not install a child seat on the
front passenger seat.
Have the system checked by a
PEUGEOT dealer or a qualifi ed
workshop.

Operating fault
If this warning lamp comes on in
the instrument panel, accompa-
nied by an audible warning and
a message in the screen, con-
tact a PEUGEOT dealer or a qualifi ed
workshop to have the system checked.
The airbags may no longer be deployed
in the event of a serious impact.

Reactivation
When you remove the child seat, turn
the switch to the "ON"
position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact. With the ignition on, this warning
lamp comes on in the seat belt and
passenger's front airbag warning
lamps display for approximately
one minute, if the passenger's front airbag
is activated.

To assure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear facing" child seat on the front
passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were deployed.
According to version, this warn-
ing lamp comes on in the in-
strument panel and/or in the
seat belt and passenger's front
airbag warning lamps display when the
ignition is on and until the airbag is re-
activated. If this warning lamp fl ashes in the
instrument panel and/or in the
seat belt and passenger's front
airbag warning lamps display,
contact a PEUGEOT dealer or
a qualifi ed workshop. The passenger's
front airbag may no longer be deployed
in the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:


)
with the ignition off
, insert the key
in the passenger airbag deactivation
switch,

)
turn it to the "OFF"
position,

)
then, remove the key keeping the
switch in the new position.

7
!
11 8
SAFETY

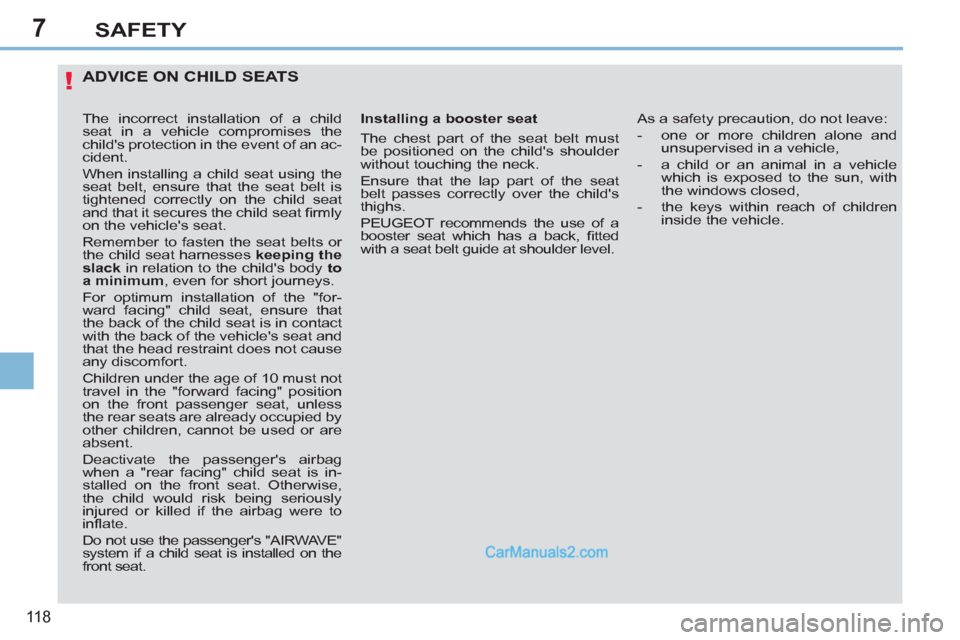

ADVICE ON CHILD SEATS


Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level. As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.

The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the vehicle's seat.
Remember to fasten the seat belts or
the child seat harnesses keeping

the
slack
in relation to the child's body to
a minimum
, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Deactivate the passenger's airbag
when a "rear facing" child seat is in-
stalled on the front seat. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
infl ate.
Do not use the passenger's "AIRWAVE"
system if a child seat is installed on the
front seat.

7
!
i
11 9
SAFETY

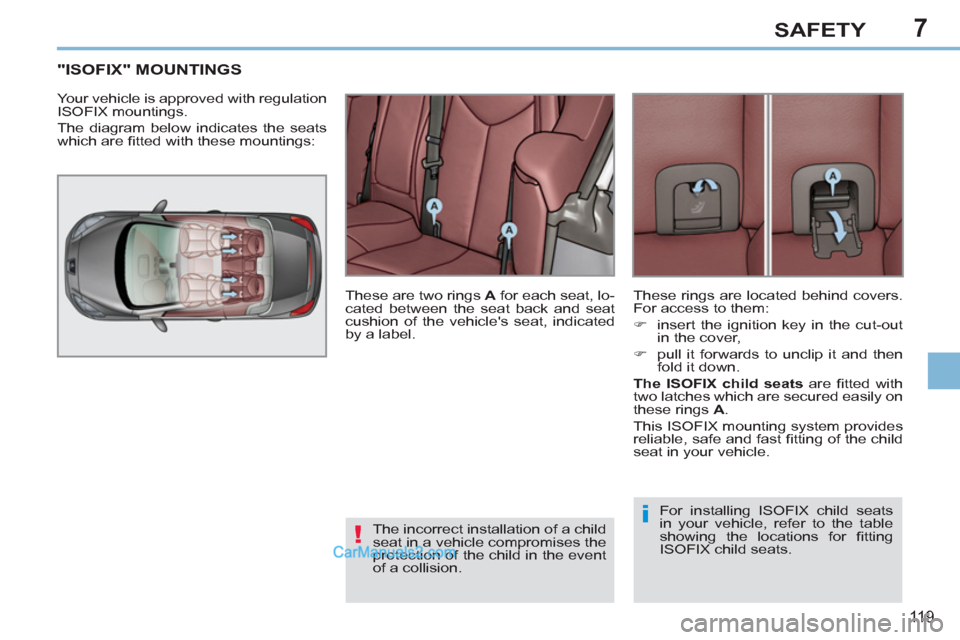

"ISOFIX" MOUNTINGS

Your vehicle is approved with regulation
ISOFIX mountings.
The diagram below indicates the seats
which are fi tted with these mountings:
These are two rings A
for each seat, lo-
cated between the seat back and seat
cushion of the vehicle's seat, indicated
by a label.
The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of a collision. For installing ISOFIX child seats
in your vehicle, refer to the table
showing the locations for fi tting
ISOFIX child seats. These rings are located behind covers.
For access to them:


)
insert the ignition key in the cut-out
in the cover,

)
pull it forwards to unclip it and then
fold it down.

The ISOFIX child seats
are fi tted with
two latches which are secured easily on
these rings A
.
This ISOFIX mounting system provides
reliable, safe and fast fi tting of the child
seat in your vehicle.

8
!
i
i
128
DRIVING








STOP & START

The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, etc...). The engine
restarts automatically - START mode -
as soon as you want to move off. The
restart takes place instantly, quickly and
silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as offering
the comfort of silence when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
A time counter calculates
the sum of the periods in
STOP mode during a jour-
ney. It rests itself to zero
every time the ignition is
switched on with the key. For your comfort when parking,
STOP mode is not available for a
few seconds after coming out of re-
verse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for ex-
ample.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fas-
tened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO"
warning lamp fl ash-
es for a few seconds, then goes
off.

This operation is perfectly normal.



In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.

8
i
i
!
129
DRIVING

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
fully
depress the clutch pedal.
Special cases: START invoked
automatically
For your safety and comfort, START
mode is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO"
warning lamp fl ashes,
then goes off.

This operation is perfectly normal.




Deactivation

If the system has been deactivated
in STOP mode, the engine restarts
immediately. At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message in the screen.

Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp going
off, accompanied by a message in the
screen.
The system is reactivated auto-
matically at every new start using
the key. With a manual gearbox in STOP
mode, if a gear is engaged without
fully depressing the clutch pedal, a
message is displayed asking you
to depress the clutch pedal to re-
start the engine.

8
!
!
130
DRIVING

Operating fault

In the event of a malfunction with the
system, the "ECO OFF"
switch warning
lamp fl ashes, then comes on continu-
ously.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then neces-
sary to switch off the ignition and start
the engine again using the key.


Maintenance

Before working under the bonnet,
deactivate the Stop & Start system
to avoid any risk of injury resulting
from automatic operation of START
mode.
This system requires a battery with a
special specifi cation and technology
(reference numbers available from a
PEUGEOT dealer or a qualifi ed work-
shop).
Fitting a battery not listed by
PEUGEOT introduces the risk of mal-
function of the system.
The Stop & Start system makes
use of advanced technology. All
work on this battery must be done
by a PEUGEOT dealer or a quali-
fi ed workshop.
