2011 Peugeot 308 CC key

271
06
1
2
3
4
5
6
7
8
9
10

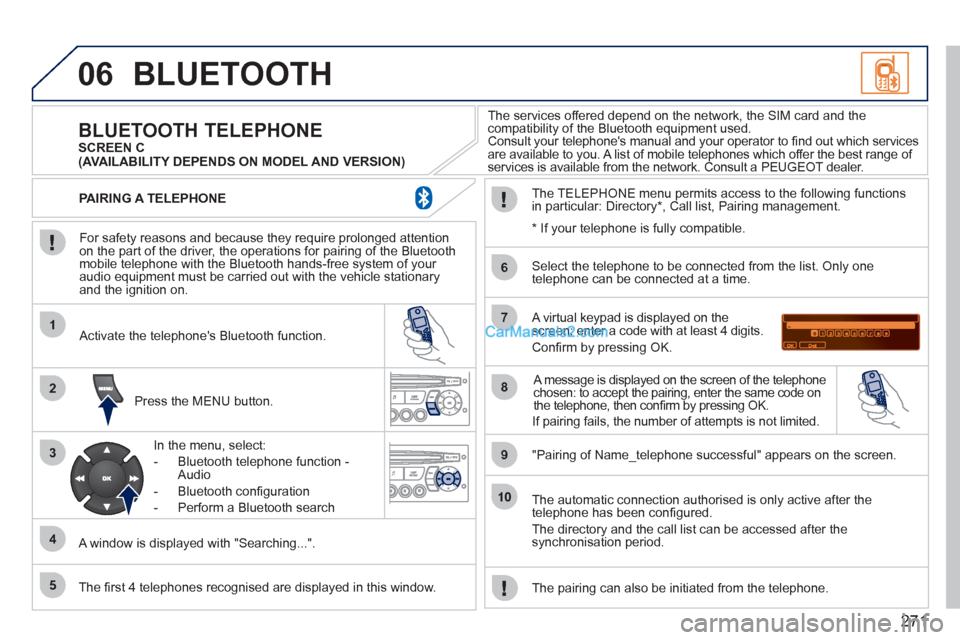

BLUETOOTH


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function -
Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services
are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.

The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the telephone
chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.
PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.
(AVAILABILITY DEPENDS ON MODEL AND VERSION)

* If your telephone is fully compatible.

If pairing fails, the number of attempts is not limited.

272
06
1
2
1
2
1
2
3

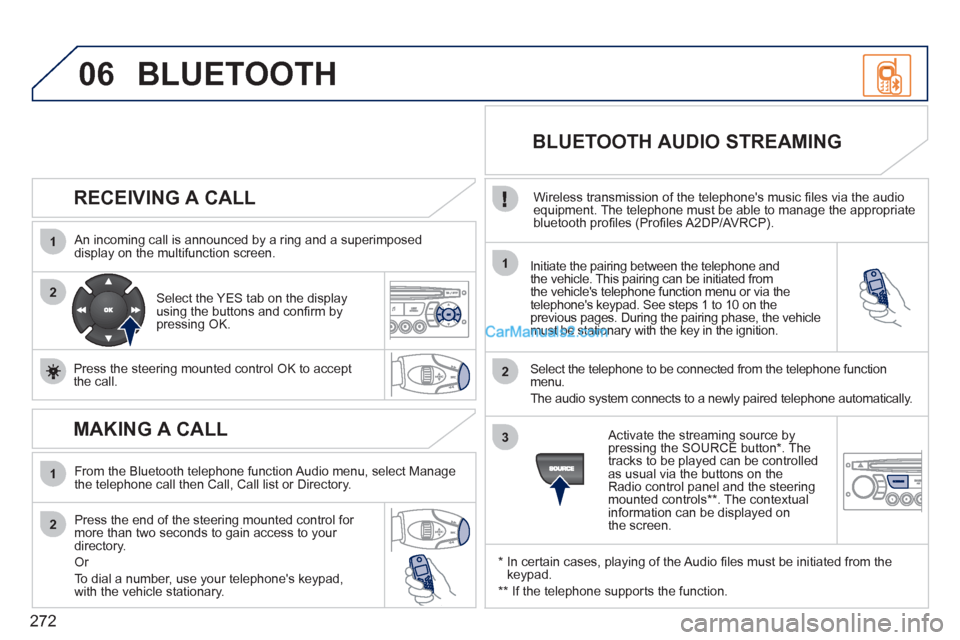

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*
In certain cases, playing of the Audio fi les must be initiated from the
keypad.

** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the
Radio control panel and the steering
mounted controls ** . The contextual
information can be displayed on
the screen.


BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

279
VISUAL SEARCH
EXTERIOR


Boot ...................................... 80, 82
Temporary tyre repair kit ....146-150
Changing a wheel ..............151-154


- tools

- removing/refi tting


Changing bulbs..................158-159


- rear lamps

- 3rd brake lamp

- number plate lamps

Parking sensors .................135-136
Towbar ...................................... 171
Towing ...............................169-170
Remote control key................70-74


- opening/closing

- unlocking/partial opening of the
boot

- anti-theft protection

- starting

- battery


Accessories .......................172-173
Retractable roof .........................6-7

Fuel tank ................................83-84
Door mirrors ...........................67-68
Side spotlamps ................... 89, 157

Doors .....................................79-81


- opening/closing

- central locking

- emergency locking
Alarm .....................................75-76
Electric windows ....................77-78
Lighting controls ....................85-89
Directional lighting ...................... 90
Headlamp height adjustment....89-90
Changing bulbs..................155-157


- front lamps

- foglamps

- direction indicator repeaters



Braking assistance ................... 104
Trajectory control ...................... 105
Tyre under-inflation detection ... 103
Tyre pressures .................. 150, 179

285
ALPHABETICAL INDEX
Oil filter ........................................... 144
Oil level ..................................... 37, 142
Opening the bonnet ........................ 138
Opening the boot ........................ 70, 82
Opening the doors ................ 70, 79, 81
Opening the retractable roof .............. 6
Opening the retractable screen ........ 49
Opening the windows ....................... 77
Operation indicator lamps ........... 26-35 Main beam ........................ 85, 155, 156
Manual gearbox ......122, 123, 128, 145
Manufacturer's
identification plates ..................... 179
Map reading lamps ........................... 93
Markings, identification ................... 179
Mat.................................................... 98
Menu, main ..................................... 264
Mini fuel level.................................... 83
Misfuel prevention ............................ 84 Labels, identification ....................... 179
Lamps, warning
and indicator ............................ 26-35
Lateral airbags ........................ 112, 113 Inflating accessories
(using the kit) ............................. 150
Inflating tyres .................................... 21
Inputs for
audio system .............. 212, 248, 270
Instrument panel lighting .................. 41
Instrument panels ........................ 22-24
Instrument panel screen .............. 22-25
Interior fittings ................................... 95
Interior mood lighting ........................ 94
ISOFIX child seats.................. 120, 121
ISOFIX mountings .......................... 119
Keeping children
safe ..................... 109, 111, 114-121
Key in ignition warning ..................... 72
Key with remote control ............... 70-74Navigation............................... 196, 235
Neck heater ...................................... 65
Neck heater control .......................... 65
Number plate lamps ....................... 158
J
K
L
N
M
OJack ................................................ 151
Jukebox (copy) ............................... 210
Jukebox (playing) ........................... 211LED lamps ........................................ 87
Level, brake fluid ............................ 142
Level, headlamp wash.............. 92, 143
Level, power steering fluid ............. 142
Levels and checks ................... 140-143
Lighting, guide-me home ............ 87, 88
Lighting, interior .......................... 93, 94
Lighting bulbs (replacement) ... 155-159
Lighting dimmer ................................ 41
Lighting stalk .................................... 85
Loading ............................................. 20
Load reduction mode...................... 168
Locating your vehicle........................ 72
Locking from the inside .................... 80
Locking the boot ............................... 82
Luggage retaining net..................... 100
Luggage retaining strap.................... 99Monochrome screen ............... 264, 274
Mountings for ISOFIX seats ........... 119
MP3 CD .......................... 208, 247, 267
Multifunction screen (with audio
equipment) .................42, 45, 47, 49
Music media players....... 208, 246, 266
Paint colour code............................ 179
Parking brake ......................... 122, 145
Particle emission filter ............ 143, 144
P
