4
i
i
77
ACCESS
The rear windows do not have an
automatic mode or safety anti-
pinch function for closing.
Approximately 45 seconds after re-
moving the ignition key or opening
a door none of the windows can be
opened or closed. The ignition must
be switched back on in order to
open or close the windows.
ELECTRIC WINDOW
CONTROLS
Fitted with an anti-pinch system on the
front windows and a system which con-
trols all four windows on all models.
1.
Driver's electric window switch.
2.
Passenger's electric window switch.
3.
Rear right electric window switch.
4.
Rear left electric window switch.
5.
Deactivation of the rear electric
window switches.
If the window opens unintentionally
when closing is requested (for ex-
ample, in the presence of ice):
)
press the switch until the win-
dow opens completely,
)
then pull the switch immediately
until the window closes,
)
continue to pull the switch for
approximately three seconds
after the window has closed.
The safety anti-pinch function is
not active during these operations.
Front windows safety anti-pinch
In automatic mode, when the front win-
dow rises and meets and obstacle it
stops and partially lowers again.
- automatic mode
)
Press or pull switch 1
fully. The win-
dow opens or closes completely
when the switch is released.
)
Pressing the switch again stops the
movement of the window.
One-touch electric windows
You have two options:
- manual mode
)
Press or pull switch 1
gently. The
window stops as soon as the switch
is released.
Deactivation of the rear electric
window controls
)
For the safety of your children, press
switch 5
to deactivate the rear elec-
tric window switches regardless of
their position.
When the indicator lamp is on, the rear
switches are deactivated.
When the indicator lamp is off, the rear
switches are activated.
Page 80 of 292
4
!
i
i
78
ACCESS
This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows
Switch for all four windows
This switch opens or closes all of the
windows at once. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows. For each of the controls on
the control pad on the driver's side:
)
release the switch and pull it again
until it closes completely,
)
hold the switch for approximately
three seconds after closing,
)
press the switch to lower the window
automatically,
)
when the window has reached the
low position, press the switch again
for approximately one second.
The safety anti-pinch function is not
active during these operations.
)
Press switch 6
and release it. The
windows open completely.
)
Pressing the switch again stops the
movement of the windows.
or
)
Pull switch 6
and hold it in this posi-
tion. The windows close completely.
)
If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver.

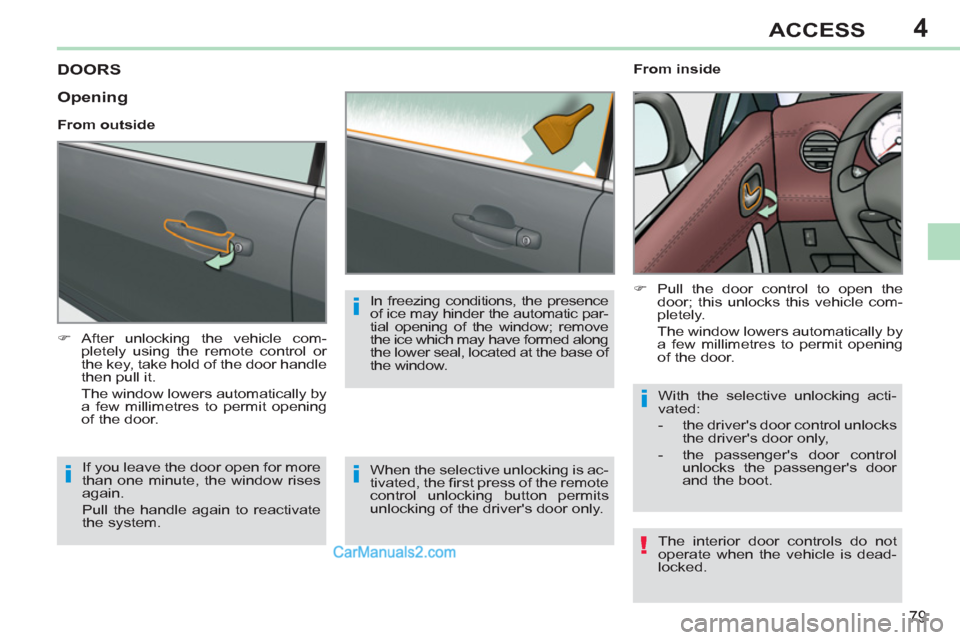

Page 81 of 292
4
!
i
i
i
i
79
ACCESS
DOORS
)
After unlocking the vehicle com-
pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by
a few millimetres to permit opening
of the door.
From inside
)
Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by
a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked. If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the passenger's door control
unlocks the passenger's door
and the boot.
In freezing conditions, the presence
of ice may hinder the automatic par-
tial opening of the window; remove
the ice which may have formed along
the lower seal, located at the base of
the window.

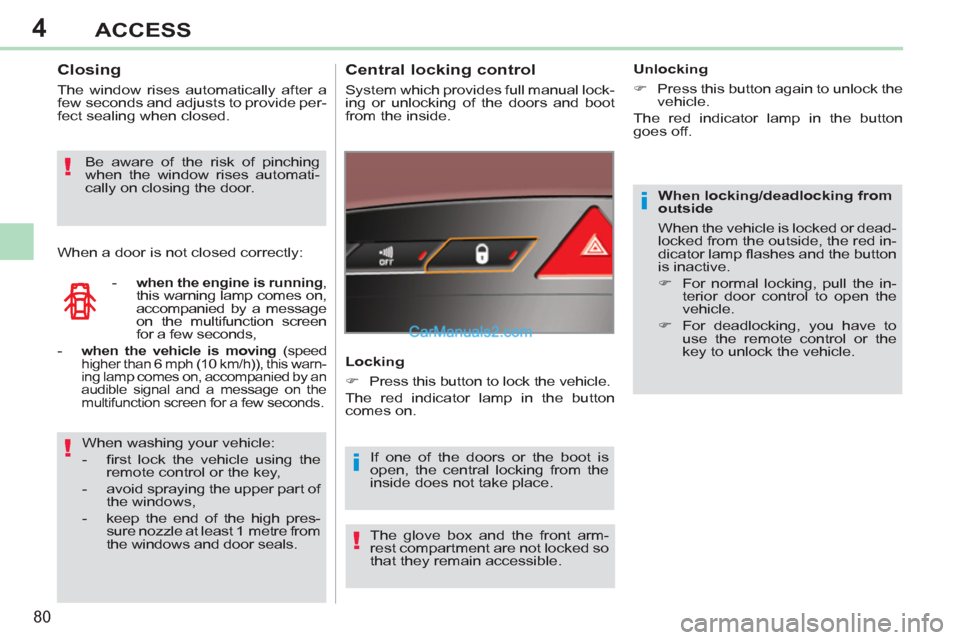

Page 82 of 292
4
i
i!
!
!
80
ACCESS
When locking/deadlocking from
outside
When the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and the button
is inactive.
)
For normal locking, pull the in-
terior door control to open the
vehicle.
)
For deadlocking, you have to
use the remote control or the
key to unlock the vehicle.
Central locking control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
If one of the doors or the boot is
open, the central locking from the
inside does not take place.
Unlocking
)
Press this button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
Closing
The window rises automatically after a
few seconds and adjusts to provide per-
fect sealing when closed.
-
when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving
(speed
higher than 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
When washing your vehicle:
- fi rst lock the vehicle using the
remote control or the key,
- avoid spraying the upper part of
the windows,
- keep the end of the high pres-
sure nozzle at least 1 metre from
the windows and door seals.
When a door is not closed correctly: Be aware of the risk of pinching
when the window rises automati-
cally on closing the door.
The glove box and the front arm-
rest compartment are not locked so
that they remain accessible.
Page 83 of 292
4
!
81
ACCESS
Activation
)
Press this button for more than
two seconds.
A confi rmation message appears in the
multifunction screen.
Deactivation
)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen.
Emergency locking
To lock or unlock the doors mechani-
cally in the event of a central locking
system failure or fl at battery.
)
Using the key, remove the black cap
on the edge of the door.
)
Insert the key in the cavity without
forcing, then without turning it, move
the the latch sideways towards the
interior of the door.
)
Remove the key and refi t the cap.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door
)
Pull the interior door opening control.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.
Anti-intrusion security
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this function.
Unlocking
)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock au-
tomatically.

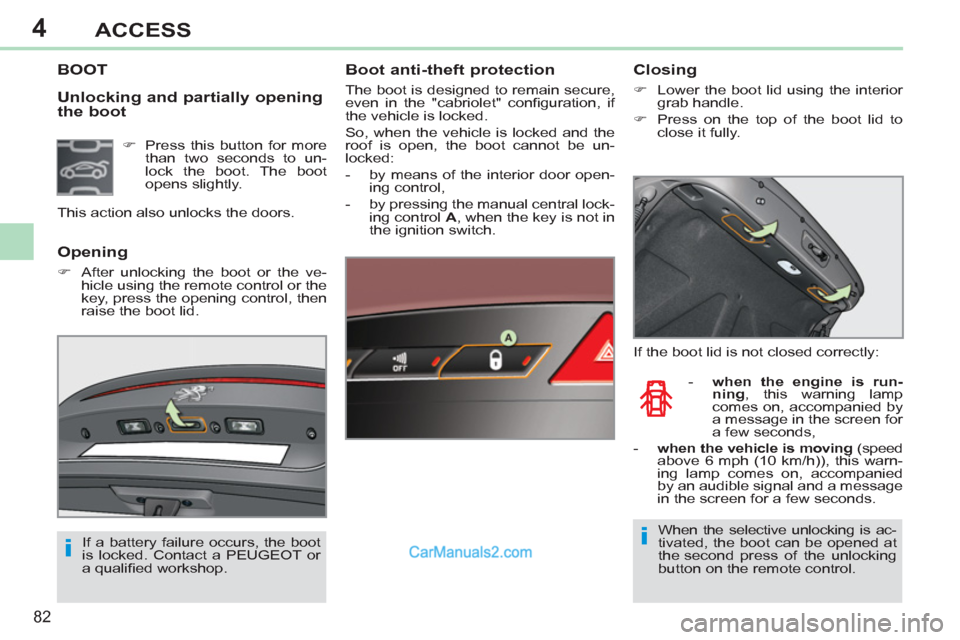

Page 84 of 292
4
ii
82
ACCESS
Unlocking and partially opening
the boot
BOOT
Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration, if
the vehicle is locked.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open-
ing control,
- by pressing the manual central lock-
ing control A
, when the key is not in
the ignition switch.
Opening
)
After unlocking the boot or the ve-
hicle using the remote control or the
key, press the opening control, then
raise the boot lid.
When the selective unlocking is ac-
tivated, the boot can be opened at
the second press of the unlocking
button on the remote control.
)
Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Contact a PEUGEOT or
a qualifi ed workshop.
Closing
)
Lower the boot lid using the interior
grab handle.
)
Press on the top of the boot lid to
close it fully.
If the boot lid is not closed correctly:
- when the engine is run-
ning
, this warning lamp
comes on, accompanied by
a message in the screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the screen for a few seconds.
Page 85 of 292
4
i
!
83
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an in-
rush of air. This vacuum, which is
completely normal, is caused by
the sealing of the fuel system.
FUEL TANK
Capacity of the tank: approximately
60 litres.
To fi ll the tank safely:
)
the engine must be switched off,
)
open the fuel fi ller fl ap,
)
insert the key in the cap, then turn it
to the left,
When refuelling is complete:
)
put the cap back in place,
)
turn the key to the right, then remove
it from the cap,
)
close the fi ller fl ap.
)
remove the cap and secure it on the
hook, located on the inside of the
fl ap,
)
fi ll the tank, but do not continue af-
ter the 3rd cut-off of the nozzle
;
this could cause malfunctions.
Low fuel level
Refuelling
A label affi xed to the inside of the fi ller
fl ap reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this warning lamp
comes on in the instrument pan-
el, accompanied by an audible
signal and a message in the multifunc-
tion screen. When the lamp fi rst comes
on, there is approximately
6 litres
of
fuel remaining.
Until suffi cient fuel has been added, this
warning lamp appears every time the
ignition is switched on, accompanied by
an audible signal and a message. When
driving, this audible signal and message
are repeated with increasing frequency,
as the fuel level drops towards "0"
.
You must refuel to avoid running out of
fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Operating fault
A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
gauge needle.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
With Stop & Start, never refuel with
the system in STOP mode; you
must switch off the ignition with the
key.
Page 95 of 292
5
i
i
93
VISIBILITY
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
To maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using
soapy water,
- avoid using them to retain card-
board on the windscreen,
- replace them at the fi rst signs of
wear.
COURTESY LAMPS
1.
Front courtesy lamp
2.
Map reading lamp
3.
Rear courtesy lamp
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
